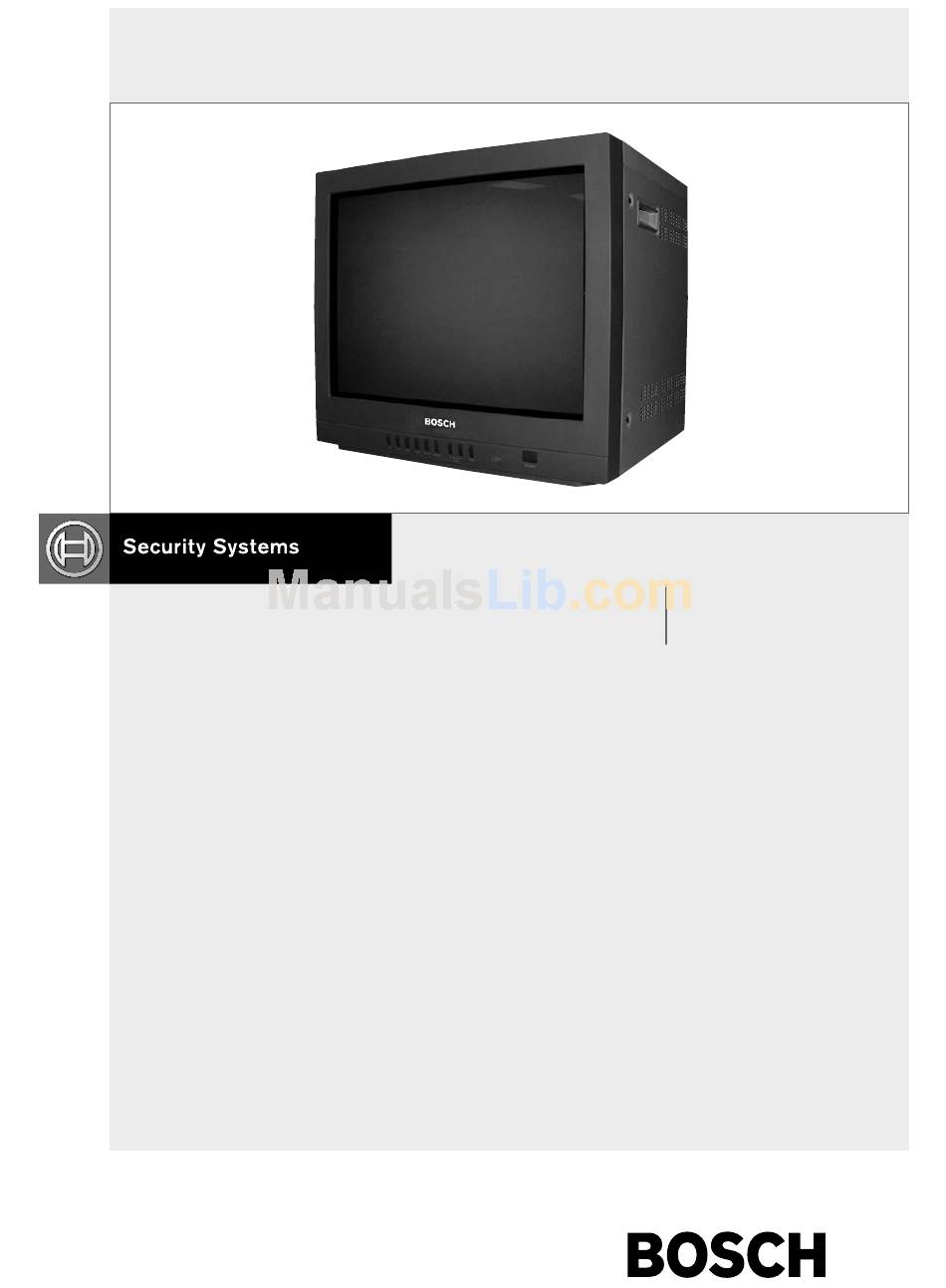

- Page 1 LTC 2821/91 Instruction Manual EN 21-inch Color Monitor...
-
Page 2: Important Safeguards
LTC 2821/91 | Instruction Manual | Important Safeguards Important Safeguards 1. Read Instructions - All safety and operating instructions should be read before the unit is operated. 2.Retain Instructions - The safety and operating instructions should be retained for future reference. -
Page 3: Fcc Information
LTC 2821/91 | Instruction Manual | FCC Information 17. Damage Requiring Service - Unplug the unit from the outlet and refer servicing to qualified service personnel under the following conditions: a. When the power supply cord or plug is damaged. -
Page 4: Safety Precautions
LTC 2821/91 | Instruction Manual | Safety Precautions Safety Precautions CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with an arrowhead... - Page 5 LTC 2821/91 | Instruction Manual | Safety Precautions Sicherheitshinweise VORSICHT: DAS GEHÄUSE ZUR VERMEIDUNG VON ELEKTRISCHEN SCHLÄGEN NICHT ÖFFNEN. DAS GERÄT ENTHÄLT KEINE VOM BENUTZER ZU WARTENDEN TEILE. REPARATUREN NUR VON FACHPERSONAL AUSFÜHREN LASSEN. Das Blitzsymbol im gleichseitigen Dreieck soll den Benutzer auf nicht isolierte “gefährliche Spannung”...
- Page 6 LTC 2821/91 | Instruction Manual | Safety Precautions Veiligheidsmaatregelen GEVAAR: OPEN DEZE BEHUIZING NIET, TENEINDE HET RISICO VAN ELEKTRISCHE SCHOKKEN TE VOORKOMEN. BINNENIN BEVINDEN ZICH GEEN DOOR DE GEBRUIKER TE REPAREREN ONDERDELEN. RAADPLEEG VOOR REPARATIE GEKWALIFICEERD SERVICEPERSONEEL. Het symbool van een bliksem met pijlpunt...
- Page 7 LTC 2821/91 | Instruction Manual | Safety Precautions Medidas de Segurança CUIDADO: PARA REDUZIR O RISCO DE CHOQUE ELÉCTRICO, NÃO ABRA AS TAMPAS. O INTERIOR NÃO CONTÉM PEÇAS QUE NECESSITEM DE MANUTENÇÃO. A MANUTENÇÃO DEVE SER EFECTUADA POR PESSOAL DE ASSISTÊNCIA TÉCNICA QUALIFICADO.
-
Page 8: Table Of Contents
It is attractively styled and accepts both NTSC and PAL formats. INSTALLATION Power The LTC 2821/91 operates from 90 to 260 VAC, 50/60 Hz power sources. Power consumption is 90 watts. Mounting This unit is supplied as a desktop unit. -
Page 9: Controls & Connections
LTC 2821/91 | Instruction Manual | Controls & Connections CONTROLS & CONNECTIONS Front Panel See FIGURE 1 for location of controls and LED Indicator. POWER Selects power ON or OFF. R: VIDEO A G: VIDEO B O: VCR Combination Red, Green, Orange LED Indicator. -
Page 10: Rear Panel
LTC 2821/91 | Instruction Manual | Controls & Connections Rear Panel See FIGURE 2 for location of rear panel connectors. VIDEO LINE VIDEO A IN/OUT IN: Video signal input terminal. OUT: Passive loop-through video signal output terminal (auto termination). NOTE: For corresponding audio signal, use the AUDIO A terminals. -
Page 11: Operation
LTC 2821/91 | Instruction Manual | Operation OPERATION Basic Operation Press the Power switch to turn on the power. When the power is ON, the video selector indicator is lit. When the power is OFF, the video selector indicator is unlit. - Page 12 Bosch Security Systems, Inc. 850 Greenfield Road Lancaster, PA 17601 EE.UU. Tel: 800-326-3270 Fax: 1-717-735-6560 www.boschsecuritysystems.com © 2003 Bosch Security Systems GmbH 3935 890 47211 03-47 | Updated November 17, 2003 | Data subject to change without notice. Robert Bosch GmbH Geschäftsbereich Postfach 10 60 50 70049 Stuttgart...
