2.4 Securing mounting skirt in enclosure
Complete the installation by resting the hook tabs on the mounting plate
hooks within the enclosure. Secure the lock-down tab to the plate mounting
hole with the screw provided in this kit. Refer to Figure 1.1 and Figure 2.3.
Figure 2.3: Universal enclosure
Callout
Description
1
Mounting plate hooks
2
Plate mounting hole
3 Specifi cations
Dimensions
(HxWxD) 9.25 in x 8.63 in x .5 in (23.5 cm x 21.92 cm x 1.27 cm)
Reading Bosch Security Systems, Inc. Product Date Codes
For Product Date Code information, refer to the Bosch Security Systems, Inc.
Web site at: http://www.boschsecurity.com/datecodes/.
© 2013 Bosch Security Systems, Inc. 130 Perinton Parkway Fairport, NY 14450
1
1
2

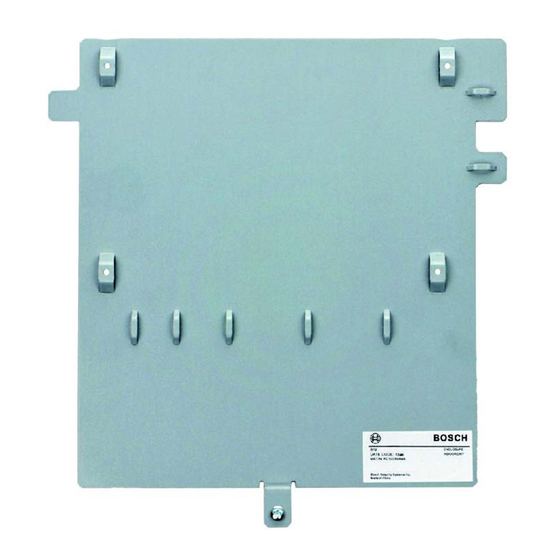

Mounting Plate for D8103
B12
en Installation Guide
