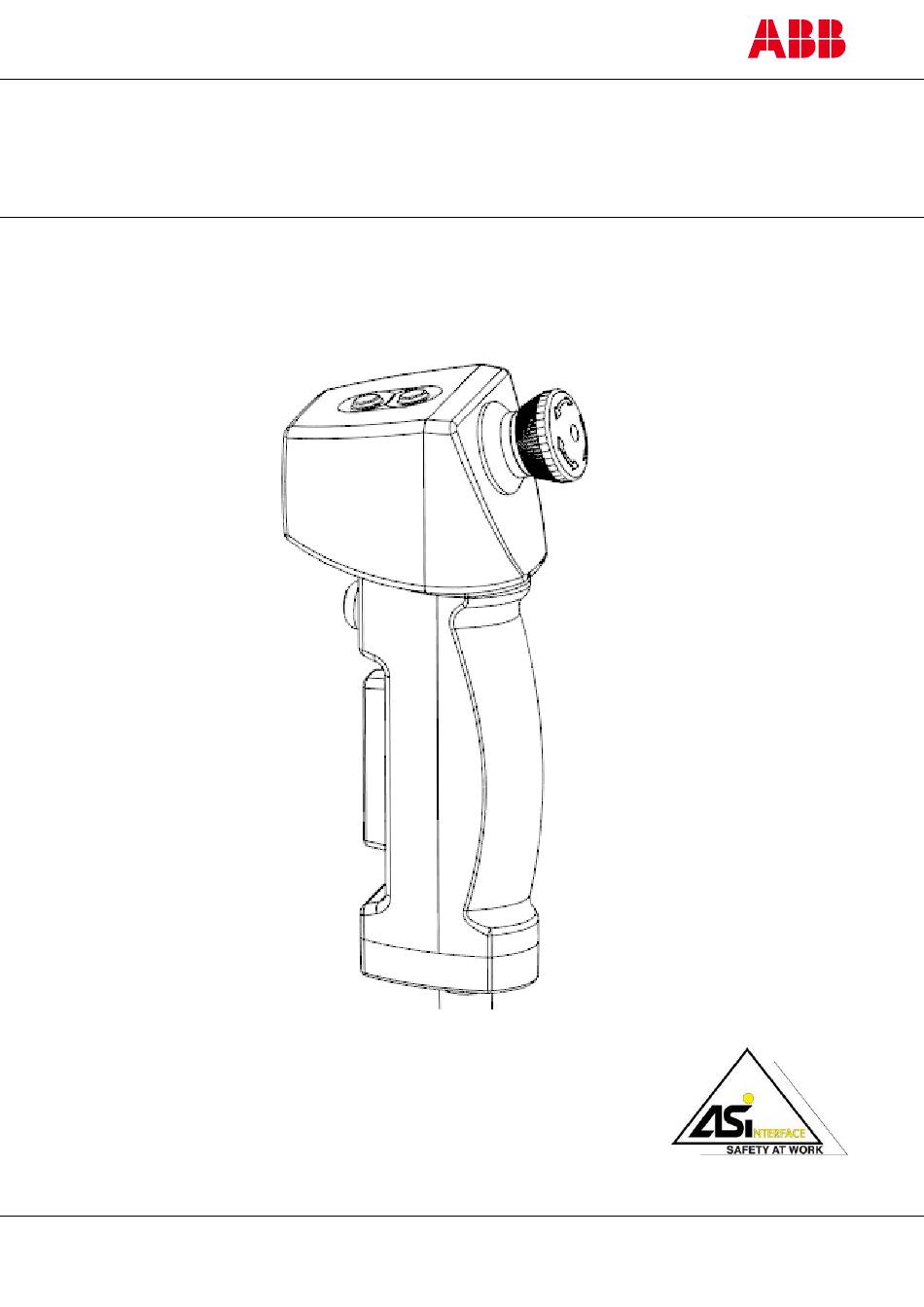

  • Page 1 Original instructions HD5-B-xxx Three position enabling device with safe AS-i slave ABB AB JOKAB SAFETY, Varlabersvägen 11, SE-43439 Kungsbacka www.abb.com/lowvoltage...
  • Page 2: Limitation Of Liability

    The performance data contained in this document is to provide the user with guidance when assessing usability and does not constitute a warranty-related assurance. The data may relate to test results from ABB JOKAB SAFETY. The user must compare this with the actual situation in which the application is taking place. The current performance is covered by the ABB JOKAB SAFETY warranty and limitations of liability.
  • Page 3: Table Of Contents

    HREE POSITION ENABLING SWITCH ................................17 MERGENCY STOP BUTTON 4 ................................18 DDITIONAL BUTTONS ....................................18 IGNAL ................................18 OME POSITION DETECTOR ) ................................18 SSIST LIGHT FLASHLIGHT MODEL OVERVIEW ............................... 19 ................................19 TANDARD VERSIONS 2CDC172107D0201 www.abb.com/lowvoltage 2019-09-06 V2.6...
  • Page 4 , “HD5-M-002“..............................21 ASSIVE HOLDER TECHNICAL DATA ..............................22 ....................................25 I DATA HD5-B- ................................25 VERSIONS DIMENSIONS ................................26 ................................26 POSITION ENABLING DEVICE ................................26 EVICE SPECIFIED OLDER EC DECLARATION OF CONFORMITY .......................... 27 2CDC172107D0201 www.abb.com/lowvoltage 2019-09-06 V2.6...
  • Page 5: Introduction

    Prerequisites It is assumed that the reader of this document has the following knowledge: • Basic knowledge of ABB JOKAB SAFETY products • Knowledge of the AS-i Bus system •...
  • Page 6: Overview

    If you have any questions regarding the existing configurations or the possibilities for a configuration adapted to your needs, please contact ABB JOKAB SAFETY. Application area The enabling device is used in machines and facilities to provide protection to people, who, because of their work (e.g.
  • Page 7: Safety Regulations

    (evaluate the signals) of the enabling device, allowing the product to be used the specified way. All liability is excluded if the instructions are not complied with, especially in cases of interference with or modifications to the product. 2CDC172107D0201 www.abb.com/lowvoltage 2019-09-06 V2.6...
  • Page 8: Functional Description

    When released, the three-position enabling switches always go back to position 1, regardless of whether they were in position 2 or 3. Notice on operation To ensure a correct and safe operation, the enabling button must be pressed in the middle with two fingers three fingers 2CDC172107D0201 www.abb.com/lowvoltage 2019-09-06 V2.6...
  • Page 9: Emergency Stop Button (Optional)

    • If it is possible to remove emergency stop buttons (e.g. portable programming devices) or shut down sections of a machine, it must be ensured that operational and non-operational emergency stop buttons are not mixed up. 2CDC172107D0201 www.abb.com/lowvoltage 2019-09-06 V2.6...
  • Page 10 The controls for the feedback LED are independent from the emergency stop button function. The programmer is solely responsible for their signaling function. ABB JOKAB Safety does not accept any liability for damages of any kind caused by signaling that is not logical, and the resulting misjudgments and errors by users.
  • Page 11: Additional Button N O . 1

    Additional buttons No. 3 and No. 4 (optional) These buttons are installed on the grey housing. They can be controlled in a user-defined way via the AS-i Bus. Additional labelling of the buttons is an option for custom configurations. 2CDC172107D0201 www.abb.com/lowvoltage 2019-09-06 V2.6...
  • Page 12: Signal Led

    Avoid looking directly into the lens of the assist light. Looking directly into the lens, and the glare effect which may result from this, can sometimes impair vision, which may cause irritation, adverse effects, or even accidents. 2CDC172107D0201 www.abb.com/lowvoltage 2019-09-06 V2.6...
  • Page 13: Status Led For As-I Bus

    Connection with AS-i-Network Connecting the enabling device with integrated AS-i technology, as described in the data sheet enclosed with the product (and available from ABB under the following link). Pluggable In this connector version, an M12 connector with A-coding is built into the base of the enabling device. The benefit of this version is that it is easy to switch the enabling device, e.g.
  • Page 14: Installation

    At mounting the specific holder “HD5-M-xxx” please ensure that the enabling device is hang up completely in the holder. The position should be selected in view of ergonomic and safety relevant aspects. More Information in Section 10 “Accessories” 2CDC172107D0201 www.abb.com/lowvoltage 2019-09-06 V2.6...
  • Page 15: Commissioning

    Functional Test At first commissioning after installation, a functional test based on the application case must be carried out in accordance with current guidelines for the case of application and the relevant harmonized standards. 2CDC172107D0201 www.abb.com/lowvoltage 2019-09-06 V2.6...
  • Page 16: Review, Maintenance And Cleaning

    Please get in touch with your regular contact for maintenance work or your nearest ABB JOKAB SAFETY customer service or dealer. Do not attempt to repair the product yourself. Any attempt to interfere with the device will result in a loss of warranty. There is also a possibility of the product becoming damaged, affecting its safety and how it functions, which may lead to serious injury.
  • Page 17: Operation

    The feedback LED integrated into the actuator cap of the emergency stop button or the enabling button housing also offers a range of different possibilities for signaling as part of its functions. Attention! You can find further explanations and warnings relating to the below functions in Section 3. “Functional description” 2CDC172107D0201 www.abb.com/lowvoltage 2019-09-06 V2.6...
  • Page 18: Additional Buttons 1 To 4

    This can be turned on in a way that is defined by the user, so that the work areas can light up for a short, selected length of time. Caution! section 3. “Functional description” Please pay attention to the instructions in 2CDC172107D0201 www.abb.com/lowvoltage 2019-09-06 V2.6...
  • Page 19: Model Overview

    HD5-B-xxx enabling device with integrated AS-i technology are described below. It may be possible to produce additional custom solutions after checking feasibility and gaining approval from ABB JOKAB SAFETY. If interested please get in touch with ABB JOKAB SAFETY. Standard ABB versions •...
  • Page 20: Information On Positions

    No. 11, Assist light (flashlight) Feedback LED implemented in case, translucent No.3, additional button 1 No. 1, enabling button integrated into housing No. 9, home position sensor No. 10, ------------------------ No. 12, ------------------------ No. 13, connection 2CDC172107D0201 www.abb.com/lowvoltage 2019-09-06 V2.6...
  • Page 21: Accessories

    • high breaking strength • Resistant to almost all cleaning fluids • Shape created in accordance with hygienic design principles • Type name: HD5-M-002 • Item number: 2TLA920509R0002 2CDC172107D0201 www.abb.com/lowvoltage 2019-09-06 V2.6...
  • Page 22: Technical Data

    11. TECHNICAL DATA Manufacturer Address ABB AB JOKAB SAFETY Varlabergsvägen 11 SE-434 39 Kungsbacka Sweden Power supply Operational voltage 30 VDC, AS-i Bus, tolerance 26 - 31,6 VDC Overall power consumption <150 mA General Protection class IP65 Ambient temperature for during operation -10°C...
  • Page 23 < 43 ms (with setting „Disturbance immunity“) The response times refer exclusively to the AS-i monitor Pluto from the manufacturer ABB. When using an AS-i monitor from another manufacturer, the response times may differ. Further information on the profile and addressing, see chapter "AS-i configuration"...
  • Page 24 2006/42/EC – Machines, 2014/30/EU – EMC, 2011/65/EU – RoHS2, 2015/863-RoHS3 EN ISO 12100-1:2010, EN ISO 13849-1:2015, EN 62061:2015 EN 60204-1:2006 + A1:2009, SILCL 3 PL e, category UL/CSA 60947-5-1 UL/CSA 60947-5-5 only for variants with an E-Stop is included Certificates TÜV Süd AS-International Assoziation 2CDC172107D0201 www.abb.com/lowvoltage 2019-09-06 V2.6...
  • Page 25: As-I Data

    The following bit description relates to functions that are generally possible, and is set out in detail in the data sheet enclosed with the product (or available from ABB), depending on the configuration. ABB versions HD5-B-xxx (up to 12 enabling devices may be used on one AS-i cable)
  • Page 26: Dimensions

    12. Dimensions All the dimensions are given in millimeters (mm) 3-position enabling device Device specified Holder 2CDC172107D0201 www.abb.com/lowvoltage 2019-09-06 V2.6...
  • Page 27: Ec Declaration Of Conformity

    13. EC DECLARATION OF CONFORMITY 2CDC172107D0201 www.abb.com/lowvoltage 2019-09-06 V2.6...
