Page 6
Index ....1227 Taiwan Class A compliance statement . . . 1225 Taiwan BSMI RoHS declaration ..1226 Lenovo System x3650 M5 Installation and Service Guide...
Be sure to read all caution and danger statements in this documentation before you perform the procedures. Read any additional safety information that comes with your system or optional device before you install the device. Statement 1 Lenovo System x3650 M5 Installation and Service Guide...
Page 10
Appareil A Laser de Classe 1 Statement 4 CAUTION: Use safe practices when lifting. ≥ 18 kg (39.7 lb) ≥ 32 kg (70.5 lb) ≥ 55 kg (121.2 lb) Statement 5 viii Lenovo System x3650 M5 Installation and Service Guide...
Page 12
• Always install stabilizer brackets on the rack cabinet. • Always install servers and optional devices starting from the bottom of the rack cabinet. • Always install the heaviest devices in the bottom of the rack cabinet. Lenovo System x3650 M5 Installation and Service Guide...
If you participate in the Lenovo client reference program, you can share information about your use of technology, best practices, and innovative solutions; build a professional network; and gain visibility for your business.
Page 14
You can purchase an optional kit to install the eight additional 2.5-inch hard disk drive bays to a 24-drive- capable model. The following illustration shows a server with twenty-four 2.5-inch hot-swap hard disk drive bays. Lenovo System x3650 M5 Installation and Service Guide...
Page 15
To check for updates, go to http://www.lenovo.com/support Chapter 1 The System x3650 M5 server...
Page 16
Service Information website. The Service Information website provides additional information for parts installation and replacement videos, and error codes for server support. The following illustration shows the QR code ( http://ibm.co/1qD4JX4 Figure 10. QR code Lenovo System x3650 M5 Installation and Service Guide...
For warranty lookup (type, duration, status), go to: http://www.lenovo.com/warranty The Lenovo XClarity Essentials is an online information center that contains information about tools for updating, managing, and deploying firmware, device drivers, and operating systems. The Lenovo XClarity Essentials is at http://sysmgt.lenovofiles.com/help/index.jsp...
Page 18
– Supports up to twenty-six 2.5-inch hot-swap SAS/SATA hard disk drive bays. • 3.5-inch models: – Supports up to eight 3.5-inch simple-swap SAS/SATA hard disk drive bays. – Supports up to fourteen 3.5-inch hot-swap and two 2.5-inch hot-swap SAS/SATA hard disk drive bays. Lenovo System x3650 M5 Installation and Service Guide...
Page 19
– Slot 1: PCI Express 3.0 x16 (full-height, full-length) – Slot 2: Not available – Slot 3: PCI Express 3.0 x8 (full-height, half-length) • Type 4 – Slot 1: PCI Express 3.0 x16 (full-height, full-length) – Slot 2: Not available Chapter 1 The System x3650 M5 server...
Page 20
All measurements are made in accordance with ISO 7779 and reported in conformance with ISO 9296. Actual sound-pressure levels in a given location might exceed the average values stated because of room reflections and other nearby noise sources. The noise Lenovo System x3650 M5 Installation and Service Guide...
Page 21
Heat output: Approximate heat output: • Minimum configuration: 525.45 Btu per hour (AC 154 watts) • Maximum configuration: 6667 Btu per hour (AC 1954 watts) Chapter 1 The System x3650 M5 server...
Page 22
Environment: The Lenovo System x3650 M5 compute node complies with ASHRAE class A3 specifications. Power on: • Temperature: 5°C–40°C (41°F–104°F) up to 950 m (3117 ft). Above 950 m (3117 ft), de-rated maximum air temperature is 1°C (33.8°F) per 175 m (574 ft).
Page 23
Particulate contamination: airborne particulates and reactive gases acting alone or in combination with other environmental factors such as humidity or temperature might pose a risk to the server. For information about the limits for particulates and gases, see “Particulate contamination” on page 1221. Chapter 1 The System x3650 M5 server...
Notes: • If you want to install the rails and a 0U PDU into the same rack, the rack must meet the following height and depth requirements: Lenovo System x3650 M5 Installation and Service Guide...
II (IMM2) event log (as the ASM event log), and the operating-system event logs. You can send the inventory report as a file to Lenovo Support or view the information as a text file or HTML file.
Page 26
Lenovo XClarity Energy Manager is a tool for data center power management. It models the data center physical hierarchy and monitors power and temperature at the server level and the group level. By analyzing power and temperature data, Lenovo XClarity Energy Manager helps you improve business continuity and increase power efficiency.
Page 27
Information website. The Service Information website provides additional information for parts installation and replacement videos, and error codes for server support. For the QR code, see QR code information on page Chapter 1 “The System x3650 M5 server” on page 1. • Multi-core processing The server supports up to two Intel Xeon E5-2600 v4 series multi-core microprocessors.
The SD card can be inserted into the SD adapter. For more information about using the embedded hypervisor, see “Using the embedded hypervisor” on page 59. • Enterprise X-Architecture technology X-Architecture technology combines proven, innovative Lenovo designs to make your Intel-processor- based server powerful, scalable, and reliable. Reliability, availability, and serviceability Three important computer design features are reliability, availability, and serviceability (RAS).
Page 29
(ROM) resident code, locally or over the LAN • Vital product data (VPD) on microprocessors, system board, power supplies, and SAS/SATA (hot-swap hard disk drive or solid state drive) backplane • Wake on LAN capability Chapter 1 The System x3650 M5 server...
CD/DVD drive CD/DVD Bay 0 Hard disk Bay 7 activity LED eject button drive bays Figure 12. 8 hard-disk drive configuration / 16 hard-disk drive configuration 2: with USB connectors and optical drive Lenovo System x3650 M5 Installation and Service Guide...
Page 31
Hard disk drive User information tag Hard disk drive status LED (yellow) activity LED (green) Figure 15. 8 hard-disk drive configuration front view • 12 hard-disk drive configuration front view Chapter 1 The System x3650 M5 server...
The following illustration shows the controls and LEDs on the operator information panel. Operator information panel • Type 1 Power-control button/ Check log LED power-on LED Locator button/ System-error LED locator LED Figure 17. Operator information panel Lenovo System x3650 M5 Installation and Service Guide...
Lit: The server is turned on. • System-locator button/LED: Use this blue LED to visually locate the server among other servers. This LED is also used as a presence detection button. You can use Lenovo XClarity Administrator to light this LED remotely.
Page 34
The following is an example of the information that you will see on the display panel. This example shows the layout of the information in the main menu when the debug feature is enabled. Lenovo System x3650 M5 Installation and Service Guide...
Page 35
• IMM network information: – IMM hostname – IMM dedicated MAC address Note: Only the MAC address that is currently in use is displayed (dedicated or shared) – IMM shared MAC address – IP v4 information Chapter 1 The System x3650 M5 server...
You can use the Setup Utility to configure the server to use a dedicated systems management network or a shared network. See Using the Setup Utility in the Problem Determination and Service Guide for more information. Lenovo System x3650 M5 Installation and Service Guide...
Page 37
• IN OK power LED: Each hot-swap dc power supply has an IN OK power LED. When the IN OK power LED is lit, it indicates that sufficient power is coming into the power supply through the power cord. During Chapter 1 The System x3650 M5 server...
Page 38
Lit: The server is turned on. • System-locator LED: Use this LED to visually locate the server among other servers. You can use Lenovo XClarity Administrator to light this LED remotely.
Figure 27. PCI riser-card adapter expansion slot locations Server components The following illustration shows the major components in the server. The illustrations in this document might differ slightly from your hardware. Chapter 1 The System x3650 M5 server...
Page 40
(Orange can also indicate touch points on hot- swap components.) See the instructions for removing or installing a specific hot-swap component for any additional procedures that you might have to perform before you remove or install the component. Lenovo System x3650 M5 Installation and Service Guide...
Page 41
Optical disk Operator information / backplane backplane backplane drive connector LCD panel connector power / config power / config power / config connector 1 connector 2 connector 3 Figure 29. System-board internal connectors Chapter 1 The System x3650 M5 server...
Page 42
1 connector 2 connector 3 Figure 30. System-board internal connectors: for machine type 8871–AC3 System-board external connectors The following illustrations show the external connectors on the system board. Lenovo System x3650 M5 Installation and Service Guide...
Page 43
Ethernet 3 Ethernet 2 connector connector Ethernet 4 Ethernet 1 Video connector connector connectors connector System management (dedicated) Figure 31. System-board external connectors Chapter 1 The System x3650 M5 server...
Page 44
System management (dedicated) Figure 32. System-board external connectors: for machine type 8871–AC3 System-board optional-device connectors The following illustrations show the connectors on the system board for the optional devices. Lenovo System x3650 M5 Installation and Service Guide...
Page 45
4 Optional PCI riser connector 1 Microprocessor 2 Microprocessor 1 DIMM 1-6 DIMM 19-24 DIMM 7-18 Optical disk Operator information / drive connector LCD panel connector Figure 33. System-board optional-device connectors Chapter 1 The System x3650 M5 server...
Page 46
The following illustrations show the location of the switches, jumpers, and buttons on the server. Note: If there is a clear protective sticker on the top of the switch blocks, you must remove and discard it to access the switches. Lenovo System x3650 M5 Installation and Service Guide...
Page 47
Figure 35. System-board switches, jumpers, and buttons Chapter 1 The System x3650 M5 server...
Page 48
• Pins 2 and 3: Indicates a physical presence to the system TPM. CMOS clear jumper • Pins 1 and 2: Normal (default). • Pins 2 and 3: Clears the real-time clock (RTC) registry. Lenovo System x3650 M5 Installation and Service Guide...
Page 49
You might have to use a pen or the end of a straightened paper clip to press the button. You can also use it to force a blue-screen memory dump (use this button only when you are directed to do so by Lenovo Support). Chapter 1 The System x3650 M5 server...
Page 50
LED error LED Fan 6 Fan 5 Fan 4 Fan 3 Fan 2 Fan 1 error LED error LED error LED error LED error LED error LED Figure 37. System-board LEDs Lenovo System x3650 M5 Installation and Service Guide...
Page 51
The following illustration shows the respective expansion slot connectors. • Riser-card assembly 1 – Type 1 PCI riser card PCI riser-card assembly Slot 1, PCIe x8 Slot 2, PCIe x8 Slot 3, PCIe x8 Figure 39. Type 1 PCI riser card Chapter 1 The System x3650 M5 server...
Page 52
– Type 4 PCI riser card PCI riser-card assembly Slot 1, PCIe x16 Slot 3, ML2 Figure 42. Type 4 PCI riser card • Riser-card assembly 2 – Type 5 PCI riser card Lenovo System x3650 M5 Installation and Service Guide...
Page 53
Lower PCI slot error LED Figure 45. Riser-card assembly LEDs 2.5-inch/3.5-inch simple-swap/hot-swap hard disk drive backplate assemblies and backplanes The following illustration shows the respective 2.5-inch/3.5-inch simple-swap/hot-swap hard disk drive backplate assemblies and backplanes. Chapter 1 The System x3650 M5 server...
Page 54
• 2.5-inch hot-swap hard disk drive backplanes – Type 2 2.5-inch HDD hot-swap backplane Figure 47. Type 2 – Type 3 2.5-inch HDD hot-swap backplane (expander) Figure 48. Type 3 • 3.5-inch simple-swap hard disk drive backplate assembly Lenovo System x3650 M5 Installation and Service Guide...
Page 55
– Type 4 3.5-inch HDD simple-swap backplate (iPASS connector) 3.5-inch HDD simple-swap backplate for RAID card (mini-SAS HD connector) Figure 49. Type 4 • 3.5-inch hot-swap hard disk drive backplanes – Type 5 Chapter 1 The System x3650 M5 server...
LED will blink quickly. Approximately 5 to 10 seconds after the server is connected to power, the power-control button becomes Lenovo System x3650 M5 Installation and Service Guide...
Page 57
The server can be turned off in any of the following ways: • You can turn off the server from the operating system, if your operating system supports this feature. After an orderly shutdown of the operating system, the server will turn off automatically. Chapter 1 The System x3650 M5 server...
Page 58
PCI Express riser-card assembly. Otherwise, the Wake on LAN feature might not work. • The IMM2 can turn off the server as an automatic response to a critical system failure. Lenovo System x3650 M5 Installation and Service Guide...
• Lenovo XClarity Essentials OneCLI Lenovo XClarity Essentials OneCLI is a collection of command line applications that can be used to manage Lenovo servers. Its update application can be used to update firmware and device drivers for your servers.
The SD card can be inserted into the SD adapter. For more information about using the embedded hypervisor, see “Using the embedded hypervisor” on page 59. • Remote presence capability and blue-screen capture Lenovo System x3650 M5 Installation and Service Guide...
You can use the config application and commands to view the current system configuration settings and make changes to Lenovo XClarity Controller and UEFI. The saved configuration information can be used to replicate or restore other systems. For information about configuring the server using Lenovo XClarity Essentials OneCLI, see: http://sysmgt.lenovofiles.com/help/topic/toolsctr_cli_lenovo/onecli_c_settings_info_...
Page 62
Installing your operating system without using ServerGuide Use this information to install the operating system on the server without using ServerGuide. Lenovo System x3650 M5 Installation and Service Guide...
If you have already configured the server hardware and you are not using the ServerGuide program to install your operating system, you can download operating-system installation instructions for the server from https://datacentersupport.lenovo.com/us/en/solutions/server-os Using the Setup Utility Use these instructions to start the Setup Utility.
Page 64
– Legacy Thunk Support Select this choice to enable or disable UEFI to interact with PCI mass storage devices that are non- UEFI compliant. The default is Enable. – Infinite Boot Retry Lenovo System x3650 M5 Installation and Service Guide...
Page 65
Select this choice to enable or disable UEFI to infinitely retry the legacy boot order. The default is Disable. – BBS Boot Select this choice to enable or disable legacy boot in BBS manner. The default is Enable. – Security Select this choice to view or configure Trusted Platform Module (TPM) support.
Page 66
Also, after you complete a repair or correct an error, clear the system-event log to turn off the system-error LED on the front of the server. – POST Event Viewer Lenovo System x3650 M5 Installation and Service Guide...
Select this choice to enter the POST event viewer to view the POST error messages. – System Event Log Select this choice to view the system event log. – Clear System Event Log Select this choice to clear the system event log. •...
• LCD system information display panel (if available) reports errors that occur with fans, power supplies, microprocessor, hard disk drives, and system errors. • Local firmware code flash update • Nonmaskable interrupt (NMI) detection and reporting. • Operating-system failure blue screen capture. Lenovo System x3650 M5 Installation and Service Guide...
UEFI settings, restart the server, identify the server, and perform other management functions. Any standard Telnet client application can access the SOL connection. For more information about IMM, see the Integrated Management Module II User's Guide at http://publib. boulder.ibm.com/infocenter/ systemx/documentation/topic/ com.lenovo.sysx.imm2.doc/ printable_doc. html. Using the remote presence and blue-screen capture features The remote presence and blue-screen capture features are integrated functions of the IMM2.
Page 70
DHCP. If a DHCP host is not available, the IMM2 assigns a static IP address of 192.168.70.125. The IMM2 network access tag provides the default host name of the IMM2 and does not require you to start the server. Lenovo System x3650 M5 Installation and Service Guide...
Step 2. On the Login page, type the user name and password. If you are using the IMM2 for the first time, you can obtain the user name and password from your system administrator. All login attempts are documented in the system-event log. Note: The IMM2 is set initially with a user name of USERID and password of PASSW0RD (with a zero, not the letter O).
Setup Utility menu. If you do not type the administrator password, a limited Setup Utility menu is available. Step 3. Select System Settings ➙ Storage. Lenovo System x3650 M5 Installation and Service Guide...
To manage systems based on the network topology that is implemented in your environment, there are a number of different ways to connect manageable systems to the network and to set up the Lenovo XClarity Administrator. If you plan to use Lenovo XClarity Administrator to manage the server, you must check for the latest applicable Lenovo XClarity Administrator updates.
Page 74
1. Start the solution and press F1 to display the Lenovo XClarity Provisioning Manager system setup interface. 2. From the System Summary page, click Update VPD. 3. Update the UUID. To download Lenovo XClarity Essentials OneCLI, go to the following site: https://datacentersupport.lenovo.com/us/en/solutions/HT116433...
To download Lenovo XClarity Essentials OneCLI, go to the following site: https://datacentersupport.lenovo.com/us/en/solutions/HT116433 Lenovo XClarity Essentials OneCLI sets the DMI in the Lenovo XClarity Controller. Select one of the following methods to access the Lenovo XClarity Controller and set the DMI: •...
Page 76
2. If you do not specify any of these parameters, OneCLI will use the default values. When the default values are used and OneCLI is unable to access the Lenovo XClarity Controller using the online authenticated LAN access method, OneCLI will automatically use the unauthenticated KCS access method.
Page 77
SYSTEM_PROD_DATA.SysInfoProdName <m/t_model> --host <xcc_ip> onecli config set SYSTEM_PROD_DATA.SysInfoSerialNum <s/n> --host <xcc_ip> onecli config set SYSTEM_PROD_DATA.SysEncloseAssetTag <asset_tag> --host <xcc_ip> Step 2. Reset IMM to the factory defaults. Go to https://sysmgt.lenovofiles.com/help/topic/ com.lenovo.systems.management.xcc.doc/NN1ia_c_resettingthexcc.html for more information. Chapter 2 Configuration information and instructions...
Page 78

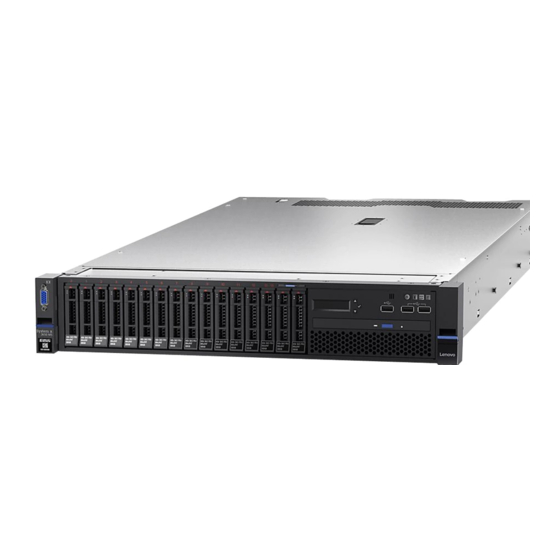

Lenovo System x3650 M5 Installation and Service Guide...
Page 80
In addition, you can use the Lenovo XClarity Essentials Bootable Media Creator to create bootable media that is suitable for applying firmware updates and running preboot diagnostics. For more information about UpdateXpress System Packs, see https://datacentersupport.lenovo.com...
Service bulletins Lenovo continually updates the support website with the latest tips and techniques that you can use to solve problem that you might have with the System x3650 M5 server. To find service bulletins that are available for the System x3650 M5 server, go to http://www.lenovo.com/...
1077. Performing the checkout procedure Use this information to perform the checkout procedure. To perform the checkout procedure, complete the following steps: Step 1. Is the server part of a cluster? Lenovo System x3650 M5 Installation and Service Guide...
Check the power supply LEDs (see “Power-supply LEDs” on page 73). Turn off the server and all external devices. Check all internal and external devices for compatibility at http://www.lenovo.com/ serverproven/ Check all cables and power cords. Set all display controls to the middle positions.
Page 84
4. Memory modules 5. Microprocessors 6. Optical devices (CD or DVD) 7. SAS or SATA drives 8. LSI Controller 9. Broadcom network adapter 10. FusionIO storage 11. Intel GPU 12. Nvidia GPU Lenovo System x3650 M5 Installation and Service Guide...
See “Running the DSA Preboot diagnostic programs” on page 80 for more information on running the DSA Preboot program on the server. • Troubleshooting by symptom These tables list problem symptoms and actions to correct the problems. See “Troubleshooting by symptom”...
Page 86
Replace the power supply. Blinking has failed. DC power-supply LEDs Use this information to view DC power-supply LEDs. The following illustration shows the locations of the power-supply LEDs on the dc power supply. Lenovo System x3650 M5 Installation and Service Guide...
Page 87
Power input LED Power output LED Power error LED Ground -48V return -48V Figure 53. DC power-supply LEDs The following table describes the problems that are indicated by various combinations of the power-supply LEDs on a dc power supply and suggested actions to correct the detected problems. DC power-supply LEDs Error (!) Description...
You can now press the power- control button to power-on the server. 4. If this LED does not blink within 30 seconds of connecting a power source to the server, (trained technician only) replace the system board. Lenovo System x3650 M5 Installation and Service Guide...
PCI riser-card LEDs The following illustration shows the location of the PCI riser-card LEDs. Upper PCI slot error LED Center PCI slot error LED Lower PCI slot error LED Figure 54. PCI riser-card LEDs Event logs Error codes and messages displayed in POST event log, system-event log, IMM2 event log, and DSA event log.
Page 90
If you have installed Lenovo XClarity Essentials OneCLI, you can use it to view the system-event log (as the IPMI event log), or the IMM2 event log (as the Chassis event log), the operating-system event logs, or the merged OneCLI log.
Dynamic System Analysis Dynamic System Analysis (DSA) collects and analyzes system information to aid in diagnosing server problems. Lenovo provides DSA Preboot edition to users. DSA collects the following information about the server: • Drive health information • Event logs for ServeRAID controllers and service processors •...
Page 92
CD, DVD, ISO, USB, or PXE using the Lenovo XClarity Essentials Bootable Media Creator (BoMC). For more details, see the BoMC User Guide . In addition to the capabilities of the other https://support.lenovo.com/ us/en/documents/LNVO-BOMC...
Page 93
• If you are running the DSA interactive menu (CLI), type :x to exit the Execute Tests menu; then, select completed tests to view the results. You can also send the DSA error log to Lenovo support to aid in diagnosing the server problems. Chapter 3...
Automated service request (call home) Lenovo provides tools that can automatically collect and send data or call Lenovo Support when an error is detected. These tools can help Lenovo Support speed up the process of diagnosing problems. The following sections provide information about the call home tools.
• If an action step is preceded by “(Trained technician only),” that step must be performed only by a Trained technician. • Go to the support website at http://www.lenovo.com/support to check for technical information, hints, tips, and new device drivers or to submit a request for information.
2. See “Recovering the server firmware (UEFI update failure)” on page 111 for Setup Utility by pressing F1. more information. Hard disk drive problems Use the troubleshooting tables to find solutions to problems that have identifiable symptoms. Lenovo System x3650 M5 Installation and Service Guide...
Page 97
• If an action step is preceded by “(Trained technician only),” that step must be performed only by a trained technician. • Go to the support website at http://www.lenovo.com/support to check for technical information, hints, tips, and new device drivers or to submit a request for information.
263 and “Replacing a USB embedded hypervisor flash device” on page 263). problem has occurred. 3. See the documentation that comes with the optional embedded hypervisor flash device for setup and configuration information. 4. Make sure that other software works on the server. Lenovo System x3650 M5 Installation and Service Guide...
• If an action step is preceded by “(Trained technician only),” that step must be performed only by a trained technician. • Go to the support website at to check for technical information, hints, tips, http://www.lenovo.com/support and new device drivers or to submit a request for information. Symptom Action A problem occurs only 1.
USB device from the hub and connect it directly to the server. 3. Replace the mouse or USB-device. Memory problems Use the troubleshooting tables to find solutions to problems that have identifiable symptoms. Lenovo System x3650 M5 Installation and Service Guide...
Page 101
• If an action step is preceded by “(Trained technician only),” that step must be performed only by a trained technician. • Go to the support website at http://www.lenovo.com/support to check for technical information, hints, tips, and new device drivers or to submit a request for information.
Some monitors have their own self-tests. If you suspect a problem with your monitor, see the documentation that comes with the monitor for instructions for testing and adjusting the monitor. If you cannot diagnose the problem, call for service. Lenovo System x3650 M5 Installation and Service Guide...
Page 103
• If an action step is preceded by “(Trained technician only),” that step must be performed only by a trained technician. • Go to the support website at http://www.lenovo.com/support to check for technical information, hints, tips, and new device drivers or to submit a request for information.
Monitor cable b. Video adapter (if one is installed) c. Monitor d. (Trained technician only) System board. Network connection problems Use the troubleshooting tables to find solutions to problems that have identifiable symptoms. Lenovo System x3650 M5 Installation and Service Guide...
• If an action step is preceded by “(Trained technician only),” that step must be performed only by a trained technician. • Go to the support website at http://www.lenovo.com/support to check for technical information, hints, tips, and new device drivers or to submit a request for information.
SAS and SATA device before you turn on the server. 4. Reseat the failing device. 5. Replace the failing device. Power problems Use the troubleshooting tables to find solutions to problems that have identifiable symptoms. Lenovo System x3650 M5 Installation and Service Guide...
Page 107
• If an action step is preceded by “(Trained technician only),” that step must be performed only by a trained technician. • Go to the support website at http://www.lenovo.com/support to check for technical information, hints, tips, and new device drivers or to submit a request for information.
Page 108
Replace the defective component. • (Trained technician only) Microprocessor 2 (see “Removing a microprocessor and heat sink” on page 284 and “Replacing a microprocessor and heat sink” on page 289). Lenovo System x3650 M5 Installation and Service Guide...
Page 109
• If an action step is preceded by “(Trained technician only),” that step must be performed only by a trained technician. • Go to the support website at http://www.lenovo.com/support to check for technical information, hints, tips, and new device drivers or to submit a request for information.
Page 110
The Pwr rail G error has been 1. Disconnect the server power cords. recorded in the system event 2. Remove the following components if the Pwr rail G error has been recorded in log. the system event log: Lenovo System x3650 M5 Installation and Service Guide...
Page 111
• If an action step is preceded by “(Trained technician only),” that step must be performed only by a trained technician. • Go to the support website at http://www.lenovo.com/support to check for technical information, hints, tips, and new device drivers or to submit a request for information.
Page 112
Replace the defective component. • Hard disk drive backplane assembly 1 and/or backplane assembly 2 • Hard disk drives at backplane assembly 1 and/or backplane assembly 2 Lenovo System x3650 M5 Installation and Service Guide...
Page 113
• If an action step is preceded by “(Trained technician only),” that step must be performed only by a trained technician. • Go to the support website at http://www.lenovo.com/support to check for technical information, hints, tips, and new device drivers or to submit a request for information.
Page 114
• Optional PCI adaptor power cable (if one is present) • PCI Riser Card Assembly where the optional PCI adaptor power cable- correlated PCI adaptor is installed • Optional PCI adaptor power cable-correlated PCI adaptor Lenovo System x3650 M5 Installation and Service Guide...
• If an action step is preceded by “(Trained technician only),” that step must be performed only by a trained technician. • Go to the support website at http://www.lenovo.com/support to check for technical information, hints, tips, and new device drivers or to submit a request for information.
1. Make sure that the hard disk drive is connected correctly. Manager program cannot view 2. Make sure that the SAS/SATA hard disk drive cables are securely connected. all installed drives, or the operating system cannot be installed. Lenovo System x3650 M5 Installation and Service Guide...
• If an action step is preceded by “(Trained technician only),” that step must be performed only by a trained technician. • Go to the support website at http://www.lenovo.com/support to check for technical information, hints, tips, and new device drivers or to submit a request for information.
Pwr rail, one at a time, in the sequence indicated in Table 7 “ Components associated with power rail errors” on page 107, restarting the server each time, until the cause of the overcurrent condition is identified. Lenovo System x3650 M5 Installation and Service Guide...
Page 119
Table 7. Components associated with power rail errors Pwr rail error in the IMM event log Components Pwr rail A error • Microprocessor 1 Pwr rail B error • DIMMs 1 through 12 Pwr rail C error • Microprocessor 2 Pwr rail D error •...
Page 120
If the server does not start from the minimum configuration, see “Power-supply LEDs” on page 73 to replace the components in the minimum configuration one at a time until the problem is isolated. Lenovo System x3650 M5 Installation and Service Guide...
Solving Ethernet controller problems The method that you use to test the Ethernet controller depends on which operating system you are using. See the operating-system documentation for information about Ethernet controllers, and see the Ethernet controller device-driver readme file. Try the following procedures: Step 1.
– Does the server fail the diagnostic tests? – What occurs? When? Where? – Does the failure occur on a single server or on multiple servers? – Is the failure repeatable? – Has this configuration ever worked? Lenovo System x3650 M5 Installation and Service Guide...
• Diagnostic program type and version level • Configuration option settings • Operating-system control-file setup See Appendix D “Getting help and technical assistance” on page 1215 for information about calling Lenovo for service. Recovering the server firmware (UEFI update failure) Use this information to recover the server firmware.
Move the UEFI boot backup jumper (J15) from pins 1 and 2 to pins 2 and 3 to enable the UEFI recovery mode. Step 6. Reinstall the server cover; then, reconnect all power cords. Step 7. Restart the server. The system begins the power-on self-test (POST). Lenovo System x3650 M5 Installation and Service Guide...
At the firmware splash screen, press F3 when prompted to restore to the primary bank. The server boots from the primary bank. Out-of-band method See the IMM2 documentation (Integrated Management Module II User's Guide) at http://publib.boulder.ibm. com/infocenter/ systemx/documentation/topic/ com.lenovo.sysx.imm2.doc/ printable_doc.html. Automated boot recovery (ABR) Use this information for Automated boot recovery (ABR). Chapter 3...
To specify the number of consecutive restart attempts that will trigger the Nx-boot failure feature, in the Setup Utility, click System Settings ➙ Recovery ➙ POST Attempts ➙ POST Attempts Limit. The available options are 3, 6, 9, and 255 (disable Nx-boot failure). Lenovo System x3650 M5 Installation and Service Guide...
Tier 1 CRU at your request, you will be charged for the installation. • Tier 2 CRU: You may install a Tier 2 CRU yourself or request Lenovo to install it, at no additional charge, under the type of warranty service that is designated for your server.
Page 128
Figure 57. Server components The following table lists the part numbers for Tier 1 and Tier 2 CRUs. Lenovo System x3650 M5 Installation and Service Guide...
Page 132
94Y8142 94Y8144 750W High Efficiency Platinum AC Power Supply 750W Platinum AC Power Supply (Artesyn) 00YJ904 750W High Efficiency Platinum AC Power Supply 00YL555 750W High Efficiency Platinum AC Power Supply 00YL557 Lenovo System x3650 M5 Installation and Service Guide...
Page 133
1300W Titanium AC Power Supply w/240Vdc Label 00YJ987 (Acbel) 00YJ981 550W Platinum AC Power Supply w/240Vdc Label (Artesyn) 00YJ982 750W Platinum AC Power Supply w/240Vdc Label (Artesyn) 900W Platinum AC Power Supply w/240Vdc Label 00YJ983 (Artesyn) Chapter 4 Parts listing, Lenovo System x3650 M5 Type 8871...
Page 134
00KF492 Operator information panel assembly Front USB assembly 00YE411 LCD panel 00D0464 9.5 mm Ultra-Slim SATA DVD-ROM 00FL352 9.5 mm Ultra-Slim SATA multi-burner 00FL353 Hard disk drive filler assembly, GEN 3 00FW856 Lenovo System x3650 M5 Installation and Service Guide...
Page 135
Hard disk drive with 3.5-inch tray, 2.5-inch G3 hot-swap, 01GV041 SAS, 15 K, 12 Gbps, 512e, 900 GB Hard disk drive, 2.5-inch G3 hot-swap, SAS, 10 K, 12 00WG701 Gbps, 1.2 TB Chapter 4 Parts listing, Lenovo System x3650 M5 Type 8871...
Page 136
2.5-inch 4-drive filler panel 00KF417 81Y9803 Hard disk drive, 3.5-inch G2 simple-swap, near-line SATA, 7.2 K, 6 Gbps, 500 GB Hard disk drive, 3.5-inch simple-swap, near-line SATA, 81Y9807 7.2 K, 6 Gbps, 1 TB Lenovo System x3650 M5 Installation and Service Guide...
Page 137
Hard disk drive, 3.5-inch G2 hot-swap, near-line SATA, 81Y9795 7.2 K, 6 Gbps, 2 TB Hard disk drive, 3.5-inch G2 hot-swap, near-line SATA, 81Y9799 7.2 K, 6 Gbps, 3 TB Chapter 4 Parts listing, Lenovo System x3650 M5 Type 8871...
Page 148
00YL866 Cable, SAS HD 590/580 mm 00YL865 Cable, SAS HD 525/635 mm 00YL863 00YL864 Cable, SAS HD 770/835 mm Cable, SAS HD 950/905 mm 00YL867 Cable, SAS HD 950/905 mm, R/A 00YL868 Lenovo System x3650 M5 Installation and Service Guide...
Page 149
Cable, 9 Gbps external mini-SAS, SFF-8644 to SFF- 00YE306 8088, 4 m Cable, 10 Gbps external mini-SAS, SFF-8644 to SFF- 00YE307 8088, 6 m Cable, mini-SAS to mini-SAS, 1m 00J6237 Chapter 4 Parts listing, Lenovo System x3650 M5 Type 8871...
Page 151
Cable, 30m QSFP+ MPO-MPO OM3 MMF 00VX004 Cable, power Y cable 00MU547 00Y2961 Cable, pen 2x4 power cable Cable, GPU AUX power cable 00YD786 Cable, LED cable 00YL586 Lens, LED lens 00YL587 Chapter 4 Parts listing, Lenovo System x3650 M5 Type 8871...
Page 152
Line cord, 2.8 m, 10A/230V, C13 to CEE7-VII (Europe) 39M5123 line cord 39M5130 Line cord, 2.8 m, 10A/250V, C13 to DK2–5a (Denmark) line cord Line cord, 2.8 m, 10A/250V, C13 to SABS 164 (S Africa) 39M5144 line cord Lenovo System x3650 M5 Installation and Service Guide...
Page 153
NVIDIA Grid K2 (actively cooled) 90Y2395 NVIDIA Tesla K40c 90Y2408 NVIDIA Tesla M40 GPU, Passively Cooled 90Y2460 NVIDIA Tesla M60 GPU, PCIe (active) 90Y2472 NVIDIA Tesla P40 GPU, PCIe Passive 00YG990 Chapter 4 Parts listing, Lenovo System x3650 M5 Type 8871...
Structural parts and consumable parts are not covered by the Statement of Limited Warranty. You can place an order on structural parts or consumable parts from the Lenovo retail store. The following structural parts and consumable parts are available for purchase from the retail store.
Power cords for a specific country or region are usually available only in that country or region. Power cord part number Used in these countries and regions 39M5206 China 39M5102 Australia, Fiji, Kiribati, Nauru, New Zealand, Papua New Guinea Chapter 4 Parts listing, Lenovo System x3650 M5 Type 8871...
Page 158
Micronesia (Federal States of), Netherlands Antilles, Nicaragua, Panama, Peru, Philippines, Saudi Arabia, Thailand, Taiwan, United States of America, Venezuela 39M5219 Korea (Democratic People’s Republic of), Korea (Republic of) 39M5199 Japan 39M5068 Argentina, Paraguay, Uruguay 39M5226 India 39M5240 Brazil Lenovo System x3650 M5 Installation and Service Guide...
• Tier 2 CRU: You may install a Tier 2 CRU yourself or request Lenovo to install it, at no additional charge, under the type of warranty service that is designated for your server.
Note: There might be 3 or 4 power connectors on the system board depending on your configuration. However, this difference will not affect the cable routing. Follow the following illustrations to complete your cable routing. Lenovo System x3650 M5 Installation and Service Guide...
Page 161
8x2.5-inch simple-swap hard disk drive model SAS signal cable Power / configuration cable Figure 59. 8x2.5-inch simple-swap hard disk drive with hardware RAID cabling 8x2.5-inch hot-swap hard disk drive model 2.5-inch HDD hot-swap backplane Power / configuration cable SAS 1 SAS 0 SAS signal cable Figure 60.
Page 162
SAS signal cable Power / configuration cable SAS 0 SAS 1 Figure 61. 8x2.5-inch hot-swap hard disk drive cabling Lenovo System x3650 M5 Installation and Service Guide...
Page 163
16x2.5-inch drive model The internal routing for the 16x2.5-inch drive model cables. The following illustration shows the internal routing for the 16x2.5-inch drive model cables. Note: There might be 3 or 4 power connectors on the system board depending on your configuration. However, this difference will not affect the cable routing.
Page 164
Power / configuration Power / configuration cable (150 mm) cable (220 mm) BP 1 BP 2 SAS 0 SAS 1 SAS 0 SAS 1 Figure 64. 16x2.5-inch hot-swap hard disk drive cabling Lenovo System x3650 M5 Installation and Service Guide...
Page 165
• 16x2.5-inch hot-swap hard disk drive with one expander Power / configuration cable 2.5-inch HDD hot-swap backplane (expander) 2.5-inch HDD hot-swap backplane Power / configuration cable SAS signal cable Figure 65. 16x2.5-inch hot-swap hard disk drive cable connection SAS signal cables (580 / 590 mm) Power / configuration Power / configuration...
Page 166
2.5-inch HDD hot-swap backplane SAS 0 Power / configuration cable SAS signal cable SAS 1 SAS 0 SAS signal cable SAS 1 SAS 0 SAS signal cable Figure 67. 24x2.5-inch hot-swap hard disk drive cabling Lenovo System x3650 M5 Installation and Service Guide...
Page 167
SAS signal cables (770 / 835 mm) SAS signal cables (905 / 950 mm) Power / configuration Power / configuration cable (220 mm) cable (150 mm) SAS 0 SAS 1 SAS 0 SAS 1 SAS signal cables (905 / 950 mm) Power / configuration cable (220 mm) SAS 0 SAS 1...
Page 168
Power / configuration cable (150 mm) cable (220 mm) (250 mm) cable (220 mm) SAS 1 SAS 0 SAS 0 SAS 1 SAS 0 SAS 1 Figure 70. 24x2.5-inch hot-swap hard disk drive cabling Lenovo System x3650 M5 Installation and Service Guide...
Page 169
• 24x2.5-inch hot-swap hard disk drive with two expanders Power / configuration cable 2.5-inch HDD hot-swap backplane (expander) Power / configuration cable 2.5-inch HDD hot-swap backplane (expander) 2.5-inch HDD hot-swap backplane Power / configuration cable SAS signal cable SAS signal cable Figure 71.
However, this difference will not affect the cable routing. Follow the following illustrations to complete your cable routing. 8x3.5-inch simple-swap hard disk drive model SAS signal cable Power / configuration cable Figure 73. 8x3.5-inch simple-swap hard disk drives with hardware RAID cabling Lenovo System x3650 M5 Installation and Service Guide...
Page 171
8x3.5-inch hot-swap hard disk drive model SAS signal cable Power / configuration cable SAS 0 SAS 1 Figure 74. 8x3.5-inch hot-swap hard disk drives cabling 12x3.5-inch drive model The internal routing for the 12x3.5-inch drive model cables. The following illustration shows the internal routing for the 12x3.5-inch drive model cables. Note: There might be 3 or 4 power connectors on the system board depending on your configuration.
Page 172
12x3.5-inch hot-swap hard disk drive model SAS 1 SAS 0 SAS signal cable Power / configuration cables Figure 75. 12x3.5-inch hot-swap hard disk drive cabling Lenovo System x3650 M5 Installation and Service Guide...
Page 173
Server models with 12x3.5-inch hot-swap hard disk drives, 3.5-inch rear two HDD kit, and 2.5-inch rear two HDD kit 3.5-inch rear two hard-disk-drive kit 2.5-inch rear two hard-disk-drive kit SAS 1 SAS 0 SAS signal cable Power / configuration cables Figure 76.
Figure 77. Cabling for 2.5-inch rear two HDD kit Removing and replacing structural parts Replacement of structural parts is your responsibility. If Lenovo installs a structural part at your request, you will be charged for the installation. The illustrations in this document might differ slightly from your hardware.
Page 175
Figure 78. Unscrewing the cover lock Step 5. Push the tab on the cover-release latch, then fully open the cover-release latch. Slide the top cover to the rear, then lift the top cover off the server. Set the top cover aside. Attention: For proper cooling and airflow, replace the server cover before you turn on the server.
Pivot the cover-release latch as shown and slide the top cover to the front at the same time until the top cover snaps into position. Cover-release latch Figure 80. Top cover installation Step 6. Use a screwdriver to turn the cover lock to the closed position. Lenovo System x3650 M5 Installation and Service Guide...
Reconnect the external cables and power cords. Removing and replacing Tier 1 CRUs Replacement of Tier 1 CRUs is your responsibility. If Lenovo installs a Tier 1 CRU at your request, you will be charged for the installation. The illustrations in this document might differ slightly from your hardware.
Align the air baffle tabs with the baffle slots on both sides of the chassis; then, lower the air baffle into the server. Press the air baffle down until it is securely seated. Lenovo System x3650 M5 Installation and Service Guide...
Note: Close the retaining clip on each end of the DIMM connector before installing the air baffle for proper cooling. Air baffle Figure 83. Air baffle installation Step 5. Replace PCI riser-card assemblies, if needed. Step 6. Reinstall the top cover (see “Replacing the top cover” on page 164). Step 7.
Grasp the handle and align the power paddle module with the connector on the system board. Push the power paddle module to the system board and make sure it is firmly seated. Lenovo System x3650 M5 Installation and Service Guide...
Handle Power paddle assembly Figure 85. Power paddle module installation Step 5. Replacing the power supplies (See “Replacing a hot-swap ac power supply” on page 247). Step 6. Replacing the top cover (see “Replacing the top cover” on page 164). Step 7.
Figure 87. Front USB assembly installation Step 5. Connect the cable on the front USB assembly to the system board. The following illustration shows the cable routing for the front USB assembly. Lenovo System x3650 M5 Installation and Service Guide...
Front USB connector Front USB cable Figure 88. Front USB assembly cable routing Note: To connect the front USB assembly cable on the system board, press evenly on the cable. Pressing on one side of the cable might cause damage to the cable or connector. Step 6.
For a list of supported hard disk drives, see http:// www.lenovo.com/ serverproven/ • Locate the documentation that comes with the hard disk drive and follow those instructions in addition to the instructions in this chapter. Lenovo System x3650 M5 Installation and Service Guide...
Page 185
• For a complete list of supported optional devices for the server, see http://www.lenovo.com/ serverproven/ To install a hot-swap SAS or SATA hard disk drive, complete the following steps: Note: If you have only one hard disk drive, you must install it in the bay 0 (upper-left).
Turn off the server and peripheral devices and disconnect the power cords and all external cables. Step 3. Pinch on the release latch and pull the hard disk drive out of the drive bay. Lenovo System x3650 M5 Installation and Service Guide...
SATA hard disk drive, read the following information. For a list of supported hard disk drives, see http:// www.lenovo.com/ serverproven/ • Locate the documentation that comes with the hard disk drive and follow those instructions in addition to the instructions in this chapter.
Page 188
Figure 96. 3.5-inch simple-swap hard disk drive installation Step 6. Reinstall the drive bay filler panel that you removed earlier, if needed. Step 7. If you are installing additional simple-swap hard disk drives, do so now. Lenovo System x3650 M5 Installation and Service Guide...
Step 8. Turn on the peripheral devices and the server. Removing the optical drive cable Use this information to remove the optical drive cable. Note: The optical drive is available only on some models. To remove the optical cable, complete the following steps: Step 1.
Cable connector latch Figure 99. Optical drive cable latch The following illustration shows cable routing for the optical cable: Lenovo System x3650 M5 Installation and Service Guide...
Attention: Follow the optical drive cable routing as the illustration shows. Make sure that the cable is not pinched and does not cover any connectors or obstruct any components on the system board. Optical drive connector DVD drive cable Cable connector latch Figure 100.
• Make sure that you have all the cables and other equipment that are specified in the documentation that comes with the drive. • The server supports one ultra-slim SATA optical drive. Lenovo System x3650 M5 Installation and Service Guide...
Page 193
Note: The optical drive is available only on some models. To install an optional optical drive, complete the following steps: Step 1. Read the safety information that begins on “Safety” on page v and “Installation guidelines” on page 305. Step 2. Turn off the server and peripheral devices and disconnect the power cords and all external cables.
Page 194
Step 10. Connect the optical drive cable (see “Replacing the optical drive cable” on page 178). Step 11. Reconnect the power cords and any cables that you removed. Step 12. Turn on the peripheral devices and the server. Lenovo System x3650 M5 Installation and Service Guide...
(SDRAM) dual inline memory modules (DIMMs) with error correcting code (ECC). See for a list of supported http://www.lenovo.com/ serverproven/ memory modules for the server. – The specifications of a DDR4 DIMM are on a label on the DIMM, in the following format.
Page 196
– When you install 3 LRDIMMs per channel, the memory runs at 2133 MHz • The maximum memory speed is determined by the combination of the microprocessor, DIMM speed, DIMM type, Operating Modes in UEFI settings, and the number of DIMMs installed in each channel. Lenovo System x3650 M5 Installation and Service Guide...
Page 197
• The server supports a maximum of 24 single-rank, dual-rank RDIMMs or 24 quad-rank LRIMMs. • It is recommended to install DIMMs with the same rank in each channel. • The following table shows an example of the maximum amount of memory that you can install using ranked DIMMs: Table 11.
Page 198
1DPC (one DIMM per channel) or 2DPC (two DIMM per channel) memory configuration are recommended. Unless there is a need for memory Lenovo System x3650 M5 Installation and Service Guide...
Page 199
capacity over memory frequency, 3DPC (three DIMMs per channel) configuration is not recommended since 3DPC configuration forces the memory subsystem to run at a lower frequency (1600 MHz). Refer to the Understanding and Optimizing Memory Performance for Intel Xeon Processor E5-2600 v3 Series in white paper for the detail.
Page 200
Microprocessor 2 Microprocessor 1 CPU2 CPU1 Figure 108. Connectors on each memory channel Follow the installation sequence for rank sparing mode: • Install at least two single-rank or dual-rank DIMMs in a channel. Lenovo System x3650 M5 Installation and Service Guide...
Page 201
Table 14. Memory rank sparing mode DIMM population sequence Number of installed microprocessor Number of DIMMs DIMM connector First pair of DIMMs 1, 2 4, 5 Second pair of DIMMs Third pair of DIMMs 8, 9 Fourth pair of DIMMs 11, 12 Fifth pair of DIMMs 3, 6...
Note: To remove or install a fan, it is not necessary to remove the fan cage. See “Removing a hot-swap fan” on page 192 and “Replacing a hot-swap fan” on page 193. To remove the fan cage assembly, complete the following steps: Lenovo System x3650 M5 Installation and Service Guide...
Step 1. Read the safety information that begins on “Safety” on page v and “Installation guidelines” on page 305. Step 2. Turn off the server and peripheral devices and disconnect the power cords and all external cables. Step 3. Remove the top cover (see “Removing the top cover” on page 162). Step 4.
30 minutes during this procedure. Step 3. Pull the fan latch to the left to release the fan from the fan connector and pull the fan out of the fan cage. Lenovo System x3650 M5 Installation and Service Guide...
Fan 6 Hot-swap fan error LED Fan latch Fan 5 Fan 4 Fan 3 Fan 2 Fan 1 Figure 112. Fan removal Attention: To ensure proper operation, replace a failed hot-swap fan within 30 seconds. Step 4. If you are instructed to return the fan, follow all of the packaging instructions, and use any packaging materials for shipping that are supplied to you.
Disconnect the front USB, DVD drive and operator information panel/LCD panel cables from the system board. Remember the relevant cable routing. Note: To disconnect the operator information/LCD panel cable, press evenly on the connector first; then, pull the cable out. Lenovo System x3650 M5 Installation and Service Guide...
Page 207
Front USB cable DVD drive cable Operator information / LCD panel cable Figure 114. Cable routing Step 5. Loosen the thumbscrew that is used to secure the media cage onto the server. Thumbscrew Figure 115. Thumbscrew Step 6. Carefully push the media cage out of the server and set it aside. Chapter 5 Installing, removing, and replacing components...
Remove the top cover (see “Removing the top cover” on page 162). Step 4. Carefully slide the media cage into the server. Media cage Figure 117. Media cage installation Step 5. Tighten the thumbscrew to secure the media cage onto the server. Lenovo System x3650 M5 Installation and Service Guide...
Page 209
Thumbscrew Figure 118. Thumbscrew Step 6. Reconnect the USB, CD/DVD and operator information/LCD panel cables to the system board first; then, route the cables as the following illustration. Remember to insert the cables into the cable clip for proper routing. Front USB cable DVD drive cable Operator information /...
Place the riser-card assembly on a flat, static-protective surface. • For half-length and low profile adapters PCI riser-card assembly 2 PCI riser-card assembly 1 Figure 120. Riser-card assembly removal - half-length and low profile adapters • For full-height, full-length adapters Lenovo System x3650 M5 Installation and Service Guide...
PCI riser-card assembly 2 PCI riser-card assembly 1 Shipping bracket for riser-card assembly Figure 121. Riser-card assembly removal - full-height, full-length adapters Step 5. If you are instructed to return the riser-card assembly, follow all of the packaging instructions, and use any packaging materials for shipping that are supplied to you.
Page 212
Figure 122. Riser-card assembly installation - half-length and low profile adapters • For full-height, full-length adapters Note: Shipping brackets are only included in the server that is pre-configured with full-height, full-length adapters Lenovo System x3650 M5 Installation and Service Guide...
PCI riser-card assembly 2 PCI riser-card assem bly 1 Shipping bracket for riser-card assembly Figure 123. Riser-card assembly installation - full-height, full-length adapters Step 6. Replace the top cover (see “Replacing the top cover” on page 164). Step 7. Slide the server into the rack. Step 8.
Insert the controller into the RAID connector on the system board until it is firmly seated. The retention brackets secure the controller in place when the controller is firmly seated into the connector. Lenovo System x3650 M5 Installation and Service Guide...
Retention bracket Dedicated slotless RAID connector Retention bracket Figure 125. Dedicated slotless RAID controller installation Step 7. Route the backplane signal cables. (See “2.5-inch hard disk drive cable connection” on page 148 and “3.5-inch hard disk drive cable connection” on page 158). Step 8.
Page 216
• If you are removing an adapter from PCI expansion slot 6, 7 or 8, remove riser-card assembly 2. Step 4. Disconnect any cables from the adapter (make note of the cable routing, in case you reinstall the adapter later). Lenovo System x3650 M5 Installation and Service Guide...
Page 217
Step 5. If you are removing a full-height, full-length adapter, pull the shipping bracket out of the riser-card assembly. Shipping bracket PCI riser assembly Figure 129. Full-height, full-length adapter Step 6. Slide the retention bracket; then, rotate it to the open position. Step 7.
Page 218
• If you are removing an adapter from PCI expansion slot 3, remove rear two hard-disk-drive kit 1. • If you are removing an adapter from PCI expansion slot 8, remove rear two hard-disk-drive kit 2. Lenovo System x3650 M5 Installation and Service Guide...
• If you are replacing a ServeRAID adapter, import your RAID configuration to the replacement adapter as a foreign configuration after you finish the replacement. See the ServeRAID-M Software User Guide at https:// support.lenovo.com/us/en/documents/migr-5086126 for instructions. • The following adapters support 10-Gbps transfer rate only: –...
Page 220
• The server provides two internal SAS connectors and two SAS/SATA RAID riser-card slots on the system board. See “System-board optional-device connectors” on page 32 for the location of the internal SAS/ SATA RAID connector and riser-card slots. You can replace the ServeRAID SAS/SATA adapter with an Lenovo System x3650 M5 Installation and Service Guide...
Page 221
Option part number FRU part number 81Y1655 00D8546 Emulex 16Gb FC Single-port HBA for Lenovo System x 81Y1662 00JY849 Emulex 16Gb FC Dual-port HBA for Lenovo System x • Do not install the following adapters in the slot 3 and the slot 8.
Page 222
Align the adapter with the PCI connector on the riser card and press the adapter firmly into the PCI connector on the riser card. PCI riser-card assembly Bracket Expansion-slot cover Adapter connector Adapter Figure 136. Adapter installation Lenovo System x3650 M5 Installation and Service Guide...
Page 223
Step 8. Rotate the retention latch to the close position. Note: Fasten the screw on the retention latch to secure the adapter. Step 9. If you are installing a full-height, full-length adapter, insert the shipping brackets. Shipping bracket PCI riser assembly Figure 137.
Page 224
Figure 138. Riser-card assembly installation - half-length and low profile adapters • For full-height, full-length adapters Note: Shipping brackets are only included in the server that is pre-configured with full-height, full-length adapters Lenovo System x3650 M5 Installation and Service Guide...
Page 225
PCI riser-card assembly 2 PCI riser-card assem bly 1 Shipping bracket for riser-card assembly Figure 139. Riser-card assembly installation - full-height, full-length adapters Step 12. Perform any configuration tasks that are required for the adapter. Step 13. Reinstall the top cover (see “Replacing the top cover” on page 164). Step 14.
Page 226
Remove the rear two hard-disk-drive kit (see “Removing the rear two hard-disk-drive kit” on page 218). Step 5. Slide the retention bracket; then, rotate it to the open position. Step 6. Align the adapter with the slot on the rear two hard-disk-drive kit. Lenovo System x3650 M5 Installation and Service Guide...
Step 7. Press the adapter firmly into the slot on the rear two hard-disk-drive kit. Rear two hard-disk-drive kit Bracket Expansion-slot cover Adapter connector Adapter Figure 141. Adapter installation Step 8. Connect any required cables to the adapter. Attention: • When you route cables, do not block any connectors or the ventilated space around any of the fans.
ServeRAID adapter on the riser card and install the riser-card assembly in the server (see “Replacing an adapter” on page 207). Step 5. If the flash power modules are located behind the full-height, full-length adapters, remove the two shipping brackets first. Lenovo System x3650 M5 Installation and Service Guide...
Page 229
Shipping brackets Air baffle Figure 143. Shipping bracket removal Step 6. Align the battery/flash power module with the slot and push the battery into the battery/flash power module holder and make sure that the holder retains the battery/flash power module securely. Air baffle Raid adapter battery / flash power module...
3.5-inch rear two hard-disk-drive kit Figure 146. 3.5-inch rear two hard-disk-drive kit removal Replacing the rear two hard-disk-drive kit Use this information to replace the rear two hard-disk-drive kit on the system board. Notes: 1. Refer to the following rules before you install the rear two hard-disk-drive kit. •...
Page 232
• 2.5-inch rear two hard-disk-drive kit installation Lenovo System x3650 M5 Installation and Service Guide...
Page 233
2.5-inch rear two hard-disk-drive kit 1 Figure 152. 2.5-inch rear two hard-disk-drive kit installation • 3.5-inch rear two hard-disk-drive kit installation 3.5-inch rear two hard-disk-drive kit Figure 153. 3.5-inch rear two hard-disk-drive kit installation Step 5. Connect the Mini-SAS HD cable from the rear hard drive backplane to the RAID card. •...
Page 234
– Connect to the RAID card on the slot 4 from the rear hard drive backplane. 3.5" hard disk drive cage Raid adapter SAS signal cable Figure 155. 3.5-inch rear two hard-disk-drive kit cable routing Lenovo System x3650 M5 Installation and Service Guide...
– Connect to the 3.5-inch HDD hot-swap backplane with 12 HDDs from the rear hard drive backplane 3.5" hard disk drive cage SAS signal cable Figure 156. 3.5-inch rear two hard-disk-drive kit cable routing Step 6. Press down the HDD kit firmly until the HDD kit is fully seated in the connector on the system board.
Page 236
Figure 157. Front USB/operator information panel cable removal 6. Loosen screws and remove them. Screws Figure 158. Screw removal 7. Tilt the cable cover and remove it from the server. Lenovo System x3650 M5 Installation and Service Guide...
Page 237
Cable cover Figure 159. Cable cover removal 8. Grasp the EIA assembly and pull it slightly forward to remove it from the server. EIA assembly Figure 160. EIA assembly removal 9. Position the EIA assembly as shown in the following illustration; then, remove the assembly out of the server.
Page 238
Failing to release them before removing the cables will damage the cable sockets on the system board. The cable sockets on the system board are fragile. Any damage to the cable sockets may require replacing the system board. Lenovo System x3650 M5 Installation and Service Guide...
Page 239
Front video cable Figure 162. Front video cable removal 6. Loosen screws and remove them. Screws Figure 163. Screw removal 7. Tilt the cable cover and remove it from the server. Chapter 5 Installing, removing, and replacing components...
Page 240
2. Turn off the server and peripheral devices, and disconnect the power cord and all external cables. 3. Remove the top cover (see “Removing the top cover” on page 162). 4. Remove the fan cage assembly (see “Removing the fan cage assembly” on page 190). Lenovo System x3650 M5 Installation and Service Guide...
Page 241
5. Disconnect the front USB/operator information panel cables from the connector mounted on the chassis side wall. Note: Disengage all latches, release tabs or locks on cable connectors when you disconnect all cables from the system board. Failing to release them before removing the cables will damage the cable sockets on the system board.
Page 242
8. Grasp the EIA assembly and pull it slightly forward to remove it from the server. EIA assembly Figure 169. EIA assembly removal 9. Position the EIA assembly as shown in the following illustration; then, remove the assembly out of the server. Lenovo System x3650 M5 Installation and Service Guide...
Page 243
EIA assembly Figure 170. Cable removal 10. If you are instructed to return the EIA assembly, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. For the left EIA assembly 1. Read the safety information that begins on “Safety” on page v and “Installation guidelines” on page 305. 2.
Page 244
Front video cable Figure 171. Front video cable removal 6. Loosen screws and remove them. Screws Figure 172. Screw removal 7. Tilt the cable cover and remove it from the server. Lenovo System x3650 M5 Installation and Service Guide...
Cable cover Figure 173. Cable cover removal 8. Grasp the EIA assembly and pull it slightly to remove it from the server. EIA assembly Figure 174. EIA assembly removal 9. If you are instructed to return the EIA assembly, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you.
Page 246
4. Remove the fan cage (see “Removing the fan cage assembly” on page 190). 5. Insert the cable connector into the cable connector holder. EIA assembly Cable connector holder Figure 175. Cable connector installation 6. Align the EIA assembly with the alignment pin. Lenovo System x3650 M5 Installation and Service Guide...
Page 247
Alignment pin EIA assembly Figure 176. EIA assembly alignment 7. Push the EIA assembly slightly toward the rear of the server to fix the EIA assembly on the server. EIA assembly Figure 177. EIA assembly installation 8. Tilt and install the cable cover. Chapter 5 Installing, removing, and replacing components...
Page 248
10. Connect the front USB/operator information panel cables to the system board and the connector mounted on the chassis side wall. Front USB / operator information panel cable Figure 180. Cable connection Lenovo System x3650 M5 Installation and Service Guide...
Page 249
11. Replace the fan cage assembly (see “Replacing the fan cage assembly” on page 191). 12. Replace the top cover (see “Replacing the top cover” on page 164). 13. Slide the server into the rack. 14. Reconnect the power cords and any cables that you removed. 15.
Page 250
Alignment pin EIA assembly Figure 182. EIA assembly alignment 7. Tilt and install the cable cover. Cable cover Figure 183. Cable cover installation 8. Fasten screws. Lenovo System x3650 M5 Installation and Service Guide...
Page 251
Screws Figure 184. Screw installation 9. Connect the front video cable to the system board. Front video cable Figure 185. Cable connection 10. Replace the fan cage assembly (see “Replacing the fan cage assembly” on page 191). 11. Replace the top cover (see “Replacing the top cover” on page 164). 12.
Page 252
4. Remove the fan cage (see “Removing the fan cage assembly” on page 190). 5. Insert the cable connector into the cable connector holder. EIA assembly Cable connector holder Figure 186. Cable connector installation 6. Align the EIA assembly with the alignment pin. Lenovo System x3650 M5 Installation and Service Guide...
Page 253
Alignment pin EIA assembly Figure 187. EIA assembly alignment 7. Push the EIA assembly slightly toward the rear of the server to fix the EIA assembly on the server. EIA assembly Figure 188. EIA assembly installation 8. Angle the cable cover as shown in the following illustration and slide the cable arm towards the front of the server.
Page 254
10. Connect the front USB/operator information panel cables to the system board and the connector mounted on the chassis side wall. Front USB / operator information panel cable Figure 191. Cable connection Lenovo System x3650 M5 Installation and Service Guide...
Page 255
11. Replace the fan cage assembly (see “Replacing the fan cage assembly” on page 191). 12. Replace the top cover (see “Replacing the top cover” on page 164). 13. Slide the server into the rack. 14. Reconnect the power cords and any cables that you removed. 15.
Page 256
Alignment pin EIA assembly Figure 193. EIA assembly alignment 7. Tilt and install the cable cover. Cable cover Figure 194. Cable cover installation 8. Fasten screws. Lenovo System x3650 M5 Installation and Service Guide...
Screws Figure 195. Screw installation 9. Connect the front video cable to the system board. Front video cable Figure 196. Cable connection 10. Replace the fan cage assembly (see “Replacing the fan cage assembly” on page 191). 11. Replace the top cover (see “Replacing the top cover” on page 164). 12.
Page 258
Step 4. Press and hold the release tab to the left. Grasp the handle and pull the power supply out of the server. Lenovo System x3650 M5 Installation and Service Guide...
Power supply filler panel Hot-swap power supply 2 Figure 197. Power supply removal Step 5. If you are instructed to return the power supply, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. Replacing a hot-swap ac power supply Use this information to replace a hot-swap ac power supply.
Page 260
Step 3. If you are installing a hot-swap power supply into an empty bay, remove the power-supply filler from the power-supply bay. Lenovo System x3650 M5 Installation and Service Guide...
Page 261
Power supply filler panel Hot-swap power supply 2 Figure 198. Power supply installation Step 4. Grasp the handle on the rear of the power supply and slide the power supply forward into the power-supply bay until it clicks. Make sure that the power supply connects firmly into the power- supply connector.
• The dc supply source shall be located within the same premises as this equipment. • Switching or disconnecting devices shall not be in the earthed circuit conductor between the dc source and the point of connection of the earthing electrode conductor. Statement 31 Lenovo System x3650 M5 Installation and Service Guide...
Page 263
DANGER Electrical current from power, telephone, and communication cables is hazardous. To avoid a shock hazard: • Do not connect or disconnect any cables or perform installation, maintenance, or reconfiguration of this product during an electrical storm. • Connect all power cords to a properly wired and grounded power source. •...
Page 264
Step 4. Press and hold the release tab to the left. Grasp the handle and pull the power supply out of the server. Lenovo System x3650 M5 Installation and Service Guide...
Power supply filler panel Hot-swap power supply 2 Figure 200. Power supply removal Step 5. If you are instructed to return the power supply, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. Replacing a hot-swap dc power supply Use this information to replace a hot-swap dc power supply.
Page 266
• Connect and disconnect cables as described in the following table when you install, move, or open covers on this product or attached devices. Lenovo System x3650 M5 Installation and Service Guide...
Page 267
To Connect: To Disconnect: 1. Turn OFF all power sources and equipment that is to 1. Turn OFF all power sources and equipment that is to be attached to this product. be attached to this product. 2. Attach signal cables to the product. •...
Page 268
-48V return -48V Figure 201. DC power supply rear view Step 5. If you are installing a hot-swap power supply into an empty bay, remove the power-supply filler from the power-supply bay. Lenovo System x3650 M5 Installation and Service Guide...
Page 269
Power supply filler panel Hot-swap power supply 2 Figure 202. Power supply installation Step 6. Grasp the handle on the rear of the power supply and slide the power supply forward into the power-supply bay until it clicks. Make sure that the power supply connects firmly into the power- supply connector.
Step 8. If you are instructed to return the hard disk drive backplate assembly/backplane, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. Lenovo System x3650 M5 Installation and Service Guide...
Replacing the 2.5-inch simple-swap backplate assembly/hot-swap hard disk drive backplane Use this information to replace the 2.5-inch simple-swap backplate assembly/hot-swap hard disk drive backplane. To install the 2.5-inch simple-swap backplate assembly/hot-swap hard disk drive backplane, complete the following steps: Step 1. Read the safety information that begins on “Safety”...
Pull the two plungers while you push the backplate assembly to the left to disengage the assembly. • For eight 3.5-inch simple-swap backplate assembly/hot-swap hard disk drive backplane Plunger Figure 206. 3.5-inch simple-swap backplate assembly/hot-swap hard disk drive backplane removal Lenovo System x3650 M5 Installation and Service Guide...
• For twelve 3.5-inch hot-swap hard disk drive backplane Plunger Figure 207. 3.5-inch hot-swap hard disk drive backplane removal Step 8. Rotate the backplate assembly/backplane toward the rear of the server and lift the backplate assembly/backplane up to remove it from the server. Step 9.
Page 274
191 and “Replacing a hot-swap fan” on page 193). Step 11. Install the top cover (see “Replacing the top cover” on page 164). Step 12. Slide the server into the rack. Lenovo System x3650 M5 Installation and Service Guide...
Step 13. Reconnect the power cords and any cables that you removed. Step 14. Turn on the peripheral devices and the server. Removing a USB embedded hypervisor flash device Use this information to remove a USB embedded hypervisor flash device. To remove a USB hypervisor flash device, complete the following steps: Step 1.
The following notes describe information that you must consider when replacing the battery. • Lenovo has designed this product with your safety in mind. The lithium battery must be handled correctly to avoid possible danger. If you replace the battery, you must adhere to the following instructions.
Page 277
CAUTION: When replacing the lithium battery, use only Part Number 33F8354 or an equivalent type battery recommended by the manufacturer. If your system has a module containing a lithium battery, replace it only with the same module type made by the same manufacturer. The battery contains lithium and can explode if not properly used, handled, or disposed of.
Dispose of the battery as required by local ordinances or regulations. Replacing the coin-cell battery (also called CMOS battery) The following notes describe information that you must consider when replacing the coin-cell battery in the server. Lenovo System x3650 M5 Installation and Service Guide...
Page 279
• When replacing the coin-cell battery, you must replace it with a lithium battery of the same type from the same manufacturer. • To order replacement batteries, call 1-800-426-7378 within the United States, and 1-800-465-7999 or 1- 800-465-6666 within Canada. Outside the U.S. and Canada, call your sales representative or reseller. •...
Page 280
Step 10. Reconnect the external cables; then, reconnect the power cords and turn on the peripheral devices and the server. Step 11. Start the Setup Utility and reset the configuration. • Set the system date and time. Lenovo System x3650 M5 Installation and Service Guide...
• Set the power-on password. • Reconfigure the server. See “Using the Setup Utility” on page 51 for details. Removing the SD adapter Use this information to remove the SD adapter. To remove the SD adapter, complete the following steps: Step 1.
2. Turn off the server and peripheral devices and disconnect the power cords and all external cables, if necessary. 3. Remove the top cover (see “Removing the top cover” on page 162). Lenovo System x3650 M5 Installation and Service Guide...
Page 283
4. Remove the fan cage assembly (See “Removing the fan cage assembly” on page 190). 5. Pull up the release latch slightly and slide the LCD panel assembly out of the server. LCD panel assembly Release latch Figure 218. LCD panel assembly removal 6.
Page 284
Rotate the retention bracket to remove it from the server. Retention bracket Media cage Figure 221. Retention bracket removal 8. Carefully remove the LCD system information display panel out of the media cage. Lenovo System x3650 M5 Installation and Service Guide...
LCD system information display panel Media cage Figure 222. LCD system information display panel removal 9. If you are instructed to return the LCD system information display panel, follow all packaging instructions, and use any packaging materials for shipping that are supplied to you. Replacing the LCD system information display panel Use this information to replace the LCD system information display panel.
Page 286
LCD panel assembly Figure 226. LCD panel assembly installation 10. Connect the LCD panel assembly cable to the system board. The following illustration shows the cable routing for the LCD panel assembly. Lenovo System x3650 M5 Installation and Service Guide...
Page 287
Operator information / LCD panel connector Operator information / LCD panel cable LCD panel connector Figure 227. LCD panel assembly cable routing Note: To connect the LCD panel assembly cable on the system board, press evenly on the cable. Pressing on one side of the cable might cause damage to the cable or connector. 11.
Page 288
Figure 229. Media cage bezel removal Pull the tab on the LCD retention bracket to the left to disengage the retention bracket. Rotate the retention bracket to remove it from the server. Lenovo System x3650 M5 Installation and Service Guide...
Page 289
Retention bracket Media cage Figure 230. Retention bracket removal 8. Carefully insert the LCD system information display panel into place. LCD system information display panel Alignment pins Media cage Figure 231. LCD system information display panel installation 9. Insert the retention bracket into the slot on the media cage and push it until it clicks into place. Chapter 5 Installing, removing, and replacing components...
Page 290
The following illustration shows the location of three hooks. Snaps Hooks Figure 233. Hooks (the rear side of the media cage) 11. Rotate the media cage bezel and snap it into place. Lenovo System x3650 M5 Installation and Service Guide...
Media cage bezel Media cage Figure 234. Retention bracket installation 12. Install the media cage (see “Replacing the media cage (also called lightpath LCD operation panel assembly)” on page 196). 13. Replace the top cover (see “Replacing the top cover” on page 164). 14.
Remove the top cover (see “Removing the top cover” on page 162). Step 4. Slide the operator information panel into the server until it clicks into place. Operator information panel assembly Figure 236. Operator information panel installation Lenovo System x3650 M5 Installation and Service Guide...
Step 5. Inside the server, connect the operator information panel assembly cable to the system board. The following illustration shows the cable routing for the operator information panel. Operator information / LCD panel connector Operator information / LCD panel cable Operator information panel assembly Figure 237.
Step 1. Read the safety information that begins on “Safety” on page v and “Installation guidelines” on page 305. Step 2. Turn off the server, and disconnect all power cords and external cables. Lenovo System x3650 M5 Installation and Service Guide...
Step 3. Remove the top cover (see “Removing the top cover” on page 162). Step 4. Locate the ServeRAID adapter with the ServeRAID adapter memory module installed. Then remove any parts and disconnect any cables that might impede your access to the ServeRAID adapter memory module.
Reconnect the power cords and all external cables, and turn on the server and peripheral devices. Removing and replacing Tier 2 CRUs You may install a Tier 2 CRU yourself or request Lenovo to install it, at no additional charge, under the type of warranty service that is designated for your server.
Page 297
Figure 242. Microprocessor installation tools To remove a microprocessor and heat sink, complete the following steps: Step 1. Read the safety information that begins on “Safety” on page v and “Installation guidelines” on page 305. Step 2. Turn off the server and peripheral devices and disconnect all power cords. Step 3.
Page 298
Attention: Do not touch the microprocessor contacts. Contaminants on the microprocessor contacts, such as oil from your skin, can cause connection failures between the contacts and the socket. Step 9. Remove the microprocessor from the socket. Lenovo System x3650 M5 Installation and Service Guide...
Page 299
Select the empty installation tool and ensure that the handle is in the unlocked position. If the installation tool handle is not in the unlocked position, use the following instructions for your installation tool: • lift the interlock latch and hold it up while you twist the microprocessor installation tool handle counterclockwise to the unlocked position, and then release the interlock latch.
Page 300
“H” or “L” position, depending on the size of microprocessor, and then lift the microprocessor out of the socket. Handle Installation tool Microprocessor Figure 249. Installation tool handle adjustment Lift the microprocessor out of the socket. Lenovo System x3650 M5 Installation and Service Guide...
• The server supports up to two Intel Xeon E5-2600 v4 or Intel Xeon E5-2600 v3 series multi-core microprocessors, which are designed for the LGA 2011 socket. See http://www.lenovo.com/ serverproven/ for a list of supported microprocessors. Notes: –...
Page 302
Read the safety information that begins on “Safety” on page v and “Installation guidelines” on page 305. Step 2. Turn off the server and peripheral devices and disconnect the power cords and all external cables. Lenovo System x3650 M5 Installation and Service Guide...
Page 303
Attention: When you handle static-sensitive devices, take precautions to avoid damage from static electricity. For details about handling these devices, see “Handling static-sensitive devices” on page 307. Step 3. Remove the top cover (see “Removing the top cover” on page 162). Step 4.
Page 304
• Twist the handle of the installation tool assembly counterclockwise to the unlocked position until you can not twist the handle any further; then, lift the installation tool out of the socket. Lenovo System x3650 M5 Installation and Service Guide...
Page 305
Figure 255. Installation tool handle adjustment The following illustrations show the installation tool in the locked and unlocked positions. Figure 256. Installation tool Microprocessor Figure 257. Installation tool removal Chapter 5 Installing, removing, and replacing components...
Page 306
For details about handling these devices, see “Handling static-sensitive devices” on page 307. Step 10. Close the microprocessor socket release levers and retainer: Microprocessor release lever Microprocessor release lever Figure 259. Microprocessor socket levers and retainer engagement Lenovo System x3650 M5 Installation and Service Guide...
Page 307
Close the microprocessor retainer on the microprocessor socket. Identify which release lever is labeled as the first release lever to close and close it. Close the second release lever on the microprocessor socket. Step 11. Install the heat sink. Attention: •...
Page 308
Step 13. Install the top cover (see “Replacing the top cover” on page 164). Step 14. Slide the server into the rack. Step 15. Reconnect the power cords and any cables that you removed. Lenovo System x3650 M5 Installation and Service Guide...
Page 309
Step 16. Turn on the peripheral devices and the server. Thermal grease The thermal grease must be replaced whenever the heat sink has been removed from the top of the microprocessor and is going to be reused or when debris is found in the grease. Use this information to replace damaged or contaminated thermal grease on the microprocessor and heat sink.
Replacing the heat-sink retention module Use this information to replace the heat-sink retention module. To install a heat-sink retention module, complete the following steps: Lenovo System x3650 M5 Installation and Service Guide...
Reactivate any Features on Demand features. Instructions for automating the activation of features and installing activation keys is in the Features on Demand User's Guide. To download the document, go to , log in, and click Help. https://fod.lenovo.com/lkms Chapter 5 Installing, removing, and replacing components...
Page 312
Step 16. Grasp both system-board handles and lift up the left side of the system board slightly and carefully remove it from the chassis, being careful not to damage any surrounding components. Lenovo System x3650 M5 Installation and Service Guide...
Page 313
Note: Use the system-board handles to lift the system board only. Do not attempt to lift the server using the system board handles. System board handles Thumb screws Figure 268. System board removal Step 17. Push the system board toward the broadside of the server and lift the system board up.
Align the system board with the slots on the side of the chassis and lower the right side into the chassis first; then, lower the other side of the system board into the chassis. Lenovo System x3650 M5 Installation and Service Guide...
Page 315
Figure 270. System board installation Step 3. Slide the system-board toward the rear of the server to secure it in place. Step 4. Tighten the two thumbscrews to secure the system board to the chassis. System board handles Thumb screws Figure 271.
To download the “System x Firmware Update Best Practices” document, go to www.ibm.com/ . Additional hints and tips are support/entry/portal/docdisplay?lndocid=MIGR-5082923&brandind=5000008 available from the following sites: • Support website: http://www.lenovo.com/support • System x configuration tools: http://shop.lenovo.com/us/ en/systems/server-library/ #comboFilters[category]=.Tools Lenovo System x3650 M5 Installation and Service Guide...
Installation guidelines Use the installation guidelines to install the Lenovo System x3650 M5 Type 8871. Attention: Static electricity that is released to internal server components when the server is powered-on might cause the system to halt, which might result in the loss of data. To avoid this potential problem, always use an electrostatic-discharge wrist strap or other grounding system when removing or installing a hot-swap device.
Page 318
To avoid this potential problem, always use an electrostatic-discharge wrist strap or other grounding system when you work inside the server with the power on. Lenovo System x3650 M5 Installation and Service Guide...
Use this information to install a 8x 2.5-inch simple-swap HDD ServeRAID assembly kit. You can install a Lenovo System x3650 M5 8x 2.5-inch simple-swap HDD ServeRAID assembly kit to support eight 2.5-inch simple-swap hard disk drives in the server. See http://www.lenovo.com/ serverproven/...
Page 320
2.5-inch HDD simple-swap backplate Figure 272. 2.5-inch simple-swap/hot-swap hard disk drive backplate assembly/backplane installation Step 8. Connect the SAS signal and power/configuration cables to the system board. Lenovo System x3650 M5 Installation and Service Guide...
Use this information to install a 8x 3.5-inch simple-swap HDD ServeRAID assembly kit. You can install a Lenovo System x3650 M5 8x 3.5-inch simple-swap HDD ServeRAID assembly kit to support eight 3.5-inch simple-swap hard disk drive model in the server. See http://www.lenovo.com/...
Page 322
Plungers 3.5-inch HDD simple-swap backplate Figure 274. 3.5-inch simple-swap backplate assembly/hot-swap hard disk drive backplane Step 9. Connect the SAS signal and power/configuration cables to the system board. Lenovo System x3650 M5 Installation and Service Guide...
Installing a 8x 2.5-inch hot-swap HDD assembly kit Use this information to install a 8x 2.5-inch hot-swap HDD assembly kit. You can install a Lenovo System x3650 M5 8x 2.5-inch hot-swap HDD assembly kit to add eight additional 2.5-inch hot-swap hard disk drives in the server. See http://www.lenovo.com/ serverproven/...
Page 324
Note: You can connect the cables to the drive backplane before installing the backplane onto the cage or you can connect the cables after you install the backplane, if that is easier for you. Lenovo System x3650 M5 Installation and Service Guide...
Page 325
2.5-inch HDD hot-swap backplane (expander) 2.5-inch HDD hot-swap backplane Figure 277. Backplane installation Step 8. Connect SAS signal and power/configuration cables to the backplane and the system board as the following illustrations. • If the new backplane is installed in slot 2, route cables as the following illustration. Note: Use right angleMini-SAS HD Y-cable to connect to PCI expansion slots 4.
Page 326
Figure 279. Cable routing • If the new backplane is installed in slot 3, route cables as following illustrations. 1. If the backplane is installed in slot 2, route cables as the following illustration. Lenovo System x3650 M5 Installation and Service Guide...
Page 327
2.5-inch HDD hot-swap backplane Power / configuration cable 2.5-inch HDD hot-swap backplane Power / configuration cable SAS 1 2.5-inch HDD hot-swap backplane SAS 0 Power / configuration cable SAS signal cable SAS 1 SAS 0 SAS signal cable SAS 1 SAS 0 SAS signal cable Figure 280.
Page 328
(150 mm) SAS 0 SAS 1 SAS 0 SAS 1 SAS signal cables (905 / 950 mm) Power / configuration cable (220 mm) SAS 0 SAS 1 Figure 281. Cable routing Lenovo System x3650 M5 Installation and Service Guide...
Page 329
2. If the expander is installed in slot 2, route cables as the following illustration. Note: Use right angle Mini-SAS HD Y-cable to connect to PCI expansion slots 4. 2.5-inch HDD hot-swap backplane Power / configuration cable Power / configuration cable 2.5-inch HDD hot-swap backplane (expander) 2.5-inch HDD hot-swap backplane...
Use this information to install a 8x 2.5-inch hot-swap HDD assembly kit with expander. You can install a Lenovo System x3650 M5 8x 2.5-inch hot-swap HDD assembly with expander kit to add eight additional 2.5-inch hot-swap hard disk drives in the server. See http://www.lenovo.com/ serverproven/...
Page 331
• Two Mini-SAS HD cables (250 mm) Note: The 8x 2.5-inch hot-swap HDD assembly with expander kit including structural parts and Tier 1 parts. To install a 8x 2.5-inch hot-swap HDD assembly with expander kit, complete the following steps: Step 1. Read the safety information that begins on “Safety”...
Page 332
• For server models with one backplane and one expander, connect and route cables as the following illustrations. Power / configuration cable 2.5-inch HDD hot-swap backplane (expander) 2.5-inch HDD hot-swap backplane Power / configuration cable SAS signal cable Figure 286. Cable connections Lenovo System x3650 M5 Installation and Service Guide...
Page 333
SAS signal cables (580 / 590 mm) Power / configuration Power / configuration cable (150 mm) cable (220 mm) SAS signal cables (250 mm) SAS 0 SAS 1 SAS 0 SAS 1 Figure 287. Cable routing • For server models with two backplanes and one expander, connect and route cables as the following illustrations.
Page 334
SAS signal cables Power / configuration cable (150 mm) cable (220 mm) (250 mm) cable (220 mm) SAS 1 SAS 0 SAS 0 SAS 1 SAS 0 SAS 1 Figure 289. Cable routing Lenovo System x3650 M5 Installation and Service Guide...
Page 335
• For server models with one backplane and two expanders, connect and route cables as the following illustrations. Power / configuration cable 2.5-inch HDD hot-swap backplane (expander) Power / configuration cable 2.5-inch HDD hot-swap backplane (expander) 2.5-inch HDD hot-swap backplane Power / configuration cable SAS signal cable SAS signal cable...
The 4x 2.5-inch NVMe PCIe SSD upgrade kit contains the following components: • Four signal cables • One power/configuration cable • One backplane assembly To support the NVMe PCIe SSD upgrade kit, your server must meet the following requirements: Lenovo System x3650 M5 Installation and Service Guide...
Page 337
• For eight 2.5-inch-drive or sixteen 2.5-inch-drive models with one microprocessor installed, one upgrade kit is supported. NVMe adapter PCI riser card type in riser-card assembly 1 PCI riser card type in riser-card assembly 2 installation sequence Type 1 PCI riser-card assembly Slot 1, PCIe x8 Not supported PCI slot 1, 2...
Page 339
NVMe adapter PCI riser card type in riser-card assembly 1 PCI riser card type in riser-card assembly 2 installation sequence Type 3 PCI riser-card assembly PCI slot 3, 4 PCI slot 4 is on Slot 1, PCIe x16 No limitation the system board.
Page 340
Remove the two 4-drive filler panels according to your configuration. 4-drive filler panel Figure 292. Filler panels Step 5. To obtain more working room, remove the fan cage (see “Removing the fan cage assembly” on page 190). Lenovo System x3650 M5 Installation and Service Guide...
Page 341
Step 6. Install the new backplanes. (See “Replacing the 2.5-inch simple-swap backplate assembly/hot- swap hard disk drive backplane” on page 259). Step 7. Connect the power/configuration and signal cables to the backplane. • 8x 2.5-inch HDD + 4x 2.5-inch NVMe PCIe SSD 2.5-inch NVMe backplane Power / configuration cable 2.5-inch HDD hot-swap backplane...
Page 342
Step 12. Align and install the PCI riser-card assemblies in the server (see “Replacing a riser-card assembly” on page 199). Step 13. Route the cables underneath the cable retention. • 8x 2.5-inch HDD + 4x 2.5-inch NVMe PCIe SSD Lenovo System x3650 M5 Installation and Service Guide...
Page 343
Signal cables Power connector 3 Power connector 1 Figure 297. Cable routing Notes: 1. For the power cable connection, the NVMe backplane can only connect to the power connector 3. 2. There might be 3 or 4 power connectors on the system board depending on your configuration.
Page 344
770 / 835 mm Signal cables Signal cables Power connector 1 830 mm 830 mm Power connector 2 Power connector 3 150 mm Figure 298. Cable routing Lenovo System x3650 M5 Installation and Service Guide...
Page 345
770 / 835 mm Signal cables Signal cables Power connector 1 830 mm 830 mm Power connector 2 Power connector 3 150 mm Note: There might be 3 or 4 power connectors on the system board depending on your configuration. However, this difference will not affect the cable routing. Follow the following illustrations to complete your cable routing.
Use this information to install a PCIe thermal solution kit. Note: If you are installing the Dual Port 10GB-T Ethernet Daughter Card (Option number is 00D1994) in the server, you have to purchase and install a Lenovo System x3650 M5 PCIe thermal solution kit. See http:// www.lenovo.com/ serverproven/...
To install a PCIe thermal solution kit, complete the following steps: Step 1. Read the safety information that begins on “Safety” on page v and “Installation guidelines” on page 305. Step 2. Turn off the server and peripheral devices and disconnect the power cords and all external cables, if necessary.
Analysis (DSA) stress test. In addition to the instructions in this chapter for installing optional hardware devices, updating firmware and device drivers, and completing the installation, Business Partners must also complete the following steps: Lenovo System x3650 M5 Installation and Service Guide...
2. Shut down and restart the server multiple times to ensure that the server is correctly configured and functions correctly with the newly installed devices. 3. Save the DSA log as a file and send it to Lenovo. For information about transferring data and logs, see “How to send DSA data” on page 337.
Page 350
Lenovo System x3650 M5 Installation and Service Guide...
Automatically contact Service If this field is set to Yes, and you have enabled Electronic Service Agent (ESA), Lenovo Support will be notified automatically if the event is generated. While you wait for Lenovo Support to call, you can perform the recommended actions for the event.
Page 353
Table 20. Events that automatically notify Support (continued) Automatically Message String Notify Support Event ID 806f0021-2582ffff Fault in slot [PhysicalConnectorSystemElementName] on system [ComputerSystemElementName]. (All PCI Error) 806f0021-2c01ffff Fault in slot [PhysicalConnectorSystemElementName] on system [ComputerSystemElementName]. (ML2 Card Fault) 806f0021-3001ffff Fault in slot [PhysicalConnectorSystemElementName] on system [ComputerSystemElementName].
Page 354
(Drive 0) 806f010d-0401ffff The Drive [StorageVolumeElementName] has been disabled due to a detected fault. (Drive 1) 806f010d-0402ffff The Drive [StorageVolumeElementName] has been disabled due to a detected fault. (Drive 2) Lenovo System x3650 M5 Installation and Service Guide...
Page 355
Table 20. Events that automatically notify Support (continued) Automatically Message String Notify Support Event ID 806f010d-0403ffff The Drive [StorageVolumeElementName] has been disabled due to a detected fault. (Drive 3) 806f010d-0404ffff The Drive [StorageVolumeElementName] has been disabled due to a detected fault. (Drive 4) 806f010d-0405ffff The Drive [StorageVolumeElementName] has been disabled due to a detected fault.
Page 356
Failure Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 4) 806f020d-0405ffff Failure Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 5) 806f020d-0406ffff Failure Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 6) Lenovo System x3650 M5 Installation and Service Guide...
Page 357
Table 20. Events that automatically notify Support (continued) Automatically Message String Notify Support Event ID 806f020d-0407ffff Failure Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 7) 806f020d-0408ffff Failure Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 8) 806f020d-0409ffff Failure Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName].
Page 358
Memory Logging Limit Reached for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 9) 806f050c-200affff Memory Logging Limit Reached for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 10) 806f050c-200bffff Memory Logging Limit Reached for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 11) Lenovo System x3650 M5 Installation and Service Guide...
Page 359
Table 20. Events that automatically notify Support (continued) Automatically Message String Notify Support Event ID 806f050c-200cffff Memory Logging Limit Reached for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 12) 806f050c-200dffff Memory Logging Limit Reached for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 13) 806f050c-200effff Memory Logging Limit Reached for [PhysicalMemoryElementName] on Subsystem [MemoryElementName].
Page 360
Array [ComputerSystemElementName] has failed. (Drive 806f060d-0412ffff Array [ComputerSystemElementName] has failed. (Drive 806f060d-0413ffff Array [ComputerSystemElementName] has failed. (Drive 806f060d-0414ffff Array [ComputerSystemElementName] has failed. (Drive 806f060d-0415ffff Array [ComputerSystemElementName] has failed. (Drive 806f060d-0416ffff Array [ComputerSystemElementName] has failed. (Drive Lenovo System x3650 M5 Installation and Service Guide...
Table 20. Events that automatically notify Support (continued) Automatically Message String Notify Support Event ID 806f060d-0417ffff Array [ComputerSystemElementName] has failed. (Drive 806f060d-0418ffff Array [ComputerSystemElementName] has failed. (Drive 806f060d-0419ffff Array [ComputerSystemElementName] has failed. (Drive 806f060d-041affff Array [ComputerSystemElementName] has failed. (Drive 806f060d-041bffff Array [ComputerSystemElementName] has failed.
Page 362
May also be shown as 4000000300000000 or 0x4000000300000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0003 User Response Information only; no action is required. Lenovo System x3650 M5 Installation and Service Guide...
Page 363
• 40000004-00000000 : Ethernet Duplex setting modified from [arg1] to [arg2] by user [arg3]. This message is for the use case where A user modifies the Ethernet Port duplex setting. May also be shown as 4000000400000000 or 0x4000000400000000 Severity Info Serviceable Automatically notify support Alert Category...
Page 364
This message is for the use case where user modifies the Hostname of a Management Controller. May also be shown as 4000000800000000 or 0x4000000800000000 Severity Info Serviceable Automatically notify support Alert Category System - IMM Network event SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 365
CIM Information Prefix: IMM ID: 0008 User Response Information only; no action is required. • 40000009-00000000 : IP address of network interface modified from [arg1] to [arg2] by user [arg3]. This message is for the use case where user modifies the IP address of a Management Controller. May also be shown as 4000000900000000 or 0x4000000900000000 Severity Info...
Page 366
This message is for the use case where a DHCP server fails to assign an IP address to a Management Controller. May also be shown as 4000000d00000000 or 0x4000000d00000000 Severity Warning Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 367
Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0013 User Response Complete the following steps until the problem is solved: 1. Make sure that the IMM network cable is connected. 2. Make sure that there is a DHCP server on the network that can assign an IP address to the IMM. •...
Page 368
This message is for the use case where a user has failed to log in to a Management Controller from the Legacy CLI. May also be shown as 4000001100000000 or 0x4000001100000000 Severity Warning Serviceable Automatically notify support Alert Category System - Remote Login SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 369
CIM Information Prefix: IMM ID: 0017 User Response Complete the following steps until the problem is solved: 1. Make sure that the correct login ID and password are being used. 2. Have the system administrator reset the login ID or password. •...
Page 370
• 40000016-00000000 : ENET[[arg1]] DHCP-HSTN=[arg2], DN=[arg3], IP@=[arg4], SN=[arg5], GW@= [arg6], DNS1@=[arg7]. This message is for the use case where a Management Controller IP address and configuration has been assigned by the DHCP server. Lenovo System x3650 M5 Installation and Service Guide...
Page 371
May also be shown as 4000001600000000 or 0x4000001600000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0022 User Response Information only; no action is required. • 40000017-00000000 : ENET[[arg1]] IP-Cfg:HstName=[arg2], IP@=[arg3] ,NetMsk=[arg4], GW@= [arg5].
Page 372
This message is for the use case where a user changes the DHCP setting. May also be shown as 4000001a00000000 or 0x4000001a00000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0026 Lenovo System x3650 M5 Installation and Service Guide...
Page 373
User Response Information only; no action is required. • 4000001b-00000000 : Management Controller [arg1]: Configuration restored from a file by user [arg2]. This message is for the use case where a user restores a Management Controller configuration from a file. May also be shown as 4000001b00000000 or 0x4000001b00000000 Severity Info...
Page 374
This message is for the use case where a Management Controller has resorted to running the backup main application. May also be shown as 4000001e00000000 or 0x4000001e00000000 Severity Warning Serviceable Automatically notify support Alert Category System - other SNMP Trap ID CIM Information Prefix: IMM ID: 0030 Lenovo System x3650 M5 Installation and Service Guide...
Page 375
User Response Update the IMM firmware. Important: Some cluster solutions require specific code levels or coordinated code updates. If the device is part of a cluster solution, verify that the latest level of code is supported for the cluster solution before you update the code. •...
Page 376
• 40000023-00000000 : Flash of [arg1] from [arg2] succeeded for user [arg3]. This message is for the use case where a user has successfully flashed the firmware component (MC Main Application, MC Boot ROM, BIOS, Diagnostics, System Power Backplane, Remote Expansion Enclosure Lenovo System x3650 M5 Installation and Service Guide...
Page 377
Power Backplane, Integrated System Management Processor, or Remote Expansion Enclosure Processor) from the interface and IP address ( %d. May also be shown as 4000002300000000 or 0x4000002300000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0035 User Response Information only;...
Page 378
This message is for the use case when an implementation has detected a Platform Watchdog Timer Expired May also be shown as 4000002700000000 or 0x4000002700000000 Severity Error Serviceable Automatically notify support Alert Category System - OS Timeout SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 379
CIM Information Prefix: IMM ID: 0039 User Response Complete the following steps until the problem is solved: 1. Reconfigure the watchdog timer to a higher value. 2. Make sure that the IMM Ethernet-over-USB interface is enabled. 3. Reinstall the RNDIS or cdc_ether device driver for the operating system. 4.
Page 380
Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0043 User Response Information only; no action is required. • 4000002c-00000000 : Domain Source changed to [arg1] by user [arg2]. Lenovo System x3650 M5 Installation and Service Guide...
Page 381
Domain source changed by user May also be shown as 4000002c00000000 or 0x4000002c00000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0044 User Response Information only; no action is required. • 4000002d-00000000 : DDNS setting changed to [arg1] by user [arg2]. DDNS setting changed by user May also be shown as 4000002d00000000 or 0x4000002d00000000 Severity...
Page 382
IPv6 protocol is disabled by user May also be shown as 4000003000000000 or 0x4000003000000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0048 Lenovo System x3650 M5 Installation and Service Guide...
Page 383
User Response Information only; no action is required. • 40000031-00000000 : IPv6 static IP configuration enabled by user [arg1]. IPv6 static address assignment method is enabled by user May also be shown as 4000003100000000 or 0x4000003100000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID...
Page 384
• 40000035-00000000 : IPv6 DHCP disabled by user [arg1]. IPv6 DHCP assignment method is disabled by user May also be shown as 4000003500000000 or 0x4000003500000000 Severity Info Serviceable Automatically notify support Alert Category none Lenovo System x3650 M5 Installation and Service Guide...
Page 385
SNMP Trap ID CIM Information Prefix: IMM ID: 0053 User Response Information only; no action is required. • 40000036-00000000 : IPv6 stateless auto-configuration disabled by user [arg1]. IPv6 statless auto-assignment method is disabled by user May also be shown as 4000003600000000 or 0x4000003600000000 Severity Info Serviceable...
Page 386
• 4000003a-00000000 : IPv6 static address of network interface modified from [arg1] to [arg2] by user [arg3]. A user modifies the IPv6 static address of a Management Controller May also be shown as 4000003a00000000 or 0x4000003a00000000 Severity Info Lenovo System x3650 M5 Installation and Service Guide...
Page 387
Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0058 User Response Information only; no action is required. • 4000003b-00000000 : DHCPv6 failure, no IP address assigned. S DHCP6 server fails to assign an IP address to a Management Controller. May also be shown as 4000003b00000000 or 0x4000003b00000000 Severity Warning...
Page 388
• 4000003e-00000000 : SSH port number changed from [arg1] to [arg2] by user [arg3]. A user has modified the SSH port number May also be shown as 4000003e00000000 or 0x4000003e00000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 389
CIM Information Prefix: IMM ID: 0062 User Response Information only; no action is required. • 4000003f-00000000 : Web-HTTP port number changed from [arg1] to [arg2] by user [arg3]. A user has modified the Web HTTP port number May also be shown as 4000003f00000000 or 0x4000003f00000000 Severity Info Serviceable...
Page 390
• 40000043-00000000 : SNMP Agent port number changed from [arg1] to [arg2] by user [arg3]. A user has modified the SNMP Agent port number May also be shown as 4000004300000000 or 0x4000004300000000 Severity Info Serviceable Automatically notify support Lenovo System x3650 M5 Installation and Service Guide...
Page 391
Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0067 User Response Information only; no action is required. • 40000044-00000000 : SNMP Traps port number changed from [arg1] to [arg2] by user [arg3]. A user has modified the SNMP Traps port number May also be shown as 4000004400000000 or 0x4000004400000000 Severity Info...
Page 392
• 40000048-00000000 : Inventory data changed for device [arg1], new device data hash=[arg2], new master data hash=[arg3]. Something has caused the physical inventory to change May also be shown as 4000004800000000 or 0x4000004800000000 Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 393
Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0072 User Response Information only; no action is required. • 40000049-00000000 : SNMP [arg1] enabled by user [arg2]. A user enabled SNMPv1 or SNMPv3 or Traps May also be shown as 4000004900000000 or 0x4000004900000000 Severity Info...
Page 394
May also be shown as 4000004c00000000 or 0x4000004c00000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0076 User Response Information only; no action is required. Lenovo System x3650 M5 Installation and Service Guide...
Page 395
• 4000004d-00000000 : LDAP set by user [arg1]: RootDN=[arg2], UIDSearchAttribute=[arg3], BindingMethod=[arg4], EnhancedRBS=[arg5], TargetName=[arg6], GroupFilter=[arg7], GroupAttribute=[arg8], LoginAttribute=[arg9]. A user configured an LDAP Miscellaneous setting May also be shown as 4000004d00000000 or 0x4000004d00000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0077...
Page 396
• 40000051-00000000 : Server Power Off Delay set to [arg1] by user [arg2]. A user configured the Server Power Off Delay May also be shown as 4000005100000000 or 0x4000005100000000 Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3650 M5 Installation and Service Guide...
Page 397
none SNMP Trap ID CIM Information Prefix: IMM ID: 0081 User Response Information only; no action is required. • 40000052-00000000 : Server [arg1] scheduled for [arg2] at [arg3] by user [arg4]. A user configured a Server Power action at a specific time May also be shown as 4000005200000000 or 0x4000005200000000 Severity Info...
Page 398
Information only; no action is required. • 40000056-00000000 : SMTP Server set by user [arg1] to [arg2]:[arg3]. A user configured the SMTP server May also be shown as 4000005600000000 or 0x4000005600000000 Severity Info Lenovo System x3650 M5 Installation and Service Guide...
Page 399
Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0086 User Response Information only; no action is required. • 40000057-00000000 : Telnet [arg1] by user [arg2]. A user enables or disables Telnet services May also be shown as 4000005700000000 or 0x4000005700000000 Severity Info Serviceable...
Page 400
May also be shown as 4000005a00000000 or 0x4000005a00000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0090 User Response Information only; no action is required. Lenovo System x3650 M5 Installation and Service Guide...
Page 401
• 4000005b-00000000 : Secure Web services (HTTPS) [arg1] by user [arg2]. A user enables or disables Secure web services May also be shown as 4000005b00000000 or 0x4000005b00000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0091 User Response Information only;...
Page 402
• 4000005f-00000000 : Server timeouts set by user [arg1]: EnableOSWatchdog=[arg2], OSWatchdogTimout=[arg3], EnableLoaderWatchdog=[arg4], LoaderTimeout=[arg5]. A user configures Server Timeouts May also be shown as 4000005f00000000 or 0x4000005f00000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Lenovo System x3650 M5 Installation and Service Guide...
Page 403
Prefix: IMM ID: 0095 User Response Information only; no action is required. • 40000060-00000000 : License key for [arg1] added by user [arg2]. A user installs License Key May also be shown as 4000006000000000 or 0x4000006000000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID...
Page 404
Prefix: IMM ID: 0099 User Response Information only; no action is required. • 40000064-00000000 : User [arg1] created. A user account was created May also be shown as 4000006400000000 or 0x4000006400000000 Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 405
Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0100 User Response Information only; no action is required. • 40000065-00000000 : User [arg1] removed. A user account was deleted May also be shown as 4000006500000000 or 0x4000006500000000 Severity Info Serviceable...
Page 406
Information only; no action is required. • 40000069-00000000 : User [arg1] for SNMPv3 set: AuthenticationProtocol=[arg2], PrivacyProtocol= [arg3], AccessType=[arg4], HostforTraps=[arg5]. User account SNMPv3 settings changed May also be shown as 4000006900000000 or 0x4000006900000000 Lenovo System x3650 M5 Installation and Service Guide...
Page 407
Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0105 User Response Information only; no action is required. • 4000006a-00000000 : SSH Client key added for user [arg1]. User locally defined an SSH Client key May also be shown as 4000006a00000000 or 0x4000006a00000000 Severity Info...
Page 408
May also be shown as 4000006d00000000 or 0x4000006d00000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0109 User Response Information only; no action is required. Lenovo System x3650 M5 Installation and Service Guide...
Page 409
• 4000006e-00000000 : Alert Configuration Global Event Notification set by user [arg1]: RetryLimit= [arg2], RetryInterval=[arg3], EntryInterval=[arg4]. A user changes the Global Event Notification settings. May also be shown as 4000006e00000000 or 0x4000006e00000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information...
Page 410
• 40000072-00000000 : The minimum power cap value changed from [arg1] watts to [arg2] watts. Minimum Power Cap value changed May also be shown as 4000007200000000 or 0x4000007200000000 Severity Info Serviceable Automatically notify support Alert Category none Lenovo System x3650 M5 Installation and Service Guide...
Page 411
SNMP Trap ID CIM Information Prefix: IMM ID: 0114 User Response Information only; no action is required. • 40000073-00000000 : The maximum power cap value changed from [arg1] watts to [arg2] watts. Maximum Power Cap value changed May also be shown as 4000007300000000 or 0x4000007300000000 Severity Info Serviceable...
Page 412
Information only; no action is required. • 40000077-00000000 : Power capping was activated by user [arg1]. Power capping activated by user May also be shown as 4000007700000000 or 0x4000007700000000 Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 413
Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0119 User Response Information only; no action is required. • 40000078-00000000 : Power capping was deactivated by user [arg1]. Power capping deactivated by user May also be shown as 4000007800000000 or 0x4000007800000000 Severity Info Serviceable...
Page 414
Information only; no action is required. • 4000007c-00000000 : Dynamic Power Savings mode has been turned off by user [arg1]. Dynamic Power Savings mode turned off by user May also be shown as 4000007c00000000 or 0x4000007c00000000 Severity Lenovo System x3650 M5 Installation and Service Guide...
Page 415
Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0124 User Response Information only; no action is required. • 4000007d-00000000 : Power cap and external throttling occurred. Power cap and external throttling occurred May also be shown as 4000007d00000000 or 0x4000007d00000000 Severity Info...
Page 416
Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0128 User Response Information only; no action is required. • 40000081-00000000 : PXE boot requested by user [arg1]. Lenovo System x3650 M5 Installation and Service Guide...
Page 417
PXE boot requested May also be shown as 4000008100000000 or 0x4000008100000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0129 User Response Information only; no action is required. • 40000082-00000000 : The measured power value has returned below the power cap value. Power exceeded cap recovered May also be shown as 4000008200000000 or 0x4000008200000000 Severity...
Page 418
A mismatch of FPGA firmware has been detected between nodes May also be shown as 4000008500000000 or 0x4000008500000000 Severity Error Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 419
SNMP Trap ID CIM Information Prefix: IMM ID: 0135 User Response Lenovo Support will address the problem. • 40000088-00000000 : Management Controller [arg1]: Configuration restoration from a file by user [arg2] completed. Appendix A. Integrated management module II (IMM2) error messages...
Page 420
2. After 45 seconds, reconnect the server to the power source and turn on the server. 3. Retry the operation. • 4000008a-00000000 : Management Controller [arg1]: Configuration restoration from a file by user [arg2] failed to start. Lenovo System x3650 M5 Installation and Service Guide...
Page 421
This message is for the use case where a user restores a Management Controller configuration from a file and the restoration fails to start. May also be shown as 4000008a00000000 or 0x4000008a00000000 Severity Error Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information...
Page 422
Information only; no action is required. • 4000008e-00000000 : Device [arg1] VPD is not valid. The VPD for a device is invalid May also be shown as 4000008e00000000 or 0x4000008e00000000 Severity Warning Serviceable Automatically notify support Lenovo System x3650 M5 Installation and Service Guide...
Page 423
CIM Information Prefix: IMM ID: 0142 User Response Lenovo Support will address the problem. • 4000008f-00000000 : The bare metal connection process has been started. Bare Metal Connection process has been started May also be shown as 4000008f00000000 or 0x4000008f00000000...
Page 424
Information only; no action is required. • 40000093-00000000 : TKLM servers device group set by user [arg1]: TKLMServerDeviceGroup= [arg2]. A user configured the TKLM device group May also be shown as 4000009300000000 or 0x4000009300000000 Severity Lenovo System x3650 M5 Installation and Service Guide...
Page 425
Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0147 User Response Information only; no action is required. • 40000094-00000000 : User [arg1] has generated a new encryption key pair and installed a self- signed certificate for the TKLM client.
Page 426
May also be shown as 4000009700000000 or 0x4000009700000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0151 User Response Information only; no action is required. Lenovo System x3650 M5 Installation and Service Guide...
Page 427
• 40000098-00000000 : The UEFI Definitions have been changed. UEFI Definitions change has been detected May also be shown as 4000009800000000 or 0x4000009800000000 Severity Info Serviceable Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0152 User Response Information only;...
Page 428
This message is for the use case where a user successfully logs in to a Management Controller. May also be shown as 4000009c00000000 or 0x4000009c00000000 Severity Info Serviceable Automatically notify support Alert Category System - Remote Login SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 429
CIM Information Prefix: IMM ID: 0156 User Response Information only; no action is required. • 4000009d-00000000 : Login ID: [arg1] from [arg2] at IP address [arg3] has logged off. This message is for the use case where a user has logged off of a Management Controller. May also be shown as 4000009d00000000 or 0x4000009d00000000 Severity Info...
Page 430
Prefix: IMM ID: 0160 User Response Information only; no action is required. • 400000a1-00000000 : UEFI Reported: [arg1]. UEFI audit event logged. May also be shown as 400000a100000000 or 0x400000a100000000 Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 431
Automatically notify support Alert Category none SNMP Trap ID CIM Information Prefix: IMM ID: 0161 User Response Information only; no action is required. • 400000a2-00000000 : User [arg1] has [arg2] file [arg3] from [arg4]. User has mounted/unmounted file from URL or server May also be shown as 400000a200000000 or 0x400000a200000000 Severity Info...
Page 432
Information only; no action is required. • 400000a6-00000000 : The server was restarted for an unknown reason. The server was restarted for an unknown reason May also be shown as 400000a600000000 or 0x400000a600000000 Severity Lenovo System x3650 M5 Installation and Service Guide...
Page 433
Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: IMM ID: 0166 User Response Information only; no action is required. • 400000a7-00000000 : The server is restarted by chassis control command. Server is restarted by chassis control command May also be shown as 400000a700000000 or 0x400000a700000000 Severity Info...
Page 434
Alert Category System - Other SNMP Trap ID CIM Information Prefix: IMM ID: 0170 User Response Information only; no action is required. • 400000ab-00000000 : The server was restarted for OEM reason. Lenovo System x3650 M5 Installation and Service Guide...
Page 435
Server was restarted for OEM reason May also be shown as 400000ab00000000 or 0x400000ab00000000 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: IMM ID: 0171 User Response Information only; no action is required. •...
Page 436
• 400000af-00000000 : The server was power-cycled via Platform Event Filter. Server was power-cycled via Platform Event Filter May also be shown as 400000af00000000 or 0x400000af00000000 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 437
CIM Information Prefix: IMM ID: 0175 User Response Information only; no action is required. • 400000b0-00000000 : The server was soft reset. Server was soft reset May also be shown as 400000b000000000 or 0x400000b000000000 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID...
Page 438
• 400000b4-00000000 : The server was powered off via pushbutton. Server was powered off via pushbutton May also be shown as 400000b400000000 or 0x400000b400000000 Severity Info Serviceable Automatically notify support Alert Category System - Other Lenovo System x3650 M5 Installation and Service Guide...
Page 439
SNMP Trap ID CIM Information Prefix: IMM ID: 0180 User Response Information only; no action is required. • 400000b5-00000000 : The server was powered off when the watchdog expired. Server was powered off when the watchdog expired. May also be shown as 400000b500000000 or 0x400000b500000000 Severity Info Serviceable...
Page 440
• 400000b9-00000000 : The server was powered off via Real Time Clock (scheduled power off). Server was powered up via Real Time Clock (scheduled power off) May also be shown as 400000b900000000 or 0x400000b900000000 Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 441
Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: IMM ID: 0185 User Response Information only; no action is required. • 400000ba-00000000 : Management Controller [arg1] reset was initiated due to Power-On-Reset. Management Controller reset was initiated due to Power-On-Reset May also be shown as 400000ba00000000 or 0x400000ba00000000 Severity Info...
Page 442
User Response Information only; no action is required. • 400000be-00000000 : The [arg1] certificate is expired and has been removed. Expired certificate has been removed May also be shown as 400000be00000000 or 0x400000be00000000 Lenovo System x3650 M5 Installation and Service Guide...
Page 443
Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: IMM ID: 0190 User Response Information only; no action is required. • 400000bf-00000000 : Operating System status has changed to [arg1]. Operating System status change May also be shown as 400000bf00000000 or 0x400000bf00000000 Severity Info...
Page 444
May also be shown as 400000c300000000 or 0x400000c300000000 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: IMM ID: 0195 User Response Information only; no action is required. Lenovo System x3650 M5 Installation and Service Guide...
Page 445
• 400000c4-00000000 : IMM failed to log previous event [arg1]. IMM failed to log a previous event. May also be shown as 400000c400000000 or 0x400000c400000000 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: IMM ID: 0196 User Response Information only;...
Page 446
Encapsulation lite mode status change May also be shown as 400000c900000000 or 0x400000c900000000 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: IMM ID: 0201 Lenovo System x3650 M5 Installation and Service Guide...
Page 447
User Response Information only; no action is required. • 400000ca-00000000 : Battery error was detected by RAID controller. The battery unit needs replacement.([arg1],[arg2],[arg3],[arg4],[arg5]) Battery error was detected by RAID controller May also be shown as 400000ca00000000 or 0x400000ca00000000 Severity Info Serviceable Automatically notify support Alert Category...
Page 448
Please check the drive LED status. If necessary, contact technical support for additional assistance.([arg1],[arg2],[arg3],[arg4],[arg5]) The RAID controller detected one or more possible configuration changes within the subsystem May also be shown as 400000ce00000000 or 0x400000ce00000000 Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 449
SNMP Trap ID CIM Information Prefix: IMM ID: 0207 User Response Lenovo Support will address the problem. • 400000d0-00000000 : Connectivity issue detected with the enclosure. Please check your cable configurations to repair the problem.([arg1],[arg2],[arg3],[arg4],[arg5]) Connectivity issue detected with the enclosure...
Page 450
• 400000d3-00000000 : One or more virtual drive are in abnormal status that may cause unavailable virtual drive. Please check the event logs and if events are targeted to the same disk then replace Lenovo System x3650 M5 Installation and Service Guide...
Page 451
the drive. If necessary, contact technical support for additional assistance.([arg1],[arg2],[arg3], [arg4],[arg5]) One or more virtual drive are in abnormal status that may cause unavailable virtual drive May also be shown as 400000d300000000 or 0x400000d300000000 Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID...
Page 452
If necessary, contact technical support for additional assistance.([arg1],[arg2],[arg3],[arg4],[arg5]) Drive error was detected by RAID controller May also be shown as 400000d700000000 or 0x400000d700000000 Severity Info Serviceable Automatically notify support Lenovo System x3650 M5 Installation and Service Guide...
Page 453
Alert Category System - Other SNMP Trap ID CIM Information Prefix: IMM ID: 0215 User Response Check storage documentation by LSI Event ID. • 80010002-0701ffff : Numeric sensor [NumericSensorElementName] going low (lower non-critical) has asserted. (CMOS Battery) This message is for the use case when an implementation has detected a Lower Non-critical sensor going low has asserted.
Page 454
(Fan 2A Tach) This message is for the use case when an implementation has detected a Lower Critical sensor going low has asserted. May also be shown as 800102041d02ffff or 0x800102041d02ffff Severity Error Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 455
Automatically notify support Alert Category Critical - Fan Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0480 User Response 1. Reseat the failing fan n, which is indicated by a lit LED near the fan connector on the system board.
Page 456
• 80010204-1d06ffff : Numeric sensor [NumericSensorElementName] going low (lower critical) has asserted. (Fan 6A Tach) This message is for the use case when an implementation has detected a Lower Critical sensor going low has asserted. Lenovo System x3650 M5 Installation and Service Guide...
Page 457
May also be shown as 800102041d06ffff or 0x800102041d06ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Fan Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0480 User Response 1. Reseat the failing fan n, which is indicated by a lit LED near the fan connector on the system board.
Page 458
2. Remove the following component and identify the problem. a. HDD drive b. HDD cable c. RAID card d. cage riser n 3. Replace rear hdd cage riser n (n = riser number). Lenovo System x3650 M5 Installation and Service Guide...
Page 459
• 80010204-1d0affff : Numeric sensor [NumericSensorElementName] going low (lower critical) has asserted. (Fan Riser2B Tach) This message is for the use case when an implementation has detected a Lower Critical sensor going low has asserted. May also be shown as 800102041d0affff or 0x800102041d0affff Severity Error Serviceable...
Page 460
This message is for the use case when an implementation has detected an Upper Non-critical sensor going high has asserted. May also be shown as 800107010703ffff or 0x800107010703ffff Severity Warning Serviceable Automatically notify support Alert Category Warning - Temperature Lenovo System x3650 M5 Installation and Service Guide...
Page 461
SNMP Trap ID CIM Information Prefix: PLAT ID: 0490 User Response 1. Make sure that the fans are operating, that there are no obstructions to the airflow (front and rear of the server), that the air baffle is in place and correctly installed, and that the server cover is installed and completely closed.
Page 462
2. Check the ambient temperature. You must be operating within the specifications (see Server Features and specifications for more information). 3. Replace power supply. • 80010701-0707ffff : Numeric sensor [NumericSensorElementName] going high (upper non-critical) has asserted. (Rear BP1 Temp) Lenovo System x3650 M5 Installation and Service Guide...
Page 463
This message is for the use case when an implementation has detected an Upper Non-critical sensor going high has asserted. May also be shown as 800107010707ffff or 0x800107010707ffff Severity Warning Serviceable Automatically notify support Alert Category Warning - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0490 User Response...
Page 464
This message is for the use case when an implementation has detected an Upper Non-critical sensor going high has asserted. May also be shown as 800107011402ffff or 0x800107011402ffff Severity Warning Serviceable Automatically notify support Alert Category Lenovo System x3650 M5 Installation and Service Guide...
Page 465
Warning - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0490 User Response 1. Reduce the ambient temperature. 2. Ensure the air baffle is installed correctly. 3. Check the server airflow. Make sure that nothing is blocking the air from coming into or preventing the air from exiting the server.
Page 466
(DIMM GH VR Temp) This message is for the use case when an implementation has detected an Upper Non-critical sensor going high has asserted. May also be shown as 800107011406ffff or 0x800107011406ffff Severity Warning Lenovo System x3650 M5 Installation and Service Guide...
Page 467
Serviceable Automatically notify support Alert Category Warning - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0490 User Response 1. Make sure that the fans are operating, that there are no obstructions to the airflow (front and rear of the server), that the air baffle is in place and correctly installed, and that the server cover is installed and completely closed.
Page 468
This message is for the use case when an implementation has detected an Upper Critical sensor going high has asserted. May also be shown as 800109010701ffff or 0x800109010701ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0494 Lenovo System x3650 M5 Installation and Service Guide...
Page 469
User Response 1. Make sure that the fans are operating, that there are no obstructions to the airflow (front and rear of the server), that the air baffle is in place and correctly installed, and that the server cover is installed and completely closed.
Page 470
(RAID RR Amb Temp) This message is for the use case when an implementation has detected an Upper Critical sensor going high has asserted. May also be shown as 800109010705ffff or 0x800109010705ffff Lenovo System x3650 M5 Installation and Service Guide...
Page 471
Severity Error Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0494 User Response 1. Make sure that the fans are operating, that there are no obstructions to the airflow (front and rear of the server), that the air baffle is in place and correctly installed, and that the server cover is installed and completely closed.
Page 472
This message is for the use case when an implementation has detected an Upper Critical sensor going high has asserted. May also be shown as 800109010708ffff or 0x800109010708ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0494 Lenovo System x3650 M5 Installation and Service Guide...
Page 473
User Response 1. Make sure that the fans are operating, that there are no obstructions to the airflow (front and rear of the server), that the air baffle is in place and correctly installed, and that the server cover is installed and completely closed.
Page 474
(DIMM CD VR Temp) This message is for the use case when an implementation has detected an Upper Critical sensor going high has asserted. May also be shown as 800109011404ffff or 0x800109011404ffff Severity Error Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 475
Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0494 User Response 1. Reduce the ambient temperature. 2. Ensure the air baffle is installed correctly. 3. Check the server airflow. Make sure that nothing is blocking the air from coming into or preventing the air from exiting the server.
Page 476
2. Check the ambient temperature. You must be operating within the specifications (see Server Features and specifications for more information). 3. Make sure that the heat sink for microprocessor n. 4. (Trained technician only) Replace system board. Lenovo System x3650 M5 Installation and Service Guide...
Page 477
• 80010901-3701ffff : Numeric sensor [NumericSensorElementName] going high (upper critical) has asserted. (Ambient Temp) This message is for the use case when an implementation has detected an Upper Critical sensor going high has asserted. May also be shown as 800109013701ffff or 0x800109013701ffff Severity Error Serviceable...
Page 478
This message is for the use case when an implementation has detected an Upper Non-recoverable sensor going high has asserted. May also be shown as 80010b010702ffff or 0x80010b010702ffff Severity Error Serviceable Automatically notify support Lenovo System x3650 M5 Installation and Service Guide...
Page 479
Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0498 User Response 1. Make sure that the fans are operating, that there are no obstructions to the airflow (front and rear of the server), that the air baffle is in place and correctly installed, and that the server cover is installed and completely closed.
Page 480
May also be shown as 80010b010705ffff or 0x80010b010705ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0498 User Response Lenovo System x3650 M5 Installation and Service Guide...
Page 481
1. Make sure that the fans are operating, that there are no obstructions to the airflow (front and rear of the server), that the air baffle is in place and correctly installed, and that the server cover is installed and completely closed. 2.
Page 482
4. Check the fans on rear HDD cage are functional. 5. Replace rear HDD drive cage. • 80010b01-1401ffff : Numeric sensor [NumericSensorElementName] going high (upper non- recoverable) has asserted. (CPU1 VR Temp) Lenovo System x3650 M5 Installation and Service Guide...
Page 483
This message is for the use case when an implementation has detected an Upper Non-recoverable sensor going high has asserted. May also be shown as 80010b011401ffff or 0x80010b011401ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0498 User Response...
Page 484
This message is for the use case when an implementation has detected an Upper Non-recoverable sensor going high has asserted. May also be shown as 80010b011404ffff or 0x80010b011404ffff Severity Error Serviceable Automatically notify support Lenovo System x3650 M5 Installation and Service Guide...
Page 485
Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0498 User Response 1. Make sure that the fans are operating, that there are no obstructions to the airflow (front and rear of the server), that the air baffle is in place and correctly installed, and that the server cover is installed and completely closed.
Page 486
1. Make sure that the fans are operating, that there are no obstructions to the airflow (front and rear of the server), that the air baffle is in place and correctly installed, and that the server cover is installed and completely closed. Lenovo System x3650 M5 Installation and Service Guide...
Page 487
2. Check the ambient temperature. You must be operating within the specifications (see Server Features and specifications for more information). 3. Make sure that the heat sink for microprocessor n. 4. (Trained technician only) Replace system board. • 80010b01-3701ffff : Numeric sensor [NumericSensorElementName] going high (upper non- recoverable) has asserted.
Page 488
• 80030108-1301ffff : Sensor [SensorElementName] has asserted. (PS Heavy Load) This message is for the use case when an implementation has detected a Sensor has asserted. May also be shown as 800301081301ffff or 0x800301081301ffff Severity Lenovo System x3650 M5 Installation and Service Guide...
Page 489
User Response 1. Replace as authorized DIMM. 2. Please contact sales representative or Lenovo support. • 8003010f-2101ffff : Sensor [SensorElementName] has asserted. (IMM FW Corrupted) This message is for the use case when an implementation has detected a Sensor has asserted.
Page 490
This message is for the use case when an implementation has detected a Sensor has asserted. May also be shown as 800301210782ffff or 0x800301210782ffff Severity Info Serviceable Automatically notify support Alert Category System - Other Lenovo System x3650 M5 Installation and Service Guide...
Page 491
SNMP Trap ID CIM Information Prefix: PLAT ID: 0508 User Response 1. Replace the power supply with higher rated power. 2. Reduce the total power consumption by removing newly added or unused option like drives or adapters. • 8007000d-2582ffff : Sensor [SensorElementName] has transitioned to normal state. (RAID Vol State) This message is for the use case when an implementation has detected a Sensor transition to the normal state.
Page 492
This message is for the use case when an implementation has detected a Sensor transitioned to non- critical from normal. May also be shown as 8007010d2582ffff or 0x8007010d2582ffff Severity Warning Serviceable Automatically notify support Alert Category Warning - Other Lenovo System x3650 M5 Installation and Service Guide...
Page 493
CIM Information Prefix: PLAT ID: 0520 User Response 1. Check the Lenovo support site for service bulletins or firmware updates that apply to this GPT error. 2. Set the UEFI setting DISK GPT Recovery to Automatic. 3. Replace the corrupt disk.
Page 494
(X8 PCI 1 Config) This message is for the use case when an implementation has detected a Sensor transitioned to non- critical from normal. May also be shown as 800701252583ffff or 0x800701252583ffff Lenovo System x3650 M5 Installation and Service Guide...
Page 495
Severity Warning Serviceable Automatically notify support Alert Category Warning - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0520 User Response None X8 PCI 2 Config : X8 PCI 6 Config : X8 PCI 7 Config : • 80070128-2e01ffff : Sensor [SensorElementName] has transitioned from normal to non-critical state.
Page 496
2. Check the ambient temperature. You must be operating within the specifications (see Features and specifications for more information). 3. Make sure that the heat sink for microprocessor n is installed correctly. 4. (Trained technician only) Replace microprocessor n. (n = microprocessor number) Lenovo System x3650 M5 Installation and Service Guide...
Page 497
• 80070201-1101ffff : Sensor [SensorElementName] has transitioned to critical from a less severe state. (PCI 1 Temp) This message is for the use case when an implementation has detected a Sensor transitioned to critical from less severe. May also be shown as 800702011101ffff or 0x800702011101ffff Severity Error Serviceable...
Page 498
(PCI 4 Temp) This message is for the use case when an implementation has detected a Sensor transitioned to critical from less severe. May also be shown as 800702011104ffff or 0x800702011104ffff Severity Error Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 499
Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0522 User Response 1. Make sure that the fans are operating, that there are no obstructions to the airflow (front and rear of the server), that the air baffles are in place and correctly installed, and that the server cover is installed and completely closed.
Page 500
May also be shown as 800702011107ffff or 0x800702011107ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0522 User Response Lenovo System x3650 M5 Installation and Service Guide...
Page 501
1. Make sure that the fans are operating, that there are no obstructions to the airflow (front and rear of the server), that the air baffles are in place and correctly installed, and that the server cover is installed and completely closed. 2.
Page 502
(PS 2 Fan Fault) This message is for the use case when an implementation has detected a Sensor transitioned to critical from less severe. May also be shown as 800702040a02ffff or 0x800702040a02ffff Severity Error Lenovo System x3650 M5 Installation and Service Guide...
Page 503
1. Make sure that there are no obstructions, such as bundled cables, to the airflow from the power- supply fan. 2. Use the Lenovo Power Configurator utility to ensure current system power consumption is under limitation. For more information and to download the utility, go to https://www.ibm.com/support/ entry/myportal/docdisplay?lndocid=LNVO-PWRCONF.
Page 504
1. Make sure that there are no obstructions, such as bundled cables, to the airflow from the power- supply fan. 2. Use the Lenovo Power Configurator utility to ensure current system power consumption is under limitation. For more information and to download the utility, go to https://www.ibm.com/support/ entry/myportal/docdisplay?lndocid=LNVO-PWRCONF.
Page 505
Severity Error Serviceable Automatically notify support Alert Category Critical - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0522 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b.
Page 506
1. Update the server firmware (see Recovering the server firmware). 2. If the problem persists, (trained technician only) replace the system board (see Removing the system board and Installing the system board). Lenovo System x3650 M5 Installation and Service Guide...
Page 507
• 80070219-0701ffff : Sensor [SensorElementName] has transitioned to critical from a less severe state. (SysBrd Fault) This message is for the use case when an implementation has detected a Sensor transitioned to critical from less severe. May also be shown as 800702190701ffff or 0x800702190701ffff Severity Error Serviceable...
Page 508
This message is for the use case when an implementation has detected a Sensor transitioned to critical from less severe. May also be shown as 800702282e01ffff or 0x800702282e01ffff Severity Error Serviceable Automatically notify support Lenovo System x3650 M5 Installation and Service Guide...
Page 509
Alert Category Critical - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0522 User Response If the specified sensor is IPMB IO Error, Me Error or ME Flash Error, complete the following steps until the problem is solved: 1. Restart IMM. If the error still appears, proceed step 2. 2.
Page 510
2. Check the ambient temperature. You must be operating within the specifications (see Server Features and specifications for more information). Lenovo System x3650 M5 Installation and Service Guide...
Page 511
3. Make sure that the heat sink for microprocessor n. 4. (Trained technician only) Replace microprocessor n. (n = microprocessor number) • 80070301-1102ffff : Sensor [SensorElementName] has transitioned to non-recoverable from a less severe state. (PCI 2 Temp) This message is for the use case when an implementation has detected a Sensor transitioned to non- recoverable from less severe.
Page 512
(PCI 5 Temp) This message is for the use case when an implementation has detected a Sensor transitioned to non- recoverable from less severe. May also be shown as 800703011105ffff or 0x800703011105ffff Severity Error Lenovo System x3650 M5 Installation and Service Guide...
Page 513
Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0524 User Response 1. Make sure that the fans are operating, that there are no obstructions to the airflow (front and rear of the server), that the air baffle is in place and correctly installed, and that the server cover is installed and completely closed.
Page 514
May also be shown as 800703011108ffff or 0x800703011108ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0524 Lenovo System x3650 M5 Installation and Service Guide...
Page 515
User Response 1. Make sure that the fans are operating, that there are no obstructions to the airflow (front and rear of the server), that the air baffle is in place and correctly installed, and that the server cover is installed and completely closed.
Page 516
If the specified sensor is PS n 12V OC Fault, complete the following steps until the problem is solved: 1. Use the Lenovo Power Configurator utility to determine current system power consumption. For more information and to download the utility, go to https://www.ibm.com/support/entry/ myportal/docdisplay?lndocid=LNVO-PWRCONF.
Page 517
If the specified sensor is PS n 12V OC Fault, complete the following steps until the problem is solved: 1. Use the Lenovo Power Configurator utility to determine current system power consumption. For more information and to download the utility, go to https://www.ibm.com/support/entry/ myportal/docdisplay?lndocid=LNVO-PWRCONF.
Page 518
Alert Category Critical - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0530 User Response None X8 PCI 2 Config : X8 PCI 6 Config : X8 PCI 7 Config : Lenovo System x3650 M5 Installation and Service Guide...
Page 519
• 8008010f-2101ffff : Device [LogicalDeviceElementName] has been added. (Phy Presence Jmp) This message is for the use case when an implementation has detected a Device was inserted. May also be shown as 8008010f2101ffff or 0x8008010f2101ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID...
Page 520
This message is for the use case when Redundancy Lost has asserted. May also be shown as 800b010a1e81ffff or 0x800b010a1e81ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Fan Failure Lenovo System x3650 M5 Installation and Service Guide...
Page 521
SNMP Trap ID CIM Information Prefix: PLAT ID: 0802 User Response 1. Make sure that the connectors on fan n are not damaged. 2. Make sure that the fan n connectors on the system board are not damaged. 3. Make sure that the fans are correctly installed. 4.
Page 522
• 800b010c-2581ffff : Redundancy Lost for [RedundancySetElementName] has asserted. (Backup Memory) This message is for the use case when Redundancy Lost has asserted. May also be shown as 800b010c2581ffff or 0x800b010c2581ffff Severity Error Lenovo System x3650 M5 Installation and Service Guide...
Page 523
Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0802 User Response 1. If you have added or removed DIMMs to the system, and no additional errors were detected, then please ignore this message. 2.
Page 524
2. Reduce the total power consumption by removing newly added or unused options like drives or adaptors. 3. Use the Lenovo Power Configurator utility to determine current system power consumption. For more information and to download the utility, go to https://www.ibm.com/support/entry/ myportal/docdisplay?lndocid=LNVO-PWRCONF.
Page 525
4. Replace the power supply with higher rated power if Oversubscription_Fault seen in power supply. 5. Please reseat power cords and power supplies. • 800b050a-1e81ffff : Non-redundant:Insufficient Resources for [RedundancySetElementName] has asserted. (Fan Zone 1) This message is for the use case when a Redundancy Set has transitioned to Non-redundant:Insufficient Resources.
Page 526
(Fan Zone 4) This message is for the use case when a Redundancy Set has transitioned to Non-redundant:Insufficient Resources. May also be shown as 800b050a1e84ffff or 0x800b050a1e84ffff Severity Error Serviceable Automatically notify support Lenovo System x3650 M5 Installation and Service Guide...
Page 527
Alert Category Critical - Fan Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0810 User Response 1. Make sure that the connectors on fan n are not damaged. 2. Make sure that the fan n connectors on the system board are not damaged. 3.
Page 528
2. Update the firmware (UEFI and IMM) to the latest level (Updating the firmware). 3. Run the DSA program. 4. Reseat the adapter. Lenovo System x3650 M5 Installation and Service Guide...
Page 529
5. Replace the adapter. 6. (Trained technician only) Replace microprocessor n. 7. (Trained technician only) Replace the system board. (n = microprocessor number) • 806f0008-0a01ffff : [PowerSupplyElementName] has been added to container [PhysicalPackageElementName]. (Power Supply 1) This message is for the use case when an implementation has detected a Power Supply has been added. May also be shown as 806f00080a01ffff or 0x806f00080a01ffff Severity Info...
Page 530
• 806f000d-0401ffff : The Drive [StorageVolumeElementName] has been added. (Drive 1) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0401ffff or 0x806f000d0401ffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 531
Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0162 User Response No action; information only. • 806f000d-0402ffff : The Drive [StorageVolumeElementName] has been added. (Drive 2) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0402ffff or 0x806f000d0402ffff Severity Info...
Page 532
• 806f000d-0406ffff : The Drive [StorageVolumeElementName] has been added. (Drive 6) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0406ffff or 0x806f000d0406ffff Severity Lenovo System x3650 M5 Installation and Service Guide...
Page 533
Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0162 User Response No action; information only. • 806f000d-0407ffff : The Drive [StorageVolumeElementName] has been added. (Drive 7) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0407ffff or 0x806f000d0407ffff Severity Info...
Page 534
Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0162 User Response No action; information only. • 806f000d-040bffff : The Drive [StorageVolumeElementName] has been added. (Drive 11) Lenovo System x3650 M5 Installation and Service Guide...
Page 535
This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d040bffff or 0x806f000d040bffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0162 User Response No action;...
Page 536
This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d040fffff or 0x806f000d040fffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0162 Lenovo System x3650 M5 Installation and Service Guide...
Page 537
User Response No action; information only. • 806f000d-0410ffff : The Drive [StorageVolumeElementName] has been added. (Drive 16) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0410ffff or 0x806f000d0410ffff Severity Info Serviceable...
Page 538
This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0414ffff or 0x806f000d0414ffff Severity Info Serviceable Automatically notify support Alert Category System - Other Lenovo System x3650 M5 Installation and Service Guide...
Page 539
SNMP Trap ID CIM Information Prefix: PLAT ID: 0162 User Response No action; information only. • 806f000d-0415ffff : The Drive [StorageVolumeElementName] has been added. (Drive 21) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0415ffff or 0x806f000d0415ffff Severity Info...
Page 540
• 806f000d-0419ffff : The Drive [StorageVolumeElementName] has been added. (Drive 25) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0419ffff or 0x806f000d0419ffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 541
Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0162 User Response No action; information only. • 806f000d-041affff : The Drive [StorageVolumeElementName] has been added. (Drive 26) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d041affff or 0x806f000d041affff Severity Info...
Page 542
• 806f000d-041effff : The Drive [StorageVolumeElementName] has been added. (Drive 30) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d041effff or 0x806f000d041effff Severity Lenovo System x3650 M5 Installation and Service Guide...
Page 543
Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0162 User Response No action; information only. • 806f000d-041fffff : The Drive [StorageVolumeElementName] has been added. (Drive 31) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d041fffff or 0x806f000d041fffff Severity Info...
Page 544
Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0162 User Response No action; information only. • 806f000d-0423ffff : The Drive [StorageVolumeElementName] has been added. (Drive 35) Lenovo System x3650 M5 Installation and Service Guide...
Page 545
This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0423ffff or 0x806f000d0423ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0162 User Response...
Page 546
This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0427ffff or 0x806f000d0427ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0162 Lenovo System x3650 M5 Installation and Service Guide...
Page 547
User Response No action; information only. • 806f000d-0428ffff : The Drive [StorageVolumeElementName] has been added. (Drive 40) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d0428ffff or 0x806f000d0428ffff Severity Info Serviceable...
Page 548
This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d042cffff or 0x806f000d042cffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive Lenovo System x3650 M5 Installation and Service Guide...
Page 549
SNMP Trap ID CIM Information Prefix: PLAT ID: 0162 User Response No action; information only. • 806f000d-042dffff : The Drive [StorageVolumeElementName] has been added. (Drive 45) This message is for the use case when an implementation has detected a Drive has been Added. May also be shown as 806f000d042dffff or 0x806f000d042dffff Severity Info...
Page 550
5. Recover the server firmware from the backup page: a. Restart the server. b. At the prompt, press F3 to recover the firmware. c. Update the server firmware on the primary page. Important: Some Lenovo System x3650 M5 Installation and Service Guide...
Page 551
cluster solutions require specific code levels or coordinated code updates. If the device is part of a cluster solution, verify that the latest level of code is supported for the cluster solution before you update the code. 6. If the problem remains, (trained technician only) replace the system board. Firmware Error : Sys Boot Status : X8 PCI 1 Firm : X8 PCI 2 Firm : X8 PCI 6 Firm : X8 PCI 7 Firm : •...
Page 552
(ABR Status) This message is for the use case when an implementation has detected that System Firmware Error Unrecoverable Keyboard failure has occurred. May also be shown as 806f000f220107ff or 0x806f000f220107ff Lenovo System x3650 M5 Installation and Service Guide...
Page 553
Severity Error Serviceable Automatically notify support Alert Category Critical - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0764 User Response This is a UEFI detected event. The UEFI(POST) error code for this event can be found in the logged IMM message text.
Page 554
This is a UEFI detected event. The UEFI(POST) error code for this event can be found in the logged IMM message text. Please refer to the UEFI(POST) error code in the "UEFI diagnostic code" section Lenovo System x3650 M5 Installation and Service Guide...
Page 555
of the Info Center for the appropriate user response. Firmware Error : Sys Boot Status : X8 PCI 1 Firm : X8 PCI 2 Firm : X8 PCI 6 Firm : X8 PCI 7 Firm : • 806f000f-2201ffff : The System [ComputerSystemElementName] encountered a POST Error. (ABR Status) This message is for the use case when an implementation has detected a Post Error.
Page 556
2. Reseat the affected adapters and riser card. 3. Update the server firmware (UEFI and IMM) and adapter firmware. Important: Some cluster solutions require specific code levels or coordinated code updates. If the device is part of a Lenovo System x3650 M5 Installation and Service Guide...
Page 557
cluster solution, verify that the latest level of code is supported for the cluster solution before you update the code. 4. Replace the affected adapters. 5. Replace the riser card. 6. (Trained service technicians only) Replace the system board. • 806f0021-2582ffff : Fault in slot [PhysicalConnectorSystemElementName] on system [ComputerSystemElementName].
Page 558
6. (Trained service technicians only) Replace the system board. PCI 1 : PCI 2 : PCI 3 : PCI 4 : PCI 5 : PCI 6 : PCI 7 : PCI 8 : Lenovo System x3650 M5 Installation and Service Guide...
Page 559
• 806f0023-2101ffff : Watchdog Timer expired for [WatchdogElementName]. (IPMI Watchdog) This message is for the use case when an implementation has detected a Watchdog Timer Expired. May also be shown as 806f00232101ffff or 0x806f00232101ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID...
Page 560
2. Make sure that the heat sink for microprocessor n is installed correctly. 3. (Trained technician only) Replace microprocessor n. (n = microprocessor number) Lenovo System x3650 M5 Installation and Service Guide...
Page 561
• 806f0108-0a01ffff : [PowerSupplyElementName] has Failed. (Power Supply 1) This message is for the use case when an implementation has detected a Power Supply has failed. May also be shown as 806f01080a01ffff or 0x806f01080a01ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Power SNMP Trap ID...
Page 562
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 563
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 564
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 565
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 566
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 567
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 568
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 569
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 570
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 571
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 572
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 573
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 574
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 575
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 576
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 577
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 578
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 579
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 580
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 581
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 582
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 583
3. Replace the following components one at a time, in the order shown, restarting the server each time: a. Hard disk drive b. Cable from the system board to the backplane c. Hard disk drive backplane (n = hard disk drive number) •...
Page 584
This message is for the use case when an implementation has detected a Drive was Disabled due to fault. May also be shown as 806f010d0404ffff or 0x806f010d0404ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive Lenovo System x3650 M5 Installation and Service Guide...
Page 585
SNMP Trap ID CIM Information Prefix: PLAT ID: 0164 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b. Cable from the system board to the backplane 3.
Page 586
• 806f010d-0408ffff : The Drive [StorageVolumeElementName] has been disabled due to a detected fault. (Drive 8) This message is for the use case when an implementation has detected a Drive was Disabled due to fault. May also be shown as 806f010d0408ffff or 0x806f010d0408ffff Lenovo System x3650 M5 Installation and Service Guide...
Page 587
Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0164 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b.
Page 588
Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0164 User Response 1. Run the hard disk drive diagnostic test on drive n. Lenovo System x3650 M5 Installation and Service Guide...
Page 589
2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b. Cable from the system board to the backplane 3. Replace the following components one at a time, in the order shown, restarting the server each time: a.
Page 590
This message is for the use case when an implementation has detected a Drive was Disabled due to fault. May also be shown as 806f010d040fffff or 0x806f010d040fffff Severity Error Serviceable Automatically notify support Lenovo System x3650 M5 Installation and Service Guide...
Page 591
Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0164 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b.
Page 592
• 806f010d-0413ffff : The Drive [StorageVolumeElementName] has been disabled due to a detected fault. (Drive 19) This message is for the use case when an implementation has detected a Drive was Disabled due to fault. Lenovo System x3650 M5 Installation and Service Guide...
Page 593
May also be shown as 806f010d0413ffff or 0x806f010d0413ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0164 User Response 1. Run the hard disk drive diagnostic test on drive n. 2.
Page 594
Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0164 User Response 1. Run the hard disk drive diagnostic test on drive n. Lenovo System x3650 M5 Installation and Service Guide...
Page 595
2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b. Cable from the system board to the backplane 3. Replace the following components one at a time, in the order shown, restarting the server each time: a.
Page 596
This message is for the use case when an implementation has detected a Drive was Disabled due to fault. May also be shown as 806f010d041affff or 0x806f010d041affff Severity Error Serviceable Automatically notify support Lenovo System x3650 M5 Installation and Service Guide...
Page 597
Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0164 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b.
Page 598
• 806f010d-041effff : The Drive [StorageVolumeElementName] has been disabled due to a detected fault. (Drive 30) This message is for the use case when an implementation has detected a Drive was Disabled due to fault. Lenovo System x3650 M5 Installation and Service Guide...
Page 599
May also be shown as 806f010d041effff or 0x806f010d041effff Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0164 User Response 1. Run the hard disk drive diagnostic test on drive n. 2.
Page 600
Automatically notify support Alert Category System - Boot failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0186 User Response 1. Make sure the server meets the minimum configuration to start (see Power-supply LEDs). Lenovo System x3650 M5 Installation and Service Guide...
Page 601
2. Update the server firmware on the primary page. Important: Some cluster solutions require specific code levels or coordinated code updates. If the device is part of a cluster solution, verify that the latest level of code is supported for the cluster solution before you update the code. 3.
Page 602
User Response 1. Check system event log is showing LCD cable sensor has deasserted. 2. Reseat LCD cable on the system board. 3. Reset LCD cable on LCD panel. 4. Replace LCD cable. Lenovo System x3650 M5 Installation and Service Guide...
Page 603
• 806f0123-2101ffff : Reboot of system [ComputerSystemElementName] initiated by [WatchdogElementName]. (IPMI Watchdog) This message is for the use case when an implementation has detected a Reboot by a Watchdog occurred. May also be shown as 806f01232101ffff or 0x806f01232101ffff Severity Info Serviceable Automatically notify support Alert Category...
Page 604
• 806f0125-100bffff : [ManagedElementName] detected as absent. (PDB Card) This message is for the use case when an implementation has detected a Managed Element is Absent. May also be shown as 806f0125100bffff or 0x806f0125100bffff Lenovo System x3650 M5 Installation and Service Guide...
Page 605
Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0392 User Response If there is no GPU/storage tray installed in the system, then the log event is a normal condition. If there is a GPU/storage tray installed in the system, then check the following two portions: 1.
Page 606
2. Update the firmware (UEFI and IMM) to the latest level (Updating the firmware). 3. Run the DSA program. 4. Reseat the adapter. Lenovo System x3650 M5 Installation and Service Guide...
Page 607
5. Replace the adapter. 6. (Trained technician only) Replace microprocessor n. 7. (Trained technician only) Replace the system board. (n = microprocessor number) • 806f0207-2584ffff : [ProcessorElementName] has Failed with FRB1/BIST condition. (All CPUs) This message is for the use case when an implementation has detected a Processor Failed - FRB1/BIST condition.
Page 608
• 806f020d-0402ffff : Failure Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 2) This message is for the use case when an implementation has detected an Array Failure is Predicted. May also be shown as 806f020d0402ffff or 0x806f020d0402ffff Severity Warning Lenovo System x3650 M5 Installation and Service Guide...
Page 609
Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0168 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b.
Page 610
3. Replace the following components one at a time, in the order shown, restarting the server each time: a. Hard disk drive b. Cable from the system board to the backplane c. Hard disk drive backplane (n = hard disk drive number) Lenovo System x3650 M5 Installation and Service Guide...
Page 611
• 806f020d-0406ffff : Failure Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 6) This message is for the use case when an implementation has detected an Array Failure is Predicted. May also be shown as 806f020d0406ffff or 0x806f020d0406ffff Severity Warning Serviceable Automatically notify support Alert Category...
Page 612
This message is for the use case when an implementation has detected an Array Failure is Predicted. May also be shown as 806f020d0409ffff or 0x806f020d0409ffff Severity Warning Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 613
CIM Information Prefix: PLAT ID: 0168 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b. Cable from the system board to the backplane 3.
Page 614
• 806f020d-040dffff : Failure Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 13) This message is for the use case when an implementation has detected an Array Failure is Predicted. May also be shown as 806f020d040dffff or 0x806f020d040dffff Severity Warning Lenovo System x3650 M5 Installation and Service Guide...
Page 615
Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0168 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b.
Page 616
3. Replace the following components one at a time, in the order shown, restarting the server each time: a. Hard disk drive b. Cable from the system board to the backplane c. Hard disk drive backplane (n = hard disk drive number) Lenovo System x3650 M5 Installation and Service Guide...
Page 617
• 806f020d-0411ffff : Failure Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 17) This message is for the use case when an implementation has detected an Array Failure is Predicted. May also be shown as 806f020d0411ffff or 0x806f020d0411ffff Severity Warning Serviceable Automatically notify support Alert Category...
Page 618
This message is for the use case when an implementation has detected an Array Failure is Predicted. May also be shown as 806f020d0414ffff or 0x806f020d0414ffff Severity Warning Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 619
CIM Information Prefix: PLAT ID: 0168 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b. Cable from the system board to the backplane 3.
Page 620
• 806f020d-0418ffff : Failure Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 24) This message is for the use case when an implementation has detected an Array Failure is Predicted. May also be shown as 806f020d0418ffff or 0x806f020d0418ffff Severity Warning Lenovo System x3650 M5 Installation and Service Guide...
Page 621
Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0168 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b.
Page 622
3. Replace the following components one at a time, in the order shown, restarting the server each time: a. Hard disk drive b. Cable from the system board to the backplane c. Hard disk drive backplane (n = hard disk drive number) Lenovo System x3650 M5 Installation and Service Guide...
Page 623
• 806f020d-041cffff : Failure Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 28) This message is for the use case when an implementation has detected an Array Failure is Predicted. May also be shown as 806f020d041cffff or 0x806f020d041cffff Severity Warning Serviceable Automatically notify support Alert Category...
Page 624
This message is for the use case when an implementation has detected an Array Failure is Predicted. May also be shown as 806f020d041fffff or 0x806f020d041fffff Severity Warning Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 625
CIM Information Prefix: PLAT ID: 0168 User Response 1. Run the hard disk drive diagnostic test on drive n. 2. Reseat the following components: a. Hard disk drive (wait 1 minute or more before reinstalling the drive) b. Cable from the system board to the backplane 3.
Page 626
This message is for the use case when an implementation has detected a Power Supply that has input that has been lost. May also be shown as 806f03080a02ffff or 0x806f03080a02ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 627
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 628
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 629
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 630
1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 631
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 632
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 633
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 634
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 635
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 636
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 637
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 638
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 639
2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector. Then, retry with the same DIMM.
Page 640
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 641
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 642
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 643
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 644
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 645
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 646
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 647
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Make sure that the DIMMs are firmly seated and no foreign material is found in the DIMM connector.
Page 648
This message is for the use case when an implementation has detected a Hot Spare has been Enabled. May also be shown as 806f030d0403ffff or 0x806f030d0403ffff Severity Info Serviceable Automatically notify support Lenovo System x3650 M5 Installation and Service Guide...
Page 649
Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0170 User Response No action; information only. • 806f030d-0404ffff : Hot Spare enabled for [ComputerSystemElementName]. (Drive 4) This message is for the use case when an implementation has detected a Hot Spare has been Enabled. May also be shown as 806f030d0404ffff or 0x806f030d0404ffff Severity Info...
Page 650
• 806f030d-0408ffff : Hot Spare enabled for [ComputerSystemElementName]. (Drive 8) This message is for the use case when an implementation has detected a Hot Spare has been Enabled. May also be shown as 806f030d0408ffff or 0x806f030d0408ffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 651
Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0170 User Response No action; information only. • 806f030d-0409ffff : Hot Spare enabled for [ComputerSystemElementName]. (Drive 9) This message is for the use case when an implementation has detected a Hot Spare has been Enabled. May also be shown as 806f030d0409ffff or 0x806f030d0409ffff Severity Info...
Page 652
• 806f030d-040dffff : Hot Spare enabled for [ComputerSystemElementName]. (Drive 13) This message is for the use case when an implementation has detected a Hot Spare has been Enabled. May also be shown as 806f030d040dffff or 0x806f030d040dffff Severity Lenovo System x3650 M5 Installation and Service Guide...
Page 653
Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0170 User Response No action; information only. • 806f030d-040effff : Hot Spare enabled for [ComputerSystemElementName]. (Drive 14) This message is for the use case when an implementation has detected a Hot Spare has been Enabled. May also be shown as 806f030d040effff or 0x806f030d040effff Severity Info...
Page 654
Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0170 User Response No action; information only. • 806f030d-0412ffff : Hot Spare enabled for [ComputerSystemElementName]. (Drive 18) Lenovo System x3650 M5 Installation and Service Guide...
Page 655
This message is for the use case when an implementation has detected a Hot Spare has been Enabled. May also be shown as 806f030d0412ffff or 0x806f030d0412ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0170 User Response...
Page 656
This message is for the use case when an implementation has detected a Hot Spare has been Enabled. May also be shown as 806f030d0416ffff or 0x806f030d0416ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0170 Lenovo System x3650 M5 Installation and Service Guide...
Page 657
User Response No action; information only. • 806f030d-0417ffff : Hot Spare enabled for [ComputerSystemElementName]. (Drive 23) This message is for the use case when an implementation has detected a Hot Spare has been Enabled. May also be shown as 806f030d0417ffff or 0x806f030d0417ffff Severity Info Serviceable...
Page 658
This message is for the use case when an implementation has detected a Hot Spare has been Enabled. May also be shown as 806f030d041bffff or 0x806f030d041bffff Severity Info Serviceable Automatically notify support Alert Category System - Other Lenovo System x3650 M5 Installation and Service Guide...
Page 659
SNMP Trap ID CIM Information Prefix: PLAT ID: 0170 User Response No action; information only. • 806f030d-041cffff : Hot Spare enabled for [ComputerSystemElementName]. (Drive 28) This message is for the use case when an implementation has detected a Hot Spare has been Enabled. May also be shown as 806f030d041cffff or 0x806f030d041cffff Severity Info...
Page 660
• 806f030d-0420ffff : Hot Spare enabled for [ComputerSystemElementName]. (Ext Drive) This message is for the use case when an implementation has detected a Hot Spare has been Enabled. May also be shown as 806f030d0420ffff or 0x806f030d0420ffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 661
Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0170 User Response No action; information only. • 806f0313-1701ffff : A software NMI has occurred on system [ComputerSystemElementName]. (NMI State) This message is for the use case when an implementation has detected a Software NMI. May also be shown as 806f03131701ffff or 0x806f03131701ffff Severity Error...
Page 662
3. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory event. If no memory fault is recorded in the logs and no DIMM connector error LED is lit, you can re-enable the DIMM through the Setup utility or the ToolsCenter Suite CLI.
Page 663
3. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory event. If no memory fault is recorded in the logs and no DIMM connector error LED is lit, you can re-enable the DIMM through the Setup utility or the ToolsCenter Suite CLI.
Page 664
3. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory event. If no memory fault is recorded in the logs and no DIMM connector error LED is lit, you can re-enable the DIMM through the Setup utility or the ToolsCenter Suite CLI.
Page 665
3. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory event. If no memory fault is recorded in the logs and no DIMM connector error LED is lit, you can re-enable the DIMM through the Setup utility or the ToolsCenter Suite CLI.
Page 666
3. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory event. If no memory fault is recorded in the logs and no DIMM connector error LED is lit, you can re-enable the DIMM through the Setup utility or the ToolsCenter Suite CLI.
Page 667
3. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory event. If no memory fault is recorded in the logs and no DIMM connector error LED is lit, you can re-enable the DIMM through the Setup utility or the ToolsCenter Suite CLI.
Page 668
3. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory event. If no memory fault is recorded in the logs and no DIMM connector error LED is lit, you can re-enable the DIMM through the Setup utility or the ToolsCenter Suite CLI.
Page 669
3. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory event. If no memory fault is recorded in the logs and no DIMM connector error LED is lit, you can re-enable the DIMM through the Setup utility or the ToolsCenter Suite CLI.
Page 670
3. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory event. If no memory fault is recorded in the logs and no DIMM connector error LED is lit, you can re-enable the DIMM through the Setup utility or the ToolsCenter Suite CLI.
Page 671
3. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory event. If no memory fault is recorded in the logs and no DIMM connector error LED is lit, you can re-enable the DIMM through the Setup utility or the ToolsCenter Suite CLI.
Page 672
3. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory event. If no memory fault is recorded in the logs and no DIMM connector error LED is lit, you can re-enable the DIMM through the Setup utility or the ToolsCenter Suite CLI.
Page 673
3. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory event. If no memory fault is recorded in the logs and no DIMM connector error LED is lit, you can re-enable the DIMM through the Setup utility or the ToolsCenter Suite CLI.
Page 674
3. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory event. If no memory fault is recorded in the logs and no DIMM connector error LED is lit, you can re-enable the DIMM through the Setup utility or the ToolsCenter Suite CLI.
Page 675
3. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory event. If no memory fault is recorded in the logs and no DIMM connector error LED is lit, you can re-enable the DIMM through the Setup utility or the ToolsCenter Suite CLI.
Page 676
3. Make sure that the installed microprocessors are compatible with each other. 4. (Trained technician only) Reseat microprocessor n. Lenovo System x3650 M5 Installation and Service Guide...
Page 677
5. (Trained technician only) Replace microprocessor n. (n = microprocessor number) • 806f0507-0302ffff : [ProcessorElementName] has a Configuration Mismatch. (CPU 2) This message is for the use case when an implementation has detected a Processor Configuration Mismatch has occurred. May also be shown as 806f05070302ffff or 0x806f05070302ffff Severity Error Serviceable...
Page 678
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 679
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 680
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 681
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 682
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 683
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 684
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 685
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 686
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 687
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 688
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 689
1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 690
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 691
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 692
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 693
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 694
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 695
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 696
10 seconds before restarting the server. 1. Refer to TIP H212293 for minimum code level. 2. Check the Lenovo support website for an applicable retain tip or firmware update that applies to this memory error. 3. Swap the affected DIMMs (as indicated by the error LEDs on the system board or the event logs) to a different memory channel or microprocessor.
Page 697
Prefix: PLAT ID: 0174 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. 3. Replace the SAS cable. 4. Check backplane cable connection. 5.
Page 698
• 806f050d-0404ffff : Array [ComputerSystemElementName] is in critical condition. (Drive 4) This message is for the use case when an implementation has detected that an Array is Critical. May also be shown as 806f050d0404ffff or 0x806f050d0404ffff Severity Error Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 699
Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0174 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. 3.
Page 700
1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. 3. Replace the SAS cable. 4. Check backplane cable connection. 5. Replace the RAID adapter. Lenovo System x3650 M5 Installation and Service Guide...
Page 701
6. Replace the hard disk drive that is indicated by a lit status LED. • 806f050d-0408ffff : Array [ComputerSystemElementName] is in critical condition. (Drive 8) This message is for the use case when an implementation has detected that an Array is Critical. May also be shown as 806f050d0408ffff or 0x806f050d0408ffff Severity Error...
Page 702
This message is for the use case when an implementation has detected that an Array is Critical. May also be shown as 806f050d040bffff or 0x806f050d040bffff Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 703
CIM Information Prefix: PLAT ID: 0174 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. 3. Replace the SAS cable. 4.
Page 704
• 806f050d-040fffff : Array [ComputerSystemElementName] is in critical condition. (Drive 15) This message is for the use case when an implementation has detected that an Array is Critical. May also be shown as 806f050d040fffff or 0x806f050d040fffff Severity Error Lenovo System x3650 M5 Installation and Service Guide...
Page 705
Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0174 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2.
Page 706
1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. 3. Replace the SAS cable. 4. Check backplane cable connection. 5. Replace the RAID adapter. Lenovo System x3650 M5 Installation and Service Guide...
Page 707
6. Replace the hard disk drive that is indicated by a lit status LED. • 806f050d-0413ffff : Array [ComputerSystemElementName] is in critical condition. (Drive 19) This message is for the use case when an implementation has detected that an Array is Critical. May also be shown as 806f050d0413ffff or 0x806f050d0413ffff Severity Error...
Page 708
This message is for the use case when an implementation has detected that an Array is Critical. May also be shown as 806f050d0416ffff or 0x806f050d0416ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 709
CIM Information Prefix: PLAT ID: 0174 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. 3. Replace the SAS cable. 4.
Page 710
• 806f050d-041affff : Array [ComputerSystemElementName] is in critical condition. (Drive 26) This message is for the use case when an implementation has detected that an Array is Critical. May also be shown as 806f050d041affff or 0x806f050d041affff Severity Error Lenovo System x3650 M5 Installation and Service Guide...
Page 711
Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0174 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2.
Page 712
1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. 3. Replace the SAS cable. 4. Check backplane cable connection. 5. Replace the RAID adapter. Lenovo System x3650 M5 Installation and Service Guide...
Page 713
6. Replace the hard disk drive that is indicated by a lit status LED. • 806f050d-041effff : Array [ComputerSystemElementName] is in critical condition. (Drive 30) This message is for the use case when an implementation has detected that an Array is Critical. May also be shown as 806f050d041effff or 0x806f050d041effff Severity Error...
Page 714
This message is for the use case when an implementation has detected a PCI SERR. May also be shown as 806f05132582ffff or 0x806f05132582ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Other SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 715
4. Make sure that the adapter is supported. For a list of supported optional devices, see http:// www.lenovo.com/serverproven/. 5. Remove both adapters. 6. Replace the PCIe adapters.
Page 716
2. Update the server firmware to the latest level (see Updating the firmware). 3. (Trained technician only) Replace the incompatible microprocessor. • 806f0607-2584ffff : An SM BIOS Uncorrectable CPU complex error for [ProcessorElementName] has asserted. (All CPUs) Lenovo System x3650 M5 Installation and Service Guide...
Page 717
This message is for the use case when an SM BIOS Uncorrectable CPU complex error has asserted. May also be shown as 806f06072584ffff or 0x806f06072584ffff Severity Error Serviceable Automatically notify support Alert Category Critical - CPU SNMP Trap ID CIM Information Prefix: PLAT ID: 0816 User Response 1.
Page 718
3. Replace the SAS cable. 4. Replace the RAID adapter. 5. Replace the hard disk drive that is indicated by a lit status LED. • 806f060d-0402ffff : Array [ComputerSystemElementName] has failed. (Drive 2) Lenovo System x3650 M5 Installation and Service Guide...
Page 719
This message is for the use case when an implementation has detected that an Array Failed. May also be shown as 806f060d0402ffff or 0x806f060d0402ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0176 User Response...
Page 720
1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. 3. Replace the SAS cable. 4. Replace the RAID adapter. Lenovo System x3650 M5 Installation and Service Guide...
Page 721
5. Replace the hard disk drive that is indicated by a lit status LED. • 806f060d-0406ffff : Array [ComputerSystemElementName] has failed. (Drive 6) This message is for the use case when an implementation has detected that an Array Failed. May also be shown as 806f060d0406ffff or 0x806f060d0406ffff Severity Error Serviceable...
Page 722
May also be shown as 806f060d0409ffff or 0x806f060d0409ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0176 User Response Lenovo System x3650 M5 Installation and Service Guide...
Page 723
1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. 3. Replace the SAS cable. 4. Replace the RAID adapter. 5. Replace the hard disk drive that is indicated by a lit status LED. •...
Page 724
This message is for the use case when an implementation has detected that an Array Failed. May also be shown as 806f060d040dffff or 0x806f060d040dffff Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 725
CIM Information Prefix: PLAT ID: 0176 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. 3. Replace the SAS cable. 4.
Page 726
• 806f060d-0411ffff : Array [ComputerSystemElementName] has failed. (Drive 17) This message is for the use case when an implementation has detected that an Array Failed. May also be shown as 806f060d0411ffff or 0x806f060d0411ffff Severity Error Serviceable Automatically notify support Lenovo System x3650 M5 Installation and Service Guide...
Page 727
Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0176 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. 3.
Page 728
• 806f060d-0415ffff : Array [ComputerSystemElementName] has failed. (Drive 21) This message is for the use case when an implementation has detected that an Array Failed. May also be shown as 806f060d0415ffff or 0x806f060d0415ffff Severity Error Lenovo System x3650 M5 Installation and Service Guide...
Page 729
Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0176 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2.
Page 730
5. Replace the hard disk drive that is indicated by a lit status LED. • 806f060d-0419ffff : Array [ComputerSystemElementName] has failed. (Drive 25) This message is for the use case when an implementation has detected that an Array Failed. Lenovo System x3650 M5 Installation and Service Guide...
Page 731
May also be shown as 806f060d0419ffff or 0x806f060d0419ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0176 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2.
Page 732
2. Make sure that the SAS cable is connected correctly. 3. Replace the SAS cable. 4. Replace the RAID adapter. 5. Replace the hard disk drive that is indicated by a lit status LED. Lenovo System x3650 M5 Installation and Service Guide...
Page 733
• 806f060d-041dffff : Array [ComputerSystemElementName] has failed. (Drive 29) This message is for the use case when an implementation has detected that an Array Failed. May also be shown as 806f060d041dffff or 0x806f060d041dffff Severity Error Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information...
Page 734
Prefix: PLAT ID: 0176 User Response 1. Make sure that the RAID adapter firmware and hard disk drive firmware are at the latest level. 2. Make sure that the SAS cable is connected correctly. Lenovo System x3650 M5 Installation and Service Guide...
Page 735
3. Replace the SAS cable. 4. Replace the RAID adapter. 5. Replace the hard disk drive that is indicated by a lit status LED. • 806f070c-2001ffff : Configuration Error for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 1) This message is for the use case when an implementation has detected a Memory DIMM configuration error has been corrected.
Page 736
Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0126 User Response Make sure that DIMMs are installed in the correct sequence and have the same size, type, speed, and technology. Lenovo System x3650 M5 Installation and Service Guide...
Page 737
• 806f070c-2005ffff : Configuration Error for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 5) This message is for the use case when an implementation has detected a Memory DIMM configuration error has been corrected. May also be shown as 806f070c2005ffff or 0x806f070c2005ffff Severity Error Serviceable...
Page 738
• 806f070c-2009ffff : Configuration Error for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 9) This message is for the use case when an implementation has detected a Memory DIMM configuration error has been corrected. Lenovo System x3650 M5 Installation and Service Guide...
Page 739
May also be shown as 806f070c2009ffff or 0x806f070c2009ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0126 User Response Make sure that DIMMs are installed in the correct sequence and have the same size, type, speed, and technology.
Page 740
[MemoryElementName]. (DIMM 13) This message is for the use case when an implementation has detected a Memory DIMM configuration error has been corrected. May also be shown as 806f070c200dffff or 0x806f070c200dffff Severity Error Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 741
Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0126 User Response Make sure that DIMMs are installed in the correct sequence and have the same size, type, speed, and technology. • 806f070c-200effff : Configuration Error for [PhysicalMemoryElementName] on Subsystem [MemoryElementName].
Page 742
This message is for the use case when an implementation has detected a Memory DIMM configuration error has been corrected. May also be shown as 806f070c2011ffff or 0x806f070c2011ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 743
CIM Information Prefix: PLAT ID: 0126 User Response Make sure that DIMMs are installed in the correct sequence and have the same size, type, speed, and technology. • 806f070c-2012ffff : Configuration Error for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 18) This message is for the use case when an implementation has detected a Memory DIMM configuration error has been corrected.
Page 744
Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0126 User Response Make sure that DIMMs are installed in the correct sequence and have the same size, type, speed, and technology. Lenovo System x3650 M5 Installation and Service Guide...
Page 745
• 806f070c-2016ffff : Configuration Error for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 22) This message is for the use case when an implementation has detected a Memory DIMM configuration error has been corrected. May also be shown as 806f070c2016ffff or 0x806f070c2016ffff Severity Error Serviceable...
Page 746
One of the DIMMs : • 806f070d-0400ffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive This message is for the use case when an implementation has detected that an Array Rebuild is in Progress. Lenovo System x3650 M5 Installation and Service Guide...
Page 747
May also be shown as 806f070d0400ffff or 0x806f070d0400ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0178 User Response No action; information only. • 806f070d-0401ffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive This message is for the use case when an implementation has detected that an Array Rebuild is in Progress.
Page 748
This message is for the use case when an implementation has detected that an Array Rebuild is in Progress. May also be shown as 806f070d0404ffff or 0x806f070d0404ffff Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3650 M5 Installation and Service Guide...
Page 749
System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0178 User Response No action; information only. • 806f070d-0405ffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive This message is for the use case when an implementation has detected that an Array Rebuild is in Progress.
Page 750
May also be shown as 806f070d0408ffff or 0x806f070d0408ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0178 User Response No action; information only. Lenovo System x3650 M5 Installation and Service Guide...
Page 751
• 806f070d-0409ffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive This message is for the use case when an implementation has detected that an Array Rebuild is in Progress. May also be shown as 806f070d0409ffff or 0x806f070d0409ffff Severity Info Serviceable Automatically notify support...
Page 752
• 806f070d-040dffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive This message is for the use case when an implementation has detected that an Array Rebuild is in Progress. May also be shown as 806f070d040dffff or 0x806f070d040dffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 753
Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0178 User Response No action; information only. • 806f070d-040effff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive This message is for the use case when an implementation has detected that an Array Rebuild is in Progress.
Page 754
This message is for the use case when an implementation has detected that an Array Rebuild is in Progress. May also be shown as 806f070d0411ffff or 0x806f070d0411ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Lenovo System x3650 M5 Installation and Service Guide...
Page 755
Prefix: PLAT ID: 0178 User Response No action; information only. • 806f070d-0412ffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive This message is for the use case when an implementation has detected that an Array Rebuild is in Progress.
Page 756
No action; information only. • 806f070d-0416ffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive This message is for the use case when an implementation has detected that an Array Rebuild is in Progress. Lenovo System x3650 M5 Installation and Service Guide...
Page 757
May also be shown as 806f070d0416ffff or 0x806f070d0416ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0178 User Response No action; information only. • 806f070d-0417ffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive This message is for the use case when an implementation has detected that an Array Rebuild is in Progress.
Page 758
This message is for the use case when an implementation has detected that an Array Rebuild is in Progress. May also be shown as 806f070d041affff or 0x806f070d041affff Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3650 M5 Installation and Service Guide...
Page 759
System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0178 User Response No action; information only. • 806f070d-041bffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive This message is for the use case when an implementation has detected that an Array Rebuild is in Progress.
Page 760
May also be shown as 806f070d041effff or 0x806f070d041effff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0178 User Response No action; information only. Lenovo System x3650 M5 Installation and Service Guide...
Page 761
• 806f070d-041fffff : Rebuild in progress for Array in system [ComputerSystemElementName]. (Drive This message is for the use case when an implementation has detected that an Array Rebuild is in Progress. May also be shown as 806f070d041fffff or 0x806f070d041fffff Severity Info Serviceable Automatically notify support...
Page 762
• 806f0807-0301ffff : [ProcessorElementName] has been Disabled. (CPU 1) This message is for the use case when an implementation has detected a Processor has been Disabled. May also be shown as 806f08070301ffff or 0x806f08070301ffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 763
Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0061 User Response No action; information only. • 806f0807-0302ffff : [ProcessorElementName] has been Disabled. (CPU 2) This message is for the use case when an implementation has detected a Processor has been Disabled. May also be shown as 806f08070302ffff or 0x806f08070302ffff Severity Info...
Page 764
Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0140 User Response No action; information only. • 806f080c-2003ffff : Memory sparing initiated for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 3) Lenovo System x3650 M5 Installation and Service Guide...
Page 765
This message is for the use case when an implementation has detected that Memory double chip sparing has been initiated. May also be shown as 806f080c2003ffff or 0x806f080c2003ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0140 User Response...
Page 766
[MemoryElementName]. (DIMM 7) This message is for the use case when an implementation has detected that Memory double chip sparing has been initiated. May also be shown as 806f080c2007ffff or 0x806f080c2007ffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 767
Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0140 User Response No action; information only. • 806f080c-2008ffff : Memory sparing initiated for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 8) This message is for the use case when an implementation has detected that Memory double chip sparing has been initiated.
Page 768
This message is for the use case when an implementation has detected that Memory double chip sparing has been initiated. May also be shown as 806f080c200bffff or 0x806f080c200bffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0140 Lenovo System x3650 M5 Installation and Service Guide...
Page 769
User Response No action; information only. • 806f080c-200cffff : Memory sparing initiated for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 12) This message is for the use case when an implementation has detected that Memory double chip sparing has been initiated. May also be shown as 806f080c200cffff or 0x806f080c200cffff Severity Info Serviceable...
Page 770
• 806f080c-2010ffff : Memory sparing initiated for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 16) This message is for the use case when an implementation has detected that Memory double chip sparing has been initiated. May also be shown as 806f080c2010ffff or 0x806f080c2010ffff Lenovo System x3650 M5 Installation and Service Guide...
Page 771
Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0140 User Response No action; information only. • 806f080c-2011ffff : Memory sparing initiated for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 17) This message is for the use case when an implementation has detected that Memory double chip sparing has been initiated.
Page 772
This message is for the use case when an implementation has detected that Memory double chip sparing has been initiated. May also be shown as 806f080c2014ffff or 0x806f080c2014ffff Severity Info Serviceable Automatically notify support Alert Category System - Other Lenovo System x3650 M5 Installation and Service Guide...
Page 773
SNMP Trap ID CIM Information Prefix: PLAT ID: 0140 User Response No action; information only. • 806f080c-2015ffff : Memory sparing initiated for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 21) This message is for the use case when an implementation has detected that Memory double chip sparing has been initiated.
Page 774
Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0140 User Response No action; information only. • 806f080c-2581ffff : Memory sparing initiated for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (All DIMMS) Lenovo System x3650 M5 Installation and Service Guide...
Page 775
This message is for the use case when an implementation has detected that Memory double chip sparing has been initiated. May also be shown as 806f080c2581ffff or 0x806f080c2581ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0140 User Response...
Page 776
May also be shown as 806f08132584ffff or 0x806f08132584ffff Severity Error Serviceable Automatically notify support Alert Category Critical - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0240 User Response 1. Check the system-event log. Lenovo System x3650 M5 Installation and Service Guide...
Page 777
2. (Trained technician only) Remove the failing microprocessor from the system board (see Removing a microprocessor and heat sink). 3. Check for a server firmware update. Important: Some cluster solutions require specific code levels or coordinated code updates. If the device is part of a cluster solution, verify that the latest level of code is supported for the cluster solution before you update the code.
Page 778
Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0142 User Response 1. Reseat the DIMM, and then restart the server. 2. Replace DIMM n. (n = DIMM number) Lenovo System x3650 M5 Installation and Service Guide...
Page 779
• 806f090c-2004ffff : [PhysicalMemoryElementName] on Subsystem [MemoryElementName] Throttled. (DIMM 4) This message is for the use case when an implementation has detected Memory has been Throttled. May also be shown as 806f090c2004ffff or 0x806f090c2004ffff Severity Warning Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID...
Page 780
• 806f090c-2008ffff : [PhysicalMemoryElementName] on Subsystem [MemoryElementName] Throttled. (DIMM 8) This message is for the use case when an implementation has detected Memory has been Throttled. May also be shown as 806f090c2008ffff or 0x806f090c2008ffff Severity Warning Lenovo System x3650 M5 Installation and Service Guide...
Page 781
Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0142 User Response 1. Reseat the DIMM, and then restart the server. 2. Replace DIMM n. (n = DIMM number) • 806f090c-2009ffff : [PhysicalMemoryElementName] on Subsystem [MemoryElementName] Throttled.
Page 782
This message is for the use case when an implementation has detected Memory has been Throttled. May also be shown as 806f090c200cffff or 0x806f090c200cffff Severity Warning Serviceable Automatically notify support Alert Category System - Other Lenovo System x3650 M5 Installation and Service Guide...
Page 783
SNMP Trap ID CIM Information Prefix: PLAT ID: 0142 User Response 1. Reseat the DIMM, and then restart the server. 2. Replace DIMM n. (n = DIMM number) • 806f090c-200dffff : [PhysicalMemoryElementName] on Subsystem [MemoryElementName] Throttled. (DIMM 13) This message is for the use case when an implementation has detected Memory has been Throttled. May also be shown as 806f090c200dffff or 0x806f090c200dffff Severity Warning...
Page 784
May also be shown as 806f090c2010ffff or 0x806f090c2010ffff Severity Warning Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0142 User Response 1. Reseat the DIMM, and then restart the server. Lenovo System x3650 M5 Installation and Service Guide...
Page 785
2. Replace DIMM n. (n = DIMM number) • 806f090c-2011ffff : [PhysicalMemoryElementName] on Subsystem [MemoryElementName] Throttled. (DIMM 17) This message is for the use case when an implementation has detected Memory has been Throttled. May also be shown as 806f090c2011ffff or 0x806f090c2011ffff Severity Warning Serviceable...
Page 786
• 806f090c-2015ffff : [PhysicalMemoryElementName] on Subsystem [MemoryElementName] Throttled. (DIMM 21) This message is for the use case when an implementation has detected Memory has been Throttled. May also be shown as 806f090c2015ffff or 0x806f090c2015ffff Lenovo System x3650 M5 Installation and Service Guide...
Page 787
Severity Warning Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0142 User Response 1. Reseat the DIMM, and then restart the server. 2. Replace DIMM n. (n = DIMM number) • 806f090c-2016ffff : [PhysicalMemoryElementName] on Subsystem [MemoryElementName] Throttled.
Page 788
This message is for the use case when an implementation has detected a Processor is running in the Degraded state. May also be shown as 806f0a070301ffff or 0x806f0a070301ffff Severity Warning Serviceable Automatically notify support Lenovo System x3650 M5 Installation and Service Guide...
Page 789
Alert Category Warning - CPU SNMP Trap ID CIM Information Prefix: PLAT ID: 0038 User Response 1. Make sure that the fans are operating, that there are no obstructions to the airflow (front and rear of the server), that the air baffles are in place and correctly installed, and that the server cover is installed and completely closed.
Page 790
2. Make sure that ambient temperature is within the specifications. 3. If a fan has failed, complete the action for a fan failure. 4. Replace DIMM n. (n = DIMM number) Lenovo System x3650 M5 Installation and Service Guide...
Page 791
• 806f0a0c-2003ffff : An Over-Temperature Condition has been detected on the [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 3) This message is for the use case when an implementation has detected an Over Temperature Condition for Memory that has been Detected. May also be shown as 806f0a0c2003ffff or 0x806f0a0c2003ffff Severity Error Serviceable...
Page 792
This message is for the use case when an implementation has detected an Over Temperature Condition for Memory that has been Detected. May also be shown as 806f0a0c2006ffff or 0x806f0a0c2006ffff Severity Error Serviceable Automatically notify support Alert Category Lenovo System x3650 M5 Installation and Service Guide...
Page 793
Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0146 User Response 1. Make sure that the fans are operating, that there are no obstructions to the airflow, that the air baffles are in place and correctly installed, and that the server cover is installed and completely closed.
Page 794
2. Make sure that ambient temperature is within the specifications. 3. If a fan has failed, complete the action for a fan failure. 4. Replace DIMM n. (n = DIMM number) Lenovo System x3650 M5 Installation and Service Guide...
Page 795
• 806f0a0c-200affff : An Over-Temperature Condition has been detected on the [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 10) This message is for the use case when an implementation has detected an Over Temperature Condition for Memory that has been Detected. May also be shown as 806f0a0c200affff or 0x806f0a0c200affff Severity Error Serviceable...
Page 796
This message is for the use case when an implementation has detected an Over Temperature Condition for Memory that has been Detected. May also be shown as 806f0a0c200dffff or 0x806f0a0c200dffff Severity Error Serviceable Automatically notify support Alert Category Lenovo System x3650 M5 Installation and Service Guide...
Page 797
Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0146 User Response 1. Make sure that the fans are operating, that there are no obstructions to the airflow, that the air baffles are in place and correctly installed, and that the server cover is installed and completely closed.
Page 798
2. Make sure that ambient temperature is within the specifications. 3. If a fan has failed, complete the action for a fan failure. 4. Replace DIMM n. (n = DIMM number) Lenovo System x3650 M5 Installation and Service Guide...
Page 799
• 806f0a0c-2011ffff : An Over-Temperature Condition has been detected on the [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 17) This message is for the use case when an implementation has detected an Over Temperature Condition for Memory that has been Detected. May also be shown as 806f0a0c2011ffff or 0x806f0a0c2011ffff Severity Error Serviceable...
Page 800
This message is for the use case when an implementation has detected an Over Temperature Condition for Memory that has been Detected. May also be shown as 806f0a0c2014ffff or 0x806f0a0c2014ffff Severity Error Serviceable Automatically notify support Alert Category Lenovo System x3650 M5 Installation and Service Guide...
Page 801
Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0146 User Response 1. Make sure that the fans are operating, that there are no obstructions to the airflow, that the air baffles are in place and correctly installed, and that the server cover is installed and completely closed.
Page 802
2. Make sure that ambient temperature is within the specifications. 3. If a fan has failed, complete the action for a fan failure. 4. Replace DIMM n. (n = DIMM number) Lenovo System x3650 M5 Installation and Service Guide...
Page 803
• 806f0a0c-2018ffff : An Over-Temperature Condition has been detected on the [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 24) This message is for the use case when an implementation has detected an Over Temperature Condition for Memory that has been Detected. May also be shown as 806f0a0c2018ffff or 0x806f0a0c2018ffff Severity Error Serviceable...
Page 804
Warning - Voltage SNMP Trap ID CIM Information Prefix: PLAT ID: 0477 User Response No action; information only. • 81010202-0701ffff : Numeric sensor [NumericSensorElementName] going low (lower critical) has deasserted. (CMOS Battery) Lenovo System x3650 M5 Installation and Service Guide...
Page 805
This message is for the use case when an implementation has detected a Lower Critical sensor going low has deasserted. May also be shown as 810102020701ffff or 0x810102020701ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Voltage SNMP Trap ID CIM Information Prefix: PLAT ID: 0481 User Response...
Page 806
(Fan 4A Tach) This message is for the use case when an implementation has detected a Lower Critical sensor going low has deasserted. May also be shown as 810102041d04ffff or 0x810102041d04ffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 807
Automatically notify support Alert Category Critical - Fan Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0481 User Response No action; information only. Fan 4B Tach : • 81010204-1d05ffff : Numeric sensor [NumericSensorElementName] going low (lower critical) has deasserted. (Fan 5A Tach) This message is for the use case when an implementation has detected a Lower Critical sensor going low has deasserted.
Page 808
This message is for the use case when an implementation has detected a Lower Critical sensor going low has deasserted. May also be shown as 810102041d08ffff or 0x810102041d08ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Fan Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0481 Lenovo System x3650 M5 Installation and Service Guide...
Page 809
User Response No action; information only. • 81010204-1d09ffff : Numeric sensor [NumericSensorElementName] going low (lower critical) has deasserted. (Fan Riser2A Tach) This message is for the use case when an implementation has detected a Lower Critical sensor going low has deasserted. May also be shown as 810102041d09ffff or 0x810102041d09ffff Severity Info...
Page 810
(MID1 RR Amb Temp) This message is for the use case when an implementation has detected an Upper Non-critical sensor going high has deasserted. May also be shown as 810107010703ffff or 0x810107010703ffff Lenovo System x3650 M5 Installation and Service Guide...
Page 811
Severity Info Serviceable Automatically notify support Alert Category Warning - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0491 User Response No action; information only. • 81010701-0704ffff : Numeric sensor [NumericSensorElementName] going high (upper non-critical) has deasserted. (MID2 RR Amb Temp) This message is for the use case when an implementation has detected an Upper Non-critical sensor going high has deasserted.
Page 812
This message is for the use case when an implementation has detected an Upper Non-critical sensor going high has deasserted. May also be shown as 810107010707ffff or 0x810107010707ffff Severity Info Serviceable Automatically notify support Alert Category Warning - Temperature Lenovo System x3650 M5 Installation and Service Guide...
Page 813
SNMP Trap ID CIM Information Prefix: PLAT ID: 0491 User Response No action; information only. • 81010701-0708ffff : Numeric sensor [NumericSensorElementName] going high (upper non-critical) has deasserted. (Rear BP2 Temp) This message is for the use case when an implementation has detected an Upper Non-critical sensor going high has deasserted.
Page 814
Warning - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0491 User Response No action; information only. • 81010701-1404ffff : Numeric sensor [NumericSensorElementName] going high (upper non-critical) has deasserted. (DIMM CD VR Temp) Lenovo System x3650 M5 Installation and Service Guide...
Page 815
This message is for the use case when an implementation has detected an Upper Non-critical sensor going high has deasserted. May also be shown as 810107011404ffff or 0x810107011404ffff Severity Info Serviceable Automatically notify support Alert Category Warning - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0491 User Response...
Page 816
(Ambient Temp) This message is for the use case when an implementation has detected an Upper Non-critical sensor going high has deasserted. May also be shown as 810107013701ffff or 0x810107013701ffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 817
Automatically notify support Alert Category Warning - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0491 User Response No action; information only. • 81010901-0701ffff : Numeric sensor [NumericSensorElementName] going high (upper critical) has deasserted. (RS1 RR Amb Temp) This message is for the use case when an implementation has detected an Upper Critical sensor going high has deasserted.
Page 818
This message is for the use case when an implementation has detected an Upper Critical sensor going high has deasserted. May also be shown as 810109010704ffff or 0x810109010704ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0495 Lenovo System x3650 M5 Installation and Service Guide...
Page 819
User Response No action; information only. • 81010901-0705ffff : Numeric sensor [NumericSensorElementName] going high (upper critical) has deasserted. (RAID RR Amb Temp) This message is for the use case when an implementation has detected an Upper Critical sensor going high has deasserted. May also be shown as 810109010705ffff or 0x810109010705ffff Severity Info...
Page 820
(CPU1 VR Temp) This message is for the use case when an implementation has detected an Upper Critical sensor going high has deasserted. May also be shown as 810109011401ffff or 0x810109011401ffff Lenovo System x3650 M5 Installation and Service Guide...
Page 821
Severity Info Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0495 User Response No action; information only. • 81010901-1402ffff : Numeric sensor [NumericSensorElementName] going high (upper critical) has deasserted. (CPU2 VR Temp) This message is for the use case when an implementation has detected an Upper Critical sensor going high has deasserted.
Page 822
This message is for the use case when an implementation has detected an Upper Critical sensor going high has deasserted. May also be shown as 810109011405ffff or 0x810109011405ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Temperature Lenovo System x3650 M5 Installation and Service Guide...
Page 823
SNMP Trap ID CIM Information Prefix: PLAT ID: 0495 User Response No action; information only. • 81010901-1406ffff : Numeric sensor [NumericSensorElementName] going high (upper critical) has deasserted. (DIMM GH VR Temp) This message is for the use case when an implementation has detected an Upper Critical sensor going high has deasserted.
Page 824
Prefix: PLAT ID: 0495 User Response No action; information only. SysBrd 3.3V : SysBrd 5V : • 81010b01-0701ffff : Numeric sensor [NumericSensorElementName] going high (upper non- recoverable) has deasserted. (RS1 RR Amb Temp) Lenovo System x3650 M5 Installation and Service Guide...
Page 825
This message is for the use case when an implementation has detected an Upper Non-recoverable sensor going high has deasserted. May also be shown as 81010b010701ffff or 0x81010b010701ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0499 User Response...
Page 826
(RAID RR Amb Temp) This message is for the use case when an implementation has detected an Upper Non-recoverable sensor going high has deasserted. May also be shown as 81010b010705ffff or 0x81010b010705ffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 827
Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0499 User Response No action; information only. • 81010b01-0706ffff : Numeric sensor [NumericSensorElementName] going high (upper non- recoverable) has deasserted. (PSU FR Amb Temp) This message is for the use case when an implementation has detected an Upper Non-recoverable sensor going high has deasserted.
Page 828
May also be shown as 81010b011401ffff or 0x81010b011401ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0499 Lenovo System x3650 M5 Installation and Service Guide...
Page 829
User Response No action; information only. • 81010b01-1402ffff : Numeric sensor [NumericSensorElementName] going high (upper non- recoverable) has deasserted. (CPU2 VR Temp) This message is for the use case when an implementation has detected an Upper Non-recoverable sensor going high has deasserted. May also be shown as 81010b011402ffff or 0x81010b011402ffff Severity Info...
Page 830
(DIMM GH VR Temp) This message is for the use case when an implementation has detected an Upper Non-recoverable sensor going high has deasserted. May also be shown as 81010b011406ffff or 0x81010b011406ffff Lenovo System x3650 M5 Installation and Service Guide...
Page 831
Severity Info Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0499 User Response No action; information only. • 81010b01-2d01ffff : Numeric sensor [NumericSensorElementName] going high (upper non- recoverable) has deasserted. (PCH Temp) This message is for the use case when an implementation has detected an Upper Non-recoverable sensor going high has deasserted.
Page 832
This message is for the use case when an implementation has detected a Sensor has asserted. May also be shown as 810300122301ffff or 0x810300122301ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0508 Lenovo System x3650 M5 Installation and Service Guide...
Page 833
User Response No action; information only. • 81030021-0782ffff : Sensor [SensorElementName] has asserted. (PCIe Dev LK Down) This message is for the use case when an implementation has detected a Sensor has asserted. May also be shown as 810300210782ffff or 0x810300210782ffff Severity Info Serviceable...
Page 834
This message is for the use case when an implementation has detected a Sensor has deasserted. May also be shown as 810301210782ffff or 0x810301210782ffff Severity Info Serviceable Automatically notify support Alert Category System - Other Lenovo System x3650 M5 Installation and Service Guide...
Page 835
SNMP Trap ID CIM Information Prefix: PLAT ID: 0509 User Response No action; information only. • 81070101-0c01ffff : Sensor [SensorElementName] has deasserted the transition from normal to non-critical state. (Ambient Status) This message is for the use case when an implementation has detected that a Sensor has deasserted a transition to non-critical from normal.
Page 836
Warning - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0521 User Response No action; information only. • 8107010f-2582ffff : Sensor [SensorElementName] has deasserted the transition from normal to non-critical state. (I/O Resources) Lenovo System x3650 M5 Installation and Service Guide...
Page 837
This message is for the use case when an implementation has detected that a Sensor has deasserted a transition to non-critical from normal. May also be shown as 8107010f2582ffff or 0x8107010f2582ffff Severity Info Serviceable Automatically notify support Alert Category Warning - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0521...
Page 838
(CPU 2 OverTemp) This message is for the use case when an implementation has detected a Sensor transition to less severe from critical. May also be shown as 810702010302ffff or 0x810702010302ffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 839
Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0523 User Response No action; information only. • 81070201-1101ffff : Sensor [SensorElementName] has transitioned to a less severe state from critical. (PCI 1 Temp) This message is for the use case when an implementation has detected a Sensor transition to less severe from critical.
Page 840
This message is for the use case when an implementation has detected a Sensor transition to less severe from critical. May also be shown as 810702011104ffff or 0x810702011104ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0523 Lenovo System x3650 M5 Installation and Service Guide...
Page 841
User Response No action; information only. • 81070201-1105ffff : Sensor [SensorElementName] has transitioned to a less severe state from critical. (PCI 5 Temp) This message is for the use case when an implementation has detected a Sensor transition to less severe from critical.
Page 842
(SysBrd Vol Fault) This message is for the use case when an implementation has detected a Sensor transition to less severe from critical. May also be shown as 810702020701ffff or 0x810702020701ffff Lenovo System x3650 M5 Installation and Service Guide...
Page 843
Severity Info Serviceable Automatically notify support Alert Category Critical - Voltage SNMP Trap ID CIM Information Prefix: PLAT ID: 0523 User Response No action; information only. • 81070204-0a01ffff : Sensor [SensorElementName] has transitioned to a less severe state from critical. (PS 1 Fan Fault) This message is for the use case when an implementation has detected a Sensor transition to less severe from critical.
Page 844
This message is for the use case when an implementation has detected a Sensor transition to less severe from critical. May also be shown as 810702080a02ffff or 0x810702080a02ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Power Lenovo System x3650 M5 Installation and Service Guide...
Page 845
SNMP Trap ID CIM Information Prefix: PLAT ID: 0523 User Response No action; information only. • 8107020c-2585ffff : Sensor [SensorElementName] has transitioned to a less severe state from critical. (nvDIMM Status) This message is for the use case when an implementation has detected a Sensor transition to less severe from critical.
Page 846
Critical - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0523 User Response No action; information only. • 81070214-2201ffff : Sensor [SensorElementName] has transitioned to a less severe state from critical. (TPM Lock) Lenovo System x3650 M5 Installation and Service Guide...
Page 847
This message is for the use case when an implementation has detected a Sensor transition to less severe from critical. May also be shown as 810702142201ffff or 0x810702142201ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0523 User Response...
Page 848
(ME Error) This message is for the use case when an implementation has detected a Sensor transition to less severe from critical. May also be shown as 810702282e01ffff or 0x810702282e01ffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 849
Automatically notify support Alert Category Critical - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0523 User Response No action; information only. ME Flash Error : • 81070301-0301ffff : Sensor [SensorElementName] has deasserted the transition to non- recoverable from a less severe state. (CPU 1 OverTemp) This message is for the use case when an implementation has detected that the Sensor transition to non- recoverable from less severe has deasserted.
Page 850
May also be shown as 810703011102ffff or 0x810703011102ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0525 Lenovo System x3650 M5 Installation and Service Guide...
Page 851
User Response No action; information only. • 81070301-1103ffff : Sensor [SensorElementName] has deasserted the transition to non- recoverable from a less severe state. (PCI 3 Temp) This message is for the use case when an implementation has detected that the Sensor transition to non- recoverable from less severe has deasserted.
Page 852
This message is for the use case when an implementation has detected that the Sensor transition to non- recoverable from less severe has deasserted. May also be shown as 810703011107ffff or 0x810703011107ffff Lenovo System x3650 M5 Installation and Service Guide...
Page 853
Severity Info Serviceable Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0525 User Response No action; information only. • 81070301-1108ffff : Sensor [SensorElementName] has deasserted the transition to non- recoverable from a less severe state. (PCI 8 Temp) This message is for the use case when an implementation has detected that the Sensor transition to non- recoverable from less severe has deasserted.
Page 854
This message is for the use case when an implementation has detected that the Sensor transition to non- recoverable has deasserted. May also be shown as 810706080a01ffff or 0x810706080a01ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Power Lenovo System x3650 M5 Installation and Service Guide...
Page 855
SNMP Trap ID CIM Information Prefix: PLAT ID: 0531 User Response No action; information only. PS1 12V OV Fault : PS1 12V UV Fault : PS1 12Vaux Fault : • 81070608-0a02ffff : Sensor [SensorElementName] has deasserted the transition to non- recoverable.
Page 856
Prefix: PLAT ID: 0803 User Response No action; information only. • 810b010a-1e83ffff : Redundancy Lost for [RedundancySetElementName] has deasserted. (Fan Zone 3) This message is for the use case when Redundacy Lost has deasserted. Lenovo System x3650 M5 Installation and Service Guide...
Page 857
May also be shown as 810b010a1e83ffff or 0x810b010a1e83ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Fan Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0803 User Response No action; information only. • 810b010a-1e84ffff : Redundancy Lost for [RedundancySetElementName] has deasserted. (Fan Zone 4) This message is for the use case when Redundacy Lost has deasserted.
Page 858
This message is for the use case when a Redundancy Set has transitioned from Non-redundant:Sufficient Resources. May also be shown as 810b030c2581ffff or 0x810b030c2581ffff Severity Info Serviceable Automatically notify support Alert Category Warning - Memory Lenovo System x3650 M5 Installation and Service Guide...
Page 859
SNMP Trap ID CIM Information Prefix: PLAT ID: 0807 User Response No action; information only. • 810b0509-1301ffff : Non-redundant:Insufficient Resources for [RedundancySetElementName] has deasserted. (Power Resource) This message is for the use case when a Redundancy Set has transitioned from Non-redundant: Insufficient Resources.
Page 860
Alert Category Critical - Fan Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0811 User Response No action; information only. • 810b050a-1e84ffff : Non-redundant:Insufficient Resources for [RedundancySetElementName] has deasserted. (Fan Zone 4) Lenovo System x3650 M5 Installation and Service Guide...
Page 861
This message is for the use case when a Redundancy Set has transitioned from Non-redundant: Insufficient Resources. May also be shown as 810b050a1e84ffff or 0x810b050a1e84ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Fan Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0811 User Response...
Page 862
This message is for the use case when an implementation has detected a Power Supply has been removed. May also be shown as 816f00080a01ffff or 0x816f00080a01ffff Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3650 M5 Installation and Service Guide...
Page 863
System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0085 User Response No action; information only. • 816f0008-0a02ffff : [PowerSupplyElementName] has been removed from container [PhysicalPackageElementName]. (Power Supply 2) This message is for the use case when an implementation has detected a Power Supply has been removed.
Page 864
This message is for the use case when an implementation has detected a Drive has been Removed. May also be shown as 816f000d0401ffff or 0x816f000d0401ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0163 User Response Lenovo System x3650 M5 Installation and Service Guide...
Page 865
1. Reseat hard disk drive n.(n = hard disk drive number). Wait 1 minute or more before reinstalling the drive. 2. Replace the hard disk drive. 3. Make sure that the disk firmware and RAID controller firmware are at the latest level. 4.
Page 866
This message is for the use case when an implementation has detected a Drive has been Removed. May also be shown as 816f000d0405ffff or 0x816f000d0405ffff Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3650 M5 Installation and Service Guide...
Page 867
System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0163 User Response 1. Reseat hard disk drive n.(n = hard disk drive number). Wait 1 minute or more before reinstalling the drive. 2. Replace the hard disk drive. 3.
Page 868
• 816f000d-0409ffff : The Drive [StorageVolumeElementName] has been removed from unit [PhysicalPackageElementName]. (Drive 9) This message is for the use case when an implementation has detected a Drive has been Removed. May also be shown as 816f000d0409ffff or 0x816f000d0409ffff Severity Lenovo System x3650 M5 Installation and Service Guide...
Page 869
Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0163 User Response 1. Reseat hard disk drive n.(n = hard disk drive number). Wait 1 minute or more before reinstalling the drive. 2.
Page 870
1. Reseat hard disk drive n.(n = hard disk drive number). Wait 1 minute or more before reinstalling the drive. 2. Replace the hard disk drive. 3. Make sure that the disk firmware and RAID controller firmware are at the latest level. 4. Replace backplane. Lenovo System x3650 M5 Installation and Service Guide...
Page 871
• 816f000d-040dffff : The Drive [StorageVolumeElementName] has been removed from unit [PhysicalPackageElementName]. (Drive 13) This message is for the use case when an implementation has detected a Drive has been Removed. May also be shown as 816f000d040dffff or 0x816f000d040dffff Severity Info Serviceable Automatically notify support...
Page 872
This message is for the use case when an implementation has detected a Drive has been Removed. May also be shown as 816f000d0410ffff or 0x816f000d0410ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0163 User Response Lenovo System x3650 M5 Installation and Service Guide...
Page 873
1. Reseat hard disk drive n.(n = hard disk drive number). Wait 1 minute or more before reinstalling the drive. 2. Replace the hard disk drive. 3. Make sure that the disk firmware and RAID controller firmware are at the latest level. 4.
Page 874
This message is for the use case when an implementation has detected a Drive has been Removed. May also be shown as 816f000d0414ffff or 0x816f000d0414ffff Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3650 M5 Installation and Service Guide...
Page 875
System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0163 User Response 1. Reseat hard disk drive n.(n = hard disk drive number). Wait 1 minute or more before reinstalling the drive. 2. Replace the hard disk drive. 3.
Page 876
• 816f000d-0418ffff : The Drive [StorageVolumeElementName] has been removed from unit [PhysicalPackageElementName]. (Drive 24) This message is for the use case when an implementation has detected a Drive has been Removed. May also be shown as 816f000d0418ffff or 0x816f000d0418ffff Severity Lenovo System x3650 M5 Installation and Service Guide...
Page 877
Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0163 User Response 1. Reseat hard disk drive n.(n = hard disk drive number). Wait 1 minute or more before reinstalling the drive. 2.
Page 878
1. Reseat hard disk drive n.(n = hard disk drive number). Wait 1 minute or more before reinstalling the drive. 2. Replace the hard disk drive. 3. Make sure that the disk firmware and RAID controller firmware are at the latest level. 4. Replace backplane. Lenovo System x3650 M5 Installation and Service Guide...
Page 879
• 816f000d-041cffff : The Drive [StorageVolumeElementName] has been removed from unit [PhysicalPackageElementName]. (Drive 28) This message is for the use case when an implementation has detected a Drive has been Removed. May also be shown as 816f000d041cffff or 0x816f000d041cffff Severity Info Serviceable Automatically notify support...
Page 880
This message is for the use case when an implementation has detected a Drive has been Removed. May also be shown as 816f000d041fffff or 0x816f000d041fffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0163 User Response Lenovo System x3650 M5 Installation and Service Guide...
Page 881
1. Reseat hard disk drive n.(n = hard disk drive number). Wait 1 minute or more before reinstalling the drive. 2. Replace the hard disk drive. 3. Make sure that the disk firmware and RAID controller firmware are at the latest level. 4.
Page 882
May also be shown as 816f00212201ffff or 0x816f00212201ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0331 User Response No action; information only. Lenovo System x3650 M5 Installation and Service Guide...
Page 883
• 816f0021-2582ffff : Fault condition removed on slot [PhysicalConnectorElementName] on system [ComputerSystemElementName]. (All PCI Error) This message is for the use case when an implementation has detected a Fault condition in a slot has been removed. May also be shown as 816f00212582ffff or 0x816f00212582ffff Severity Info Serviceable...
Page 884
[ProcessorElementName]. (CPU 1) This message is for the use case when an implementation has detected a Over-Temperature Condition has been Removed for Processor. May also be shown as 816f01070301ffff or 0x816f01070301ffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 885
Automatically notify support Alert Category Critical - Temperature SNMP Trap ID CIM Information Prefix: PLAT ID: 0037 User Response No action; information only. • 816f0107-0302ffff : An Over-Temperature Condition has been removed on [ProcessorElementName]. (CPU 2) This message is for the use case when an implementation has detected a Over-Temperature Condition has been Removed for Processor.
Page 886
This message is for the use case when an implementation has detected a Memory uncorrectable error recovery. May also be shown as 816f010c2001ffff or 0x816f010c2001ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0139 User Response Lenovo System x3650 M5 Installation and Service Guide...
Page 887
No action; information only. • 816f010c-2002ffff : Uncorrectable error recovery detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 2) This message is for the use case when an implementation has detected a Memory uncorrectable error recovery. May also be shown as 816f010c2002ffff or 0x816f010c2002ffff Severity Info Serviceable...
Page 888
• 816f010c-2006ffff : Uncorrectable error recovery detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 6) This message is for the use case when an implementation has detected a Memory uncorrectable error recovery. May also be shown as 816f010c2006ffff or 0x816f010c2006ffff Lenovo System x3650 M5 Installation and Service Guide...
Page 889
Severity Info Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0139 User Response No action; information only. • 816f010c-2007ffff : Uncorrectable error recovery detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 7) This message is for the use case when an implementation has detected a Memory uncorrectable error recovery.
Page 890
This message is for the use case when an implementation has detected a Memory uncorrectable error recovery. May also be shown as 816f010c200affff or 0x816f010c200affff Severity Info Serviceable Automatically notify support Alert Category Critical - Memory Lenovo System x3650 M5 Installation and Service Guide...
Page 891
SNMP Trap ID CIM Information Prefix: PLAT ID: 0139 User Response No action; information only. • 816f010c-200bffff : Uncorrectable error recovery detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 11) This message is for the use case when an implementation has detected a Memory uncorrectable error recovery.
Page 892
Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0139 User Response No action; information only. • 816f010c-200fffff : Uncorrectable error recovery detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 15) Lenovo System x3650 M5 Installation and Service Guide...
Page 893
This message is for the use case when an implementation has detected a Memory uncorrectable error recovery. May also be shown as 816f010c200fffff or 0x816f010c200fffff Severity Info Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0139 User Response No action;...
Page 894
Subsystem [MemoryElementName]. (DIMM 19) This message is for the use case when an implementation has detected a Memory uncorrectable error recovery. May also be shown as 816f010c2013ffff or 0x816f010c2013ffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 895
Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0139 User Response No action; information only. • 816f010c-2014ffff : Uncorrectable error recovery detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 20) This message is for the use case when an implementation has detected a Memory uncorrectable error recovery.
Page 896
This message is for the use case when an implementation has detected a Memory uncorrectable error recovery. May also be shown as 816f010c2017ffff or 0x816f010c2017ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0139 Lenovo System x3650 M5 Installation and Service Guide...
Page 897
User Response No action; information only. • 816f010c-2018ffff : Uncorrectable error recovery detected for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 24) This message is for the use case when an implementation has detected a Memory uncorrectable error recovery. May also be shown as 816f010c2018ffff or 0x816f010c2018ffff Severity Info Serviceable...
Page 898
• 816f010d-0402ffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 2) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d0402ffff or 0x816f010d0402ffff Severity Info Serviceable Automatically notify support Lenovo System x3650 M5 Installation and Service Guide...
Page 899
Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0167 User Response No action; information only. • 816f010d-0403ffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 3) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d0403ffff or 0x816f010d0403ffff Severity Info...
Page 900
• 816f010d-0407ffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 7) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d0407ffff or 0x816f010d0407ffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 901
Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0167 User Response No action; information only. • 816f010d-0408ffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 8) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d0408ffff or 0x816f010d0408ffff Severity Info...
Page 902
• 816f010d-040cffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 12) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d040cffff or 0x816f010d040cffff Severity Lenovo System x3650 M5 Installation and Service Guide...
Page 903
Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0167 User Response No action; information only. • 816f010d-040dffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 13) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d040dffff or 0x816f010d040dffff Severity Info...
Page 904
Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0167 User Response No action; information only. • 816f010d-0411ffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 17) Lenovo System x3650 M5 Installation and Service Guide...
Page 905
This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d0411ffff or 0x816f010d0411ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0167 User Response...
Page 906
This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d0415ffff or 0x816f010d0415ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0167 Lenovo System x3650 M5 Installation and Service Guide...
Page 907
User Response No action; information only. • 816f010d-0416ffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 22) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d0416ffff or 0x816f010d0416ffff Severity Info Serviceable...
Page 908
This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d041affff or 0x816f010d041affff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive Lenovo System x3650 M5 Installation and Service Guide...
Page 909
SNMP Trap ID CIM Information Prefix: PLAT ID: 0167 User Response No action; information only. • 816f010d-041bffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 27) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d041bffff or 0x816f010d041bffff Severity Info...
Page 910
• 816f010d-041fffff : The Drive [StorageVolumeElementName] has been enabled. (Drive 31) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d041fffff or 0x816f010d041fffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 911
Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0167 User Response No action; information only. • 816f010d-0420ffff : The Drive [StorageVolumeElementName] has been enabled. (Ext Drive) This message is for the use case when an implementation has detected a Drive was Enabled. May also be shown as 816f010d0420ffff or 0x816f010d0420ffff Severity Info...
Page 912
This message is for the use case when an implemenation has detected that a system has recovered from a Bus Timeout. May also be shown as 816f01130302ffff or 0x816f01130302ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Other SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 913
CIM Information Prefix: PLAT ID: 0225 User Response 1. (Trained technician only) Replace microprocessor n (see Removing a microprocessor and heat sink and Replacing a microprocessor and heat sink). 2. If the problem persists and there is no other CPU with the same error indication, replace the system board.
Page 914
Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0390 User Response No action; information only. • 816f0125-1001ffff : [ManagedElementName] detected as present. (PCI Riser 1) Lenovo System x3650 M5 Installation and Service Guide...
Page 915
This message is for the use case when an implementation has detected a Managed Element is now Present. May also be shown as 816f01251001ffff or 0x816f01251001ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0390 User Response...
Page 916
This message is for the use case when an implementation has detected a Processor Recovered - FRB1/ BIST condition. May also be shown as 816f02070301ffff or 0x816f02070301ffff Severity Info Serviceable Automatically notify support Alert Category Critical - CPU Lenovo System x3650 M5 Installation and Service Guide...
Page 917
SNMP Trap ID CIM Information Prefix: PLAT ID: 0045 User Response No action; information only. • 816f0207-0302ffff : [ProcessorElementName] has Recovered from FRB1/BIST condition. (CPU 2) This message is for the use case when an implementation has detected a Processor Recovered - FRB1/ BIST condition.
Page 918
• 816f020d-0402ffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 2) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted. Lenovo System x3650 M5 Installation and Service Guide...
Page 919
May also be shown as 816f020d0402ffff or 0x816f020d0402ffff Severity Info Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0169 User Response No action; information only. • 816f020d-0403ffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName].
Page 920
This message is for the use case when an implementation has detected an Array Failure is no longer Predicted. May also be shown as 816f020d0406ffff or 0x816f020d0406ffff Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3650 M5 Installation and Service Guide...
Page 921
System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0169 User Response No action; information only. • 816f020d-0407ffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 7) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted.
Page 922
May also be shown as 816f020d040affff or 0x816f020d040affff Severity Info Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0169 User Response No action; information only. Lenovo System x3650 M5 Installation and Service Guide...
Page 923
• 816f020d-040bffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 11) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted. May also be shown as 816f020d040bffff or 0x816f020d040bffff Severity Info Serviceable...
Page 924
[ComputerSystemElementName]. (Drive 15) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted. May also be shown as 816f020d040fffff or 0x816f020d040fffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 925
Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0169 User Response No action; information only. • 816f020d-0410ffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 16) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted.
Page 926
This message is for the use case when an implementation has detected an Array Failure is no longer Predicted. May also be shown as 816f020d0413ffff or 0x816f020d0413ffff Severity Info Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID CIM Information Lenovo System x3650 M5 Installation and Service Guide...
Page 927
Prefix: PLAT ID: 0169 User Response No action; information only. • 816f020d-0414ffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 20) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted.
Page 928
• 816f020d-0418ffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 24) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted. Lenovo System x3650 M5 Installation and Service Guide...
Page 929
May also be shown as 816f020d0418ffff or 0x816f020d0418ffff Severity Info Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0169 User Response No action; information only. • 816f020d-0419ffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName].
Page 930
This message is for the use case when an implementation has detected an Array Failure is no longer Predicted. May also be shown as 816f020d041cffff or 0x816f020d041cffff Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3650 M5 Installation and Service Guide...
Page 931
System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0169 User Response No action; information only. • 816f020d-041dffff : Failure no longer Predicted on drive [StorageVolumeElementName] for array [ComputerSystemElementName]. (Drive 29) This message is for the use case when an implementation has detected an Array Failure is no longer Predicted.
Page 932
May also be shown as 816f020d0420ffff or 0x816f020d0420ffff Severity Info Serviceable Automatically notify support Alert Category System - Predicted Failure SNMP Trap ID CIM Information Prefix: PLAT ID: 0169 User Response No action; information only. Lenovo System x3650 M5 Installation and Service Guide...
Page 933
• 816f0308-0a01ffff : [PowerSupplyElementName] has returned to a Normal Input State. (Power Supply 1) This message is for the use case when an implementation has detected a Power Supply that has input that has returned to normal. May also be shown as 816f03080a01ffff or 0x816f03080a01ffff Severity Info Serviceable...
Page 934
[MemoryElementName] has recovered. (DIMM 3) This message is for the use case when an implementation has detected a Memory Scrub failure recovery. May also be shown as 816f030c2003ffff or 0x816f030c2003ffff Severity Info Serviceable Automatically notify support Lenovo System x3650 M5 Installation and Service Guide...
Page 935
Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0137 User Response No action; information only. • 816f030c-2004ffff : Scrub Failure for [PhysicalMemoryElementName] on Subsystem [MemoryElementName] has recovered. (DIMM 4) This message is for the use case when an implementation has detected a Memory Scrub failure recovery. May also be shown as 816f030c2004ffff or 0x816f030c2004ffff Severity Info...
Page 936
No action; information only. • 816f030c-2008ffff : Scrub Failure for [PhysicalMemoryElementName] on Subsystem [MemoryElementName] has recovered. (DIMM 8) This message is for the use case when an implementation has detected a Memory Scrub failure recovery. Lenovo System x3650 M5 Installation and Service Guide...
Page 937
May also be shown as 816f030c2008ffff or 0x816f030c2008ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0137 User Response No action; information only. • 816f030c-2009ffff : Scrub Failure for [PhysicalMemoryElementName] on Subsystem [MemoryElementName] has recovered.
Page 938
This message is for the use case when an implementation has detected a Memory Scrub failure recovery. May also be shown as 816f030c200cffff or 0x816f030c200cffff Severity Info Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 939
CIM Information Prefix: PLAT ID: 0137 User Response No action; information only. • 816f030c-200dffff : Scrub Failure for [PhysicalMemoryElementName] on Subsystem [MemoryElementName] has recovered. (DIMM 13) This message is for the use case when an implementation has detected a Memory Scrub failure recovery. May also be shown as 816f030c200dffff or 0x816f030c200dffff Severity Info...
Page 940
[MemoryElementName] has recovered. (DIMM 17) This message is for the use case when an implementation has detected a Memory Scrub failure recovery. May also be shown as 816f030c2011ffff or 0x816f030c2011ffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 941
Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0137 User Response No action; information only. • 816f030c-2012ffff : Scrub Failure for [PhysicalMemoryElementName] on Subsystem [MemoryElementName] has recovered. (DIMM 18) This message is for the use case when an implementation has detected a Memory Scrub failure recovery. May also be shown as 816f030c2012ffff or 0x816f030c2012ffff Severity Info...
Page 942
May also be shown as 816f030c2015ffff or 0x816f030c2015ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0137 User Response No action; information only. Lenovo System x3650 M5 Installation and Service Guide...
Page 943
• 816f030c-2016ffff : Scrub Failure for [PhysicalMemoryElementName] on Subsystem [MemoryElementName] has recovered. (DIMM 22) This message is for the use case when an implementation has detected a Memory Scrub failure recovery. May also be shown as 816f030c2016ffff or 0x816f030c2016ffff Severity Info Serviceable Automatically notify support...
Page 944
This message is for the use case when an implementation has detected a Hot Spare has been Disabled. May also be shown as 816f030d0400ffff or 0x816f030d0400ffff Severity Info Serviceable Automatically notify support Alert Category System - Other Lenovo System x3650 M5 Installation and Service Guide...
Page 945
SNMP Trap ID CIM Information Prefix: PLAT ID: 0171 User Response No action; information only. • 816f030d-0401ffff : Hot spare disabled for [ComputerSystemElementName]. (Drive 1) This message is for the use case when an implementation has detected a Hot Spare has been Disabled. May also be shown as 816f030d0401ffff or 0x816f030d0401ffff Severity Info...
Page 946
• 816f030d-0405ffff : Hot spare disabled for [ComputerSystemElementName]. (Drive 5) This message is for the use case when an implementation has detected a Hot Spare has been Disabled. May also be shown as 816f030d0405ffff or 0x816f030d0405ffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 947
Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0171 User Response No action; information only. • 816f030d-0406ffff : Hot spare disabled for [ComputerSystemElementName]. (Drive 6) This message is for the use case when an implementation has detected a Hot Spare has been Disabled. May also be shown as 816f030d0406ffff or 0x816f030d0406ffff Severity Info...
Page 948
• 816f030d-040affff : Hot spare disabled for [ComputerSystemElementName]. (Drive 10) This message is for the use case when an implementation has detected a Hot Spare has been Disabled. May also be shown as 816f030d040affff or 0x816f030d040affff Severity Lenovo System x3650 M5 Installation and Service Guide...
Page 949
Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0171 User Response No action; information only. • 816f030d-040bffff : Hot spare disabled for [ComputerSystemElementName]. (Drive 11) This message is for the use case when an implementation has detected a Hot Spare has been Disabled. May also be shown as 816f030d040bffff or 0x816f030d040bffff Severity Info...
Page 950
Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0171 User Response No action; information only. • 816f030d-040fffff : Hot spare disabled for [ComputerSystemElementName]. (Drive 15) Lenovo System x3650 M5 Installation and Service Guide...
Page 951
This message is for the use case when an implementation has detected a Hot Spare has been Disabled. May also be shown as 816f030d040fffff or 0x816f030d040fffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0171 User Response...
Page 952
This message is for the use case when an implementation has detected a Hot Spare has been Disabled. May also be shown as 816f030d0413ffff or 0x816f030d0413ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0171 Lenovo System x3650 M5 Installation and Service Guide...
Page 953
User Response No action; information only. • 816f030d-0414ffff : Hot spare disabled for [ComputerSystemElementName]. (Drive 20) This message is for the use case when an implementation has detected a Hot Spare has been Disabled. May also be shown as 816f030d0414ffff or 0x816f030d0414ffff Severity Info Serviceable...
Page 954
This message is for the use case when an implementation has detected a Hot Spare has been Disabled. May also be shown as 816f030d0418ffff or 0x816f030d0418ffff Severity Info Serviceable Automatically notify support Alert Category System - Other Lenovo System x3650 M5 Installation and Service Guide...
Page 955
SNMP Trap ID CIM Information Prefix: PLAT ID: 0171 User Response No action; information only. • 816f030d-0419ffff : Hot spare disabled for [ComputerSystemElementName]. (Drive 25) This message is for the use case when an implementation has detected a Hot Spare has been Disabled. May also be shown as 816f030d0419ffff or 0x816f030d0419ffff Severity Info...
Page 956
• 816f030d-041dffff : Hot spare disabled for [ComputerSystemElementName]. (Drive 29) This message is for the use case when an implementation has detected a Hot Spare has been Disabled. May also be shown as 816f030d041dffff or 0x816f030d041dffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 957
Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0171 User Response No action; information only. • 816f030d-041effff : Hot spare disabled for [ComputerSystemElementName]. (Drive 30) This message is for the use case when an implementation has detected a Hot Spare has been Disabled. May also be shown as 816f030d041effff or 0x816f030d041effff Severity Info...
Page 958
User Response No action; information only. • 816f040c-2001ffff : [PhysicalMemoryElementName] Enabled on Subsystem [MemoryElementName]. (DIMM 1) This message is for the use case when an implementation has detected that Memory has been Enabled. Lenovo System x3650 M5 Installation and Service Guide...
Page 959
May also be shown as 816f040c2001ffff or 0x816f040c2001ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0130 User Response No action; information only. • 816f040c-2002ffff : [PhysicalMemoryElementName] Enabled on Subsystem [MemoryElementName].
Page 960
This message is for the use case when an implementation has detected that Memory has been Enabled. May also be shown as 816f040c2005ffff or 0x816f040c2005ffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 961
CIM Information Prefix: PLAT ID: 0130 User Response No action; information only. • 816f040c-2006ffff : [PhysicalMemoryElementName] Enabled on Subsystem [MemoryElementName]. (DIMM 6) This message is for the use case when an implementation has detected that Memory has been Enabled. May also be shown as 816f040c2006ffff or 0x816f040c2006ffff Severity Info Serviceable...
Page 962
• 816f040c-200affff : [PhysicalMemoryElementName] Enabled on Subsystem [MemoryElementName]. (DIMM 10) This message is for the use case when an implementation has detected that Memory has been Enabled. May also be shown as 816f040c200affff or 0x816f040c200affff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 963
Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0130 User Response No action; information only. • 816f040c-200bffff : [PhysicalMemoryElementName] Enabled on Subsystem [MemoryElementName]. (DIMM 11) This message is for the use case when an implementation has detected that Memory has been Enabled. May also be shown as 816f040c200bffff or 0x816f040c200bffff Severity Info...
Page 964
May also be shown as 816f040c200effff or 0x816f040c200effff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0130 User Response No action; information only. Lenovo System x3650 M5 Installation and Service Guide...
Page 965
• 816f040c-200fffff : [PhysicalMemoryElementName] Enabled on Subsystem [MemoryElementName]. (DIMM 15) This message is for the use case when an implementation has detected that Memory has been Enabled. May also be shown as 816f040c200fffff or 0x816f040c200fffff Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID...
Page 966
This message is for the use case when an implementation has detected that Memory has been Enabled. May also be shown as 816f040c2013ffff or 0x816f040c2013ffff Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3650 M5 Installation and Service Guide...
Page 967
System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0130 User Response No action; information only. • 816f040c-2014ffff : [PhysicalMemoryElementName] Enabled on Subsystem [MemoryElementName]. (DIMM 20) This message is for the use case when an implementation has detected that Memory has been Enabled. May also be shown as 816f040c2014ffff or 0x816f040c2014ffff Severity Info...
Page 968
• 816f040c-2018ffff : [PhysicalMemoryElementName] Enabled on Subsystem [MemoryElementName]. (DIMM 24) This message is for the use case when an implementation has detected that Memory has been Enabled. May also be shown as 816f040c2018ffff or 0x816f040c2018ffff Lenovo System x3650 M5 Installation and Service Guide...
Page 969
Severity Info Serviceable Automatically notify support Alert Category System - Other SNMP Trap ID CIM Information Prefix: PLAT ID: 0130 User Response No action; information only. • 816f040c-2581ffff : [PhysicalMemoryElementName] Enabled on Subsystem [MemoryElementName]. (All DIMMS) This message is for the use case when an implementation has detected that Memory has been Enabled. May also be shown as 816f040c2581ffff or 0x816f040c2581ffff Severity Info...
Page 970
This message is for the use case when an implementation has Recovered from a Processor Configuration Mismatch. May also be shown as 816f05070302ffff or 0x816f05070302ffff Severity Info Serviceable Automatically notify support Alert Category Critical - CPU SNMP Trap ID Lenovo System x3650 M5 Installation and Service Guide...
Page 971
CIM Information Prefix: PLAT ID: 0063 User Response No action; information only. • 816f0507-2584ffff : [ProcessorElementName] has Recovered from a Configuration Mismatch. (All CPUs) This message is for the use case when an implementation has Recovered from a Processor Configuration Mismatch.
Page 972
• 816f050c-2004ffff : Memory Logging Limit Removed for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 4) This message is for the use case when an implementation has detected that the Memory Logging Limit has been Removed. Lenovo System x3650 M5 Installation and Service Guide...
Page 973
May also be shown as 816f050c2004ffff or 0x816f050c2004ffff Severity Info Serviceable Automatically notify support Alert Category Warning - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0145 User Response No action; information only. • 816f050c-2005ffff : Memory Logging Limit Removed for [PhysicalMemoryElementName] on Subsystem [MemoryElementName].
Page 974
This message is for the use case when an implementation has detected that the Memory Logging Limit has been Removed. May also be shown as 816f050c2008ffff or 0x816f050c2008ffff Severity Info Serviceable Automatically notify support Alert Category Lenovo System x3650 M5 Installation and Service Guide...
Page 975
Warning - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0145 User Response No action; information only. • 816f050c-2009ffff : Memory Logging Limit Removed for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 9) This message is for the use case when an implementation has detected that the Memory Logging Limit has been Removed.
Page 976
May also be shown as 816f050c200cffff or 0x816f050c200cffff Severity Info Serviceable Automatically notify support Alert Category Warning - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0145 User Response No action; information only. Lenovo System x3650 M5 Installation and Service Guide...
Page 977
• 816f050c-200dffff : Memory Logging Limit Removed for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 13) This message is for the use case when an implementation has detected that the Memory Logging Limit has been Removed. May also be shown as 816f050c200dffff or 0x816f050c200dffff Severity Info Serviceable...
Page 978
Subsystem [MemoryElementName]. (DIMM 17) This message is for the use case when an implementation has detected that the Memory Logging Limit has been Removed. May also be shown as 816f050c2011ffff or 0x816f050c2011ffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 979
Automatically notify support Alert Category Warning - Memory SNMP Trap ID CIM Information Prefix: PLAT ID: 0145 User Response No action; information only. • 816f050c-2012ffff : Memory Logging Limit Removed for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 18) This message is for the use case when an implementation has detected that the Memory Logging Limit has been Removed.
Page 980
This message is for the use case when an implementation has detected that the Memory Logging Limit has been Removed. May also be shown as 816f050c2015ffff or 0x816f050c2015ffff Severity Info Serviceable Automatically notify support Alert Category Warning - Memory SNMP Trap ID CIM Information Lenovo System x3650 M5 Installation and Service Guide...
Page 981
Prefix: PLAT ID: 0145 User Response No action; information only. • 816f050c-2016ffff : Memory Logging Limit Removed for [PhysicalMemoryElementName] on Subsystem [MemoryElementName]. (DIMM 22) This message is for the use case when an implementation has detected that the Memory Logging Limit has been Removed.
Page 982
• 816f050d-0400ffff : Critical Array [ComputerSystemElementName] has deasserted. (Drive 0) This message is for the use case when an implementation has detected that an Critiacal Array has deasserted. May also be shown as 816f050d0400ffff or 0x816f050d0400ffff Lenovo System x3650 M5 Installation and Service Guide...
Page 983
Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0175 User Response No action; information only. • 816f050d-0401ffff : Critical Array [ComputerSystemElementName] has deasserted. (Drive 1) This message is for the use case when an implementation has detected that an Critiacal Array has deasserted.
Page 984
This message is for the use case when an implementation has detected that an Critiacal Array has deasserted. May also be shown as 816f050d0404ffff or 0x816f050d0404ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0175 Lenovo System x3650 M5 Installation and Service Guide...
Page 985
User Response No action; information only. • 816f050d-0405ffff : Critical Array [ComputerSystemElementName] has deasserted. (Drive 5) This message is for the use case when an implementation has detected that an Critiacal Array has deasserted. May also be shown as 816f050d0405ffff or 0x816f050d0405ffff Severity Info Serviceable...
Page 986
• 816f050d-0409ffff : Critical Array [ComputerSystemElementName] has deasserted. (Drive 9) This message is for the use case when an implementation has detected that an Critiacal Array has deasserted. May also be shown as 816f050d0409ffff or 0x816f050d0409ffff Severity Info Serviceable Lenovo System x3650 M5 Installation and Service Guide...
Page 987
Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0175 User Response No action; information only. • 816f050d-040affff : Critical Array [ComputerSystemElementName] has deasserted. (Drive 10) This message is for the use case when an implementation has detected that an Critiacal Array has deasserted.
Page 988
Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0175 User Response No action; information only. • 816f050d-040effff : Critical Array [ComputerSystemElementName] has deasserted. (Drive 14) Lenovo System x3650 M5 Installation and Service Guide...
Page 989
This message is for the use case when an implementation has detected that an Critiacal Array has deasserted. May also be shown as 816f050d040effff or 0x816f050d040effff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0175 User Response...
Page 990
This message is for the use case when an implementation has detected that an Critiacal Array has deasserted. May also be shown as 816f050d0412ffff or 0x816f050d0412ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive Lenovo System x3650 M5 Installation and Service Guide...
Page 991
SNMP Trap ID CIM Information Prefix: PLAT ID: 0175 User Response No action; information only. • 816f050d-0413ffff : Critical Array [ComputerSystemElementName] has deasserted. (Drive 19) This message is for the use case when an implementation has detected that an Critiacal Array has deasserted.
Page 992
• 816f050d-0417ffff : Critical Array [ComputerSystemElementName] has deasserted. (Drive 23) This message is for the use case when an implementation has detected that an Critiacal Array has deasserted. May also be shown as 816f050d0417ffff or 0x816f050d0417ffff Severity Lenovo System x3650 M5 Installation and Service Guide...
Page 993
Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0175 User Response No action; information only. • 816f050d-0418ffff : Critical Array [ComputerSystemElementName] has deasserted. (Drive 24) This message is for the use case when an implementation has detected that an Critiacal Array has deasserted.
Page 994
May also be shown as 816f050d041bffff or 0x816f050d041bffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0175 User Response Lenovo System x3650 M5 Installation and Service Guide...
Page 995
No action; information only. • 816f050d-041cffff : Critical Array [ComputerSystemElementName] has deasserted. (Drive 28) This message is for the use case when an implementation has detected that an Critiacal Array has deasserted. May also be shown as 816f050d041cffff or 0x816f050d041cffff Severity Info Serviceable...
Page 996
This message is for the use case when an implementation has detected that an Critiacal Array has deasserted. May also be shown as 816f050d0420ffff or 0x816f050d0420ffff Severity Info Serviceable Automatically notify support Lenovo System x3650 M5 Installation and Service Guide...
Page 997
Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0175 User Response No action; information only. • 816f0513-2582ffff : A PCI SERR on system [ComputerSystemElementName] has deasserted. (PCIs) This message is for the use case when an implementation has detected a PCI SERR deassertion. May also be shown as 816f05132582ffff or 0x816f05132582ffff Severity Info...
Page 998
• 816f0608-1301ffff : [PowerSupplyElementName] Configuration is OK. (PS Configuration) This message is for the use case when an implementation when a Power Supply configuration is OK. May also be shown as 816f06081301ffff or 0x816f06081301ffff Lenovo System x3650 M5 Installation and Service Guide...
Page 999
Severity Info Serviceable Automatically notify support Alert Category Critical - Power SNMP Trap ID CIM Information Prefix: PLAT ID: 0105 User Response No action; information only. • 816f060d-0400ffff : Array in system [ComputerSystemElementName] has been restored. (Drive 0) This message is for the use case when an implementation has detected that a Failed Array has been Restored.
Page 1000
This message is for the use case when an implementation has detected that a Failed Array has been Restored. May also be shown as 816f060d0403ffff or 0x816f060d0403ffff Severity Info Serviceable Automatically notify support Alert Category Critical - Hard Disk drive SNMP Trap ID CIM Information Prefix: PLAT ID: 0177 Lenovo System x3650 M5 Installation and Service Guide...
