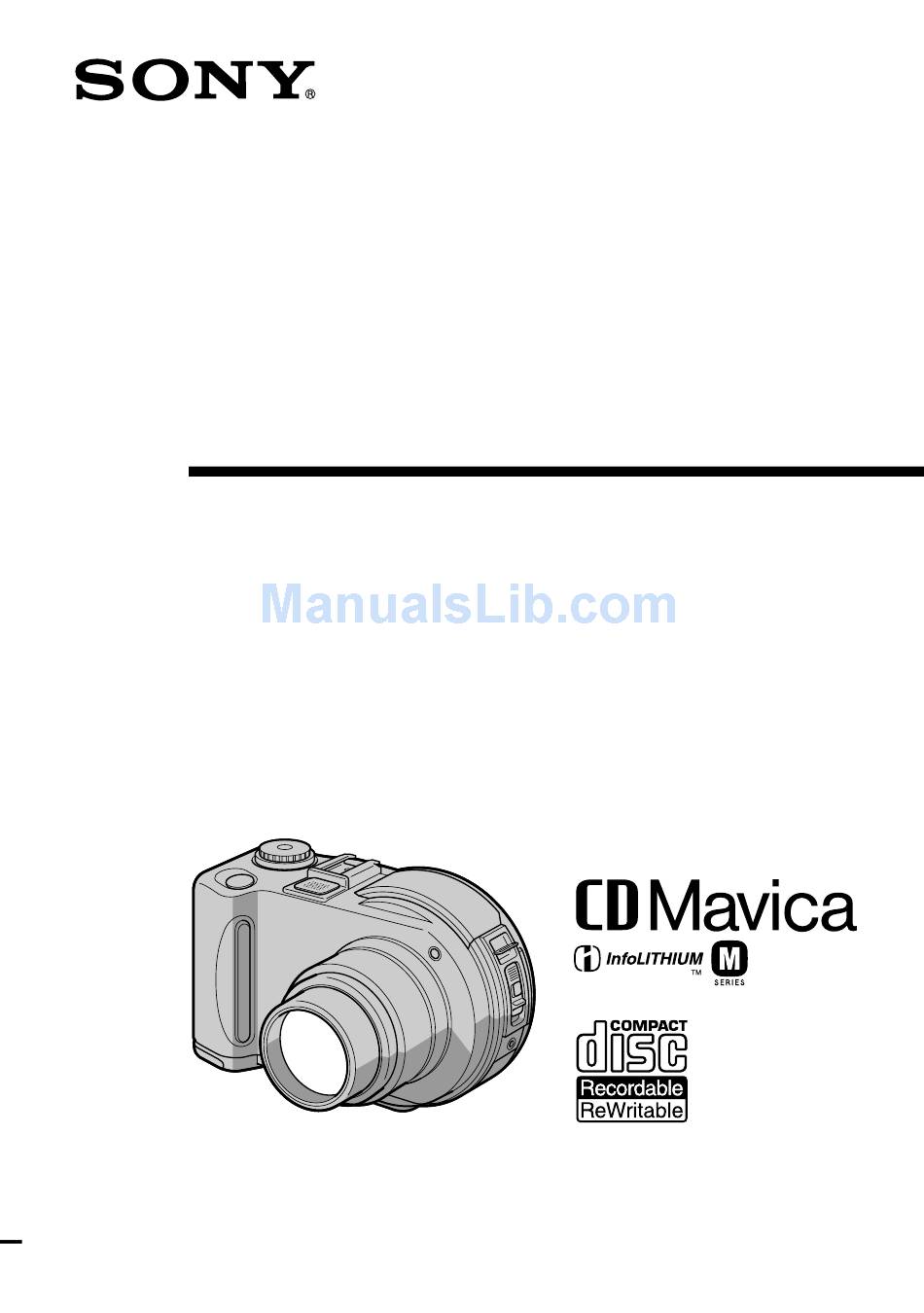

3-067-951-11(1)
Digital Still Camera

Operating Instructions

Before operating the unit, please read this manual thoroughly, and retain it
for future reference.
Owner's Record
The model and serial numbers are located on the bottom. Record the serial
number in the space provided below. Refer to these numbers whenever you
call upon your Sony dealer regarding this product.
Model No. ________________________
Serial No. ________________________
MVC-CD300
MVC-CD200/CD300
©2001 Sony Corporation
