Figure 17: Gcg Assignments - Bus A; Figure 18: Gcg Assignments - Bus B - GE PACSystems RX3i Application Manual

Genius Communication Gateway Modules
BUS.GCG_A.PRI_NUM
BUS.GCG_A.SEC_NUM
BUS.GCG_A.PSDA
BUS.GCG_A.GSDA
BUS.GCG_B.PRI_NUM
BUS.GCG_B.SEC_NUM
BUS.GCG_B.PSDA
BUS.GCG_B.GSDA
GFK-2928

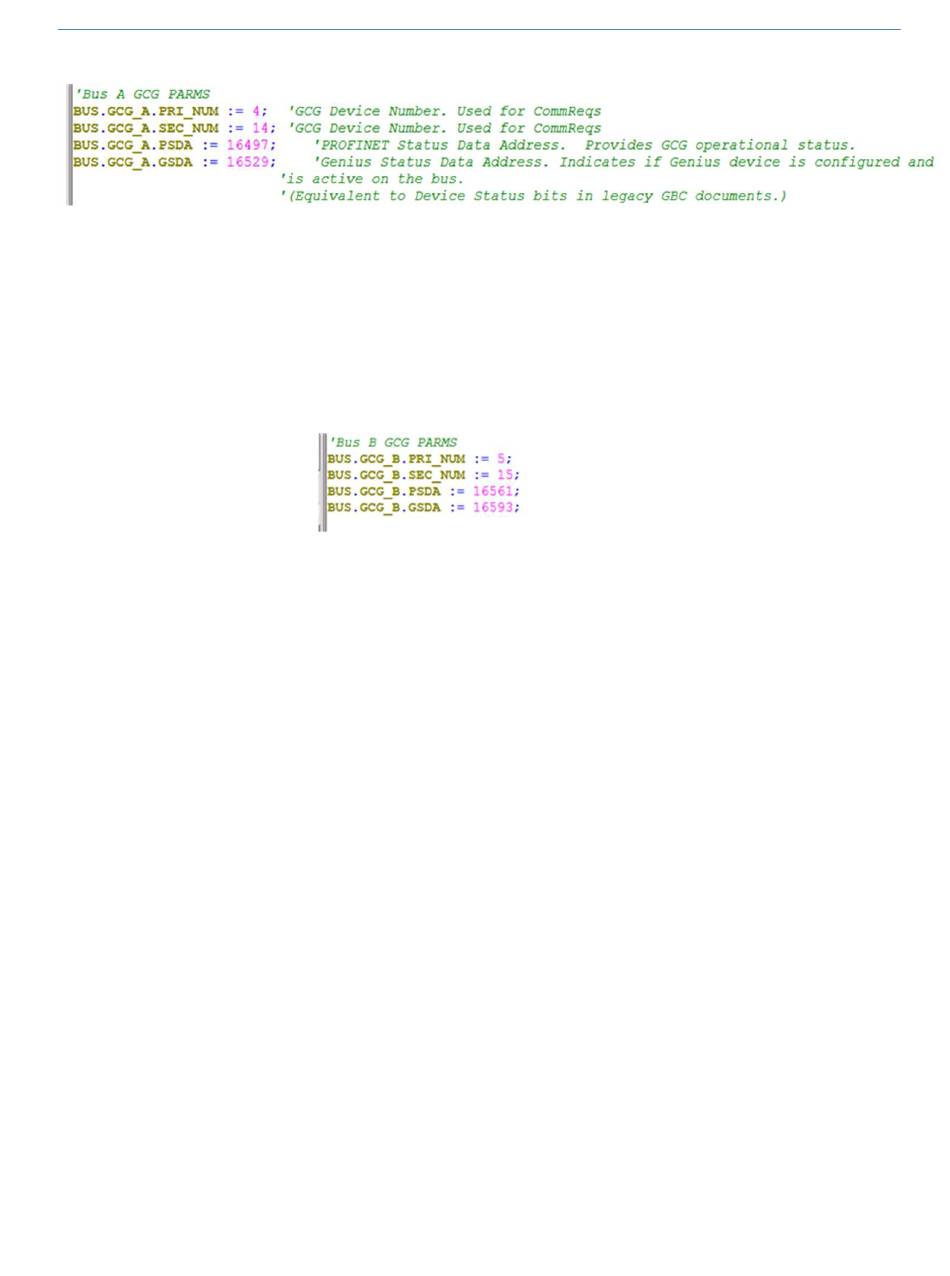

Figure 17: GCG Assignments – Bus A
The PROFINET Device Number for the Primary PLC Gateway module attached to
Bus A.
The PROFINET Device Number for the Secondary PLC Gateway module attached to
Bus A.
The PROFINET Status/Diagnostic bits for the Primary PLC Gateway module attached
to Bus A.
The Genius Device Status bits for the Primary PLC Gateway module attached to
Bus A.
Figure 18: GCG Assignments – Bus B
The PROFINET Device Number for the Primary PLC Gateway module attached to
Bus B.
The PROFINET Device Number for the Secondary PLC Gateway module attached to
Bus B.
The PROFINET Status/Diagnostic bits for the Primary PLC Gateway module attached
to Bus B.
The Genius Device Status bits for the Primary PLC Gateway module attached to
Bus B.
December 2017
Chapter 4. Toolchest Components
19
