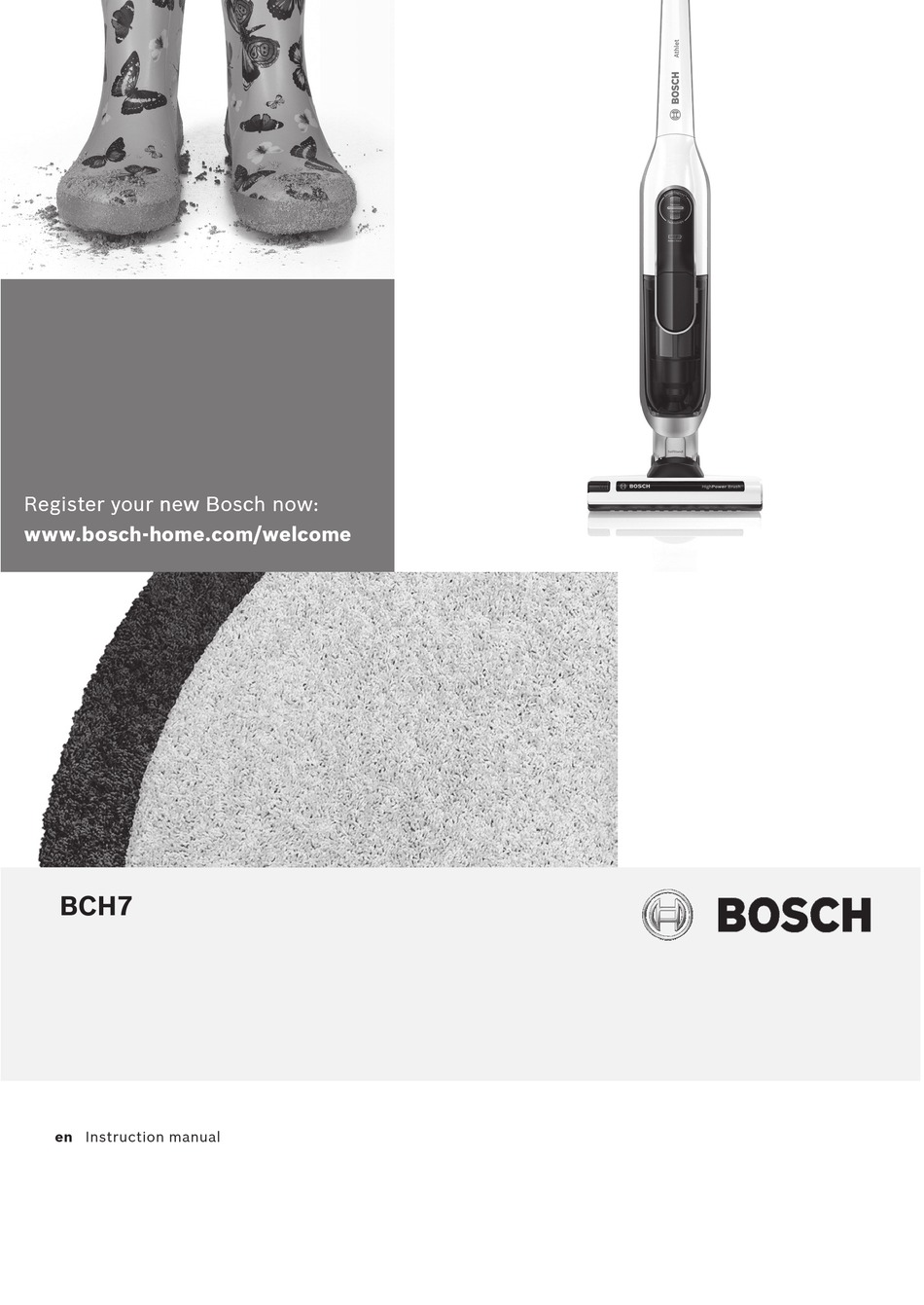

Moodpic 1 Moodpic 1 63,2 x 50,25mm 63,2 x 50,25mm CMYK & GREY CMYK & GREY Register your new Bosch now: Register your new Bosch now: Register your new Bosch now: Register your n r new Bosch now: www.bosch-home.com/welcome www.bosch-home.com/welcome www.bosch-home.com/welcome...
Safety information Please keep this instruction manual for future reference. When passing the vacuum cleaner on to a third party, please also pass on this instruction manual. Intended use This appliance is intended for domestic use only, not for commercial use. Only use this vacuum cleaner in accordance with the information provided in this instruction manual.
Safety information Safety information This vacuum cleaner complies with the recognised rules of technology and the relevant safety regulations. The appliance may be used by children over the age of 8 years and by persons with reduced physical, sen- sory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed on the safe use of the appliance and the have understood the potential dangers of...
Safety information Proper use The charging cable must only be connected and opera- ted as specified on the rating plate. The appliance must only be stored and charged indo- ors. Do not expose the appliance to temperatures below 0 °C or above 40 °C. Never vacuum without the dust bag or dust container, motor protection or exhaust filter.
Page 8
Safety information In the following cases, you must stop the appliance immediately and contact the after-sales service: If you have accidentally vacuumed up some liquid or liquid has entered the inside of the appliance; If the appliance has been dropped and damaged. Protect the vacuum cleaner from outside weather con- ditions, moisture and sources of heat.
Page 9
Safety information Batteries Your appliance is fitted with lithium-ion batteries which, for safety reasons, are only accessible to professional repair specialists. For battery replacement, please contact your nearest after-sales centre or an authorised specialist dealer. Notes on transport The lithium-ion batteries in the appliance are subject to the requirements of dangerous goods legislation.
Page 11
Your vacuum cleaner Floor tool with electric On/off switch brush Professional upholstery Dust container nozzle Dirt container release Professional crevice button nozzle Battery charging status Short handle indicator Carrying strap Sensor Control indicator Accessory adapter Dust container Flexible hose with handle Outer filter unit Charging cable Filter cartridge with motor...
Before using for the first time Plugging the handle onto the main housing Figure ● Carefully plug the handle onto the main housing and lock into Click! place. Plugging the appliance into the floor tool Figure Plug the hand vacuum cleaner ●...
Charging Caution! Before using the vacuum clea- ner for the first time, the batte- ries must be charged for at least 6 hours. Charging the battery Figure ● To charge the vacuum cleaner, place it near to a socket. The appliance can be left standing anywhere in the room.
Charging Battery charging status indicator Figure The indicator shows the charging status of the battery. Battery fully charged Battery semi-charged Battery low ● When the indicator flashes, the battery must be recharged. Vacuuming Switch On/Off Figure ● Move the on/off button in the direction of the arrow.
Vacuuming Controlling the suction level Figure To change the suction power, slide ● the on/off switch to the desired position: Power level 1 Vacuuming without the electric brush switched on. For simple cleaning tasks like cur- tains and particularly low opera- ting noise.
Vacuuming Transport Figure overcome obstacles, e.g. ● steps, the appliance can also be carried by the handle on the appliance body. Vacuuming with accessories Attention! For vacuuming with accessories slide the on/off switch to the highest level (level3) Figure Fasten the carrying strap to the ●...
Page 17
Vacuuming Figure ● Plug the short handle onto the main housing and lock into place Click! Press the release button and pull ● down the floor tool. Plug the accessory adapter into ● the hand vacuum cleaner and lock into place. Click!
Vacuuming Figure Fit nozzles as required to the flexible hose with the accessory adapter handle: ● Upholstery nozzle for vacuuming upholstered furniture, curtains, etc. ● Crevice nozzle vacuuming crevices and corners, etc. ● Handle of the flexible hose to suck up bigger dirt particles or small pieces, like cullets, paper clips, etc.
When the work is done Parking Figure During short pauses in vacuuming, the appliance can be left standing anywhere in the room. To do this, tilt the vacuum cleaner forwards slightly in the direction of the nozzle. Caution! When the appliance is left stan- ding, it must be switched off, because if the brush is turning while the appliance is standing...
When the work is done Emptying the dust container Figure In order to achieve the best possible vacuuming results, the dust container should be emptied after every use or, at the latest, when dust at one point in the dust container reached marking.
When the work is done Inserting the dust container Figure ● Remove any dirt which may have been lodged underneath container ejector opening. Insert the filter unit into the dust ● container, making sure correctly seated. ● Insert the dust container in the appliance, that 'clicks'...
Disassembly Releasing the handle Figure ● To release the handle, press the release button and carefully lift the handle upwards to remove it. Releasing the floor tool Figure ● To release the floor tool, press the release button and pull the hand vacuum cleaner out of the tool.
Filter care Caution! The filter can only be cleaned if the appliance is switched off. Your appliance is equipped with a "Sensor Control" function. This function constantly monitors whether your vacuum cleaner is working at its optimum power level. The indicator light lets you know when you need to clean the filter cartridge, so that the appli- ance can reach its optimum power...
Filter care Cleaning the outer filter unit Figure The outer filter unit should be cleaned at regular intervals in order to ensure optimum operation of the vacuum cleaner. ● Please switch off the appliance to clean the outer filter unit. ●...
Filter care Cleaning the filter cartridge or changing the filter Figure ● Switch off the appliance. ● Remove the dust container from the appliance. Figure ● Take the filter unit out of the dust container. Figure a) Turn the filter cartridge lid anti- clockwise and remove the filter cartridge from the filter unit.
Page 28
Filter care Figure d) After fitting the foam filter, ins- ert the filter cartridge into the dust container. e) Insert the filter cartridge into the filter unit and lock it by tur- ning the lid clockwise. If, after hand-washing the filter cartridge, the "Sensor Control"...
Cleaning the floor tool Cleaning the floor tool Before carrying out any mainte- nance, switch off the vacuum cleaner and disconnect it from the charging cable. Figure a) Turn the rotary brush anti-clock- wise to unlock it and pull it sideways out of the floor tool.
Care Before cleaning the hand vacuum cleaner, it must be switched off and disconnected from the charging cable. The vacuum cleaner and plastic accessories can be cleaned with an ordinary plastic cleaner. Do not use abrasive materials, glass-cleaning agents or all-purpose cleaning products.
Malfunctions and Costumer Service In the following cases, you must stop the appliance immediately and contact the after-sales service: If you have accidentally vacuumed up some liquid or liquid has entered the inside of the appliance; If the appliance has been dropped and damaged. In these cases, the electrical safety of the appliance could no longer be guaranteed, even if no external damage is visible.
Page 32
Milton Keynes MK12 5PT To arrange an engineer visit, to order spare parts and accessories or for product advice please visit: www.bosch-home.co.uk or call Tel.: 0344 892 8979* *Calls are charged at the basic rate, please check with your telephone service...
Disposal Information on disposal Packaging The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environ- mentally friendly materials and can therefore be recycled. Dispose of packaging that is no longer required at an appropriate recycling point.
Conditions of guarantee For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.
