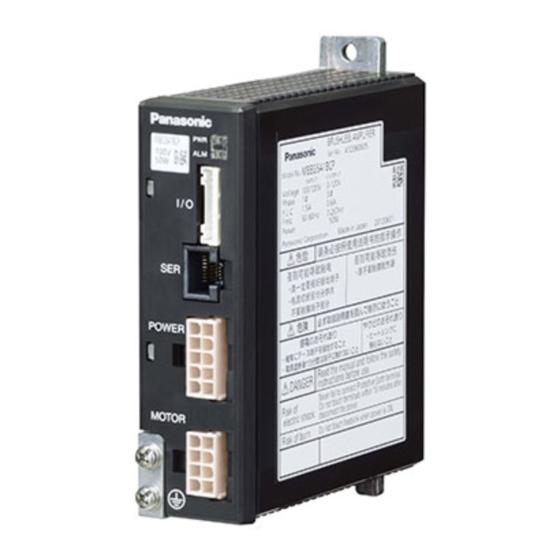

Panasonic MINAS-BL GP series Technical Instructions
Brushless amplifier
Hide thumbs
Also See for MINAS-BL GP series:
- Instructions manual (56 pages) ,
- Technical instructions (11 pages) ,
- Manual (66 pages)
Advertisement
• Thank you very much for your purchase of Panasonic product.
• Please read this instruction manual carefully for proper use.
• In particular, be sure to read Safety precautions (P.2 to 4) before use for safety.
• Keep this manual with care after reading, and read as necessary.
Be sure to give this Instruction manual to an end user.
If you are the first user of this product, please be sure to read the instruction
Manual (Overall) from our Web Site.
http://industrial.panasonic.com/ww/i_e/25000/motor_fa_e/motor_fa_e.html
This product is for industrial equipment. Don't use this product at general household.
●
Technical Instructions (Basic)
• Label of safety precaution is affixed to the product.
[Web address of Panasonic Corporation]
MINAS-BL GV/GP series
Brushless Amplifier
Advertisement
Table of Contents
Related Manuals for Panasonic MINAS-BL GP series
Summary of Contents for Panasonic MINAS-BL GP series
- Page 1 MINAS-BL GV/GP series Brushless Amplifier • Thank you very much for your purchase of Panasonic product. • Please read this instruction manual carefully for proper use. • In particular, be sure to read Safety precautions (P.2 to 4) before use for safety.
-
Page 2: Safety Precautions
Safety Precautions Important The following explanations are for things that must be observed in order to Ground the earth of the brushless motor and An over-current protection, earth leakage prevent harm to people and damage to property. brushless amplifier. breaker, over temperature protecter and emergency stop device must be installed. -
Page 3: Introduction/ Checking The Model
Safety Precautions Introduction/ Checking the model Important After unpacking CAUTION • Make sure that the model is what you have ordered. • Check whether the product has been damaged or not during transportation. Do not frequently turn on and off the master Do not place any obstacle that blocks ventilation power source. -
Page 4: Installation
Checking the model/ Name of part Installation Checking the model of brushless amplifier Install the brushless amplifier properly for preventing failure and accident. Transport Nameplate • Use caution enough in transporting the unit to prevent injury by drop or fall, and avoid damage to the equipment. -
Page 5: System Configuration And Wiring/ Wiring
System configuration and wiring/ Wiring Wiring System configuration/ general wiring diagram Function of terminal GV/GP series Connector for power supply (POWER) AC power supply Brushless Amplifier Connector on Amplifier Side: Part No. 5569-10A1-210 (Molex Inc.) or equivalent Power supply connection connector kit (option) Terminal Terminal... - Page 6 Wiring Maintenance/inspections/ How to reset a trip • GP series Maintenance/ inspections Connector on amplifier side: Parts No. S10B-PASK-2 (J.S.TMfg.,Co.,Ltd.) or equivalent. Routine maintenance and inspection are essential for proper and satisfactory operation of mating connector: Representative Housing PAP-10V-S, the motor. Terminal SPHD-001T-P0.5 or SPHD-002T-P0.5 Maintenance/ Inspection item Terminal...
- Page 7 Conformance to EC directive and UL standard Conformance to EC directive and UL standard EC Directives Configuration of peripheral equipment The EC directives apply to all such electronic products as those having specific functions ・ 100 V system: Single phase 100 V to 120 V ± 10%, 50/60 Hz and directly sold to general consumers in EU countries.
-
Page 8: Specifications
Specifications Cautions for Proper Use Cautions for Proper Use Applies Item Specifications • Practical considerations for exporting the product or assembly containing the product Brushless MBEG MBEG MBEG MBEG MBEG MBEG When the end user of the product or end use of the product is associated with military 5A1BC ＊... -
Page 9: After-Sale Service (Repair)
Pursuant to at the directive 2004/108/EC,article 9(2) Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15,22525 Hamburg,F.R.Germany For your records: The model number and serial number of this product can be found on either the back or the bottom of the unit.
