Chapter 3. Configuration

3.5 Ethernet Configuration

Refer to PACSystems RX7i & RX3i TCP/IP Ethernet Communications User Manual, GFK-2224 Chapter 4.
There is a section dealing with Ethernet Configuration for rack-based modules.
EIS001 is limited to IPv4 addressing and can accept Advanced User Parameters (AUP) file settings for
module parameters.
In PME, click on the EIS001 module; open the parameter configuration window. On the Settings tab,
enter the IP Address, subnet mask, and gateway IP Address for the EIS001 Ethernet interface as
required by the IEC 104 network configuration. Note: there is only one MAC Address and one
IP Address for the module. Values are shown in the example below:

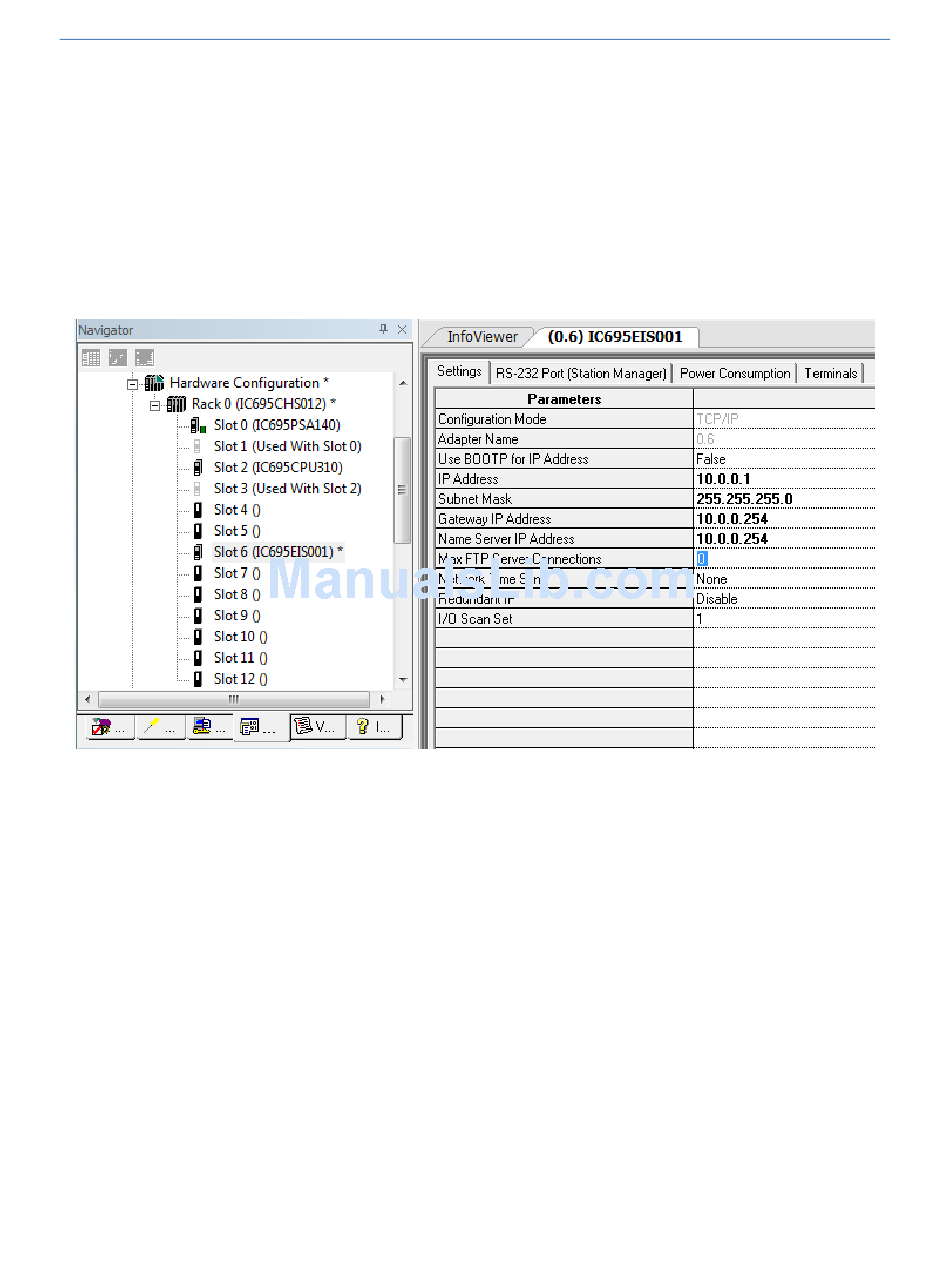

Figure 9: PME Tab for Entering Ethernet Settings to be used by EIS001
