2. INTRODUCTION

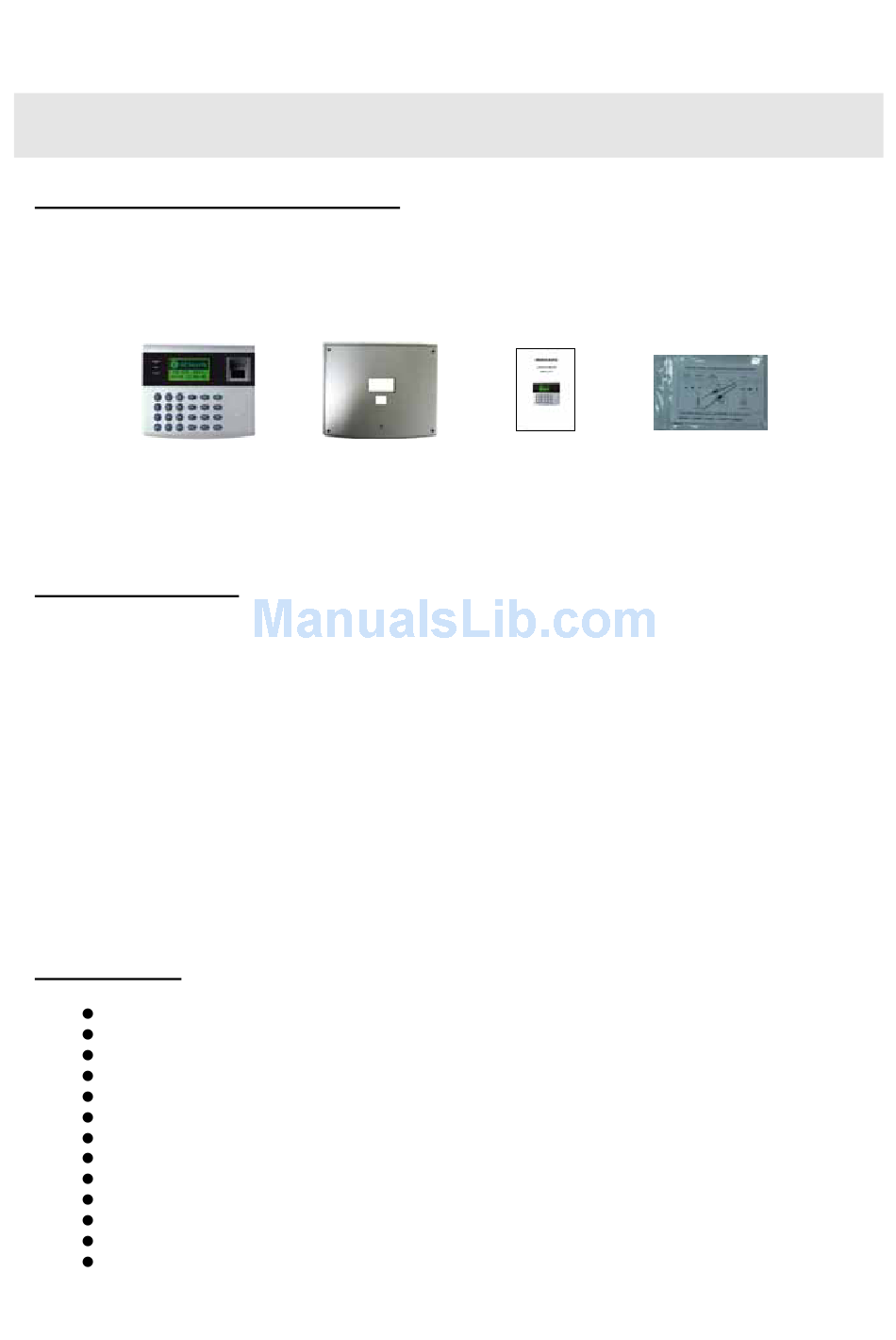

2.1 IDENTIFYING SUPPLIED PARTS

Please unpack and check the contents of the box (Optional accessories, if purchased, may be included in the
package).
Main
( 1ea )
2.2 INTRODUCTION
The GE314 is ideal to use for Single Door Access Control and Time & Attendance. The GE314 has four input
ports, two Form-C relay outputs, two TTL outputs, RS232/RS485 communication port and optional TCP/IP
communication port to meet various customer requirements. This user-friendly device allows you to register up
to 1,000 Fingerprint Users (Optional 2,000/4,000 Fingerprint Users) and can be stored up to 20,000 event
transactions. All Events can be uploaded and saved to the database of the host PC and the software creates the
report to MS-Excel, HTML and Text files for the Time & Attendance purpose. The GE314 has a built-in
Fingerprint Module, proximity card reader with IDC 26-bit Wiegand format and it has 24 keypads (10 Numeric
keys, 2 Control keys and 12 Function keys) for wide applications. The GE314 allows to accessing the door with
any combination of Fingerprints, Proximity Card/PIN and/or Password. The GE314 has four external input ports
to be connected to an exit button, motion detector, door contact sensor and existing alarm system to prevent
unauthorized access. The GE314 has a door relay to control the door lock and an alarm relay to warn any error.
The graphic LCD display supports 6 different languages so that the unit can be operated anywhere in the world.
All setup menus can be programmed through the front keypads or via Windows-based software program. The
GE314 is a cost effective biometrics system to be used for Standalone or network. Dual tamper switches prevent
unauthorized access.

2.3 FEATURES

Dual function for Access Control and Time & Attendance
8 bit and 16 bit Dual Microprocessors, 32 bit ARM9 Microprocessor for Fingerprint Module
1,000 Fingerprint Users (Optional 2,000/4,000 Fingerprint Users) and 20,000 Event Buffers
Built-in Fingerprint Scanner, Module and Algorithm
Built-in Proximity Reader and External Reader Port for T&A
24 Keypads including 12 Functional Keys
Graphic LCD Display for 6 different Language Support
Standalone or Network Communication via RS232/RS485 (max. 256ch)
Optional TCP/IP Communication, Optional Automatic Touch Sensor (for Identification Mode)
Independent 4 Inputs and 4 Outputs including 2 FORM-C Relay Outputs
Output Time Setting for Individual ID(4 Levels – Longer Output Time for Handicap Person)
Forced Door Open Alarm, Door Lock/Unlock by T/S and/or by registered ID
Anti-pass Back, Duress Alarm Functions
unit Wall mount
( 1ea )
Manual
( 1ea )
6
Diode
( 2개 )
