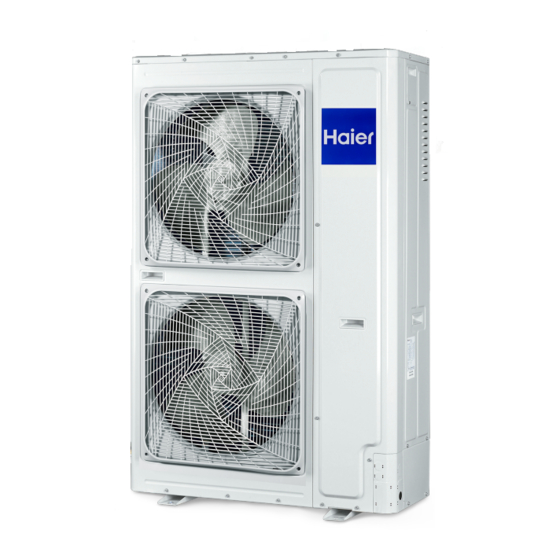

Haier AV08NMSETA Service Manual

Hide thumbs Also See for AV08NMSETA:
Table of Contents

Advertisement

Quick Links

II
MRV S
Service Manual
SYJS-11-2016 REV.A
Edition: 2016-11

Advertisement

Table of Contents
loading

Related Manuals for Haier AV08NMSETA

Summary of Contents for Haier AV08NMSETA

  • Page 1: Service Manual

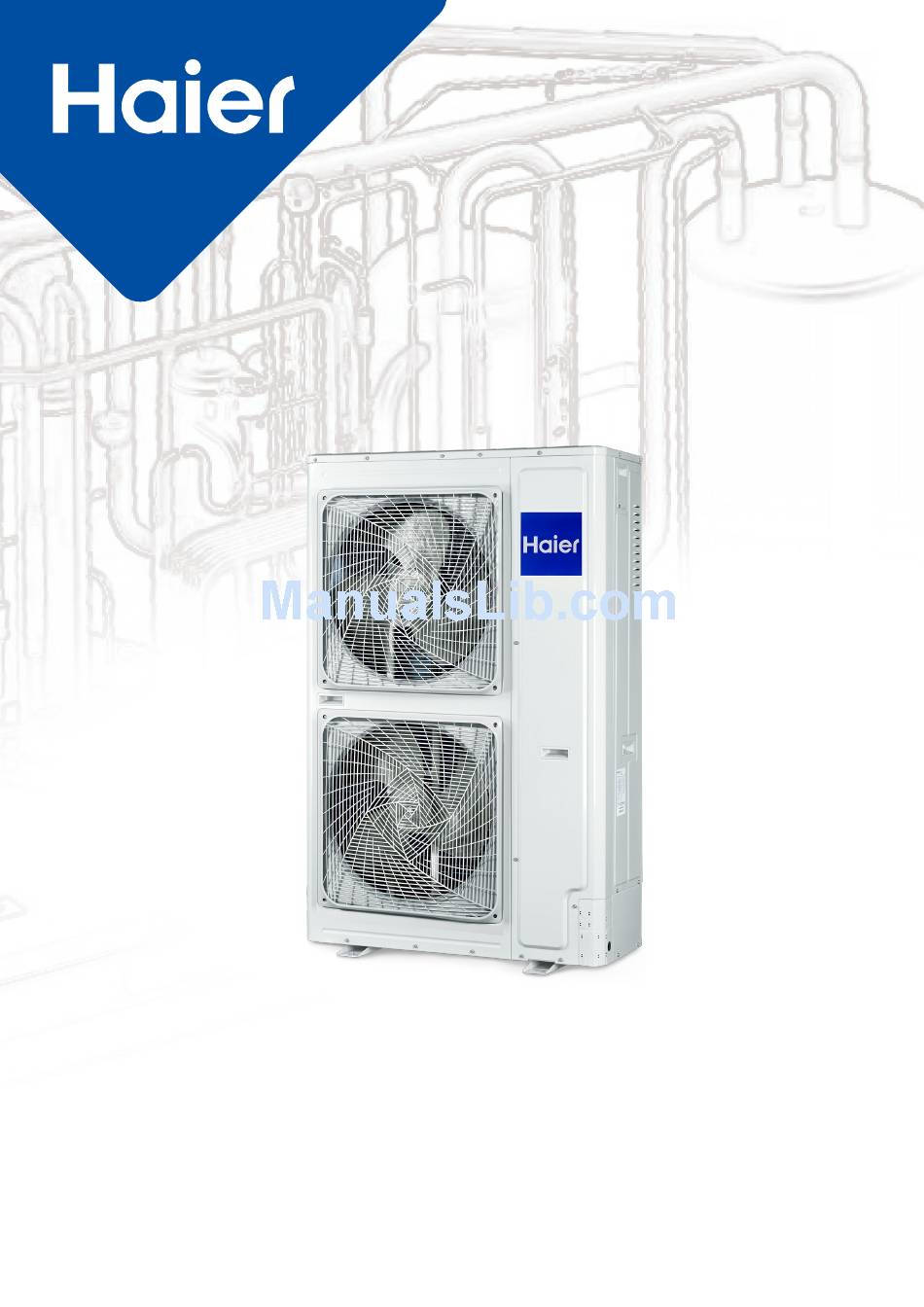

    MRV S Service Manual SYJS-11-2016 REV.A Edition: 2016-11...

  • Page 2: Table Of Contents

    CONTENTS 1. General Information .........................1 1.1 Indoor units ........................1 1.2 Features ..........................2 2. Specification ...........................6 3. Refrigerant Circuit........................12 4. Dimension ..........................13 5. Wiring Diagram ........................14 6. Performance Curves......................15 7. Noise Level ..........................17 8. Outdoor Installation .......................18 9. Electric Installation.........................37 10. Trial Operation ........................40 11.

  • Page 3: General Information

    1. General Information 1.1 Indoor units 4-WAY CASSETTE TYPE/PB-700lB HIGH WALL EEV INSIDE AB092MCERA AS072MGERA AS162MGERA AB122MCERA AS092MGERA AS182MGERA AB162MCERA AS122MGERA AS242MGERA 4-WAY CASSETTE TYPE/PB-950JB MED ESP DUCT TYPE (80/120Pa) AB182MCERA AD182MZERA AB242MCERA AD242MZERA AB282MCERA AD282MZERA AB302MCERA AD302MNERA AB382MCERA AD382MNERA AB482MCERA AD482MNERA LOW ESP DUCT TYPE...

  • Page 4: Features

    1.2 Features Outdoor structure (8/10/12HP SIDE DISCHARGE) More Bigger Outdoor Capacity, More Flexible Application High efficiency DC fan motor Vector inverter control • 180 degrees sine wave vector control, • DC fan motor with stepless inverer 64-bit operation control,efficiency increase 45% comparing with •...
  • Page 5 New DC inverter twin rotary compressor DC FAN ■ Small torque change, good dynamic balance, the system runs stably, MOTOR little vibration, low noise, high efficiency Strong ■ magnetic More higher efficiency in part load running rotor, small vortex of refrigerant Low noise level Night quiet operation function...
  • Page 6 High reliability Air inlet grill design on right side panel Air inlet grill design, reducing the module temperature and avoid air dust into air conditioner Reducing the module temperature High and Low Double Pressure Sensor Double pressure sensor with PID control technology Together with high speed communication to realize the quick start of compressor and more precise control, the temperature can be control ±0.5°C Easy installation...
  • Page 7 Long pipe length, high height drop Single ■ Total pipe length: 300m pipe length ■ Single pipe length: Max. 175m Total pipe ■ From outdoor to the first branch pipe: 135m ■ From the first branch to the farthest indoor door unit: 40m Height drop: 50m (outdoor length above)/40m (outdoor below)

  • Page 8: Specification

    2. Specification Model AV08NMSETA Power supply Ph/V/Hz 3/380~400/50/60 Rated capacity 22.6 Rated capacity kBtu/h 77.1 Rated power input 5.79 Cooling Max. power input 10.42 3.90 Rated current Max. current 17.2 Rated capacity Rated capacity kBtu/h 85.3 Rated power input 5.43 Heating Max.
  • Page 9 Model AV08NMSETA Number of rows Tube pitch (a)×row 19.05×22 pitch (b) Fin spacing Fin type (code) HYDROPHILIC ALUMINIUM Fin coating type Optional Clear lacquer Outdoor coil Salt spray test Hour duration INNERGROOVE TUBE Tube outside dia.and type Ф8 Coil length × height 1122×1584...
  • Page 10 Model AV10NMSETA Power supply Ph/V/Hz 3/380~400/50/60 Rated capacity Rated capacity kBtu/h 95.5 Rated power input Cooling Max. power input 14.4 3.50 Rated current 13.2 Max. current 23.8 Rated capacity 31.5 Rated capacity kBtu/h 107.5 Rated power input Heating Max. power input 12.4 4.20 Rated current...
  • Page 11 Model AV10NMSETA Number of rows Tube pitch (a)× row 19.05×22 pitch (b) Fin spacing Fin type (code) HYDROPHILIC ALUMINIUM Fin coating type Optional Clear lacquer Outdoor coil Salt spray test Hour duration Tube outside dia.and INNERGROOVE TUBE type Ф8 Coil length × height 1122×1584 Number of circuits Coating type...
  • Page 12 Model AV12NMSETA Power supply Ph/V/Hz 3/380~400/50/60 Rated capacity 33.5 Rated capacity kBtu/h 114.3 Rated power input 9.75 Cooling Max. power input 15.4 3.44 Rated current 16.4 Max. current Rated capacity 37.5 Rated capacity kBtu/h Rated power input 9.62 Heating Max. power input 3.90 Rated current 16.2...
  • Page 13 Model AV12NMSETA Number of rows Tube pitch (a)× row 19.05×22 pitch (b) Fin spacing Fin type (code) HYDROPHILIC ALUMINIUM Fin coating type Optional Clear lacquer Outdoor coil Salt spray test duration Hour INNERGROOVE TUBE Tube outside dia.and type Ф8 Coil length × height 1122×1584 Number of circuits Coating type...

  • Page 14: Refrigerant Circuit

    3. Refrigerant Circuit Ambient temp. sensor Ta Ambient temp. sensor Ta Electronic expansion valve PMV Spray valve SV2 Discharging temperature sensor Td...

  • Page 15: Dimension

    4. Dimension 1050...

  • Page 16: Wiring Diagram

    5. Wiring Diagram 0150513195 Te1 Te2 Pd Toil 6.3A 250VAC CN1 CN2 CN3 CN4 CN5 CN6 CN7 CN29 CN28 CN30 FUSE1 HEATER2 CN21 CN26 CN32 LED4 LED2 CN31 DISPLAY CN18 CN20 CN30 CN17 CONTROL BOARD SW01 SW02 Tfin CN16 CN24 HEATER CN25 INV Board...

  • Page 17: Performance Curves

    Airflow variation rate (%) 100 120 130 Total capacity of indoor unit group (%) E. Fall of refrigerant pipe of indoor and outdoor unit, capacity compensation value of pipe length AV08NMSETA AV10NMSETA 1.00 1.00 Liquid pipe: φ12.7 Liquid pipe: φ12.7...
  • Page 18 Notes: • The refrigerant pipe should be thickened when the single way length is over 90m. • When in cooling mode, outdoor is lower than indoor; or when in heating mode, outdoor is higher than indoor, the compensation factor should be decreased the below value from the above figure. Vertical height drop between indoor and outdoor...

  • Page 19: Table Of Contents

    7. Noise Level AV08NMSETA AV10NMSETA NC-60 NC-60 NC-50 NC-50 NC-40 NC-40 NC-30 NC-30 NC-20 NC-20 Limit of Limit of audible audible continuous continuous noise noise 1000 2000 4000 8000 1000 2000 4000 8000 Octave band center frequency Hz Octave band center frequency Hz...

  • Page 20: Outdoor Installation

    8. Outdoor Installation ■ This manual should always be accessible and close to this air condition equipment. ■ There are two types of indications, "WARNING" and "CAUTION". The indication preventing from death or heavy injury is listed as "WARNING". Even the indication listed as "CAUTION " may also cause serious accident.
  • Page 21 CAUTION ■ Grounding wire should be connected with the grounding bar. The grounding wire can not be connected to the gas electric shock. pipe, water pipe, lightening rod or the telephone grounding wire. Improper grounding may cause ■ Units installed on roof should have appropriate access and handrail. ■...
  • Page 22 1) Before installation, check if the model, power supply, pipe, wires and parts purchased respectively are correct. 2) Check if the indoors and outdoors can be combined as the following. Outdoor Indoor Capacity (X 100W) Indoor Qty Total indoor capacity (X 100W) AV08NMSETA 113~293 AV10NMSETA 140~364 AV12NMSETA 167~436 (2) Installation place selection Air-conditioner can't be installed in the place with inflammable gas.
  • Page 23 (3) Transportation and hoisting Hoisting ■ Please remove the outdoor unit to the installation location as far as possible near place befor open the packaging. ■ Forbid on the equipments to place anything, need to use 2 ropes while promoting outdoor. ■...

  • Page 24: Installation Location

    Outdoor installation Installation location ■ Outdoor unit should be placed in well ventilated and dry place. ■ Outdoor noise and exhaust should not affect neighbors and around the ventilation. ■ Ensure the ground steadily reliable. ■ Do not install the outdoor unit on high oil, salt spray or harmful gases. ■...
  • Page 25 Multi Outdoor Inlet Min300mm Outlet Min300mm...
  • Page 26 Case 2: Stumbling block on the inlet and top side Single Outdoor Max300mm Max300mm Min360mm Min360mm Multi Outdoor...
  • Page 27 Not more than two sets Case 3:Stumbling block on the outlet, both right and left side Single Outdoor Min360mm Min300mm Min1000mm Min150mm...
  • Page 28 Multi Outdoor If h>H, please set the outdoor on the foundation to make sure H≥h. H=The height of outdoor and foundation 0<h≤1/2H Over 600 1/2H<h≤H Over 1400 Note: • Avoid making air short cycle in any case.
  • Page 29 Multi Row Outdoor Note: • Make sure the distance at least 300mm between two neighbor units and no stumbling block. 0<h≤1/2H Over 600 1/2H<h≤H Over 1400...
  • Page 30 19.05 is 0-type, the pressure preservation will be bad, thus it must be 1/2H type and over the min. thickness.) ■ The branch pipe and the gather pipe must be from Haier. ■ When installing the stop valve, refer to the relative operation instruction.
  • Page 31 Anti-fouling measures First, clean the pipe. Position Installation period Measures More than 1 month Flat the pipe end Outdoor Less than 1 month Flat the pipe end or seal with Indoor Nothing to do with period adhesive tape Pipe specification The first branch pipe 1.
  • Page 32 2. Pipe b (between branch pipes) diameter: Total capacity of (1) Select in accordance with total capacity connected Gas pipe Liquid pipe connected indoors (2) Pipe b diameter should not be bigger than main pipe c x<16.8kw 15.88 9.52 If pipe b diameter is larger than main pipe c, please correct 16.8kw≤x<22.4kw 19.05 9.52...
  • Page 33 Long pipe and high drop Max. length Pipe in above figure L1+L2+L3+L4+L5+L6+L7+L8+L9+L Single way total pipe length (=total liquid pipe length) 300m 10+L11 Single way max. pipe length (max. length between 150m / 175m L1+L3+L10+L11 outdoor & indoor) actual / equivalent length Pipe length after first branch pipe (length between first L1+L10+L11 branch &...
  • Page 34 A. Outdoor Unit Gas pipe side Liquid pipe side Mobel Diameter (mm) Connecting method Diameter (mm) Connecting method Flared joint and Brazing (here AV08NMSETA Ø19.05 Flared joint Ø9.52 including two connecting methods because of using a reduser pipe) AV10NMSETA Ø22.22 Ø9.52...

  • Page 35: Branch Pipe

    Branch pipe Branch pipe selection: Total indoor capacity (100W) Model (optional) Less than 335 FQG-B335A More than 335, less than 506 FQG-B506A Outdoor unit type The master unit will choose the closest one to the 1st branch pipe. Note: • When connecting the outdoor branch pipe and the outdoor, please pay attention to the outdoor pipe dimension. •...
  • Page 36 ■ ■ Expanding pipe: A (mm) Projecting length of pipe to be expanded: B (mm) When it is hard pipe Pipe Pipe outer outer diameter Special tool The former diameter -0.4 (mm) for R410A tool (mm) Ø6.35 Ø6.35 Ø9.52 13.2 Ø9.52 0-0.5 1.0-1.5...
  • Page 37 B. Leakage test ■ The outdoor unit has been executed the leakage test in the factory. The pipe should be executed leakage test individually and forbidden to test after connecting with stop valve. ■ Refer to the below figure to charge the nitrogen into the unit to take a test. Never use the chlorin, oxygen, flammable gas in the leakage test.
  • Page 38 Because the unit is with refrigerant R410A, the below issues should be paid attention: ■ To prevent the different oil into the pipe, please use the special tool for R410A, especially for gauge manifold and charging hose. ■ To prevent the compressor oil into the refrigerant cycle, please use the anti-counter-flow adapter. D.

  • Page 39: Heat Insulation

    Liquid pipe Additional for maintenance installation diameter refrigerant amount at factory on site (mm) (kg) 0.022kg/m×__m=__ AV08NMSETA Ø6.35 0.054kg/m×__m=__ AV10NMSETA 7.4kg Ø9.52 0.11kg/m×__m=__ AV12NMSETA Ø12.7 0.17kg/m×__m=__ W2+W3= ___ W1+W2+W3=___ Ø15.88 0.25kg/m×__m=__ Ø19.05 0.35kg/m×__m=__...

  • Page 40: Electric Installation

    9. Electric Installation Communication wiring figure Outdoor 1 Control wire for wired controller with polarity Indoor 1 Indoor 2 Indoor 3 Indoor 4 Indoor 5 P Q A B C P Q A B C P Q A B C P Q A B C P Q A B C Wired...
  • Page 41 (A) Section fault interruptor (mA) Screw (mm²) (mm²) Response time (S) Model AV08NMSETA 40A 30mA below 0.1S 3N~, AV10NMSETA 40A 30mA below 0.1S 380-400V, 50/60 Hz AV12NMSETA 40A 30mA below 0.1S ■ Power cable must be fixed firmly.
  • Page 42 Indoor power source and communication wiring Communication wire section Rated current of residual Item Indoor Power Rated current Wire length circuit breaker (A) total current cable of overcurrent Ground fault interruptor section (mm²) breaker (A) Outdoor/ Indoor/ (mA) Response time (S) indoor (mm²) indoor (mm²) <10...

  • Page 43: Trial Operation

    10. Trial Operation 5-minute delay function ■ If starting up the unit after being powered off, the compressor will run about 5 minutes later against being damaged. Cooling/heating operation ■ Indoor units can be controlled individually, but cannot run in cool and heat mode at the same time. If the cool mode and the heat mode are existing simultaneously, the unit set latter will be standby, and the unit set earlier will run normally.

  • Page 44: Heating Capacity

    Heating capacity ■ The heating mode adopts the heat pump type that absorbs outdoor heat energy and releases into indoor. So if outdoor temperature goes down, the heating capacity will decrease. Trial operation ■ Before trial operation: Before being energized, measure the resistor between power terminal block (live wire and neutral wire) and the grounded point with a multimeter, and check if it is over 1M * .
  • Page 45 3. Inspection before trial operation Before inspection, confirm the state of indoor and outdoor to avoid the trial failure because of the incorrect installation. 3.1 Indoor unit confirmation Inspection Items Results If indoor unit is in good condition, and if the electric box position is in accordance with state when out of factory, also if it is fixed firmly.
  • Page 46 3.3 Wiring confirmation Inspection Items Results If outdoor power cable is fixed at correct position. And if the power cable is in compliance with the requirement. If indoor power cable is fixed at correct position. And if the power cable is in compliance with the requirement. Check the indoor power wiring to prevent that one of indoors has already powered down, all the other indoors and outdoors in one system ate normally running.
  • Page 47 4. State setting of trial operation Confirm being electrified Indoor and outdoor are electrified respectively and then check as the following table: Inspection items Results If outdoor PCB is electrified; if the communication indicator flashes. If indoor communication indicator flashes. Check the indoor running parameters are correct after outdoor is connected the testing board and the testing software, such as the sensor characteristic, the EEV open angle, etc.
  • Page 48 (3) Cooling operation confirmation Start Once outdoor stops, re-start up Set the mode as COOL: press the button for the unit 2 and a half minutes later over 5 seconds at OFF state Confirm the running state of If blowing out cold air the compressor, indoor EEV If the louver direction If the ventilation is good...
  • Page 49 (4) Heating operation confirmation Start Once outdoor stops, re-start up Set the mode as HEAT:press the button for the unit 2 and a half minutes later over 5 seconds at OFF state Confirm the running state of If blowing out hot air the compressor, indoor EEV If the louver direction If the ventilation is good...
  • Page 50 ※ 1 Check indoor power cable If voltage between If voltage If voltage among A and B on indoor between L and N A,B,C on wired If indoor fuse is normal terminal block is on indoor terminal controller is AC 14V AC14V block is AC 220V Check the abnormal feason...
  • Page 51 ※3 1. Indoor PCB abnormal If voltage If voltage among 2. Wiring of indoor PCB between B and C If the other indoors If fan motor runs B, C on wired is damaged or the port on indoor terminal begin to run controller is AC 15V is not inserted well block is 15V...
  • Page 52 Note 1: Temp. difference between air inlet and air outlet Standard • A. In cooling mode, after running for at least 30 minutes, it is normal that the temp. difference between air inlet and air outlet is over 10°C, (at max. frequency) •...

  • Page 53: Dip Switch Setting

    11. Dip Switch Setting Outdoor PCB photo LED2 LED4 LED3 LED1...
  • Page 54 LED light introduction • LED1: malfunction lamp of indoor unit. This lamp not light under normal condition; once indoor unit occurs malfunction this lamp will flicker, flicker times indicate the corresponding failure code. • LED2, LED4: communication lamp between indoor units and outdoor units. These two lamps flicker alternately under normal condition;...
  • Page 55 BM2 Introduction Definition Introduction Heat pump (default) Cooling only or heat BM2_1 pump selection Cooling only Outdoor capacity selection 8HP (AV08NMSETA) BM2_2 Outdoor capacity selection BM2_3 10HP (AV10NMSETA) 12HP (AV12NMSETA) Heat reservation BM2_4 Default ( no heat reservation module) note: forbid changing...

  • Page 56: Digital Tube Display

    12. Digital Tube Display SW01 SW02 Digital tube display Display outdoor failure code Display operation mode Target frequency of inverter compressor Current frequency of inverter compressor Indoor quantity Running indoor quantity Td discharging temperature Ta ambient temperature Ts suction temperature Te defrosting temperature 1 Toil oil temperature Pd pressure...

  • Page 57: Failure Code

    13. Failure Code Digital tube Indication on Failure code indication on wired controller Failure description Remarks definition master unit (hex) Defrosting temp. AD value is below 11 (open circuit) or 20-0 sensor TE1 failure over 1012 (short circuit) for 60seconds, in cooling mode, if the sensor is abnormal, Resumable the unit does not deal with it, besides,...
  • Page 58 Indication on LD indication Failure code wired controller Failure description Remarks on master unit definition (hex) AD value is below 11 (open circuit) Low pressure or over 1012 (short circuit) for Resumable sensor Ps failure 30seconds, in defrosting and within 3 minutes after defrosting, no alarm.
  • Page 59 Indication on LD indication Failure code wired controller Failure description Remarks on master unit definition (hex) In normal operation, compression ratio ε <1.8 for continuous 5 minutes Compression ratio stop and Once confirmation, 39-2 39-2 too low protection alarm.2 minutes and 1 seconds later, un-resumable resume automatically, if it occurs 3 times in an hour, confirm the failure.
  • Page 60 Indication indication on wired Failure code definition Failure description Remarks on master controller unit (hex) IPM modular over current, in short IPM modular protection circuit, over heat, voltage too low of (F0) control circuit. In the course of compressor startup or Compressor out of running, the unit can not detect the rotor control...

  • Page 61: Troubleshooting

    14. Troubleshooting [20~24] Temperature sensor failure Reconnect If sensor terminal is fixed well If sensor resistor Replace sensor /characteristic is proper Check if PCB is faulty, if yes, replace it [27] Protection of oil temperature too high Reconnect If sensor terminal is fixed well If sensor resistor Replace sensor /characteristic is proper...
  • Page 62 [26-0, 26-1, 26-2] Communication circuit between indoor and outdoor If wiring between P and Q Modify the communication wire is wrong or broken down If wire of CN29 on outdoor Modify the port connecting board is normal If wire of CN15 outdoor connecting board is normal If indoor and outdoor are Connect power source...
  • Page 63 [28, 29] High/low pressure sensor failure If sensor terminal is fixed well Reconnect If voltage between red terminal Replace PCB and black terminal is 5V when testing pressure sensor by multimeter If voltage between white terminal and black Replace pressure sensor terminal is 0.5V~3.5V when testing pressure sensor by multimeter Replace connecting board...
  • Page 64 [30] High pressure switch shutoff failure If connection between pressure Re-connect switch and connecting board is good If the system pressure meets the Replace pressure switch condition that pressure switch shuts off Make pressure switch close, measure if terminal is conductive by multimeter If the system is clogged Check the piping system Make pressure switch terminal...
  • Page 65 [35] 4-way valve reversing failure If connection between 4-way valve Re-connect and connecting board is good If system meets condition of 4-way valve reversing: Check if SV1 leaks Pd-Ps>0.6MPa Measure if CN49 voltage on connecting board is Replace connecting board 220VAC after 4-way valve reversing condition is met If compressor running...
  • Page 66 [36] Protection of oil temperature too low If Toil is fixes well and if Fix again or replace the sensor its characteristic is correct If the teminal of LEVb is fixed well Reconnect In cooling mode, when the Replace or adjustment indoor unit off if the EEV the indoor unit EEV can't completely close...
  • Page 67 [39-0, 39-1] Low pressure too low and compression ratio too high If actual pressure is in conformance with the Replace pressure sensor measured data by sensor Check if stop valve Open stop valve is open fully Check if system is Recharge refrigerant lack of refrigerant Check if terminal of...
  • Page 68 [40] High pressure protection If characteristic of high pressure Replace pressure sensor sensors are normal If stop valve Open stop valve opens fully If in cooling Check fan motor outdoor fan motor runs normally If in heating indoor fan Check indoor motor runs normally and if filter is clogged Check if piping...
  • Page 69 [43] Discharging temp.sensor Td too low protection If the sensor characteristic Replace the sensor is correct If the teminal of sensor Reconnect is fixed well In cooling mode, when the Replace of adjustment the indoor unit off if the EEV can't indoor unit EEV completely close Check if refrigerant...
  • Page 70 [71] DC motor blocked Rotate fan motor by Replace fan motor hand to check if there is obviously fiction Check the motor and Re-connect PCB connection is well Forced the fan in low speed, measure if it has alternating Replace the motor voltage between FG and GND Replace the outdoor PCB...
  • Page 71 [75] No pressure drop between high pressure and low one Check if high/low pressure Re-connect sensor is connected well Check if compressor wire is Correct compressor wire connect normally If wires of inverter compressor Correct compressor wire are connected oppositely Replace 4-way valve If 4-way valve is interconnected Measure if there is voltage U, V, W...
  • Page 72 [110] Power module overcurrent Improve power supply Check if voltage of power supply is circuit normal Check if wire of electric box Correct the wiring due to is correct, and if compressor diagram wire is fixed well If power module is Replace power module normal If compressor is normal...
  • Page 73 [111] Compressor out of control Check if voltage of power supply is normal Improve power supply circuit Check the wires among U, V, Replace the wires W of compressor are normal If compressor is normal Replace the compressor (compressor coil resistor, insulation) Compressor load too much, check the reason [112] Radiator of transducer temp.
  • Page 74 [113] Protection of overload Improve power supply circuit Check if voltage of power supply is normal Check if wire of electric box is correct Correct the wiring due to diagaram If compressor is normal (compressor Replace compressor coil resistor, insulation) If power module is normal Replace power module Compress load too much, check...
  • Page 75 [115] Voltage too high of DC bus line of transducer Check if voltage of power Improve power supply circuit supply is normal Check if wire of electric box is correct Correct the wiring due to diagram Measure if DC bus line Circuit of DC bus line voltage on voltage between P and N of inverter control board abnormal,...
  • Page 76 [117] Transducer over current (software protection) Check voltage of power supply is normal Improve power supply circuit Check if wire of electric box is correct Correct the wiring due to diagram If compressor is normal Replace compressor (compressor coil resistor, insulation) If power module is normal Replace power module Compressor load too much,...
  • Page 77 [120] Power supply of transducer abnormal Improve power supply circuit Check if voltage of power supply is normal Check if wire of electric box is correct Correct the wiring due to diagram Adjust or replace relay If relay or AC contactor acts well or AC contactor Measure if DC bus line DC bus line voltage circuit on...
  • Page 78 [122] Radiator temp.sensor of transducer abnormal Check if connection between temp. Adjust connection sensor and inverter board Measure if temp. sensor resistor is Replace sensor normal Replace inverter control board...

  • Page 79: Sensor Characteristic

    APPENDIX 1. Sensor characteristic Temp. sensor characteristic Sensor type Characteristic R (25°C)=10kΩ Indoor coil/outdoor Ta Te1, Te2 , Ts B (25°C/50°C)=3700K R (25°C)=23 kΩ Indoor ambient temp.sensor B (25°C/50°C)=4200K R (80°C)=50 kΩ Outdoor Td , Toil B (25°C/80°C)=4450K R (50°C)=17kΩ Outdoor Tfin B (25°C/50°C)=4170K...
  • Page 80 2. Saturated R410A thermodynamic characteristic R50=17KΩ±2% B25/50=4170K±3% Temp (°C) Rmin R (t) Normal Rmax Temp (°C) Rmin R (t) Normal Rmax 164.73 176.38 187.00 53.00 14.73 15.07 15.41 156.21 167.10 177.02 54.00 14.14 14.48 14.82 148.19 158.36 167.64 55.00 13.58 13.93 14.26 140.63...
  • Page 81 R80=50KΩ±3% B25/80=4450K±3% Temp Resistance (KΩ) % (resist.tol) Rmax R (t) Normal Rmin MAX (+) MIN (-) （℃） 1749.01 1921.99 2094.97 9.00 9.00 1651.43 1813.27 1975.10 8.93 8.93 1560.17 1711.65 1863.13 8.85 8.85 1474.74 1616.59 1758.45 8.78 8.78 1394.71 1527.61 1660.51 8.70 8.70 1319.68...
  • Page 82 3% B25/80=4450K±3% Resistance (KΩ) % (resist.tol) Rmax R (t) Normal Rmin MAX (+) MIN (-) （℃） 91.66 95.75 99.84 4.28 4.28 88.15 92.01 95.88 4.20 4.20 84.80 88.44 92.09 4.13 4.13 81.58 85.03 88.47 4.05 4.05 78.51 81.76 85.01 3.98 3.98 75.57 78.64...
  • Page 83 R25=10KΩ±3% B25/50=3700K±3% Temp Resistance（KΩ） % (resist.tol) (℃ ) Rmax R（t）Normal Rmin MAX (+) MIN (-) 145.82 135.02 124.22 7.00 7.00 138.07 129.13 120.18 6.93 6.93 131.79 123.34 114.89 6.85 6.85 125.67 117.68 109.70 6.78 6.78 119.71 112.18 104.65 6.71 6.71 113.93 106.84 99.75...
  • Page 84 R25=10KΩ±3% B25/50=3700K±3% Temp Resistance（KΩ） % (resist.tol) (℃ ) Rmax R（t）Normal Rmin MAX (+) MIN (-) 6.23 6.00 5.77 3.81 3.81 6.00 5.77 5.55 3.88 3.88 5.78 5.56 5.34 3.94 3.94 5.56 5.35 5.14 4.00 4.00 5.36 5.15 4.94 4.06 4.06 5.17 4.96 4.76...
  • Page 85 R25=23KΩ±3% B25/50=4200K±3% Temp Resistance（KΩ） % (resist.tol) Rmax R（t）Normal Rmin MAX (+) MIN (-) （℃） 538.77 513.12 487.46 5.00 5.00 502.58 478.89 455.21 4.95 4.95 469.29 447.41 425.53 4.89 4.89 438.61 418.38 398.15 4.84 4.84 410.29 391.56 372.84 4.78 4.78 384.09 366.75 349.41 4.73...
  • Page 86 R25=23KΩ±3% B25/50=4200K±3% Temp Resistance（KΩ） % (resist.tol) Rmax R（t）Normal Rmin MAX (+) MIN (-) （℃） 13.12 12.79 12.47 2.57 2.57 12.57 12.25 11.93 2.61 2.61 12.05 11.74 11.42 2.66 2.66 11.55 11.24 10.94 2.70 2.70 11.07 10.78 10.48 2.74 2.74 10.62 10.33 10.04 2.79...
  • Page 87 3. Enthalpy-humidity chart Vapour partial pressure 0 10 0mmHg Humidity d. g/kg Dry air k∫ /kg kcal /kg °C °C °C °C Wet air enthalpy-humidity chart 1000 1013.25mbar Atmospheric pressure (10Pa) 760mmHg =1.01t+0.001d (2500+1.84t)k∫/kg dry =1.24t+0.001d (597.3+0.44t)kcal/kg dry air...
  • Page 88 Haier Commercial Air Condition Web: Http://www.haier.com Haier reserves the right to make change without any notice.
