Operating Instruction
Dear Customers!
We deliver for you to use the refrigerating devices meeting high quality requirements responding
to world standards. The safety of the product you chose is confirmed by "B" and "CE"
markings.
Please read the present operating instruction carefully. Special attention should be paid to safety
guidelines. Please keep the operating instruction to use it also during the later operation of the
device.
ADN 213, ADN 214, ADN 215, ADN 216,
ADN 217, ADN 218, ADN 219, ADN 220
Advertisement
Table of Contents
Related Manuals for Whirlpool ADN 213
Summary of Contents for Whirlpool ADN 213

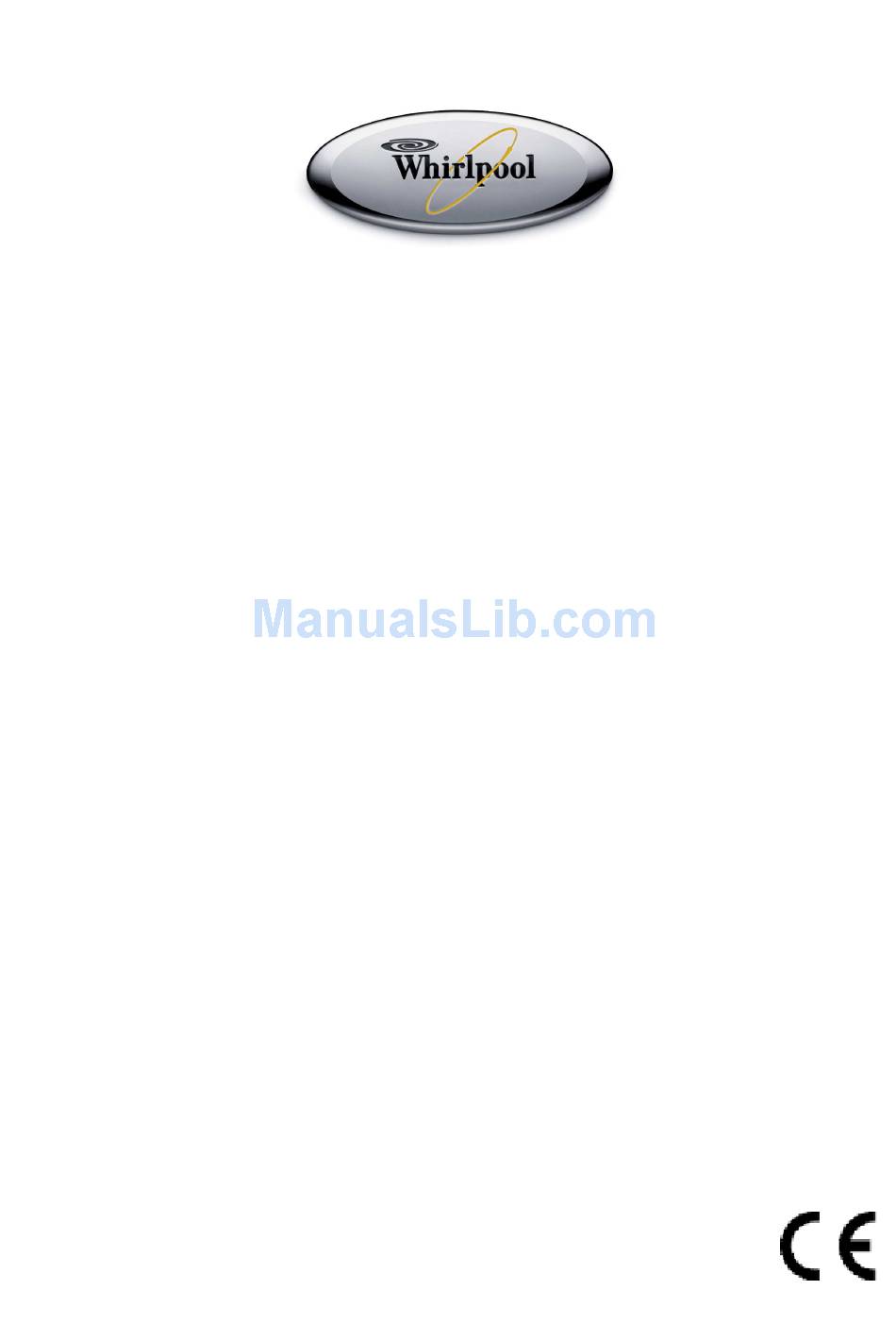

- Page 1 Operating Instruction ADN 213, ADN 214, ADN 215, ADN 216, ADN 217, ADN 218, ADN 219, ADN 220 Dear Customers! We deliver for you to use the refrigerating devices meeting high quality requirements responding to world standards. The safety of the product you chose is confirmed by “B” and “CE”...
-
Page 2: Table Of Contents
Table of Contents: 1. INTRODUCTION........................3 2. RESPONSIBILITY AND WARRANTIES ................3 3. REMARKS CONCERNING SAFETY AND PROPER OPERATION........4 4. PROPER OPERATION OF THE DEVICE................5 5. DATA / TECHNICAL FEATURES..................6 6. GENERAL DESCRIPTION OF THE DEVICE................. 6 7. -
Page 3: Introduction
1. INTRODUCTION Refrigerating devices like: cases, glass cases, tables are designed for storing of previously cooled food products, to display them and sell them in retail. Freezer devices, like: cases, tables are designed for storing of previously frozen food products (pork- butcher’s products, meat, vegetables, fruits), they are not designed for freezing food products. -
Page 4: Remarks Concerning Safety And Proper Operation
3. REMARKS CONCERNING SAFETY AND PROPER OPERATION The device is designed to be operated by adults only. The child play in the vicinity of the working device is inadmissible, all the more using the device in operation to play. Advice for the user: −... -
Page 5: Proper Operation Of The Device
4. PROPER OPERATION OF THE DEVICE Refrigerating devices can be exploited in a ventilated room in the following environment temperature ranges: refrigerator and freezer cases solid door from +16 to +43°C and relative humidity not exceeding 60%, refrigerator and freezer cases glass door from +16 to +32°C and relative humidity not exceeding 60%, refrigerator and freezer tables from +16 to +32°C and relative humidity not exceeding 60%, To assure the best working conditions for the device, the user should locate the device in the coldest place of the room. -
Page 6: Data / Technical Features
5. DATA / TECHNICAL FEATURES Tables enclosed. 6. GENERAL DESCRIPTION OF THE DEVICE 1. Refrigerator cases (full door) are designed for short-term storing of food products, like: foiled dairy and pork-butcher’s products etc., and glass cases (paned door) for storing and exposing of food products like: foiled dairy and pork-butcher’s products etc. -
Page 7: Installation And Exploitation Of The Device
Unpacking Instructions • Any damage should be immediately reported to the carrier. • The appliance should be unpacked immediately to check that it is intact and has suffered no damage during transport. • Do not cut the cardboard with sharp tools to avoid damaging the underlying steel panels. •... -
Page 8: Instruction For Electronic Controlleer
5. Before commencing any maintenance or cleaning activities, switch the device off, and then remove the plug from power outlet. The device is started by inserting the plug into power outlet and then switching the power on. The lighting of the switch signals the device in operation. In low-temperature devices the door frame heater and condensate outlet heater are powered with safe voltage 24V. - Page 9 The user has a display and four keys for controlling status and programming of the instrument. At start-up the instrument performs a Lamp Test; for few seconds the display and the leds blink, in order to verify their integrity and correct operation. The instrument has two main menus: the “Machine Status”...
- Page 10 MACHINE STATUS MENU To access the “Machine Status” menu Press and quickly release the “set” key. If alarms are not present, the label “SEt” appears. By using the “UP” and “DOWN” keys you can scroll through the other folders in the menu: -Pb1: probe 1 value folder;...
- Page 12 PROGRAMMING MENU To enter the “Programming” menu, press the “set” key for more than 5 seconds. If specified, the access PASSWORD will be requested, (parameter “PA1”), and the label of the first folder will follow. To scroll through the other folders, use the “UP” and “DOWN” keys. To enter the folder, press “set”. The label of the first visible parameter appears.
- Page 13 PARAMETRES visibles uniquement sur les modeles dotes d’entrée numerinque (Digital input) PAR. DESCRIPTION Retard signalization alarme après la desactivation de l’entrée numerique (ouverture porte) Par alarme on entend alarme de haute et basse temperature. time out door Open. Time out après signalization alarme après la desactivation de l’entrée numerique (ouverture porte).
- Page 14 Parameters PAR. RANGE LEVEL ADN 213 ADN 218 ADN 214 ADN 219 ADN 216 0.1...30.0 ºc/ºf LSE...302 ºC/ºF 55.0..HSE ºC/ºF 0..250 0..250 0..250 0..250 0..250 0..250 0/1/2 0..250 hours 0/1/2 0..59 1..250 -50..150 ºC/ºF flag -50..150 ºC/ºF 1.0..50.0 ºC/ºF 0..250 0..250...
- Page 15 Parameters PAR. RANGE LEVEL ADN217 ADN215 ADN220 0.1...30.0 ºc/ºf LSE...302 ºC/ºF -55.0..HSE ºC/ºF 0..250 0..250 0..250 0..250 0..250 0..250 0/1/2 0..250 hours 0/1/2 0..59 1..250 -50..150 ºC/ºF flag -50..150 ºC/ºF 1.0..50.0 ºC/ºF 0..250 0..250 flag n/y/dc 1.0..50.0 ºC/ºF LAL...150.0 ºC/ºF -50...HAL ºC/ºF 0..10...
-
Page 16: Device Maintenance
9. DEVICE MAINTENANCE Before commencing any maintenance or cleaning activities, switch the device off, and then remove the plug from power outlet!!! All repairs and maintenance should be performed by authorized personnel only. You should absolutely protect yourself against accidental switching the device on by unaware persons. The interior of the device should be cleaned with wet sponge, damped with warm water and/ or neutral detergent. -
Page 17: Proper Exploitation Rules Of Refrigeration Device
12. PROPER EXPLOITATION RULES OF REFRIGERATION DEVICE 1. Connect the device only do the zeroed mains outlet. 2. Place the device in a proper distance from the wall, described in operating instruction. 3. Do not cover intake and outlet holes in aggregate chamber, serving the circulation of air cooling the condenser.
