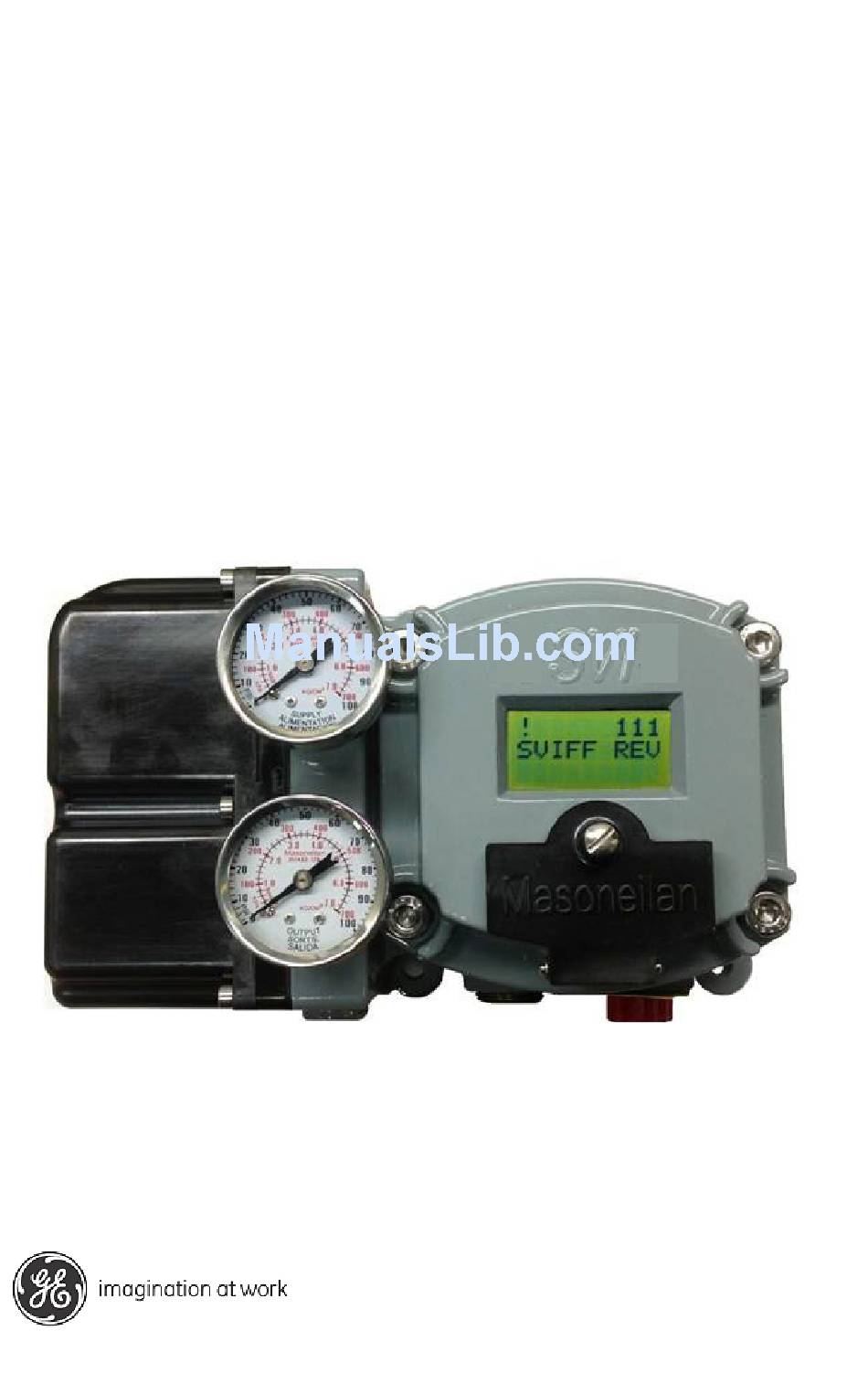

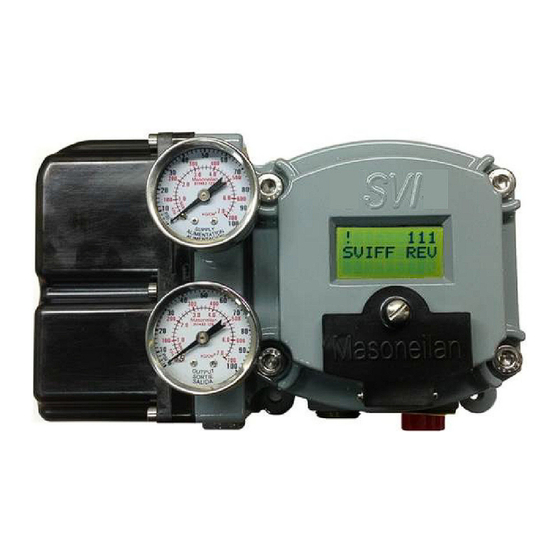

GE Oil & Gas Masoneilan * SVI * FF Digital Positioner Quick Start Guide (Rev. GE Data Classification: Public...
Page 2
All information contained herein is believed to be accurate at the time of publication and is subject to change without notice. The information contained in this manual, in whole or part, shall not be transcribed or copied without GE Oil & Gas’ written permission.
SVI FF positioner supply pressure in a flameproof (protection type “d”) installation. Bolting “X” Marking on label- M8 X 1.25-6g cover screws must be supplied by GE. No substitution allowed. Minimum yield stress to be 296 N/mm^2 (43,000 psi). Carbon Disulphide Exclusion Carbon Disulphide is excluded.
The electrical circuit in the hazardous area must be capable of withstanding an A.C. test voltage of 500 volts R.M.S. to earth or frame of the apparatus for 1 minute. Installation must be in accordance with GE guidelines. The installation including the barrier earthing requirements must comply with the installation requirements of the country of use.
Consult the manufacturer for dimensional information on the flameproof joints for repair. Only parts supplied by GE are permitted. This includes not only the major assemblies but also mounting screws and “O” rings. No substitutions with non-GE parts are permitted.
Detailed replacement procedures are described in the SVI FF Quick Start Guide. The following summary assures the safe operation of the SVI FF positioner. For assistance, contact the nearest sales office, your local representative or email svisupport@ge.com. Visit our web page at www.ge-energy.com/valves Main Cover Make sure that: The gasket is seated in the groove in the housing flange.
