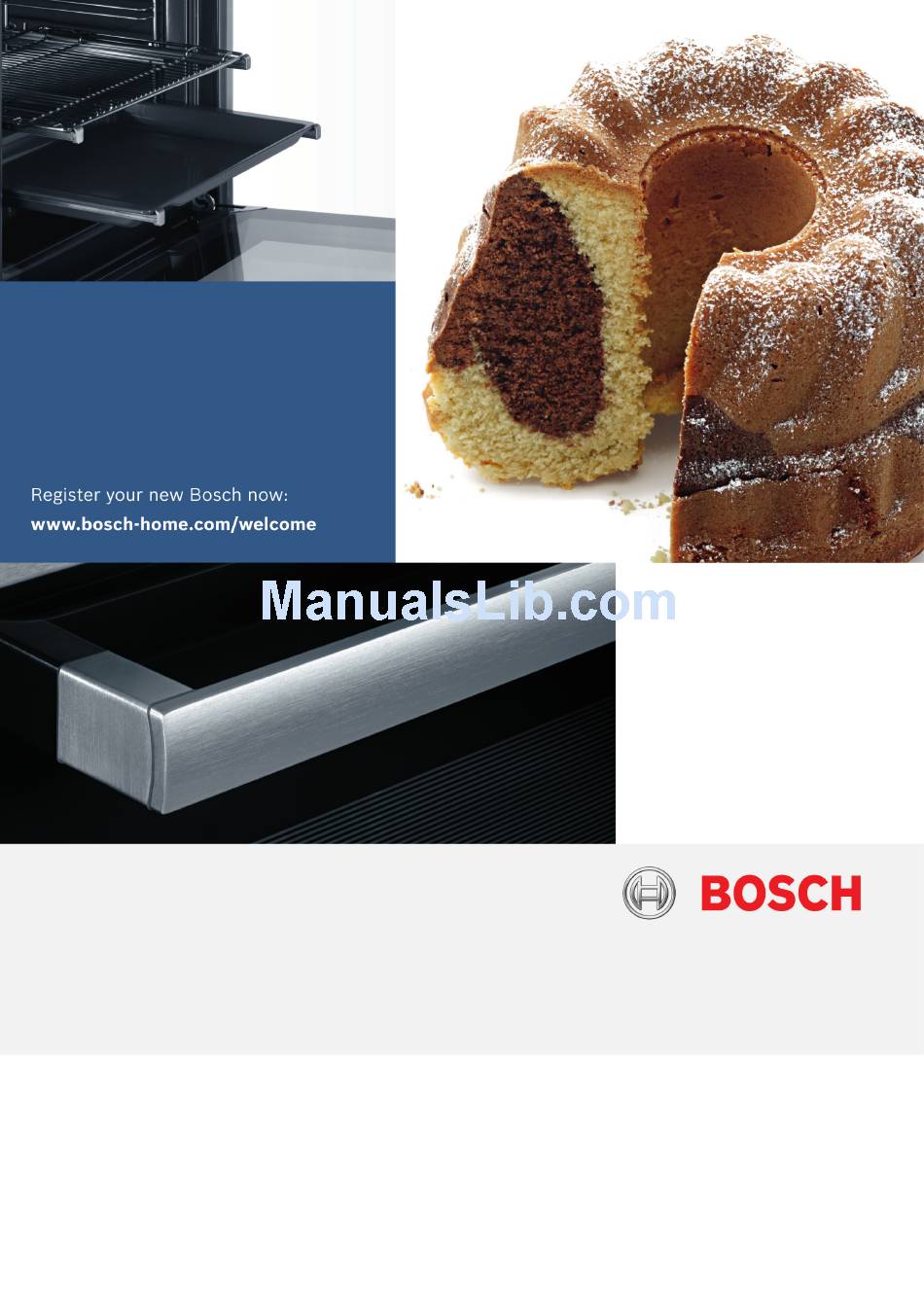

- Page 1 Free standing cooker HGA223121Z [en] Instruction manual...
-
Page 3: Table Of Contents
Produktinfo Causes of damage..............7 Damage to the oven................7 Additional information on products, accessories, replacement parts and services can be found at www.bosch-home.com and Damage to the plinth drawer ............7 in the online shop www.bosch-eshop.com Set-up, gas and electricity connection........7 Gas connection ...................7 For your safety..................8... -
Page 4: Important Safety Information
: Important safety information Read these instructions carefully. Only then Do not use inappropriate child safety will you be able to operate your appliance shields or hob guards. These can cause safely and correctly. Retain the instruction accidents. manual and installation instructions for This appliance may be used by children future use or for subsequent owners. - Page 5 or switch off the fuse in the fuse box. Shut accessories or ovenware from the cooking off the gas supply. compartment. Hot oil and fat can ignite very quickly. Alcoholic vapours may catch fire in the hot Risk of fire! Risk of burns! ■...
- Page 6 Incorrect repairs are dangerous. Repairs Risk of electric shock! ■ may only be carried out, and damaged Incorrect repairs are dangerous. Repairs ■ power and gas lines replaced, by an after- may only be carried out by one of our sales engineer trained by us.
-
Page 7: Causes Of Damage
Causes of damage steam. The temperature change can cause damage to the enamel. Caution! Moist food: do not store moist food in the cooking ■ Only use the burners when cookware has been placed on ■ compartment when it is closed for prolonged periods This will top. -
Page 8: For Your Safety
Upon completion of the installation you are required to fully Caution! explain and demonstrate to the user the operational details and If the pressure of your local gas supply is higher than: safety practices applicable to the appliance and the installation. natural gas (G20) 2,5 kPa;... -
Page 9: Setting Up The Appliance
Setting up the appliance Ensure that the appliance is not moved again after set up. ■ The distance from the high output burner or wok burner to the fronts of the adjacent units or the wall must be at least 50 Measures to be noted during transport Secure all mobile parts in and on the appliance using an adhesive tape that can be removed without leaving any traces. -
Page 10: Cooking Area
Cooking area Explanations Here is an overview of the control panel. The design depends Steam outlet on the respective appliance model. Caution! During oven operation, hot steam escapes at this point Standard burner Standard burner High output burner Economy burner Control panel Here you can see an overview of the control panel. -
Page 11: Your Accessories
Your accessories The accessories supplied with your appliance are suitable for The accessories can be pulled out approximately halfway making many meals. Ensure that you always insert the without tipping. This allows meals to be taken out easily. accessories into the cooking compartment the right way round. When placing the accessories into the oven, check that the There is also a selection of optional accessories, with which indentation is at the back. -
Page 12: After-Sales Service Products
