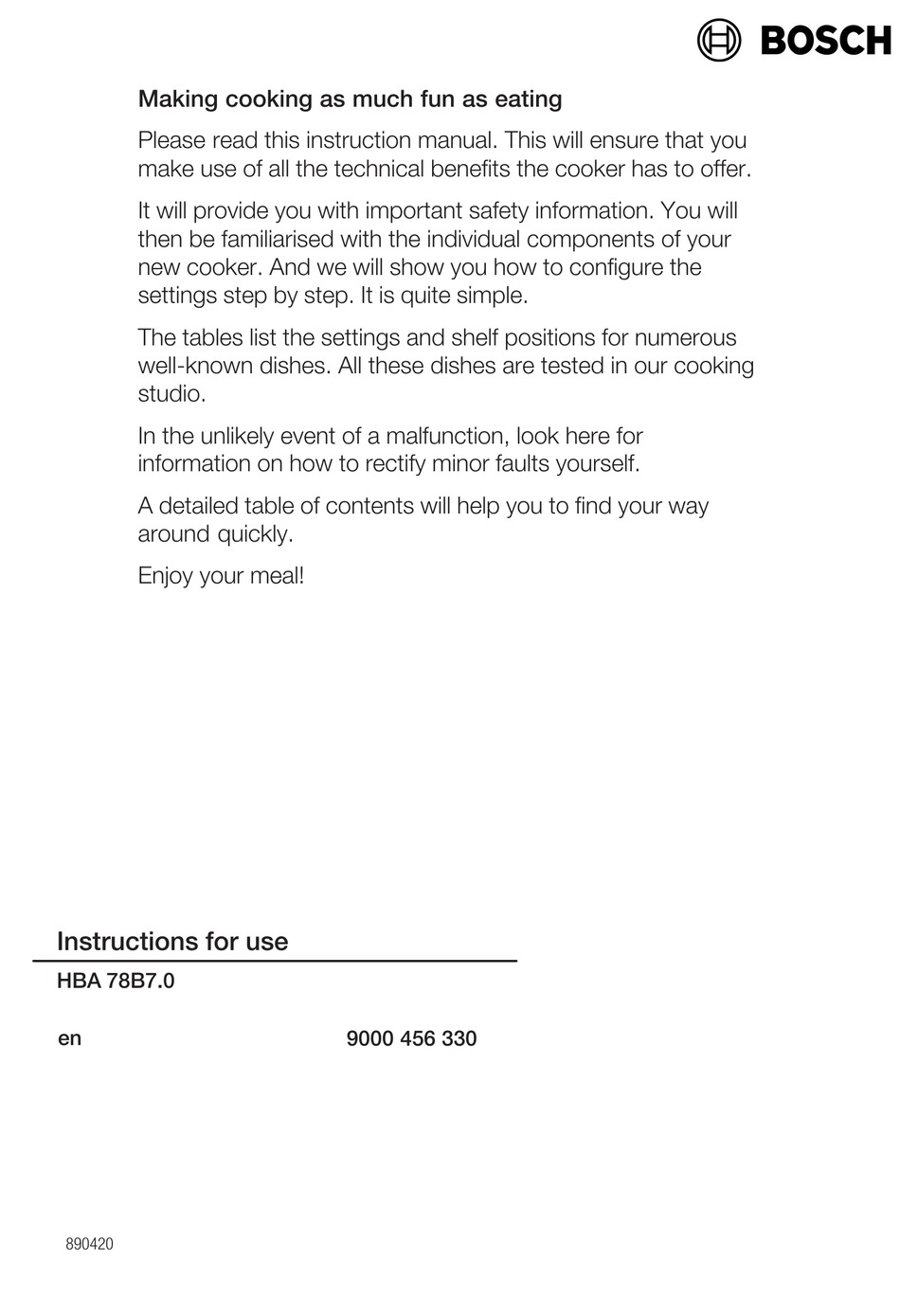

Making cooking as much fun as eating
Please read this instruction manual. This will ensure that you
make use of all the technical benefits the cooker has to offer.
It will provide you with important safety information. You will
then be familiarised with the individual components of your
new cooker. And we will show you how to configure the
settings step by step. It is quite simple.
The tables list the settings and shelf positions for numerous
well known dishes. All these dishes are tested in our cooking
studio.
In the unlikely event of a malfunction, look here for
information on how to rectify minor faults yourself.
A detailed table of contents will help you to find your way
around quickly.
Enjoy your meal!

Instructions for use

HBA 78B7.0
en
890420
9000 456 330
