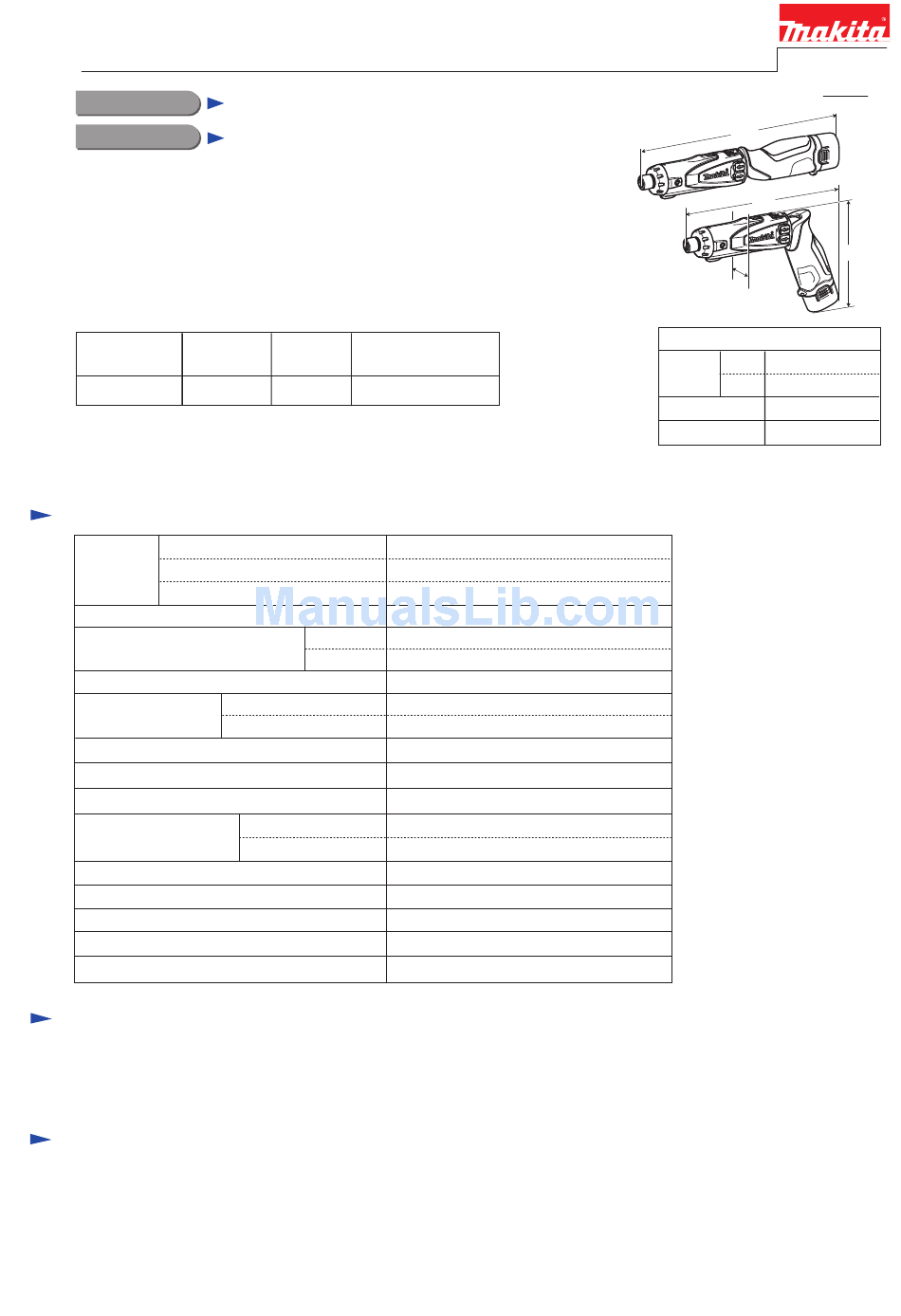

Description 7.2V Cordless Driver Drill ONCEPT AND MAIN APPLICATIONS Model DF010D is a straight type cordless driver drill compact and lightweight for easy handling. Uses new 7.2V Li-ion battery of stick type as a power unit. Can be easily converted from straight- to pistol-type.
Page 2
Retaining ring pliers with long bent nails 1R362 Removing/ Installing Bit sleeve [2] LUBRICATION Apply Makita grease N No.2 to the following portions designated with the black triangle to protect parts and product from unusual abrasion. Item No. Description Portion to lubricate...
Page 3
P 3/ 5 epair [3] DISASSEMBLY/ASSEMBLY [3]-1. DC motor, Gear assembly (cont.) DISASSEMBLING (4) Separate LED from Housing, then remove a assembled unit that consists of Switch unit, DC motor and Gear assembly etc. (Fig. 5) (5) Remove Speed change lever assembly and Switch unit (microswitch / green color) from Gear assembly. (6) Remove Gear assembly from DC motor.
P 4/ 5 epair [3] DISASSEMBLY/ASSEMBLY [3] -3. Disassembling Change lever Remove Change lever from Switch unit (large) as drawn in Fig. 12. Fig. 12 Push Change lever towards Lever off the hook of Change lever Change lever can now be removed the Motor side.
P 5/ 5 iring diagram Fig. D-2 Gear case Switch unit (microswitch/ green color) Fix Switch unit (microswitch/ green color) to Gear case as illustrated above. Terminal Controller hook of Controller Route this Lead wire (red) through the hook of Controller. Fix Controller lead wires Motor housing L Switch unit (large)
