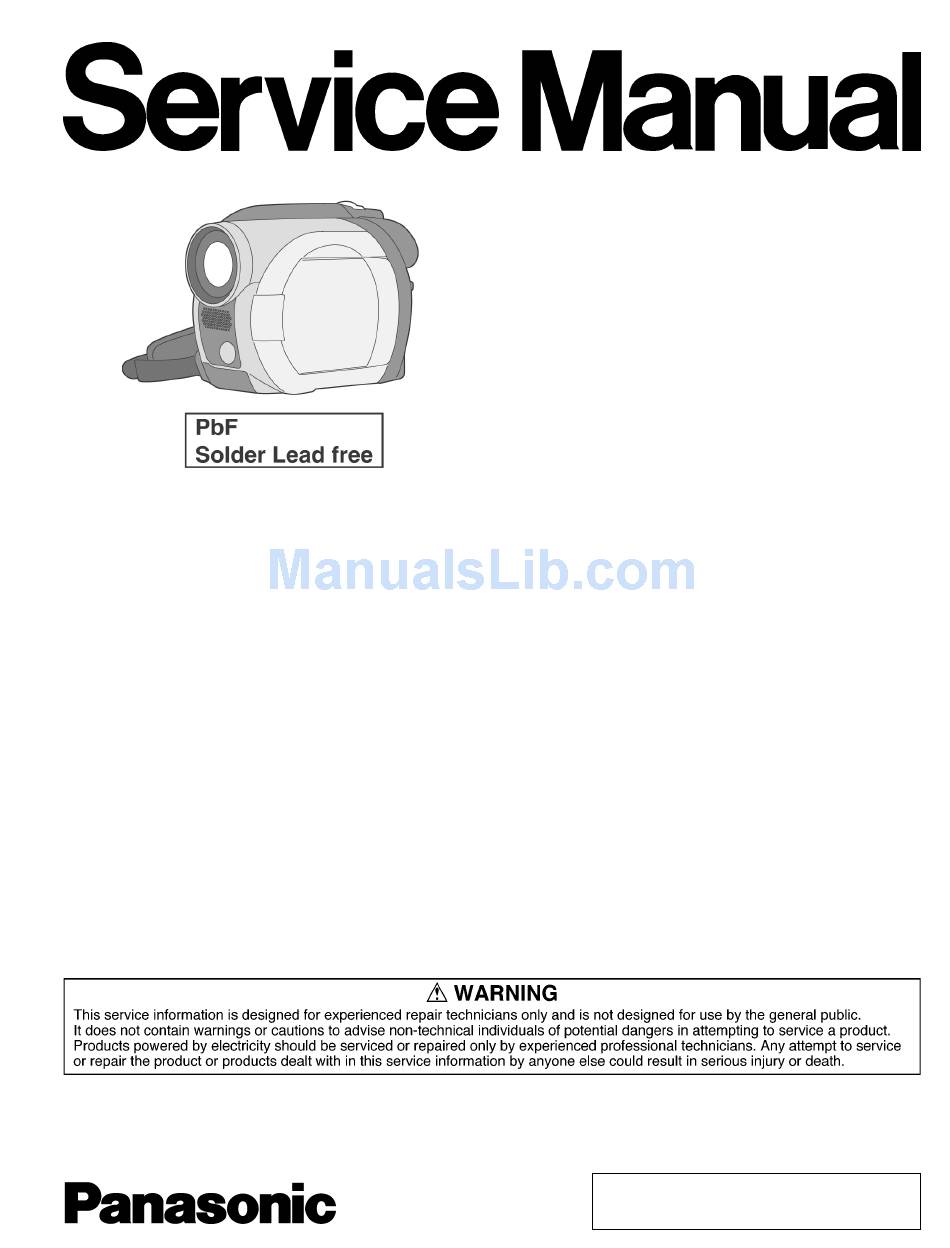

Panasonic VDR-D100EB Service Manual
Hide thumbs
Also See for VDR-D100EB:
- Operating instructions manual (120 pages) ,
- Service manual (51 pages) ,
- Service manual (105 pages)
Table of Contents
Advertisement
Digital Video Camcorder
VDR-D100EB VDR-D100EG
VDR-D150E VDR-D150EB
VDR-D150EE VDR-D150EF
VDR-D150EG VDR-D150EP
VDR-D150GC VDR-D150GCS
VDR-D150GN VDR-D150SG
VDR-D152EG VDR-D158GK
Vol. 2
Colours
(S)...................Silver Type
© 2006 Matsushita Electric Industrial Co., Ltd. All
rights
reserved.
distribution is a violation of law.
ORDER NO. VM0602007CE
Unauthorized
copying
and
Advertisement
Table of Contents
Related Manuals for Panasonic VDR-D100EB
Summary of Contents for Panasonic VDR-D100EB
- Page 1 ORDER NO. VM0602007CE Digital Video Camcorder VDR-D100EB VDR-D100EG VDR-D150E VDR-D150EB VDR-D150EE VDR-D150EF VDR-D150EG VDR-D150EP VDR-D150GC VDR-D150GCS VDR-D150GN VDR-D150SG VDR-D152EG VDR-D158GK Vol. 2 Colours (S)....Silver Type © 2006 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying distribution is a violation of law.
-
Page 2: Table Of Contents
CONTENTS Page Page 1 Service Navigation 3.2. MAIN SCHEMATIC DIAGRAMS 1.1. Introduction 3.3. VOLTAGE CHART 1.2. About Lead Free Solder (PbF) 4 Printed Circuit Board 2 Service Fixture & Tools 4.1. MAIN P.C.B. 2.1. Service Position 5 Appendix Information of Schematic Diagram 2.2. -
Page 3: Service Navigation
1 Service Navigation 1.1. Introduction This service manual contains technical information which will allow service personnel´s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, this information will be followed by supplement service manual to be filed with original service manual. -
Page 4: Service Fixture & Tools
2 Service Fixture & Tools... -
Page 5: Service Position
2.1. Service Position Caution Laser light striking the eye may cause your eyesight to be lost: For safety, be sure to remove any power supply (AC adaptor/charger, battery, etc.) from the DVD video camera/recorder before starting work. <CSA requirement> CAUTION: VISIBLE LASER RADIATION DO NOT STARE INTO THE BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS CLASS 2M Optical pickup... - Page 6 Fig. 3...
-
Page 7: Replacement Procedures For Csp (Chip Size Package) Ic
2.2. Replacement Procedures for CSP (Chip Size Package) IC 2.2.1. EQUIPMENT 1. Pre-Heater 2. Spot Heater 3. Vacuum Pick-up 4. P.C.B. Holder Fig. 8-1 2.2.2. CSP IC Location... - Page 8 2.2.3. Temperature Profile for Heat Resistance of CSP IC Refer to the temperature profile. CSP ICs in the 2006 model have the following temperature profile.
-
Page 9: Schematic Diagrams
The Number of pins of the Connector. POWER SUPPLY P.C.B. MAIN P.C.B. P1503 P3004 (10 Pins) Connector No. on Main P.C.B. SCHEMATIC DIAGRAM & CIRCUIT BOARD LAYOUT NOTES VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF /VDR-D150EG/VDR-D150EP/VDR-D150EE/VDR-D150GC/VDR-D150GN /VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK... -
Page 10: Main Schematic Diagrams
47 PCST[0] ATADD[13] DB13 48 PCST[1] ATADD[12] DB12 49 PCST[2] ATADD[11] DB11 TP3701 TP3702 TP3703 TP3704 TP3705 TP3706 50 PCST[3] ATADD[10] DB10 ATADD[9] ATADD[8] DRV_EMG DRV_EMG TO M V (C-1) LINK TO VOLTAGE CHART LSJB8314 MAIN I SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK... - Page 11 R6008 GCS/SG,158GK PHOTO_SW [S-MINI] TO M I (D-12) R6036 EVF_BL EVF_BL TO M X (D-7) LCD_ON_H LCD_ON_H TO M X (C-7) CCD_ON_H R6041 CCD_ON_H TO M X (A-7) LINK TO VOLTAGE CHART LSJB8314 MAIN II (1/2) SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
- Page 12 C6019 XWEL 0.01[KB] XWEL TO M V (C-1) XWEH XWEH TO M V (C-1) TO M V (C-1) XREADY TO M V (C-1) UNI_CS TO M V (C-1) LINK TO VOLTAGE CHART LSJB8314 MAIN II (2/2) SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
- Page 13 NARMTRST Reset : Low LIGHT SW CVCC2 +2.4V NO PIN DVCC32 +2.8V DVSS Ground 13.5MHz Clock NO PIN (Not used) HOLE BIAS (Not used) CVSS NO PIN (Not used) Hall Bias Control Ground LSJB8314 I/O CHART OF IC6001 VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
- Page 14 [1608] [1608] AF+5V C301 IC304 C1AB00002039 1[KB] (CCD V-DRIE) [1608] TO M II (A-1) CAM_D3OFF C314 R309 C316 C317 100K D302 0.1[KB] [3216] MA2S728008 [SS-MINI] CAMERA+12V [3216] CAMERA-7V REGD+2.8V LINK TO VOLTAGE CHART LSJB8314 MAIN III SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
- Page 15 Sampling pulse 1 Sampling pulse 2 ADCLK1 A/D clock 1 ADCLK2 (Not used) VDD1 +3.0V Ground (Not used) CPDM (Not used) CPOB Optical black clamp pulse PBLK (Not used) (Not used) I/O CHART OF IC302 LSJB8314 IC304 IC-DETAIL BLOCK DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
- Page 16 CONTROL ZOOM_MT1 ZOOM_MT2 ZOOM_MT3 FOCUS_MT2 FOCUS_MT3 ZOOM FOCUS_MT4 MOTOR FOCUS_MT1 DRIVE THERMO_GND THERMO AF5V V-REF F_LED_CONT F_ENC HOLE_OUT- HOLE_IN- HOLE_OUT+ HOLE_IN+ ALC_MAIN- ALC_MAIN+ Z_LED_CONT Z_ENC DRIVE AF5V (+3V) RESET LINK TO VOLTAGE CHART LSJB8314 MAIN IV SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
- Page 17 TO M III (B-6) TO M VIII (C-1) ADIN[0-9] CAMHD TO M III (B-6) CAMVD TO M III (B-6) ALCPWM TO M IV (C-1) TO M IV (D-7) IRISOPEN TO M IV (D-7) IRISCLOSE LSJB8314 MAIN V SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
- Page 18 +1.2V LSJB8314 DRAMSDAT(4) XWAIT ADAT(8) SDRAM Data 4 Ground UNIFIER Ready : Low Flash Memory Data 8 I/O CHART OF IC3001 (1/2) DRAMSDAT(5) DRAMSADR(8) CAMIRG ADAT(9) SDRAM Data 5 SDRAM Address 8 Camera Interrupt Flash Memory Data 9 VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
- Page 19 (Not used) CLK27X (Not used) LCDIREF (Not used) YCIN(0) (Not used) LCDVREF (Not used) YCIN(1) (Not used) AVSS1A Ground YCIN(2) (Not used) LSJB8314 AVSS2A Ground YCIN(3) (Not used) I/O CHART OF IC3001 (2/2) AVDD05 +2.8V YCIN(4) (Not used) VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
- Page 20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 ADAT[9] 36 DQ9 ADAT[2] 37 DQ2 ADAT[10] 38 DQ10 ADAT[3] 39 DQ3 ADAT[11] 40 DQ11 LINK TO VOLTAGE CHART LSJB8314 MAIN VI SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
- Page 21 VDD(+3V) SDO1 TO M V (B-8) TO M V (E-8) SBA_CS (+1.8V) (+3V) RESET(L) TO M V (E-8) SBA_SIF_SDA SBA_SIF_CLK TO M V (E-8) TO M V (E-8) AVIO_SIF_RST LINK TO VOLTAGE CHART LSJB8314 MAIN VII SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
- Page 22 TO M III (C-6) COMPENSATION CIRCUIT C514 0.1[KB] TIMING C512 0.1[KB] GENERATOR C513 BIAS 0.1[KB] GENERATOR C509 10/6.3V C503 1[KB] [1608] R501 C505 C506 1000P[KB] 0.1[KB] REGD+2.8V L501 10U [2016] LINK TO VOLTAGE CHART LSJB8314 MAIN VIII SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
- Page 23 R8014 TO M I (D-5) LCD_B IC8002 R8015 C0CBCAC00322 V-COM V-COM C8023 CLAMP DRIVE DRIVE DRIVE +2.8V +2.8V REG. CONTROL CONTROL REGULATOR C8004 1[KB] 22/6.3V [1608] C8022 1[KB] [1608] LINK TO VOLTAGE CHART LSJB8314 MAIN IX SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
- Page 24 CAMERA-7V TP13 R1029 R1082 R1083 (6.2V) 68K[D] [1608] 820K CAMERA-7V Q1024 Q1037 Q1023 2SD2216J08 2SB1218AOL UNR9213J08 D1025 SHORT CIRCUIT C1098 MA2S111008 SWITCHING TP14 DETECT-ON 0.1[KB] REGULATOR LCD-15V LCD-15V LINK TO VOLTAGE CHART R1097 LSJB8314 MAIN X SCHEMATIC DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
- Page 25 DRIVE CONTROL DRIVE ERROR CONTROL COMP CONTROL V-REF DRIVE DRIVE CONTROL SHORTCIRCUIT PROTECT CONTROL DRIVE DRIVE CONTROL ON/OFF CONTROL CONTROL DRIVE DRIVE CONTROL ERROR ERROR ERROR ERROR COMP COMP COMP COMP TRIANGLE-WAVE OSC LSJB8314 IC1001 IC-DETAIL BLOCK DIAGRAM VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
-
Page 26: Voltage Chart
PIN NO. PIN NO. IC6001 Q6005 Q6006 -1.2 -0.3 TP6001 IC6002 TP6002 TP6006 TP6007 TP6008 TP6009 TP6010 TP6011 TP6012 TP6013 TP6014 TP6015 TP6016 TP6017 TP6019 TP6020 TP6021 TP6022 IC6003 TP6024 IC6004 Q6001 Q6002 Q6003 -0.2 -3.8 -3.1 VOLTAGE CHART VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE/VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK... - Page 27 PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. IC301 IC303 IC501 IC304 IC302 -7.0 -7.0 -0.2 ---- ---- 12.0 Q701 -6.6 -6.6 12.0 ---- IC701 TP702 TP703 TP704 TP705 TP706 TP707 TP708 IC1001 IC3001 ---- VOLTAGE CHART VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE/VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
- Page 28 MODE PLAY MODE PLAY MODE PLAY MODE PLAY MODE PLAY MODE PLAY MODE PLAY PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. PIN NO. IC3202 ---- IC3201 ---- IC3301 VOLTAGE CHART VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE/VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
- Page 29 TP3903 TP3904 .3.2 TP3905 Q1011 -0.3 -0.3 TP3906 Q1026 TP8001 TP8002 TP8003 TP8004 TP8005 Q1013 TP8006 TP8007 Q1030 TP11 11.9 11.9 TP8008 TP12 11.9 11.9 TP8009 TP13 -6.9 -6.9 TP14 -14.9 -14.9 Q1015 Q1031 TP15 TP17 TP20 VOLTAGE CHART VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE/VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
-
Page 31: Printed Circuit Board
C3066 R6087 R6088 R6130 R6004 C3014 C3042 R3038 C3012 R3039 C3041 C3011 C8023 C3038 C3028 C3065 C3039 C3029 C3064 R3084 C3032 R3086 R3087 C3043 R3017 C3044 R3016 C3034 C3061 C3035 C3059 R3083 C3055 C3056 R3006 MAIN P.C.B. LSEP8314P1/LSEP8314Q1 VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK... - Page 32 R3925 C3309 C3315 R3315 C8011 LSJB8314 C1037 C1038 R3304 C4513 R8005 C3310 C8014 32 33 C3312 R3314 R3313 C4509 C3311 TP3704 L1011 L8001 TP3905 TP8001 C1034 TP8003 TP8002 C8021 C4511 TP3705 R3305 C1033 C4512 TP8004 MAIN P.C.B. LSEP8314P1/LSEP8314Q1 VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
- Page 33 L3007 C1014 C3025 C4505 R704 R1072 R3060 R3909 R6076 FP301 L3201 C1015 C3026 C4509 R705 R1073 R3061 R3910 R6077 FP701 L3202 C1016 C3027 C4510 R706 R1074 R3062 R3911 R6078 L3301 C1018 C3028 C4511 R707 R1075 R3063 R3912 R6079 VDR-D100EG/VDR-D100EB/VDR-D150E/VDR-D150EB/VDR-D150EF/VDR-D150EG/VDR-D150EP/VDR-D150EE /VDR-D150GC/VDR-D150GN/VDR-D150GCS/VDR-D150SG/VDR-D152EG/VDR-D158GK...
-
Page 35: Appendix Information Of Schematic Diagram
5 Appendix Information of Schematic Diagram 5.1. CHECKING POINT TABLE OF THE CSP IC Check Point of IC3001 CSP IC CSP IC Check point WF NO. Remarks Check point WF NO. Remarks Name Name ---------- ----- ----- 66 DRAMSDAT[2] ---------- ----- ----- ----------... - Page 36 CSP IC CSP IC Check point WF NO. Remarks Check point WF NO. Remarks Name Name 131 DRAMSADR[1] ---------- ----- ----- 196 ADM[9] ---------- ----- ----- 132 DRAMSADR[2] ---------- ----- ----- 197 ADM[10] ---------- ----- ----- 133 DRAMSADR[3] ---------- ----- ----- 198 ADM[11] ----------...
- Page 37 CSP IC CSP IC Check point WF NO. Remarks Check point WF NO. Remarks Name Name 261 AADR[18] ---------- ----- ----- 326 VDDIO6 ---------- ----- ----- R305 ( UPPER ) MAIN P.C.B. ( F ) 262 AADR[19] ---------- ----- ----- 327 CAMHD WF18 MAIN P.C.B.
- Page 38 CSP IC CSP IC Check point WF NO. Remarks Check point WF NO. Remarks Name Name 391 NC ---------- ----- ----- 438 NC ---------- ----- ----- 392 NC ---------- ----- ----- 439 VSSIO4 ---------- ----- ----- MAIN P.C.B. ( C ) 393 VSSIO5 ---------- -----...
- Page 39 Check Point of IC3201 CSP IC CSP IC Check point WF NO. Remarks Check point WF NO. Remarks Name Name ---------- ----- ----- 41 VCC ---------- ----- ----- ---------- ----- ----- 42 DQ4 ---------- ----- ----- ---------- ----- ----- 43 DQ12 ---------- ----- -----...
- Page 40 Check Point of IC6001 CSP IC CSP IC Check point WF NO. Remarks Check point WF NO. Remarks Name Name ---------- ----- ----- 61 AFST ---------- ----- ----- R6113 ( LEFT ) MAIN P.C.B. ( C ) AVCC31 ---------- ----- ----- 62 XRST AVSS...
- Page 41 CSP IC CSP IC Check point WF NO. Remarks Check point WF NO. Remarks Name Name R6004 ( LEFT ) MAIN P.C.B. ( C ) 121 CG RST 181 DVSS ---------- ----- ----- 122 NC ---------- ----- ----- 182 UP CS ---------- ----- -----...
- Page 42 CSP IC Check point WF NO. Remarks Name 241 NC ---------- ----- ----- 242 NC ---------- ----- ----- R6114 ( LEFT ) MAIN P.C.B. ( C ) 243 SD ACCESS INFO MAIN P.C.B. ( F ) 244 DISC ACCESS LED Q6006-B 245 NC ----------...
-
Page 43: Waveform Table
5.2. WAVEFORM TABLE 20mV 20µs 20mV 20µs 0.5ms WF10 WF11 WF12 WF13 WF14 WF15 50µs WF16 WF17 WF18 WF19 WF20 50mV 0.2ms 0.2ms 20µs 0.5V WF21 WF22 WF23 WF24 WF25 0.2V 20µs 0.2V 20µs 0.2V 10µs 0.2V 10µs 0.2V 10µs WF26 WF27 WF28... - Page 44 WF36 WF37 WF38 WF39 WF40 0.1µs 0.5ms 20µs WF41 WF42 WF43 WF44 WF45 20µs WF46 WF47 WF48 WF49 WF50 0.2ms WF51 WF52 WF53 WF54 WF55 0.2ms 0.2ms 50ns WF56 WF57 WF58 WF59 10ms...
-
Page 45: Replacement Parts Lists
6 Replacement Parts Lists BEFORE REPLACING PARTS, READ THE FOLLOWING: 6.1.1. MAIN P.C.B. 1. Use only original replacement parts: INTEGRATED CIRCUITS To maintain original function and reliability of repaired units, Ref. Part No. Part Name & Description Remarks use only original replacement parts which are listed with IC301 C0CBCBC00130 IC, LINEAR... - Page 46 Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks B1GDCFLM0005 TRANSISTOR SI PNP CHIP MA2S11100L DIODE SI CHIP Q1031 D1002 Q1032 2SD2216J08 TRANSISTOR SI NPN CHIP D1006 B0JDCD000002 DIODE SI CHIP B1ABCF000104 TRANSISTOR SI NPN CHIP D1009 B0JCMD000023 DIODE SI CHIP...
- Page 47 Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R1004 D0GA103JA015 MGF CHIP 1/16W 10K R3013 ERJ2GEJ104X MGF CHIP 1/16W 100K R1005 D1BA4701A034 MGF CHIP 1/16W 4.7K R3014 ERJ2GE0R00X MGF CHIP 1/16W 0 R1006 D1BA4701A034 MGF CHIP 1/16W 4.7K...
- Page 48 Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R3115 ERJ2GEJ330X MGF CHIP 1/16W 33 R6025 D0GA102JA015 MGF CHIP 1/16W 1K R3116 ERJ2GEJ330X MGF CHIP 1/16W 33 R6027 D0GA332JA015 MGF CHIP 1/16W 3.3K R3117 ERJ2GEJ330X MGF CHIP 1/16W 33...
- Page 49 Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R6132 ERJ2GE0R00X MGF CHIP 1/16W 0 100EB/E C1005 F1H1C104A041 C CHIP 16V 0.1UF G,150E/ C1006 F1H1E273A050 C CHIP 25V 0.027UF EB/EF/E C1007 F1H1C104A041 C CHIP 16V 0.1UF G/EP,15 C1008 ECJ0EB1C822K...
- Page 50 Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C3021 F1G1C103A004 C CHIP 16V 0.01UF C4509 F3F0J226A032 TANTALUM CHIP 6.3V 22UF C3022 F1G1C103A004 C CHIP 16V 0.01UF C4510 F1G1C103A004 C CHIP 16V 0.01UF C3023 F1G1A1040006 C CHIP 10V 0.1UF...
- Page 51 Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks L1021 G1C4R7MA0031 COIL CHIP 4.7UH LSSC0822 MAIN SHIELD PLATE L1022 G1C2R2MA0203 COIL CHIP 2.2UH LSSC0830 HEAT SINK SHEET L1030 G1C220ZA0050 COIL CHIP 22UH LSSC0896 HEAT CONDUCT SHEET L1031 D1JBR175A008...
