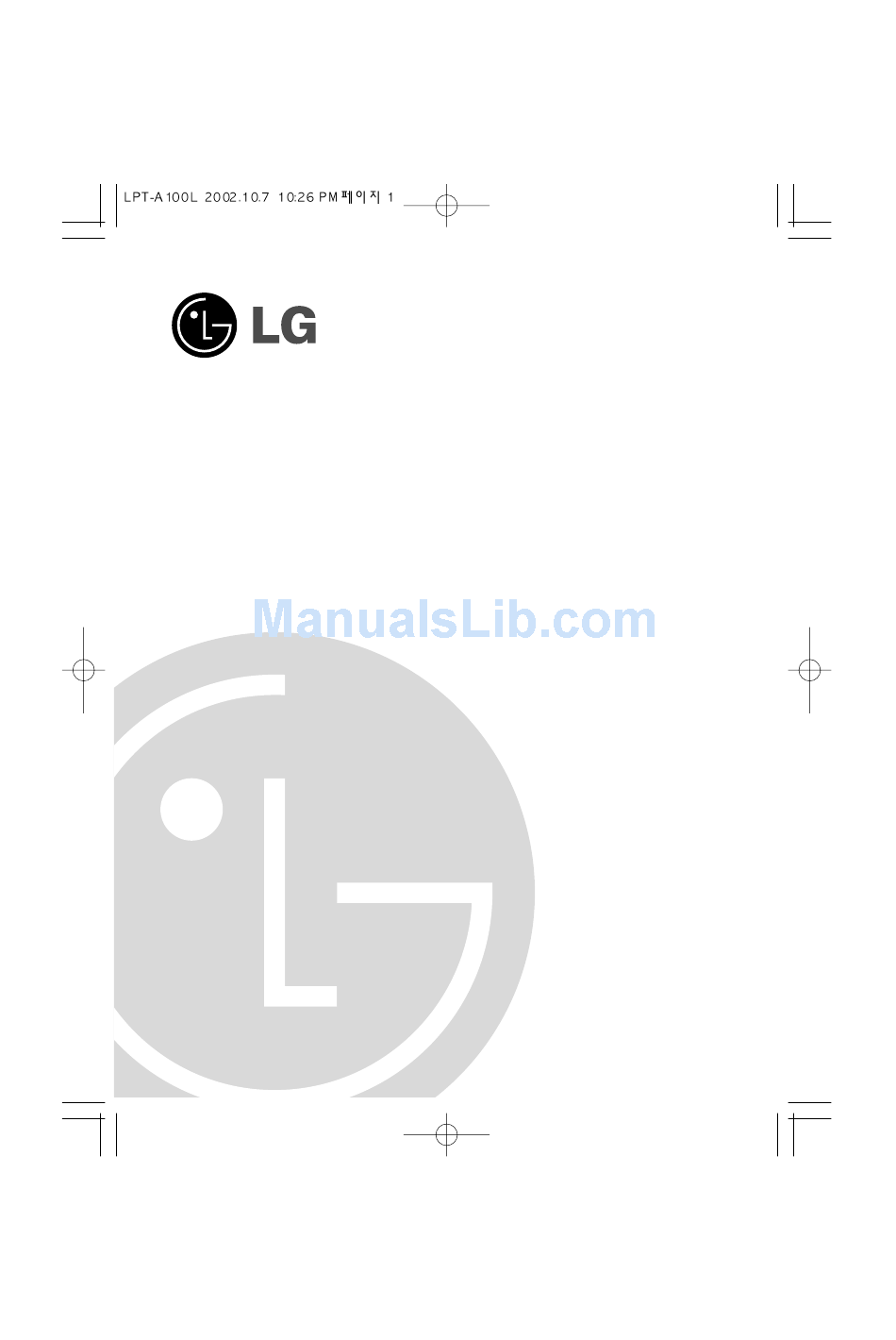

LG PAN TILTER
OWNER'S MANUAL
MODEL : LPT-A100L
Before connecting, operating or adjusting this
product, please read this instruction booklet
carefully and completely.

Advertisement

loading

Related Manuals for LG LPT-A100L

Summary of Contents for LG LPT-A100L

  • Page 1 LG PAN TILTER OWNER’S MANUAL MODEL : LPT-A100L Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.

  • Page 2: Part Description

    PART DESCRIPTION Front Fixing screw Handle for fixing camera. Axis of rotating Rear connector for camera ID choice switch control Power input terminal...

  • Page 3: Installation

    Installation Preparation 3. Fix Pantilter on stand. Select proper place for installing Pantilter. The place must support the weight of Pantilter, camera and stand. (The camera and Pantilter weight 2kg.) Pantilter 1 At first, fix stand at proper place tightly. Warning Keep all obstacles away so that Pantilter rotates without clash.
  • Page 4 Connection camera with Pantilter 1. System connection 2, Power connection DV12V 220V Connect the AC220V~DC12V power supply with system cable Pantilter. (Connect this product only to an 220V, 60Hz outlet. In the case of using 110V, please use an optional booster.) Camera movement (self-motion) Initial Movement...

  • Page 5: Specification

    Specification 1. Power supply : DC 12V, 1.0A 4. Rotate speed:horizontal : 6.2 /sec(high speed) 2. Power consumption : 15W 4.5 /sec(low speed) 3. Rotate angle : horizontal :320 (manual) vertical : 4.5 /sec 290 (auto) 5. load limit:5kg vertical : +17 ~ 6.

  • Page 6: Communication Protocol

    PAN TILTER ID (DIP Switch Setting chart) In case of RS-422/485 communication, turn Dip switch #6 On. In case of RS-232C communication, turn Dip switch #6 Off. DIP Switch (0:Off, 1:On) DIP Switch (0:Off, 1:On) P/T ID P/T ID COMMUNICATION PROTOCOL 1.
  • Page 7 6. Command Protocol Format : STX PID CMD Data ETX CheckSum 1) STX : 0x02 2) PID : 0x01 - 0x80(Pantilter ID) 3) CMD : 0x30 - 0x41 4) Data : 0x30 - 0x39 5) ETX : 0x03 6) CheckSum : (STX+PID+CMD+Data+ETX) & 0x7F 7.
  • Page 8 1)-1. Power : Pantilter Power ON/OFF Control - CMD(0x30) + Data(0x30) : Power On - CMD(0x30) + Data(0x31) : Power Off 1)-2. Speed : Pan Speed Low/High Control - CMD(0x31) + Data(0x30) : Pan Speed Low - CMD(0x31) + Data(0x31) : Pan Speed High 1)-3.
  • Page 9 1)-12. Move-Down/Left : Down/Left Move - CMD(0x3B) + Data(0x30) : Move Down/Left for 150msec - CMD(0x3B) + Data(0x31) : Move Down/Left for 500msec 1)-13. Move-Down/Right : Down/Right Move - CMD(0x3C) + Data(0x30) : Move Down/Right for 150msec - CMD(0x3C) + Data(0x31) : Move Down/Right for 500msec 1)-14.
  • Page 10 2) Ack Protocol Condition Note Data Good 0x06 Data Error 0x07 During Power Off 0x08 Pan point is Initial 0x09 During Auto Pan 0x0A 2)-1. Data Good (0x06) - Data Reception & Pantilter movement is normal. 2)-2. Data Error (0x07) - Data Reception is abnormal.
  • Page 11 P/NO : 3835RC0018C...
