Panasonic 6362 Specification Sheet

Rope elevator kit 6362
•

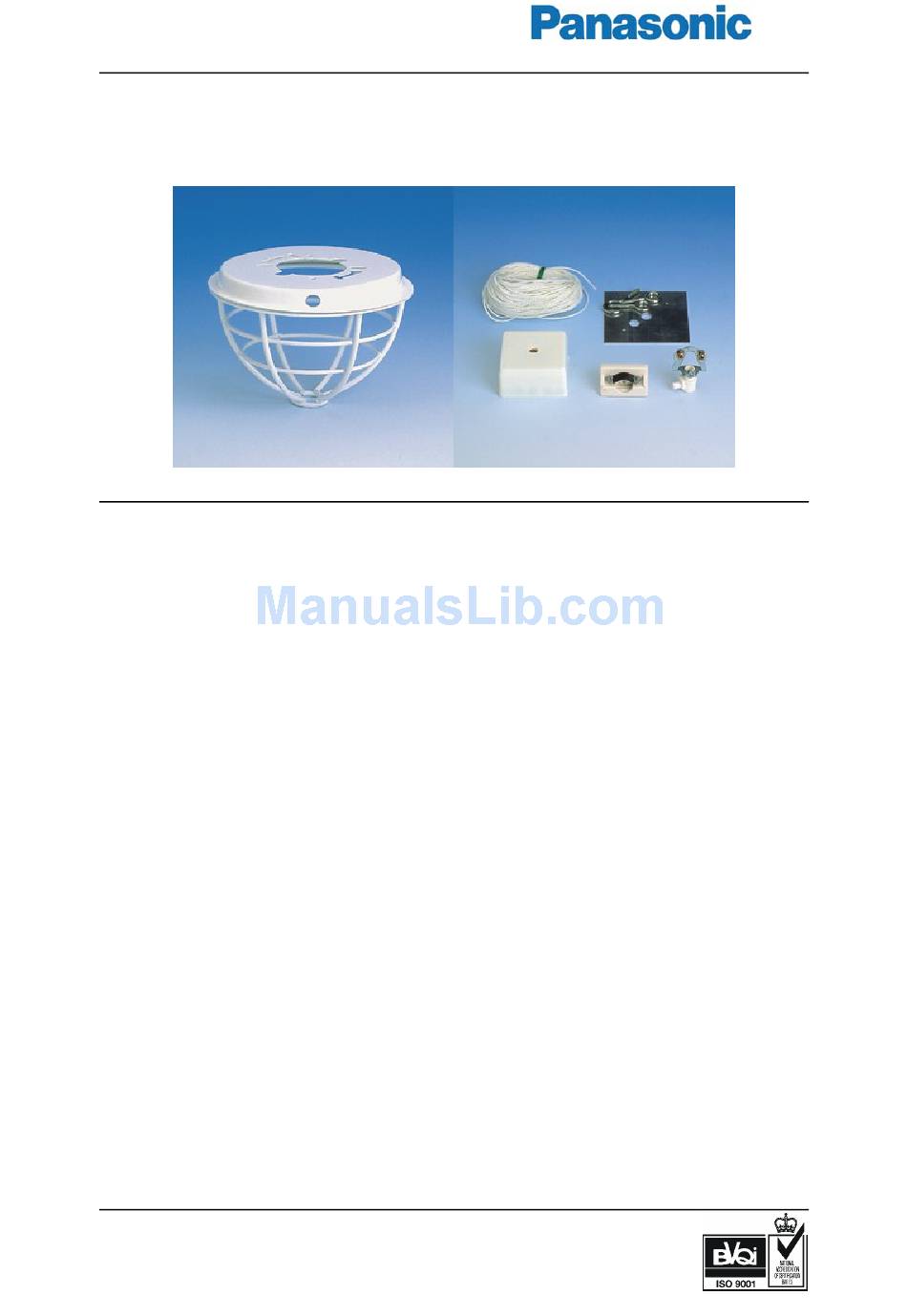

A kit with all the necessary pieces for a rope elevator.
General
6362 is a kit to make a rope elevator for a
detector and its base, e.g. detector 3304 and
analog base 3312.
The kit

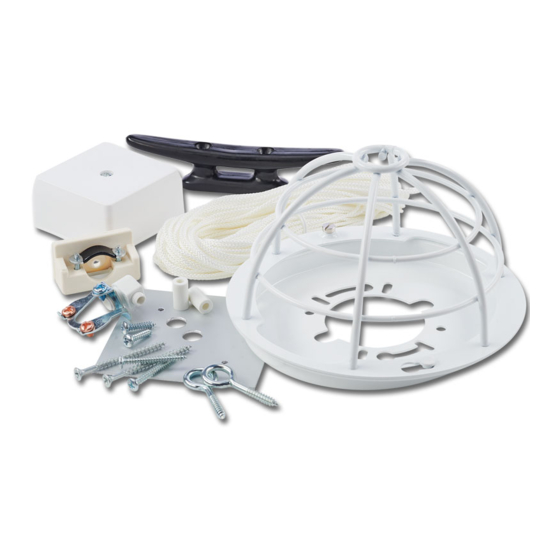

The kit consists of the following:
•
Protective cover for detector (6360)
•
Cleat (to fix the rope & hang it up;
not shown in the figure above)
•
20 m rope (Ø2 mm polyester)
•
Metal plate
•
Two screws (to fix the base)
•
Two loop screws (for the rope)
•
Two wood screws (to fix the cleat)
•
Connection box (five screw term.)
•
Cable clamp (for the conn. box)
•
Rope clamp (to fix the rope)
•
Cable clamp (to fix the cable)
Panasonic Electric Works Fire & Security Technology Europe AB
Citadellsvägen 23, SE-211 18 Malmö, Sweden
Tel: +46 (0)40 697 70 00 • Fax: +46 (0)40 697 70 99
info@mfstech.com • www.panasonic-fire-security.com

Fire alarm system

Product applications
The rope elevator is used with any of the
Panasonic heat or smoke detectors plugged
in a base, allowing the user to access a
detector mounted on a high ceiling height, in
order to perform a test, maintenance, replace
the detector, etc.
