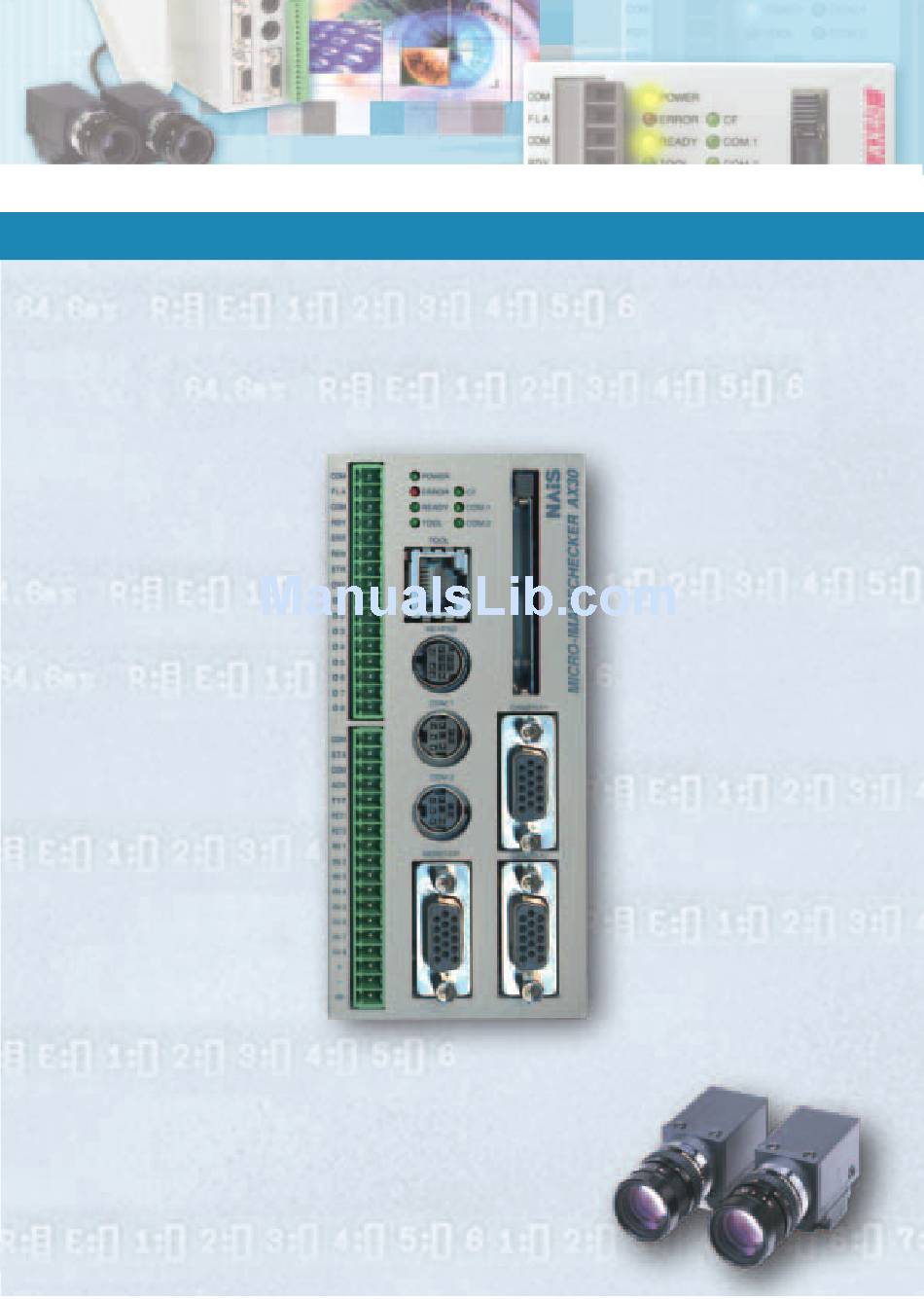

Micro-Imagechecker AX30/AX40
A Sophisticated Hardware Concept
Indicator LEDs
■
Display of all essential signals
on the controller
Ethernet port
■
100 Base-Tx
■
Several backup/restore functions
■
Optional: AXTOOL software
Two serial ports
1)
■
Communicate with PCs
and/or PLCs
■
Direct connection to various PLCs
without programming efforts
Parallel I/O
■
14 digital outputs for judgement and
result data output plus additional
signals for error, ready, flash-light
trigger, etc.
■
13 digital inputs for program change
teach-in, etc.
■
PhotoMOS technology
1)
Cannot be used simmultaneously
Original Product size
VGA-monitor interface
■
High-quality display (flicker-free)
■
Use of cost effective standard
monitors
05/2005
DIN rail installation
■
One touch at the rear, is all that is
required for DIN rail installation
Compact flash
memory card slot
■
Backup/restore of camera images,
screenshots and project data
■
Very reliable, rugged and cost
efficient storage media
Keypad interface
■
Easy video-game-like setting with
a four-button keypad
Two colour cameras
connectable
■
Single chip CCD technology
■
Fast progressive scan image
capturing
■
All camera parameters adjustable via
software
■
Miniature camera design
5
