Pioneer VSX-D812-K Service Manual

Multi-channel
Hide thumbs Also See for VSX-D812-K:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

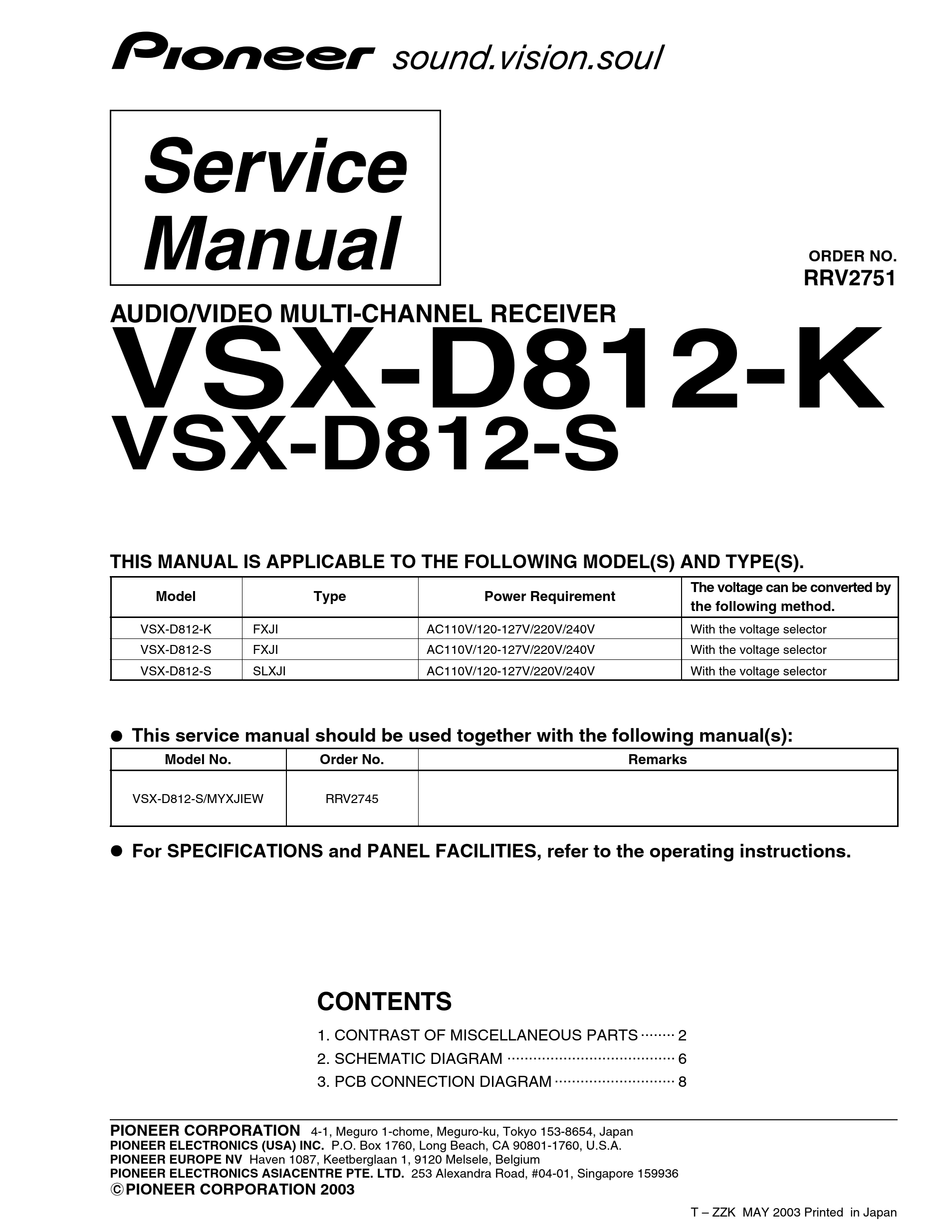

AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSX-D812-K
VSX-D812-S
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
VSX-D812-K
FXJI
VSX-D812-S
FXJI
VSX-D812-S
SLXJI
¶ This service manual should be used together with the following manual(s):
Model No.
VSX-D812-S/MYXJIEW
¶ For SPECIFICATIONS and PANEL FACILITIES, refer to the operating instructions.
PIONEER CORPORATION
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2003
Type
Power Requirement
AC110V/120-127V/220V/240V
AC110V/120-127V/220V/240V
AC110V/120-127V/220V/240V
Order No.
RRV2745
CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS ........ 2
2. SCHEMATIC DIAGRAM ....................................... 6
3. PCB CONNECTION DIAGRAM ............................ 8
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
RRV2751
The voltage can be converted by
the following method.
With the voltage selector
With the voltage selector
With the voltage selector
Remarks
T – ZZK MAY 2003 Printed in Japan
ORDER NO.

Advertisement

loading

Related Manuals for Pioneer VSX-D812-K

Summary of Contents for Pioneer VSX-D812-K

  • Page 1 PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2003 T –...
  • Page 2 → 562 × 10 → 5621 ............RN1/4PC 5 6 2 1 CONTRAST TABLE VSX-D812-K/FXJI, VSX-D812-S/FXJI, SLXJI and VSX-D812-S/MYXJIEW are constructed the same except for the following : Part No. Ref. No. Mark Symbol and Description VSX-D812-S VSX-D812-K VSX-D812-S VSX-D812-S...

  • Page 3: Exploded Views

    Part No. Ref. No. Mark Symbol and Description VSX-D812-S VSX-D812-K VSX-D812-S VSX-D812-S Remarks /MYXJIEW /FXJI /FXJI /SLXJI P9-56 Screw BPZ30P080FNI BPZ30P080FZK BPZ30P080FNI BPZ30P080FNI P9-57 Screw FBT40P080FNI FBT40P080FZK FBT40P080FNI FBT40P080FNI P9-61 Fuse Card AAX7493 XAX3218 XAX3218 XAX3218 P9-62 Screw BBT30P100FCC BBZ30P080FZK BBZ30P080FZK BBZ30P080FZK...
  • Page 4 Symbol and Description Remarks XWZ3647 XWZ3646 R313, R316 RS3LMF560J RS3LMF390J BOARD TO BOARD ASSY XWZ3664 and XWZ3665 are constructed the same except for the following : Part No. Mark Symbol and Description Remarks XWZ3665 XWZ3664 CN392 5P CONNECTOR Not used 52045-0545 VSX-D812-K...

  • Page 5: Pcb Parts List

    D551, D552 1SS355 CAPACITORS C551–C554 CEAT101M10 C555–C562, C566, C568 CKSRYB103K50 RESISTORS All Resistors RS1/16S###J OTHERS CN551 5P CONNECTOR 52045-0545 JA553 3P RCA PINJACK AKB7124 JA551 6P RCA PINJACK AKB7128 VOLTAGE SELECT SW ASSY SWITCHES AND RELAYS VOLTAGE SELECTOR AKX1033 VSX-D812-K...

  • Page 6: Schematic Diagram

    SW ASSY (XWZ3689) REK1030 (T6.3A) LIVE NEUTRAL AC INLET ASSY ADX7395 FXJI ONLY 2/2F AMP&PRIMARY ASSY (XWZ3671) • NOTE FOR FUSE REPLACEMENT FOR CONTINUED PROTECTION AGAINST RISK OF FIRE. CAUTION - REPLACE WITH SAME TYPE AND RATINGS ONLY. 2/2F VSX-D812-K...
  • Page 7 2.2 BOARD TO BOARD and COMPONENT ASSYS COMPONENT ASSY (XWZ3661) BOARD TO BOARD ASSY (XWZ3664) CN551 VSX-D812-K...

  • Page 8: Pcb Connection Diagram

    COMPONENT ASSY 4053 A COMPONENT VIDEO 4053 INH V-5.6V HCI40HI D552 V+5.6V XWZ3661 XWZ3701 R577 D551 R579 IC551 IC551 IC552 IC552 R551 R578 C556 R571 Y out R568 C568 Cr out Cb out C565 C564 C563 R566 (XNP3064-C) SIDE B VSX-D812-K...

This manual is also suitable for:

Vsx-d812-s
