Page 2 Reproduction of this document in any manner whatsoever without the written permission of D-Link Corporation is strictly forbidden. Trademarks used in this text: D-Link and the D-LINK logo are trademarks of D-Link Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation.
Page 3: Table Of Contents

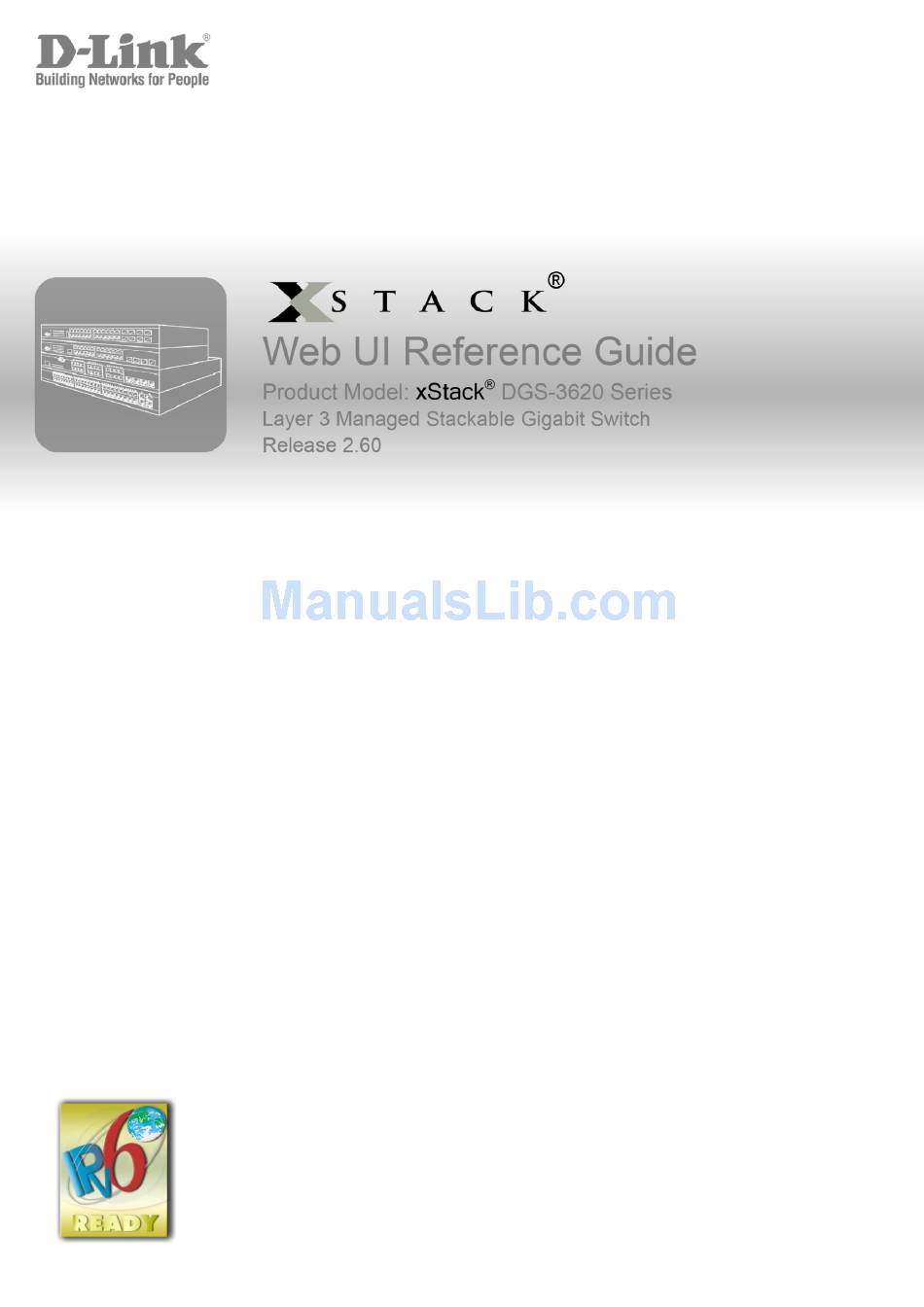

® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Table of Contents Intended Readers ................................11 Typographical Conventions ............................11 Notes, Notices and Cautions............................11 Safety Instructions ................................. 12 Safety Cautions ................................. 12 General Precautions for Rack-Mountable Products...................... 13 Protecting Against Electrostatic Discharge ........................
Page 4 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Proxy ARP Settings ..............................54 ARP Table ................................. 54 Gratuitous ARP ................................55 Gratuitous ARP Global Settings ..........................55 Gratuitous ARP Settings ............................56 IPv6 Neighbor Settings ..............................56 IP Interface ..................................
Page 5 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Subnet VLAN ................................109 Super VLAN ................................111 Voice VLAN ................................113 Surveillance VLAN ..............................116 VLAN Trunk Settings ............................... 119 Browse VLAN ................................120 Show VLAN Ports ..............................121 QinQ ....................................
Page 6 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide PTP Clock Information ............................. 202 PTP Port Information ............................... 203 PTP Foreign Master Records Port Information ....................... 204 Chapter 6 L3 Features ............................205 IPv4 Static/Default Route Settings ..........................205 IPv4 Route Table ................................
Page 7 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide BGP Summary Table ............................... 322 BGP Routing Table ..............................322 BGP Dampened Route Table ..........................327 BGP Flap Statistic Table ............................328 IP Route Filter ................................329 IP Prefix List Settings ..............................
Page 8 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Adding an IPv6 Egress ACL Profile ......................... 410 Egress ACL Flow Meter .............................. 413 Chapter 9 Security .............................. 417 802.1X ..................................417 802.1X Global Settings ............................420 802.1X Port Settings ..............................
Page 9 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Port Security ................................466 Port Security Settings .............................. 466 Port Security VLAN Settings ........................... 468 Port Security Entries ..............................468 ARP Spoofing Prevention Settings ..........................469 BPDU Attack Protection ..............................
Page 10 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide DNS Resolver Dynamic Host Name Table ......................528 RCP Server Settings ..............................528 SNTP ................................... 528 SNTP Settings ................................. 529 Time Zone Settings ..............................529 UDP ..................................... 531 UDP Helper ................................
Page 11 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Save Configuration / Log ............................. 584 License Management ..............................584 Stacking Information ..............................585 Download Firmware ..............................586 Download Firmware from TFTP ..........................586 Download Firmware from FTP..........................587 Download Firmware from RCP ..........................
Page 12: Intended Readers
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Intended Readers Intended Readers Typographical Conventions Notes, Notices and Cautions Safety Instructions General Precautions for Rack-Mountable Products Protecting Against Electrostatic Discharge The DGS-3620 Series Web UI Reference Guide contains information for setup and management of the Switch. This manual is intended for network managers familiar with network management concepts and terminology.
Page 13: Safety Instructions
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Safety Instructions Use the following safety guidelines to ensure your own personal safety and to help protect your system from potential damage. Throughout this safety section, the caution icon ( ) is used to indicate cautions and precautions that need to be reviewed and followed.
Page 14: General Precautions For Rack-Mountable Products
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide • To help protect the system from sudden, transient increases and decreases in electrical power, use a surge suppressor, line conditioner, or uninterruptible power supply (UPS). •...
Page 15: Protecting Against Electrostatic Discharge
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide CAUTION: The system chassis must be positively grounded to the rack cabinet frame. Do not attempt to connect power to the system until grounding cables are connected. Completed power and safety ground wiring must be inspected by a qualified electrical inspector.
Page 16: Chapter 2 Web-Based Switch Configuration
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Chapter 2 Web-based Switch Configuration Introduction Login to the Web Manager Web-based User Interface Web Pages Introduction Most software functions of the DGS-3620 Series switches can be managed, configured and monitored via the embedded web-based (HTML) interface.
Page 17: Areas Of The User Interface
Function AREA 1 Select the menu or window to display. Open folders and click the hyperlinked menu buttons and subfolders contained within them to display menus. Click the D-Link logo to go to the D-Link website. AREA 2 Presents a graphical near real-time image of the front panel of the Switch. This area displays the Switch's ports, console and management port, showing port activity.
Page 18: Web Pages
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Web Pages When connecting to the management mode of the Switch with a web browser, a login screen is displayed. Enter a user name and password to access the Switch's management mode. Below is a list of the main folders available in the Web interface: System Configuration In this section the user will be able to configure features regarding the Switch’s...
Page 19: Chapter 3 System Configuration
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Chapter 3 System Configuration Device Information System Information Settings Port Configuration Serial Port Settings Warning Temperature Settings System Log configuration Time Range Settings Port Group Settings Time Settings User Accounts Settings Command Logging Settings...
Page 20 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-1 Device Information window (EI Mode Only) Figure 3-2 Device Information window (SI Mode Only)
Page 21: System Information Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Settings link to navigate to the appropriate feature page for configuration. System Information Settings The user can enter a System Name, System Location, and System Contact to aid in defining the Switch. To view the following window, click System Configuration >...
Page 22: Ddm Temperature Threshold Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-4 DDM Settings window The fields that can be configured are described below: Parameter Description Trap State Specify whether to send the trap, when the operating parameter exceeds the alarm or warning threshold.
Page 23: Ddm Voltage Threshold Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-5 DDM Temperature Threshold Settings window The fields that can be configured are described below: Parameter Description Unit Select the unit to be configured. From Port / To Port Select a range of ports to be configured.
Page 24: Ddm Bias Current Threshold Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-6 DDM Voltage Threshold Settings window The fields that can be configured are described below: Parameter Description Unit Select the unit to be configured. From Port / To Port Select a range of ports to be configured.
Page 25: Ddm Tx Power Threshold Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-7 DDM Bias Current Threshold Settings window The fields that can be configured are described below: Parameter Description Unit Select the unit to be configured. From Port / To Port Select a range of ports to be configured.
Page 26: Ddm Rx Power Threshold Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-8 DDM TX Power Threshold Settings window The fields that can be configured are described below: Parameter Description Unit Select the unit to be configured. From Port / To Port Select a range of ports to be configured.
Page 27 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-9 DDM RX Power Threshold Settings window The fields that can be configured are described below: Parameter Description Unit Select the unit to be configured. From Port / To Port Select a range of ports to be configured.
Page 28: Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-10 DDM Status Table window Port Settings This page is used to configure the details of the switch ports. To view the following window, click System Configuration > Port Configuration > Port Settings.
Page 29 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-11 Port Settings window To configure switch ports: 1. Choose the port or sequential range of ports using the From Port and To Port drop-down menus. 2.
Page 30: Port Description Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide and can be connected to a PC NIC using a straight-through cable or a port (in MDI mode) on another switch through a cross-over cable. Cross - Select cross for cross cabling. If set to cross state, the port is in MDIX mode, and can be connected to a port (in MDI mode) on another switch through a straight cable.
Page 31: Port Error Disabled
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-12 Port Description Settings window The fields that can be configured are described below: Parameter Description Unit Select the unit you wish to configure. From Port / To Port Select the appropriate port range used for the configuration here.
Page 32: Port Media Type
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-13 Port Error Disabled window The fields that can be displayed are described below: Parameter Description Port Display the port that has been error disabled. Port State Describe the current running state of the port, whether enabled or disabled.
Page 33: Port Auto Negotiation Information
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description Unit Select the unit you wish to display. Port Auto Negotiation Information The following window displays the detailed auto negotiation information. To view the following window, click System Configuration > Port Configuration > Port Auto Negotiation Information, as shown below: Figure 3-15 Port Auto Negotiation Information window The fields that can be configured are described below:...
Page 34: Eee Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-16 Jumbo Frame Settings window The fields that can be configured are described below: Parameter Description Jumbo Frame Use the radio buttons to enable or disable the Jumbo Frame function on the Switch. The default is Disabled.
Page 35: Poe
State Select to enable or disable the state of this feature here. Click the Apply button to implement changes made. To learn more about the D-Link Green Technologies, go to http://green.dlink.com/ for more details. The DGS-3620-28PC and DGS-3620-52P switches support Power over Ethernet (PoE) as defined by the IEEE 802.3af and 802.3at.
Page 36: Poe System Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide system power limit; and secondly, if the per port power consumption exceeds the per port power limit. • Active circuit protection automatically disables the port if there is a short. Other ports will remain active. Based on 802.3af/at PDs receive power according to PSE provides power according to the following the following classification:...
Page 37: Poe Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description Unit Select the unit you wish to configure. Tick the All check box to select all units. Power Limit (37- Sets the limit of power to be used from the Switch’s power source to PoE ports. The user 760) may configure a Power Limit between 37W and 760W for the DGS-3620-28PC and DGS-3620-52P.
Page 38: Serial Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The following parameters can be configured: Parameter Description Unit Select the unit you wish to configure. From Port / To Port Select a range of ports from the drop-down menus to be enabled or disabled for PoE. State Use the drop-down menu to enable or disable ports for PoE.
Page 39: Warning Temperature Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-20 Serial Port Settings window The fields that can be configured are described below: Parameter Description Baud Rate Specify the baud rate for the serial port on the Switch. There are four possible baud rates to choose from, 9600, 19200, 38400 and 115200.
Page 40: System Log Configuration
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide High Threshold Enter the high threshold value of the warning temperature setting. (-500-500) Low Threshold Enter the low threshold value of the warning temperature setting. (-500-500) Click the Apply button to implement changes made.
Page 41: System Log
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-23 System Log Server Settings window The fields that can be configured are described below: Parameter Description Server ID Syslog server settings index (1 to 4). Severity Use the drop-down menu to select the higher level of messages that will be sent.
Page 42: System Log & Trap Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-24 System Log window The Switch can record event information in its own log. Click Go to go to the next page of the System Log window. The fields that can be configured or displayed are described below: Parameter Description...
Page 43: System Severity Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-25 System Log & Trap Settings window The fields that can be configured are described below: Parameter Description Interface Name Enter the IP interface name used. IPv4 Address Enter the IPv4 address used.
Page 44: Time Range Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide agent and the Switch’s log for analysis. Severity Level This drop-down menu allows you to select the level of messages that will be sent. The options are Emergency (0), Alert (1), Critical (2), Error (3), Warning (4), Notice (5), Information (6) and Debug (7).
Page 45: Time Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-28 Port Group Settings window The fields that can be configured are described below: Parameter Description Group Name Enter the name of a port group. Group ID (1-64) Enter the ID of a port group Port List...
Page 46 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-30 User Accounts Settings window To add a new user, type in a User Name and New Password and retype the same password in the Confirm New Password field.
Page 47: Command Logging Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide NOTE: User Name should be less than 16 characters. Password should be less than 16 or 35 characters. Command Logging Settings This window is used to enable or disable the command logging settings. To view this window, click System Configuration >...
Page 48 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-32 Switches stacked in a 40G Duplex Chain Figure 3-33 Switches stacked in a 40G Duplex Ring Figure 3-34 Switches stacked in an 80G Duplex Chain...
Page 49 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 3-35 Switches stacked in an 80G Duplex Ring Within each of these topologies, each switch plays a role in the Switch stack. These roles can be set by the user per individual Switch, or if desired, can be automatically determined by the Switch stack.
Page 50 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide LED to the far right on the front panel of the switch where this LED will flash between its given Box ID and ‘h’. Slave – Slave switches constitute the rest of the switch stack and although not Primary or Backup Masters, they can be placed into these roles when these other two roles fail or are removed from the stack.
Page 51: Stacking Device Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Box IDs and reboot the stack. To change the stacking bandwidth from 40G to 80G or vice versa, the following procedure must be followed: 1. Disconnect the cable. 2.
Page 52: Reboot Schedule Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Force Master Use the radio buttons to enable or disable the function. It is used to ensure the master role Role is unchanged when adding a new device to the current stacking topology. If the Enabled radio button is selected, the master’s priority will become zero after the stacking has stabilized.
Page 53 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description Time Interval Specifies that the reboot will start after this time interval has passed. Enter the time value used here.
Page 54: Chapter 4 Management
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Chapter 4 Management Gratuitous ARP IPv6 Neighbor Settings IP Interface Management Settings Out of Band Management Settings Session Table Single IP Management SNMP Settings Telnet Settings Web Settings Power Saving Static ARP Settings...
Page 55: Proxy Arp Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Delete button to remove the specific entry. Proxy ARP Settings The Proxy ARP (Address Resolution Protocol) feature of the Switch will allow the Switch to reply to ARP requests destined for another device by faking its identity (IP and MAC Address) as the original ARP responder.
Page 56: Gratuitous Arp
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide MAC Address Enter or view the MAC Address used. Click the Find button to locate a specific entry based on the information entered. Click the Show Static button to display only the static entries in the display table. Click the Clear All button to remove all the dynamic entries listed in the table.
Page 57: Gratuitous Arp Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Gratuitous ARP Settings The user can configure the IP interface’s gratuitous ARP parameter. To view the following window, click Management > Gratuitous ARP > Gratuitous ARP Settings, as shown below: Figure 4-5 Gratuitous ARP Settings window The fields that can be configured are described below: Parameter...
Page 58: Ip Interface
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-6 IPv6 Neighbor Settings window The fields that can be configured are described below: Parameter Description Interface Name Enter the interface name of the IPv6 neighbor. Neighbor IPv6 Address Enter the neighbor IPv6 address.
Page 59 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide NOTE: The Switch’s factory default IP address is 10.90.90.90 with a subnet mask of 255.0.0.0 and a default gateway of 0.0.0.0. To view the following window, click Management > IP Interface > System IP Address Settings, as shown below: Figure 4-7 System IP Address Settings window The fields that can be configured are described below: Parameter...
Page 60: Interface Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Interface Admin State Use the drop-down menu to enable or disable the configuration on this interface. If the state is disabled, the IP interface cannot be accessed. IP Address This field allows the entry of an IPv4 address to be assigned to this IP interface.
Page 61 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-9 IPv4 Interface Settings window The fields that can be configured are described below: Parameter Description Interface Name Enter the name of the IP interface being created. IPv4 Address Enter the IPv4 address used.
Page 62 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide IP MTU (512-16383) Enter the IP Layer MTU value used. The value is between 512 and 16383. The default value is 1500. Note: This value is for hardware forwarding only. IP Directed Broadcast Use the drop-down menu to enable or disable the IP directed-broadcast state of the interface.
Page 63 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the IPv6 Edit button to see the following window. Figure 4-11 IPv6 Interface Settings window The fields that can be configured or displayed are described below: Parameter Description Interface Name...
Page 64 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide NS Retransmit Time Enter the Neighbor solicitation’s retransmit timer in millisecond here. It has the same (0-4294967295) value as the RA retransmit time in the config ipv6 nd ra command. If this field is configured, it will duplicate the entry into the RA field.
Page 65: Loopback Interface Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-12 IPv6 Interface Settings – View All IPv6 Address window Click the <<Back button to return to the previous page. Click the View Neighbor Discover link to see the following window.
Page 66: Management Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-15 Loopback Interface Settings - Add/Edit window The fields that can be configured are described below: Parameter Description Interface Name The name of the loopback interface. NOTE: The loopback ipif has the same name domain space with the regular ipif, so its name can’t be a duplicate with the regular ipif.
Page 67: Out Of Band Management Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-16 Management Settings window The fields that can be configured are described below: Parameter Description CLI Paging State Command Line Interface paging stops each page at the end of the console. This allows you to stop the scrolling of multiple pages of text beyond the limits of the console.
Page 68: Session Table
Click the Refresh button to refresh the display table so that new entries will appear. Single IP Management Simply put, D-Link Single IP Management is a concept that will stack switches together over Ethernet instead of using stacking ports or modules. There are some advantages in implementing the “Single IP Management” feature: •...
Page 69: Single Ip Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide 8. SIM allows intermediate devices that do not support SIM. This enables the user to manage switches that are more than one hop away from the CS. The SIM group is a group of switches that are managed as a single entity.
Page 70: Topology
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-19 Single IP Settings window The fields that can be configured are described below: Parameter Description SIM State Use the drop-down menu to either enable or disable the SIM state on the Switch. Disabled will render all SIM functions on the Switch inoperable.
Page 71 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-20 Single IP Management window - Tree View The Topology window holds the following information on the Data tab: Parameter Description Device Name This field will display the Device Name of the switches in the SIM group configured by the user.
Page 72 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-21 Topology view This window will display how the devices within the Single IP Management Group connect to other groups and devices. Possible icons on this window are as follows: Icon Description Icon...
Page 73 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Setting the mouse cursor over a specific device in the topology window (tool tip) will display the same information about a specific device as the Tree view does. See the window below for an example. Figure 4-22 Device Information Utilizing the Tool Tip Setting the mouse cursor over a line between two devices will display the connection speed between the two devices, as shown below.
Page 74 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-24 Right-Clicking a Group Icon The following options may appear for the user to configure: • Collapse – To collapse the group that will be represented by a single icon. •...
Page 75 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-26 Right-clicking a Commander Icon The following options may appear for the user to configure: • Collapse – To collapse the group that will be represented by a single icon. •...
Page 76 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-29 Input password window 1. Property – To pop up a window to display the device information. Menu Bar The Single IP Management window contains a menu bar for device configurations, as seen below. Figure 4-30 Menu Bar of the Topology View File 2.
Page 77: Firmware Upgrade
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Firmware Upgrade This screen is used to upgrade firmware from the Commander Switch to the Member Switch. Member Switches will be listed in the table and will be specified by ID and Port (port on the CS where the MS resides), MAC Address, Model Name and Firmware Version.
Page 78: Snmp Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-35 Upload Log File window SNMP Settings Simple Network Management Protocol (SNMP) is an OSI Layer 7 (Application Layer) designed specifically for managing and monitoring network devices. SNMP enables network management stations to read and modify the settings of gateways, routers, switches, and other network devices.
Page 79: Snmp Global Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The Switch in the Management Information Base (MIB) stores management and counter information. The Switch uses the standard MIB-II Management Information Base module. Consequently, values for MIB objects can be retrieved from any SNMP-based network management software.
Page 80: Snmp Linkchange Traps Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-37 SNMP Traps Settings window The fields that can be configured are described below: Parameter Description SNMP Traps Enable this option to use the SNMP Traps feature. Authenticate Trap Enable this option to use the SNMP Authenticate Traps feature.
Page 81: Snmp View Table Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-38 SNMP Linkchange Traps Settings window The fields that can be configured are described below: Parameter Description Unit Select the unit you want to configure. From Port / To Port Select the starting and ending ports to use.
Page 82: Snmp Community Table Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-39 SNMP View Table Settings window The fields that can be configured are described below: Parameter Description View Name Type an alphanumeric string of up to 32 characters. This is used to identify the new SNMP view being created.
Page 83: Snmp Group Table Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-40 SNMP community Table Settings window The fields that can be configured are described below: Parameter Description Community Name Type an alphanumeric string of up to 32 characters that is used to identify members of an SNMP community.
Page 84: Snmp Engine Id Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-41 SNMP Group Table Settings window The fields that can be configured are described below: Parameter Description Group Name Type an alphanumeric string of up to 32 characters. This is used to identify the new SNMP group of SNMP users.
Page 85: Snmp User Table Settings
SNMP management private enterprise number as assigned by IANA (D-Link is 171). The fifth octet is 03 to indicate the rest is the MAC address of this device. The sixth to eleventh octets is the MAC address.
Page 86: Snmp Host Table Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Group Name This name is used to specify the SNMP group created can request SNMP messages. SNMP Version V3 – Indicates that SNMP version 3 is in use. SNMP V3 Encryption Use the drop-down menu to enable encryption for SNMP V3.
Page 87: Snmp V6Host Table Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide NoPriv security level. AuthNoPriv – To specify that the SNMP version 3 will be used, with an Auth-NoPriv security level. AuthPriv – To specify that the SNMP version 3 will be used, with an Auth-Priv security level.
Page 88: Rmon Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide RMON Settings This window is used to enable or disable remote monitoring (RMON) for the rising and falling alarm trap feature for the SNMP function on the Switch. To view the following window, click Management >...
Page 89: Snmp Trap Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide To view the following window, click Management > SNMP Settings > SNMP Community Masking Settings, as shown below: Figure 4-48 SNMP Community Masking Settings window The fields that can be configured are described below: Parameter Description View Name...
Page 90: Telnet Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-49 SNMP Trap Port Settings window The fields that can be configured are described below: Parameter Description Unit Select the unit you want to configure. From Port / To Port Select the starting and ending ports to use.
Page 91: Web Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-50 Telnet Settings window The fields that can be configured are described below: Parameter Description Telnet State Telnet configuration is Enabled by default. If you do not want to allow configuration of the system through Telnet choose Disabled.
Page 92: Power Saving
DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Apply button to accept the changes made. Power Saving Power Saving is one part of D-Link Green Technologies. To learn more about the D-Link Green Technologies, go http://green.dlink.com/ for more details.
Page 93: Power Saving Led Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description Power Saving Mode Click the radio buttons to enable or disable the link detection state. When enabled, a Link Detection State port which has a link down status will be turned off to save power to the Switch. This will not affect the port’s capabilities when the port status is link up.
Page 94 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 4-55 Power Saving Port Settings window The fields that can be configured are described below: Parameter Description Unit Select the unit you wish to configure. From Port / To Port Select the appropriate port range used for the configuration.
Page 95: Chapter 5 L2 Features
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Chapter 5 L2 Features VLAN QinQ Layer 2 Protocol Tunneling Settings Spanning Tree Link Aggregation L2 Multicast Control Multicast Filtering ERPS Settings LLDP NLB FDB Settings VLAN Understanding IEEE 802.1p Priority Priority tagging is a function defined by the IEEE 802.1p standard designed to provide a means of managing traffic...
Page 96 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide VLANs can enhance performance by conserving bandwidth, and improve security by limiting traffic to specific domains. A VLAN is a collection of end nodes grouped by logic instead of physical location. End nodes that frequently communicate with each other are assigned to the same VLAN, regardless of where they are physically on the network.
Page 97 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The main characteristics of IEEE 802.1Q are as follows: • Assigns packets to VLANs by filtering. • Assumes the presence of a single global spanning tree. •...
Page 98 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-3 Adding an IEEE 802.1Q Tag Port VLAN ID Packets that are tagged (are carrying the 802.1Q VID information) can be transmitted from one 802.1Q compliant network device to another with the VLAN information intact.
Page 99 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide If a packet has previously been tagged, the port will not alter the packet, thus keeping the VLAN information intact. Other 802.1Q compliant devices on the network to make packet-forwarding decisions can then use the VLAN information in the tag.
Page 100: 802.1Q Vlan Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide On port-based VLANs, NICs do not need to be able to identify 802.1Q tags in packet headers. NICs send and receive normal Ethernet packets. If the packet’s destination lies on the same segment, communications take place using normal Ethernet protocols.
Page 101 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-5 802.1Q VLAN Settings – Add/Edit VLAN Tab window The fields that can be configured are described below: Parameter Description Allow the entry of a VLAN ID or displays the VLAN ID of an existing VLAN in the Add/Edit VLAN tab.
Page 102 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-6 802.1Q VLAN Settings – Find VLAN Tab window Enter the VLAN ID number in the field offered and then click the Find button. You will be redirected to the VLAN List tab.
Page 103: 802.1V Protocol Vlan
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Port List Allows an individual port list to be added or deleted as a member of the VLAN. Tagged Specify the port as 802.1Q tagged. Use the drop-down menu to designate the port as tagged.
Page 104: V Protocol Vlan Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Protocol Value Enter a value for the Group. The protocol value is used to identify a protocol of the frame type specified. The form of the input is 0x0 to 0xffff. Depending on the frame type, the octet string will have one of the following values: For Ethernet II, this is a 16-bit (2-octet) hex value.
Page 105: Asymmetric Vlan Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide in the Switch, which is used to determine the CoS queue to which packets are forwarded to. Once this field is specified, packets accepted by the Switch that match this priority are forwarded to the CoS queue specified previously by the user.
Page 106: Gvrp Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-11 GVRP Global Settings window The fields that can be configured are described below: Parameter Description GVRP State Click the radio buttons to enable or disable the GVRP State. Join Time Enter the Join Time value in milliseconds.
Page 107 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-12 GVRP Port Settings window The fields that can be configured are described below: Parameter Description Unit Select the unit you want to configure. From Port / To Port Select the starting and ending ports to use.
Page 108: Mac-Based Vlan Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide MAC-based VLAN Settings Users can create new MAC-based VLAN entries, search and delete existing entries. When a static MAC-based VLAN entry is created for a user, the traffic from this user will be able to be serviced under the specified VLAN regardless of the authentication function operating on this port.
Page 109 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-14 Private VLAN Settings window The fields that can be configured are described below: Parameter Description VLAN Name Enter a VLAN name. VID (2-4094) Enter a VID value. VLAN List Enter a list of VLAN ID.
Page 110: Pvid Auto Assign Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Secondary VLAN Name Enter a secondary VLAN name. Secondary VLAN List Enter a list of secondary VLAN ID. Click the Add button to add a new entry based on the information entered. Click the View Private VLAN List link to view all the private VLAN.
Page 111: Vlan Precedence Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide VLAN Name Enter a VLAN Name. Enter a VLAN ID. VID List Enter a list of VLAN IDs. IPv4 Network Address The user can enter the IPv4 address used in here. Remember to include the subnet mask using the / notation.
Page 112: Super Vlan
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Unit Select the unit you want to configure. From Port / To Port Select the starting and ending ports to use. VLAN Precedence Use the drop-down menu to select the VLAN precedence as MAC-based VLAN or Subnet VLAN.
Page 113 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Modify button to re-configure the specific entry. Click the Delete button to remove the specific entry. After clicking the Modify button, the following page will appear: Figure 5-20 Super VLAN Settings - Modify window The fields that can be configured are described below: Parameter...
Page 114: Voice Vlan
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-22 Sub VLAN Settings - IP Range List window The fields that can be configured are described below: Parameter Description Action Use the drop-down menu to add or delete the specified IP addresses of the sub VLANs. From IP Address Enter the IP address to start from.
Page 115: Voice Vlan Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description Voice VLAN State The state of the voice VLAN. Voice VLAN Name The name of the voice VLAN. Voice VID (1-4094) The VLAN ID of the voice VLAN. Priority The priority of the voice VLAN, the range is 0 –...
Page 116: Voice Vlan Oui Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description Unit Select the unit you want to configure. From Port / To Port Here the user can select a range of port to display. State Here the user can configure the state of the port.
Page 117: Surveillance Vlan
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide To view the following window, click L2 Features > VLAN > Voice VLAN > Voice VLAN Device, as shown below: Figure 5-26 Voice VLAN Device window The fields that can be configured are described below: Parameter Description...
Page 118 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description Surveillance VLAN The state of the surveillance VLAN. State Surveillance VLAN The name of the surveillance VLAN. Name Surveillance VID (1- The VLAN ID of the surveillance VLAN.
Page 119 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-29 Surveillance VLAN Port Settings window The fields that can be configured are described below: Parameter Description Unit Select the unit you want to configure. From Port / To Port Use the drop-down menu to select a range of port to display.
Page 120: Vlan Trunk Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-30 Surveillance VLAN OUI Settings window The fields that can be configured are described below: Parameter Description OUI Address User defined OUI MAC address. Mask User defined OUI MAC address mask.
Page 121: Browse Vlan
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Refer to the following figure for an illustrated example. Figure 5-32 Example of VLAN Trunk Users can combine a number of VLAN ports together to create VLAN trunks. To view the following window, click L2 Features >...
Page 122: Show Vlan Ports
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-34 Browse VLAN window Enter a page number and click the Go button to navigate to a specific page when multiple pages exist. NOTE: The abbreviations used on this page are Tagged Port (T), Untagged Port (U) and Forbidden Port (F).
Page 123: Qinq
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide QinQ Q-in-Q VLANs allow network providers to expand their VLAN configurations to place customer VLANs within a larger inclusive VLAN, which adds a new layer to the VLAN configuration. This basically lets large ISP's create L2 Virtual Private Networks and also create transparent LANs for their customers, which will connect two or more customer LAN points without over-complicating configurations on the client's side.
Page 124: Qinq Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Regulations for Q-in-Q VLANs • Some rules and regulations apply with the implementation of the Q-in-Q VLAN procedure. • Ports can be configured as UNI ports or NNI ports. •...
Page 125: Vlan Translation Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description QinQ State Selecting this option enable the Q-in-Q feature. Inner TPID Enter an Inner TPID in customer VLAN tag here. Unit Select the unit you want to configure.
Page 126: Vlan Translation Port Mapping Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide SVID (1-4094) Enter the SP-VLAN ID. Priority Select the priority of the s-tag. Click the Apply button to accept the changes made for each individual section. Click the Delete All button to remove all the entries listed.
Page 127: Vlan Translation Profile List
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Action The action indicates to add a VLAN translation profile to the ports selected. Click the Apply button to accept the changes made for each individual section. VLAN Translation Profile List Here the user can configure the VLAN translation profile list.
Page 128 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description Profile ID (1-4) Select the profile ID to configure Rule ID (1-128) Enter the rule ID to be added to the profile. If the rule ID is not specified, it will be assigned automatically.
Page 129: Layer 2 Protocol Tunneling Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-42 VLAN Translation Profile List window (Show Match) Click the Show All VLAN Translation Profile button to the return to the main page. Layer 2 Protocol Tunneling Settings This window is used to configure the layer 2 Protocol tunneling port settings.
Page 130: Spanning Tree
802.1Q-2005 MSTP. 802.1D-1998 STP will be familiar to most networking professionals. However, since 802.1D-2004 RSTP and 802.1Q-2005 MSTP have been recently introduced to D-Link managed Ethernet switches, a brief introduction to the technology is provided below followed by a description of how to set up 802.1D-1998 STP, 802.1D-2004 RSTP, and 802.1Q-2005 MSTP.
Page 131 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide 802.1D-2004 Rapid Spanning Tree The Switch implements three versions of the Spanning Tree Protocol, the Multiple Spanning Tree Protocol (MSTP) as defined by the IEEE 802.1Q-2005, the Rapid Spanning Tree Protocol (RSTP) as defined by the IEEE 802.1D- 2004 specification and a version compatible with the IEEE 802.1D-1998 STP.
Page 132: Stp Bridge Global Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide MSTP or RSTP can interoperate with legacy equipment and is capable of automatically adjusting BPDU packets to 802.1D-1998 format when necessary. However, any segment using 802.1D-1998 STP will not benefit from the rapid transition and rapid topology change detection of MSTP or RSTP.
Page 133: Stp Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Forwarding BPDU This field can be Enabled or Disabled. When Enabled, it allows the forwarding of STP BPDU packets from other network devices. The default is Disabled. Bridge Max Age (6-40) The Max Age may be set to ensure that old information does not endlessly circulate through redundant paths in the network, preventing the effective propagation of the...
Page 134 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-45 STP Port Settings window It is advisable to define an STP Group to correspond to a VLAN group of ports. The fields that can be configured are described below: Parameter Description Unit...
Page 135: Mst Configuration Identification
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Port STP This drop-down menu allows you to enable or disable STP for the selected group of ports. The default is Enabled. Forward BPDU Use the drop-down menu to enable or disable the flooding of BPDU packets when STP is disabled.
Page 136: Stp Instance Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide VID List parameter. Remove VID - Select this parameter to remove VIDs from the MSTI ID, in con- junction with the VID List parameter. VID List (e.g.: 2-5, 10) This field is used to specify the VID range from configured VLANs set on the Switch.
Page 137: Link Aggregation
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-48 MSTP Port Information window To view the MSTI settings for a particular port, use the drop-down menu to select the Port number. To modify the settings for a particular MSTI instance, enter a value in the Instance ID field, an Internal Path Cost, and use the drop-down menu to select a Priority.
Page 138 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide 5-49 Example of Port Trunk Group The Switch treats all ports in a trunk group as a single port. Data transmitted to a specific host (destination address) will always be transmitted over the same port in a trunk group.
Page 139: Port Trunking Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide NOTE: If any ports within the trunk group become disconnected, packets intended for the disconnected port will be load shared among the other linked ports of the link aggregation group.
Page 140: Lacp Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Add button to add a new entry based on the information entered. NOTE: The maximum number of ports that can be configured in one Static Trunk or LACP Group are 8 ports.
Page 141: Fdb
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide LACP. Passive - LACP ports that are designated as passive cannot initially send LACP control frames. In order to allow the linked port group to negotiate adjustments and make changes dynamically, one end of the connection must have "active"...
Page 142: Mac Notification Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Multicast Static FDB Settings Users can set up static multicast forwarding on the Switch. To view the following window, click L2 Features > FDB > Static FDB Settings > Multicast Static FDB Settings, as shown below: Figure 5-53 Multicast Static FDB Settings window The fields that can be configured are described below:...
Page 143: Mac Address Aging Time Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-54 MAC Notification Settings window The fields that can be configured are described below: Parameter Description State Enable or disable MAC notification globally on the Switch Interval (1-2147483647) The time in seconds between notifications.
Page 144: Mac Address Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-55 MAC Address Aging Time Settings window The fields that can be configured are described below: Parameter Description MAC Address Aging This field specifies the length of time a learned MAC Address will remain in the Time (10-1000000) forwarding table without being accessed (that is, how long a learned MAC Address is allowed to remain idle).
Page 145: Arp & Fdb Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Unit Select the unit you want to configure. Port The port to which the MAC address below corresponds. VLAN Name Enter a VLAN Name for the forwarding table to be browsed by. VID List Enter a list of VLAN for the forwarding table to be browsed by.
Page 146: L2 Multicast Control
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide L2 Multicast Control IGMP Proxy Based on IGMP forwarding, the IGMP proxy runs the host part of IGMP on the upstream and router part of IGMP on the downstream, and replicates multicast traffic across VLANs on devices such as the edge boxes.
Page 147 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Select All button to select all the ports for configuration. Click the Clear All button to unselect all the ports for configuration. IGMP Proxy Downstream Settings This window is used to configure the IGMP proxy downstream interface in this page.
Page 148: Igmp Snooping
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-61 IGMP Proxy Group – Member Ports window IGMP Snooping Internet Group Management Protocol (IGMP) snooping allows the Switch to recognize IGMP queries and reports sent between network stations or devices and an IGMP host.
Page 149 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-63 IGMP Snooping Parameters Settings window The fields that can be configured are described below: Parameter Description Query Interval (1-65535) Specify the amount of time in seconds between general query transmissions. The default setting is 125 seconds..
Page 150: Igmp Snooping Rate Limit Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide operation. The General Query won’t be sent on the same domain of link-layer topology changes. Selecting Process specifies that IGMP snooping will process link-layer topology changes caused by Spanning Tree operation. The General Query will be sent on the same domain of link-layer topology changes.
Page 151: Igmp Snooping Static Group Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-65 IGMP Snooping Rate Limit Settings window The fields that can be configured are described below: Parameter Description Port List Enter the port list used for this configuration. VID List Enter the VID list used for this configuration.
Page 152: Igmp Router Port
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide VLAN Name The VLAN Name of the multicast group. VID List The VID List or of the multicast group. IPv4 Address Enter the IPv4 multicast address. Click the Find button to locate a specific entry based on the information entered.
Page 153: Igmp Snooping Group
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-68 IGMP Router Port window Enter a VID (VLAN ID) in the field at the top of the window. Click the Find button to locate a specific entry based on the information entered. Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Page 154: Igmp Snooping Forwarding Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide IGMP Snooping Forwarding Table This page displays the switch’s current IGMP snooping forwarding table. It provides an easy way for user to check the list of ports that the multicast group comes from and specific sources that it will be forwarded to. The packet comes from the source VLAN.
Page 155: Mld Proxy
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Port List The Port List of the multicast group. Click the Find button to locate a specific entry based on the information entered. Click the View All button to display all the existing entries. Click the Packet Statistics link to view the IGMP Snooping Counter Table.
Page 156 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-73 MLD Proxy Settings window The fields that can be configured are described below: Parameter Description MLD Proxy State Use the radio buttons to enable or disable the MLD Proxy Global State. VLAN Name Click the radio button and enter the VLAN name for the interface.
Page 157: Mld Snooping
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-74 MLD Proxy Downstream Settings window The fields that can be configured are described below: Parameter Description VLAN Name Enter the VLAN Name which belongs to the MLD proxy downstream interface. VID List Enter a list of VLANs which belong to the MLD proxy downstream interface.
Page 158: Mld Snooping Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide associated multicast IPv6 multicast group address, and then considers this port to be an active listening port. The active listening ports are the only ones to receive multicast group data. MLD Control Messages Three types of messages are transferred between devices using MLD snooping.
Page 159 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Enter a page number and click the Go button to navigate to a specific page when multiple pages exist. After clicking the Edit button, the following page will appear: Figure 5-78 MLD Snooping Parameters Settings window The fields that can be configured are described below: Parameter...
Page 160: Mld Snooping Rate Limit Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Version Specify the version of MLD packet that will be sent by this port. If a MLD packet received by the interface has a version higher than the specified version, this packet will be forwarded from the router ports or VLAN flooding.
Page 161: Mld Snooping Static Group Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide in this page. To view the following window, click L2 Features > L2 Multicast Control > MLD Snooping > MLD Snooping Rate Limit Settings, as shown below: Figure 5-80 MLD Snooping Rate Limit Settings window The fields that can be configured are described below: Parameter...
Page 162 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-81 MLD Snooping Static Group Settings window The fields that can be configured are described below: Parameter Description VLAN Name The name of the VLAN on which the static group resides. VID List The ID of the VLAN on which the static group resides.
Page 163: Mld Router Port
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide MLD Router Port Users can display which of the Switch’s ports are currently configured as router ports in IPv6. A router port configured by a user (using the console or Web-based management interfaces) is displayed as a static router port, designated by S.
Page 164: Mld Snooping Forwarding Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description VLAN Name Click the radio button and enter the VLAN name of the multicast group. VID List Click the radio button and enter a VLAN list of the multicast group. Port List Specify the port number(s) used to find a multicast group.
Page 165 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-86 MLD Snooping Counter window The fields that can be configured are described below: Parameter Description VLAN Name Specify a VLAN name to be displayed. VID List Specify a list of VLANs to be displayed.
Page 166: Multicast Vlan
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Multicast VLAN In a switching environment, multiple VLANs may exist. Every time a multicast query passes through the Switch, the switch must forward separate different copies of the data to each VLAN on the system, which, in turn, increases data traffic and may clog up the traffic path.
Page 167: Igmp Snooping Multicast Vlan Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Delete All button to remove all the entries listed. Click the View All button to display all the existing entries. Click the Delete button to remove the corresponding entry. Click the Group List link to configure the Multicast Group Profile Address Settings for the specific entry.
Page 168 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Forward Unmatched state. IGMP Multicast VLAN Specifies to enable or disable the assignment of IGMP control packets to the right Auto Assign VLAN Multicast VLAN. If auto assign VLAN is enabled, the Switch will check for group matching with multicast VLAN profiles of which the ingress port belongs to.
Page 169 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Replace Source IP With the IGMP snooping function, the IGMP report packet sent by the host will be forwarded to the source port. Before forwarding of the packet, the source IP address in the join packet needs to be replaced by this IP address.
Page 170: Mld Multicast Group Profile Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide MLD Multicast Group Profile Settings Users can add, delete, or configure the MLD multicast group profile on this page. To view the following window, click L2 Features > L2 Multicast Control > Multicast VLAN > MLD Multicast Group Profile Settings, as shown below: Figure 5-93 MLD Multicast Group Profile Settings window The fields that can be configured are described below:...
Page 171 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-95 MLD Snooping Multicast VLAN Settings window The fields that can be configured are described below: Parameter Description MLD Multicast VLAN Click the radio buttons to enable or disable the MLD multicast VLAN state. State MLD Multicast VLAN Click the radio buttons to can enable or disable the MLD multicast VLAN Forward...
Page 172 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-96 MLD Snooping Multicast VLAN Settings – Edit window The fields that can be configured are described below: Parameter Description State Use the drop-down menu to enable or disable the state. Replace Source IP With the MLD snooping function, the MLD report packet sent by the host will be forwarded to the source port.
Page 173: Multicast Filtering
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide After clicking the Profile List link, the following page will appear: Figure 5-97 MLD Snooping Multicast VLAN Group List Settings window The fields that can be configured are described below: Parameter Description Profile Name...
Page 174: Ipv4 Limited Multicast Range Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Profile Name Enter a name for the IP Multicast Profile. Click the Add button to add a new entry based on the information entered. Click the Find button to locate a specific entry based on the information entered. Click the Delete All button to remove all the entries listed.
Page 175: Ipv4 Max Multicast Group Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-100 IPv4 Limited Multicast Range Settings window The fields that can be configured are described below: Parameter Description Ports / VID List Select the appropriate port(s) or VLAN IDs used for the configuration. Access Assign access permissions to the ports selected.
Page 176: Ipv6 Multicast Filtering
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-101 IPv4 Max Multicast Group Settings window The fields that can be configured are described below: Parameter Description Ports / VID List Select the appropriate port(s) or VLAN IDs used for the configuration here. Max Group (1-1024) If the checkbox Infinite is not selected, the user can enter a Max Group value.
Page 177: Ipv6 Limited Multicast Range Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-102 IPv6 Multicast Profile Settings window The fields that can be configured are described below: Parameter Description Profile ID (1-60) Enter a Profile ID between 1 and 60. Profile Name Enter a name for the IP Multicast Profile.
Page 178: Ipv6 Max Multicast Group Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-104 IPv6 Limited Multicast Range Settings window The fields that can be configured are described below: Parameter Description Ports/VID List Select the appropriate port(s) or VLAN IDs used for the configuration here. Access Assign access permissions to the ports selected.
Page 179: Multicast Filtering Mode
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description Ports/VID List Select the appropriate port(s) or VLAN IDs used for the configuration here. Max Group If the checkbox Infinite is not selected, the user can enter a Max Group value.
Page 180: Erps Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide above. Click the Apply button to accept the changes made. Click the Find button to locate a specific entry based on the information entered. Enter a page number and click the Go button to navigate to a specific page when multiple pages exist. ERPS Settings Ethernet Ring Protection Switching (ERPS) is the first industry standard (ITU-T G.8032) for ERPS.
Page 181 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-107 ERPS Settings window The fields that can be configured are described below: Parameter Description ERPS State Here the user can enable or disable the ERPS State. ERPS Log Here the user can enable or disable the ERPS Log.
Page 182 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-108 ERPS Settings (Detail Information) window Click the Edit button to re-configure the specific entry. Click the <<Back button to return to the ERPS settings page. After click the Edit button, the following window will appear: Figure 5-109 ERPS Settings (Detail Information - Edit) window The fields that can be configured or displayed are described below:...
Page 183 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description R-APS VLAN Display the R-APS VLAN ID. Ring Status Tick the check box and use the drop-down menu to enable or disable the specified ring.
Page 184: Lldp
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description Sub-Ring R-APS VLAN Enter the Sub-Ring R-APS VLAN ID used here. (1-4094) State Tick the check box and use the drop-down menu to add or delete the ERPS Sub- Ring state.
Page 185: Lldp Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide (5-32768) neighbors. To change the packet transmission interval, enter a value between 5 and 35768 seconds. Message TX Hold This function calculates the Time-to-Live for creating and transmitting the LLDP Multiplier (2-10) advertisements to LLDP neighbors by changing the multiplier used by an LLDP Switch.
Page 186: Lldp Management Address List
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description Unit Select the switch unit to configure. From Port / To Port Use the drop-down menu to select the starting and ending ports to use. Notification Use the drop-down menu to enable or disable the status of the LLDP notification.
Page 187: Lldp Basic Tlvs Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide to. The IPv4 address is a management IP address, so the IP information will be sent with the frame. Click the Find button to locate a specific entry based on the information entered. LLDP Basic TLVs Settings TLV stands for Type-length-value, which allows the specific sending information as a TLV element within LLDP packets.
Page 188: Lldp Dot1 Tlvs Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide System Name Use the drop-down menu to enable or disable the System Name option. System Description Use the drop-down menu to enable or disable the System Description option. System Capabilities Use the drop-down menu to enable or disable the System Capabilities option.
Page 189: Lldp Dot3 Tlvs Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide VLAN Name, VLAN ID or All in the next drop-down menu. After selecting this, the user can enter either the VLAN name or VLAN ID in the space provided. Dot1 TLV VLAN Use the drop-down menu to enable or disable, and configure the Dot1 TLV VLAN option.
Page 190: Lldp Statistic System
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide MAC / PHY This TLV optional data type indicates that the LLDP agent should transmit the Configuration Status MAC/PHY configuration/status TLV. This indicates it is possible for two ends of an IEEE 802.3 link to be configured with different duplex and/or speed settings and still establish some limited network connectivity.
Page 191 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-118 LLDP Local Port Information window Select a Unit number from the drop-down menu to view information for a certain unit. To view the normal LLDP Local Port information page per port, click the Show Normal button. To view the brief LLDP Local Port information page per port, click the Show Brief button.
Page 192: Lldp-Med
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-120 LLDP Local Port Information – Show Detail window Click the <<Back button to return to the previous page. LLDP Remote Port Information This page displays port information learned from the neighbors. The switch receives packets from a remote station but is able to store the information as local.
Page 193 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-123 LLDP-MED System Settings window The fields that can be configured are described below: Parameter Description LLDP-MED Log State Click the radio buttons to enable or disable the log state of LLDP-MED events. Fast Start Repeat Count Enter a value between 1 and 10 for the fast start repeat count.
Page 194 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-124 LLDP-MED Port Settings window The fields that can be configured are described below: Parameter Description Unit Select the switch unit to configure. From Port / To Port Select the port range to use for this configuration.
Page 195 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-125 LLDP-MED Local Port Information window Select a Unit and Port number from the drop-down menu and click the Find button to view statistics for a certain unit and port.
Page 196: Lldp-Dcbx
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide LLDP-DCBX LLDP-DCBX TLV Settings On this page, users can view and configure LLDP Data Center Bridging Exchange Protocol (LLDP-DCBX) TLV Settings. To view the following window, click L2 Features > LLDP> LLDP-DCBX > LLDP-DCBX TLV Settings, as shown below: Figure 5-128 LLDP-DCBX TLV Settings window The fields that can be configured are described below:...
Page 197 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide as shown below: Figure 5-129 LLDP-DCBX Local Port Information window The fields that can be configured are described below: Parameter Description Unit Select the switch unit to display. From Port / To Port Select the port range to use for this display.
Page 198: Nlb Fdb Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide NLB FDB Settings The Switch supports Network Load Balancing (NLB). This is a MAC forwarding control for supporting the Microsoft server load balancing application where multiple servers can share the same IP address and MAC address. The requests from clients will be forwarded to all servers, but will only be processed by one of them.
Page 199: Ptp
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The Precision Time Protocol (PTP) system is able to synchronize the distributed clocks with an accuracy of less than 1 microsecond via Ethernet networks for the very first time. PTP is a technology that enables precise synchronization of clocks in systems.
Page 200: Ptp Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide PTP Port Settings This window is used to configure the per port state of the PTP clock. To view this window, click L2 Features > PTP > PTP Port Settings, as shown below: Figure 5-133 PTP Port Settings window The fields that can be configured are described below: Parameter...
Page 201: Ptp Boundary Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-134 PTP Boundary Clock Settings window The fields that can be configured are described below: Parameter Description Priority 1 (0-255) This is used in the execution of the best master clock algorithm. Lower values take precedence.
Page 202: Ptp Peer To Peer Transparent Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-135 PTP Boundary Port Settings window The fields that can be configured are described below: Parameter Description Unit Select the switch unit to configure. From Port / To Port Select the port range to use for this configuration.
Page 203: Ptp Clock Information
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-136 PTP Peer to Peer Transparent Port Settings window The fields that can be configured are described below: Parameter Description Unit Select the switch unit to configure. From Port / To Port Select the port range to use for this configuration.
Page 204: Ptp Port Information
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 5-137 PTP Clock Information window Select a Unit number from the drop-down menu to view information for a certain unit. PTP Port Information This window is used to display the active attributes of the special PTP ports on the switch. To view this window, click L2 Features >...
Page 205: Ptp Foreign Master Records Port Information
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide PTP Foreign Master Records Port Information This window is used to display the current foreign master data set records of the boundary clock’s special ports. To view this window, click L2 Features > PTP > PTP Foreign Master Records Port Information, as shown below: Figure 5-139 PTP Foreign Master Records Port Information window...
Page 206: Chapter 6 L3 Features
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Chapter 6 L3 Features IPv4 Static/Default Route Settings IPv4 Route Table IPv6 Static/Default Route Settings IPv6 Route Table Policy Route Settings IP Forwarding Table IP Multicast Forwarding Table IP Multicast Interface Table IP Multicast Statistics Counter Table Static Multicast Route Settings...
Page 207 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-1 IPv4 Static/Default Route Settings window (EI Mode Only) Figure 6-2 IPv4 Static/Default Route Settings window (SI Mode Only) The fields that can be configured are described below: Parameter Description IP Address...
Page 208: Ipv4 Route Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide IPv4 Route Table The IP routing table stores all the external routes information of the Switch. This window displays all the external route information on the Switch. To view the following window, click L3 Features >...
Page 209 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide To view the following window, click L3 Features > IPv6 Static/Default Route Settings, as shown below: Figure 6-5 IPv6 Static/Default Route Settings window (EI Mode Only) Figure 6-6 IPv6 Static/Default Route Settings window (SI Mode Only) The fields that can be configured are described below: Parameter...
Page 210: Ipv6 Route Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Delete All button to remove all the entries listed. IPv6 Route Table This window is used to display the current IPv6 routing table. To view the following window, click L3 Features > IPv6 Route Table, as shown below: Figure 6-7 IPv6 Route Table window (EI Mode Only) Figure 6-8 IPv6 Route Table window (SI Mode Only) The fields that can be configured are described below:...
Page 211 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-9 Policy Route Settings window The fields that can be configured are described below: Parameter Description Policy Route Name Enter the policy route name. The maximum length is 32 characters. Click the Add button to add a new entry based on the information entered.
Page 212: Ip Forwarding Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide IP Forwarding Table The IP forwarding table stores all the direct connected IP information. On this page the user can view all the direct connected IP information. To view the following window, click L3 Features >...
Page 213: Ip Multicast Interface Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the View All button to display all the existing entries. IP Multicast Interface Table This window displays the current IP multicasting interfaces located on the Switch. To search a specific entry, enter a multicast interface name into the Interface Name field or choose a Protocol from the pull down list and click Find.
Page 214: Static Multicast Route Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-14 IP Multicast Statistics Counter Table window The fields that can be configured are described below: Parameter Description Interface Name Enter the interface name here. This can be up to 12 characters long. Protocol Use the drop-down menu to select the protocol.
Page 215: Route Preference Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-15 Static Multicast Route Settings window The fields that can be configured are described below: Parameter Description IP Address Enter the source IP address of the received IP multicast packet matches this network, the RPF address is used to do RPF check.
Page 216 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-16 Route Preference Settings window (EI Mode Only) Figure 6-17 Route Preference Settings window (SI Mode Only) The fields that can be configured are described below: Parameter Description Static...
Page 217: Ecmp Algorithm Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide ECMP Algorithm Settings This window is used to configure the ECMP OSPF state and ECMP route load-balancing algorithm. To view the following window, click L3 Features > ECMP Algorithm Settings, as shown below: Figure 6-18 ECMP Algorithm Settings window The fields that can be configured are described below: Parameter...
Page 218 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-19 Route Redistribution Settings (RIP) The fields that can be configured are described below: Parameter Description Destination Protocol Use the drop-down menu to select the destination protocol. Options to choose from are RIP, OSPF, and BGP (EI Mode Only).
Page 219 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide are RIP, OSPF, and BGP (EI Mode Only). Source Protocol Use the drop-down menu to select the source protocol. Options to choose from are RIP, OSPF, BGP (EI Mode Only), Static, and Local. Type When any option except OSPF is select as the Source Protocol, the following parameters will be available for selection:...
Page 220: Ipv6 Route Redistribution Settings (Ei Mode Only)
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide redistribute specific routes. Click the Apply button to accept the changes made for each individual section. Click the Edit button to re-configure the specific entry. Click the Delete button to remove the specific entry. IPv6 Route Redistribution Settings (EI Mode Only) Here the user can configure the IPv6 route redistribution settings.
Page 221 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-23 IP Tunnel Settings window The fields that can be configured are described below: Parameter Description Interface Name Enter the IP tunnel interface name. Click the Add button to add a new entry based on the information entered. Click the Find button to locate a specific entry based on the information entered.
Page 222: Ip Tunnel Gre Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide IP Tunnel GRE Settings This window is used to configure an existing tunnel as a GRE tunnel (IPv6/IPv4-in-IPv4 or IPv6/IPv4-in-IPv6) on the Switch. If this tunnel has been configured in another mode before, the tunnel’s information will still exist in the database.
Page 223: Ospf
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Network Address Enter the IPv4 network address assigned to the GRE tunnel interface. IPv4 processing will be enabled on the IPv4 tunnel interface when an IPv4 address is configured.
Page 224 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Link-State Algorithm An OSPF router uses a link-state algorithm to build a shortest path tree to all destinations known to the router. The following is a simplified description of the algorithm’s steps: •...
Page 225 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-27 Constructing a Shortest Path Tree Figure 6-28 Constructing a Shortest Path Tree The diagram above shows the network from the viewpoint of Router A. Router A can reach 192.213.11.0 through Router B with a cost of 10 + 5 = 15.
Page 226 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Router A 128.213.0.0 Router B Router C 192.213.11.0 222.211.10.0 Figure 6-29 Constructing a Shortest Path Tree - Completed Note that this shortest path tree is only from the viewpoint of Router A. The cost of the link from Router B to Router A, for instance is not important to constructing Router A’s shortest path tree, but is very important when Router B is constructing its shortest path tree.
Page 227 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide describing every router on the segment. • External Link-State Updates - Issued by an Autonomous System Border Router and describes routes to destinations outside the AS or a default route to the outside AS. The format of these link-state updates is described in more detail below.
Page 228 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide • Patching the backbone in case there is a discontinuity in area 0. Areas Not Physically Connected to Area 0 All areas of an OSPF network should have a physical connection to the backbone, but in some cases it is not possible to physically connect a remote area to the backbone.
Page 229 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide • Init - The interface has detected a Hello packet coming from a neighbor but bi-directional communication has not yet been established. • Two-way - Bi-directional communication with a neighbor has been established. The router has seen its address in the Hello packets coming from a neighbor.
Page 230 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide OSPF Packet Header Type Packet Length Version No. Router ID Area ID Checksum Authentication Type Authentication Authentication Figure 6-30 OSPF Packet Header Format Parameter Description Version No. The OSPF version number.
Page 231 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Hello Packet Version No. Packet Length Router ID Area ID Checksum Authentication Type Authentication Authentication Network Mask Hello Interval Options Router Priority Router Dead Interval Designated Router Backup Designated Router Neighbor Figure 6-31 Hello Packet...
Page 232 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Database Description Packet Packet Length Version No. Router ID Area ID Checksum Authentication Type Authentication Authentication Reserved I M MS Reserved Options DD Sequence No. Link-State Advertisement Header ... Figure 6-32 Database Description Packet Parameter Description...
Page 233 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Link-State Request Packet Packet Length Version No. Router ID Area ID Checksum Authentication Type Authentication Authentication Link-State Type Link-State ID Advertising Router Figure 6-33 Link-State Request Packet Each advertisement requested is specified by its Link-State Type, Link-State ID, and Advertising Router.
Page 234 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Link-State Update Packet Packet Length Version No. Router ID Area ID Checksum Authentication Type Authentication Authentication Number of Advertisements Link-State Advertisements ... Figure 6-34 Link-State Update Packet The body of the Link-State Update packet consists of a list of link-state advertisements.
Page 235 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Link-State Acknowledgment Packet Packet Length Version No. Router ID Area ID Checksum Authentication Type Authentication Authentication Link-State Advertisement Header ... Figure 6-35 Link State Acknowledge Packet Each acknowledged link-state advertisement is described by its link-state advertisement header.
Page 236 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Link-State Advertisement Header Link-State Age Options Link-State Type Link-State ID Advertising Router Link-State Sequence Number Link-State Checksum Length Figure 6-36 Link State Advertisement Header Parameter Description Link State Age The time is seconds since the link state advertisement was originated.
Page 237 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Routers Links Advertisements Link-State Age Options Link-State Type Link-State ID Advertising Router Link-State Sequence Number Link-State Checksum Length Reserved Reserved Number of Links Link ID Link Data Type No.
Page 238 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description Type A quick classification of the router link. One of the following: Type Description: Point-to-point connection to another router. Connection to a transit network. Connection to a stub network. Virtual link.
Page 239 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Network Link Advertisements Link-State Age Options Link-State ID Advertising Router Link-State Sequence Number Link-State Checksum Length Network Mask Attached Router Figure 6-38 Network Link Advertisements Parameter Description Network Mask The IP address mask for the network.
Page 240 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide For stub area, Type 3 summary link advertisements can also be used to describe a default route on a per-area basis. Default summary routes are used in stub area instead of flooding a complete set of external routes. When describing a default summary route, the advertisement’s Link State ID is always set to the Default Destination 0.0.0.0, and the Network Mask is set to 0.0.0.0.
Page 241 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description Network Mask The IP address mask for the advertised destination. E-bit The type of external metric. If the E-bit is set, the metric specified is a Type 2 external metric.
Page 242 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Type-7 LSA (Link State Advertisement) packets are used to import external routes into the NSSA. These packets can originate from NSSA ASBRs or NSSA ABRs and are defined by setting the P-Bit in the LSA type-7 packet header.
Page 243: Ospfv2
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide be created for the function that accepts these packets to verify these two bits (N and E-Bit). Bits matching the checking feature will be accepted, while other bit combinations will be dropped. The P-Bit Also included in the Options field of the LSA type-7 packet, the P-Bit (propagate) is used to define whether or not to translate the LSA type-7 packet into an LSA type-5 packet for distribution outside the NSSA.
Page 244 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide To view the following window, click L3 Features > OSPF > OSPFv2 > OSPF Area Settings, as shown below: Figure 6-44 OSPF Area Settings window The fields that can be configured are described below: Parameter Description Area ID...
Page 245: Ospf Interface Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the <<Back button to return to the previous window. OSPF Interface Settings This window is used to configure the OSPF Interface settings for this Switch. To view the following window, click L3 Features >...
Page 246: Ospf Virtual Link Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Priority (0-255) Enter the priority for the Designated Router election. If a Router Priority of 0 is set, the Switch cannot be elected as the DR for the network. Metric (1-65535) Enter the interface metric used.
Page 247 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description Transit Area ID A 32-bit number in the form of an IP address (xxx.xxx.xxx.xxx) that uniquely identifies the OSPF area in the OSPF domain.
Page 248: Ospf Area Aggregation Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Password When Simple is selected in the Authentication drop-down menu, enter a simple text password. Click the Apply button to accept the changes made. Click the <<Back button to return to the previous window. OSPF Area Aggregation Settings This window is used to configure the OSPF area aggregation settings.
Page 249 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-51 OSPF Host Route Settings window The fields that can be configured are described below: Parameter Description Host Address Enter the host’s IP address used. Metric Enter a metric between 1 and 65535, which will be advertised.
Page 250: Ospf Lsdb Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide OSPF LSDB Table This window is used to display the OSPF Link State Database (LSDB). To view the following window, click L3 Features > OSPF > OSPFv2 > OSPF LSDB Table, as shown below: Figure 6-53 OSPF LSDB Table window The fields that can be configured are described below: Parameter...
Page 251 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description Neighbor IP Address Enter the IP address of the neighbor router. Click the Find button to find the specified entry. Click the View All button to view all the entries.
Page 252: Ospfv3 (Ei Mode Only)
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide OSPFv3 (EI Mode Only) OSPFv3 Global Settings This window is used to configure the OSPFv3 Global settings for the Switch. To view the following window, click L3 Features > OSPF > OSPFv3 > OSPFv3 Global Settings, as shown below: Figure 6-57 OSPFv3 Global Settings window The fields that can be configured or displayed are described below: Parameter...
Page 253 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Stub Summary When Stub is selected in the Type drop-down menu, use the drop-down menu to specify whether the OSPFv3 stub area imports inter-area prefix LSA advertisements or not.
Page 254 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-61 OSPFv3 Interface Settings - Edit window The fields that can be configured are described below: Parameter Description Area ID Enter a 32-bit number in the form of an IPv4 address that uniquely identifies the OSPFv3 area in the OSPFv3 domain.
Page 255 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-62 OSPFv3 Virtual Interface Settings window The fields that can be configured are described below: Parameter Description Area ID Enter a 32-bit number in the form of an IPv4 address that uniquely identifies the OSPFv3 area in the OSPFv3 domain.
Page 256 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Instance ID (0-255) Enter the instance ID of the interface. The default value is 0. Click the Apply button to accept the changes made. Click the <<Back button to return to the previous window. OSPFv3 Area Aggregation Settings This window is used to configure the OSPFv3 area aggregation settings.
Page 257 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description Area ID Enter a 32-bit number in the form of an IP address (xxx.xxx.xxx.xxx) that uniquely identifies the OSPFv3 area in the OSPFv3 domain. Click the Find button to find the specified entry.
Page 258 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the <<Back button to return to the previous window. Click the View Detail link to under the specific column to view the details of the specific entry. Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Page 259 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-73 OSPFv3 LSDB Inter Area Prefix LSA Detail Table window Click the <<Back button to return to the previous window. Click the View Detail link under Inter Area Router LSA in the OSPFv3 LSDB Table window, the following window will appear.
Page 260 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the View Detail link to under the specific column to view the details of the specific entry. Enter a page number and click the Go button to navigate to a specific page when multiple pages exist. Click the View Detail link to see the following window.
Page 261: Rip
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide OSPFv3 Neighbor Table This window is used to display OSPFv3 neighbor information. To view the following window, click L3 Features > OSPF > OSPFv3 > OSPFv3 Neighbor Table, as shown below: Figure 6-81 OSPFv3 Neighbor Table window The fields that can be configured are described below: Parameter...
Page 262 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide passive devices listen to these messages. Both active and passive routers update their routing tables based upon RIP messages that active routers exchange. Only routers can run RIP in the active mode. Every 30 seconds, a router running RIP broadcasts a routing update containing a set of pairs of network addresses and a distance (represented by the number of hops or routers between the advertising router and the remote network).
Page 263: Rip Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Reserved for Sun Microsystems internal use. Update Request. Update Response. Update Acknowledgement RIP Command Codes The field VERSION contains the protocol version number (1 in this case), and is used by the receiver to verify which version of RIP the packet was sent.
Page 264 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-83 RIP Settings window The fields that can be configured are described below: Parameter Description RIP State Click the radio buttons to enable or disable RIP globally. The default setting is Disabled.
Page 265: Ripng (Ei Mode Only)
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description TX Mode Specifies the RIP transmission mode. Options to choose from are v1 Only, v1 Compatible and v2 Only. Select Disabled to disable this option. RX Mode Specifies the RIP receive mode Options to choose from are v1 Only, v2 Only and v1 or v2.
Page 266: Ip Multicast Routing Protocol
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Update Time (5-65535) Enter the value, in seconds, of the update timer. Expire Time (1-65535) Enter the value, in seconds, of the expire timer. Garbage Collection Enter the value, in seconds, of the garbage collection timer.
Page 267 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide subnetwork. If there are no members on a subnetwork, packets will not be forwarded to that subnetwork. IGMP Versions 1 and 2 Multicast groups allow members to join or leave at any time. IGMP provides the method for members and multicast routers to communicate when joining or leaving a multicast group.
Page 268 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-90 IGMP State Transitions IGMP Version 3 The current release of the Switch now implements IGMPv3. Improvements of IGMPv3 over version 2 include: • The introduction of the SSM or Source Specific Multicast. In previous versions of IGMP, the host would receive all packets sent to the multicast group.
Page 269: Igmp Interface Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Source timers are used to keep sources present and active within a multicast group on the Switch. These source timers are refreshed if a group report packet is received by the Switch, which holds information pertaining to the active source group record part of a report packet.
Page 270 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Edit button to see the following window. Figure 6-92 IGMP Interface Settings – Edit window The fields that can be configured are described below: Parameter Description Version...
Page 271: Igmp Group Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-93 IGMP Subscriber Source Network Check Settings window The fields that can be configured are described below: Parameter Description Interface Name Enter the IP interface name used for this configuration. Click the Find button to find the interface entered.
Page 272: Mld
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-95 IGMP Group Detail Information window Click the <<Back button to return to the previous window. Enter a page number and click the Go button to navigate to a specific page when multiple pages exist. The Multicast Listener Discovery Protocol (MLD) is used by IPv6 routers, much as IGMP is used in IPv4 routers, to discover the presence of multicast listeners (i.e., nodes that wish to receive multicast packets) on their directly attached links, and to discover specifically which multicast addresses are of interest to those neighboring nodes.
Page 273 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-96 MLD Interface Settings window Click the Edit button to re-configure the specific entry. Click the Edit button to see the following window. Figure 6-97 MLD Interface Settings –Edit window The fields that can be configured are described below: Parameter Description...
Page 274 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide State Use the drop-down menu to enable or disable MLD for the IP interface. The default is Disabled. Version Use the drop-down menu to select the MLD version that will decide the interface to send and process which version packets.
Page 275: Dvmrp (Ei Mode Only)
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-99 MLD Group Detail Information window Click the <<Back button to return to the previous window. Enter a page number and click the Go button to navigate to a specific page when multiple pages exist. DVMRP (EI Mode Only) The Distance Vector Multicast Routing Protocol (DVMRP) is a hop-based method of building multicast delivery trees from multicast sources to all nodes of a network.
Page 276: Dvmrp Routing Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-100 DVMRP Interface Settings window The fields that can be configured are described below: Parameter Description DVMRP State Click the radio buttons to enable or disable the DVMRP state. Interface Name Enter the IP interface name of DVMRP.
Page 277: Pim
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-102 DVMRP Neighbor Table window The fields that can be configured are described below: Parameter Description Interface Name Enter the name of the interface. Neighbor IP Enter the IP address of the destination.
Page 278 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide (PIM-DM), Sparse Mode (PIM-SM), PIM Source Specific multicast (PIM-SSM), and Sparse-Dense Mode (PIM-DM- SM). PIM-SM Protocol Independent Multicast - Sparse Mode (PIM-SM) is a multicast routing protocol that can use the underlying unicast routing information base or a separate multicast-capable routing information base.
Page 279: Pim Global Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Assert Messages At times on the PIM-SM enabled network, parallel paths are created from source to receiver, meaning some receivers will receive the same multicast packets twice. To improve this situation, Assert messages are sent from the receiving device to both multicast sources to determine which single router will send the receiver the necessary multicast data.
Page 280: Pim Interface Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-104 PIM Global Settings window The fields that can be configured are described below: Parameter Description PIM Global State Click the radio buttons to enable or disable PIM global state. Register Probe Time Enter a time to send a probe message from the DR to the RP before the Register (1-127)
Page 281: Pim Candidate Bsr Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-106 PIM Interface Settings – Edit window The fields that can be configured are described below: Parameter Description Hello Interval (1-18724) This field will set the interval time between the sending of Hello Packets from this IP interface to neighboring routers one hop away.
Page 282 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-107 PIM Candidate BSR Settings The fields that can be configured are described below: Parameter Description Candidate BSR Hash Enter a hash mask length, which will be used with the IP address of the candidate RP Mask Len (0-32) and the multicast group address, to calculate the hash algorithm used by the router to determine which C-RP on the PIM-SM enabled network will be the RP.
Page 283: Pim Candidate Rp Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide PIM Candidate RP Settings The following window is used to set the Parameters for this Switch to become a candidate RP. To view the following window, click L3 Features > IP Multicast Routing Protocol > PIM > PIM for IPv4 > PIM Candidate RP Settings, as shown below: Figure 6-109 PIM Candidate RP Settings window The fields that can be configured are described below:...
Page 284: Pim Register Checksum Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-110 PIM Static RP Settings window The fields that can be configured are described below: Parameter Description Group Address Enter the multicast group address for this Static RP. This address must be a class D address.
Page 285 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-112 PIM Neighbor Table window The fields that can be configured are described below: Parameter Description Interface Name Enter the name of the IP interface for which you want to display the current PIM neighbor routing table.
Page 286 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description Group Address Enter the group address that will be displayed here. Click the Find button to find the entry, based on the information entered. PIM SSM Settings This window is used to enable the SSM (Source-Specific Multicast) service model in PIM-SM on the Switch.
Page 287 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-116 PIM for IPv6 global Settings window The fields that can be configured are described below: Parameter Description PIM for IPv6 Global Click the radio buttons to enable or disable the PIM for IPv6 global state. State Register Probe Time Enter the time before the Register-Stop Timer (RST) expires when a DR may send a...
Page 288 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Edit button to re-configure the specific entry. Click the Edit button to see the following window. Figure 6-118 PIM for IPv6 Interface Settings – Edit window The fields that can be configured are described below: Parameter Description...
Page 289 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Override Interval (0-65) Enter a value that this router inserts into the Override_Interval field of the LAN Prune Delay option in the PIM for IPv6 Hello messages it sends on this interface. When overriding a prune, PIM for IPv6 routers pick random time duration up to the value of this object.
Page 290 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide To view the following window, click L3 Features > IP Multicast Routing Protocol > PIM > PIM for IPv6 > PIM for IPv6 Candidate RP Settings, as shown below: Figure 6-120 PIM for IPv6 Candidate RP Settings window The fields that can be configured are described below: Parameter...
Page 291 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Override Dynamic Tick the check box so that the static RP will override any dynamically learned RP. Click the Add button to add a new entry based on the information entered. Click the Delete button to remove the specific entry.
Page 292 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-123 PIM for IPv6 Multicast Route Table window The fields that can be configured are described below: Parameter Description Group Address Enter the IPv6 multicast group address. Click the Find button to find the group address entered.
Page 293 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description Source Address Enter the IPv6 source address. Click the <<Back button to return to the previous window. Click the Find button to find the source address entered.
Page 294 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Enter a page number and click the Go button to navigate to a specific page when multiple pages exist. PIM for IPv6 Multicast Route Star-G Table This window is used to display the multicast routing information for (*, G) entries generated by PIM for IPv6.
Page 295 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-130 PIM for IPv6 Multicast Route Star-G Table - View Detail window The fields that can be configured are described below: Parameter Description Interface Name Enter the IPv6 interface name.
Page 296 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the View Detail link to see the following window. Figure 6-132 PIM for IPv6 Multicast Route S-G Table- View Detail window Click the <<Back button to return to the previous window. Click the View Detail button to display the information of the specific entry.
Page 297: Vrrp
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-134 PIM for IPv6 Multicast Route S-G RPT Table window Click the View Detail button to display the information of the specific entry. Click the View Detail button to see the following window. Figure 6-135 PIM for IPv6 Multicast Route S-G RPT Table –...
Page 298: Vrrp Global Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide To configure VRRP for virtual routers on the Switch, an IP interface must be present on the system and it must be a part of a VLAN. VRRP IP interfaces may be assigned to every VLAN, and therefore IP interface, on the Switch. VRRP routers within the same VRRP group must be consistent in configuration settings for this protocol to function optimally.
Page 299 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide State Specifies the state of the virtual router function of the interface. Preempt Mode This entry will determine the behavior of backup routers within the VRRP group by controlling whether a higher priority backup router will preempt a lower priority Master router.
Page 300 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-139 VRRP Virtual Router Settings window The fields that can be configured are described below: Parameter Description IP Address Specifies the virtual router’s IP address used. This IP address is also the default gateway that will be statically assigned to end hosts and must be set for all routers that participate in this group.
Page 301: Vrrp Authentication Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Apply button to accept the changes made. Click the <<Back button to return to the previous window. VRRP Authentication Settings This page is used to configure a virtual router authentication type on an interface. To view the following window, click L3 Features >...
Page 302: Bgp Global Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide BGP Global Settings This window is used to configure BGP state, AS number, and global settings. To view the following window, click L3 Features > BGP > BGP Global Settings, as shown below: Figure 6-142 BGP Global Settings window The fields that can be configured are described below: Parameter...
Page 303 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Always compare MED Enable or disable the comparison of the Multi Exit Discriminator (MED) for paths from the neighbors in different Autonomous Systems. By default this setting is Disabled. Deterministic MED Enable or disable to enforce the deterministic comparison of the Multi Exit Discriminator (MED) for paths received from the neighbors within the same...
Page 304: Bgp Aggregate Address Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Apply button to accept the changes made for each individual section. BGP Aggregate Address Settings This window is used to create an aggregate entry in the Border Gateway Protocol (BGP) database. To view the following window, click L3 Features >...
Page 305: Bgp Dampening Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-144 BGP Network Settings window The fields that can be configured are described below: Parameter Description Network Address Enter the local network address that BGP will advertise, followed by the prefix length. Route Map Name Enter the route map to be applied to the advertised networks.
Page 306 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-145 BGP Dampening Settings window The fields that can be configured are described below: Parameter Description Dampening State Use the drop-down menu to enable or disable the BGP dampening function’s state. Address Family Select the address family that will be configured here.
Page 307: Bgp Peer Group Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide BGP Peer Group Settings This window is used to create or delete a Border Gateway Protocol (BGP) neighbor. To view the following window, click L3 Features > BGP > BGP Peer Group Settings, as shown below: Figure 6-146 BGP Peer Group Settings window The fields that can be configured are described below: Parameter...
Page 308: Bgp Neighbor
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-147 BGP Peer Group Settings - View Detail window Click the <<Back button to return to the previous window. BGP Neighbor BGP Neighbor Group Settings This window is used to configure a Border Gateway Protocol (BGP) neighbor group.
Page 309 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Add button to add a new entry based on the information entered in each individual section. BGP Neighbor Description Settings This window is used to configure BGP neighbor description settings. To view the following window, click L3 Features >...
Page 310 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Neighbor Address Select an existing BGP speaking neighbor address here. Peer Group Name Click the radio button and use the drop-down menu to select a name of the BGP peer group.
Page 311 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-152 BGP Neighbor Maximum Prefix Settings window The fields that can be configured are described below: Parameter Description Neighbor Address Click the radio button and use the drop-down menu to select the address of the BGP speaking neighbor.
Page 312 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-153 BGP Neighbor General Settings window The fields that can be configured are described below: Parameter Description Neighbor Address Click the radio button and use the drop-down menu to select the address of the BGP speaking neighbor.
Page 313 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Allow AS in If this is Enabled, the BGP router’s self AS is allowed in the AS path list. By default, this setting is Disabled. If no number is supplied, the default value of three times is used.
Page 314 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Hold Time (0-65535) The system will declare a peer as dead if not receiving a keepalive message until the hold time. If two routers, that built a BGP connection, have different hold times, the smaller hold time will be used.
Page 315 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Route Map Action Use the drop-down menu to select Add or Delete. Route Map Name Enter the route map to be applied to the incoming or outgoing routes. Click the Apply button to accept the changes made.
Page 316 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Capability ORF Use to configure an outbound route filter prefix list capability. It can be sent with the Prefix List Type following values: Receive – Enable the ORF prefix list capability in the receiving direction. The local router will install the prefix filter list notified by the remote router.
Page 317: Bgp Reflector Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-158 BGP Neighbor Table - View Detail window Click the View Detail link in ORF Prefix List Name to view more information. Click the <<Back button to return to the previous window. Click the View Detail link in ORF Prefix List Name to see the following window.
Page 318: Bgp Confederation Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description Route Reflector Enter the IP address of the cluster ID. The route reflector and its clients together form a Cluster ID cluster.
Page 319: Bgp As Path Access Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description Confederation Identifier Enter an Autonomous System number which is used to specify a BGP (0-4294967295) confederation.
Page 320: Bgp Community List Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-163 BGP AS Path Access Settings - View Detail window The fields that can be configured are described below: Parameter Description Mode Use the drop-down menu to Permit or Deny advertisement based on matching conditions.
Page 321: Bgp Trap Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-165 BGP Community Rule Settings - View Detail window The fields that can be configured are described below: Parameter Description Mode Use the drop-down menu to permit or deny the routes if rule is matched. Regular Expression Enter the community set value.
Page 322: Bgp Clear Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description Peer Established Enable or disable the sending of the peer established trap. The default value is Trap State Disabled.
Page 323: Bgp Summary Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Mode Option Tick the desired mode option: Soft, In, Prefix Filter or Out. Soft – This initiates a soft reset. It does not tear down the session. In –...
Page 324 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-169 BGP Routing Table (Regexp) window The static fields that can be configured are described below: Parameter Description Type Select the BGP routing type of information to display. Options to choose from are Regexp, Filter List, Route Map, Prefix List, CIDR Only, Inconsistent AS, Community, Community List, Address, and Network.
Page 325 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide After selecting the Route Map option as the Type, the following options will be available. Figure 6-171 BGP Routing Table (Route Map) window The dynamic fields that can be configured are described below: Parameter Description Route Map Name...
Page 326 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-173 BGP Routing Table (CIDR Only) window The dynamic fields that can be configured are described below: Parameter Description CIDR Only Tick Classless Inter-Domain Routing (CIDR) Only to just display routes with custom masks.
Page 327 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-175 BGP Routing Table (Community) window The dynamic fields that can be configured are described below: Parameter Description Community Community Set – Tick the check box and enter the community set. This value can be up to 80 characters long.
Page 328: Bgp Dampened Route Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-177 BGP Routing Table (Address) window The dynamic fields that can be configured are described below: Parameter Description IP Address Display the host route that matches the specified IP address. Click the Find button to locate a specific entry based on the information entered.
Page 329: Bgp Flap Statistic Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-179 BGP Dampened Route Table window The fields that can be configured are described below: Parameter Description Address Family Select the address family that will be displayed here. Options to choose from are IPv4 Unicast and IPv6 Unicast.
Page 330: Ip Route Filter
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide IPv6 Address After selecting Address as the Action and IPv6 Unicast as the Address Family, the following parameter will be available. Enter the IPv6 address of the BGP flap statistics entry that will be cleared here.
Page 331 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-182 IP Prefix List Settings - Clear Counter window The fields that can be configured are described below: Parameter Description Prefix List Name Enter the name of the prefix list that will be cleared. Type Select the IP prefix list type that will be cleared here.
Page 332: Ip Standard Access List Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide LE (1-32) Enter the maximum prefix length to be matched. Click the Add button to add a new entry based on the information entered. Click the <<Back button to return to the previous window. Click the Edit button to re-configure the specific entry.
Page 333 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-185 IP Standard Access List Settings window The fields that can be configured are described below: Parameter Description Access List Name Enter the name of the access list. Type Select the IP standard access list type that will be created or displayed here.
Page 334: Route Map Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-187 IP Standard Access List Settings - View Detail (IPv6) window The fields that can be configured are described below: Parameter Description Direction Use the drop-down menu to Permit or Deny the specified network. IPv6 Access Enter the IPv6 network address followed by the prefix.
Page 335 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-189 Route Map Settings - View Detail window The fields that can be configured are described below: Parameter Description Sequence ID (1- Enter the sequence number for the rule. 65535) Direction Use the drop-down menu to Permit or Deny the matched rule.
Page 336 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description Action Select the action that will be taken here. Options to choose from are Add and Delete. AS Path Select and enter the AS path access list name here. The AS path list specified here needs to be a sub-list of the AS path list associated with the route.
Page 337 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-191 Route Map Settings - Set Clause window The fields that can be configured are described below: Parameter Description Action Use the drop-down menu to Add or Delete a sequence entry. Next Hop Click the radio button to set the next hop attribute.
Page 338: Md5 Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Local Preference Click the radio button to enter the local preference for the matched route. (0-4294967295) By default, the BGP router will send the default local preference with the routes. It can be overwritten by the local preference set by the route map.
Page 339: Igmp Static Group Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide to authenticate every packet exchanged between OSPF routers. It is used as a security mechanism to limit the exchange of network topology information to the OSPF routing domain. This page is used to configure an MD5 key and password.
Page 340: Urpf Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Multicast Group Enter the multicast IP address. Click the Add button to add a new entry based on the information entered. Click the Delete button to remove a specific entry listed. Click the Find button to find the information entered.
Page 341: Bfd
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Mode Select the URPF checking mode. Options to choose from are Disabled, Loose, and Strict. Disabled – This option specifies that the URPF checking mode option will be disabled. Loose –...
Page 342 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-195 BFD Settings window The fields that can be configured are described below: Parameter Description BFD State Select to enable or disable the BFD feature here. Interface Name Enter the interface’s name that will be displayed here.
Page 343: Bfd Neighbors
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide BFD Neighbors On this page, users can view and configure the BFD neighbor settings on the Switch. To view the following window, click L3 Features > BFD > BFD Neighbors, as shown below: Figure 6-196 BFD Neighbors window The fields that can be configured are described below: Parameter...
Page 344: Chapter 7 Qos
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Chapter 7 802.1p Settings Bandwidth Control Traffic Control Settings DSCP HOL Blocking Prevention Scheduling Settings WRED PFC Port Settings The Switch supports 802.1p priority queuing Quality of Service. The following section discusses the implementation of QoS (Quality of Service) and benefits of using 802.1p priority queuing.
Page 345: 802.1P Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide optimizes the use of bandwidth available for the video conference. Understanding QoS The Switch supports 802.1p priority queuing. The Switch has eight priority queues. These priority queues are numbered from 7 (Class 7) —...
Page 346: 802.1P User Priority Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 7-2 Default Priority Settings window The fields that can be configured are described below: Parameter Description Unit Select the switch unit to configure. From Port / To Port Select the starting and ending ports to use.
Page 347: Bandwidth Control
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 7-3 802.1p User Priority Settings window Once a priority has been assigned to the port groups on the Switch, then a Class may be assigned to each of the eight levels of 802.1p priorities using the drop-down menus on this window.
Page 348: Bandwidth Control Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Bandwidth Control Settings The Effective RX/TX Rate refers to the actual bandwidth of the switch port, if it does not match the configured rate. This usually means that the bandwidth has been assigned by a higher priority resource, such as a RADIUS server. To view the following window, click QoS >...
Page 349: Queue Bandwidth Control Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide limit. Effective RX If a RADIUS server has assigned the RX bandwidth, then it will be the effective RX bandwidth. The authentication with the RADIUS sever can be per port or per user. For per user authentication, there may be multiple RX bandwidths assigned if there are multiple users attached to this specific port.
Page 350: Traffic Control Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide From Port / To Port Use the drop-down menu to select the port range to use for this configuration. From Queue / To Queue Use the drop-down menu to select the queue range to use for this configuration. Min Rate Mode Selec the minimum rate mode option here.
Page 351 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide configured in the Traffic Auto Recover Time field. Select the disabled port and return its State to Enabled status. To utilize this method of Storm Control, choose the Shutdown option of the Action parameter in the window below. Use this window to enable or disable storm control and adjust the threshold for multicast and broadcast storms.
Page 352 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide occurring. Countdown (0, 3-30 or The Count Down timer is set to determine the amount of time, in minutes, that the disable) Switch will wait before shutting down the port that is experiencing a traffic storm. This parameter is only useful for ports configured as Shutdown in their Action field and therefore will not operate for hardware-based Traffic Control implementations.
Page 353: Dscp
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 7-7 Traffic Control Settings (View Details) window Click the <<Back button to return to the previous page. NOTE: Traffic Control cannot be implemented on ports that are set for Link Aggregation (Port Trunking).
Page 354: Dscp Map Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 6-7. DSCP Trust Settings window. The fields that can be configured are described below: Parameter Description Unit Select the switch unit to configure. From Port / To Port Use the drop-down menu to select the port range to use for this configuration.
Page 355 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 7-8 DSCP Map Settings - DSCP Priority window To view the following window, click QoS > DSCP > DSCP Map Settings and select DSCP DSCP from the DSCP Map drop-down menu, as show below: Figure 7-9 DSCP Map Settings - DSCP DSCP window The fields that can be configured are described below:...
Page 356: Hol Blocking Prevention
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide DSCP Map Use the drop-down menu to select one of two options: DSCP Priority – Specify a list of DSCP values to be mapped to a specific priority. DSCP DSCP –...
Page 357: Qos Scheduling Mechanism
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 7-11. QoS Scheduling window The following parameters can be configured: Parameter Description Unit Select the switch unit to configure. From Port / To Port Enter the port or port list you wish to configure. Class ID Select the Class ID, from 0-7 to configure for the QoS parameters.
Page 358: Wred
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 7-12. QoS Scheduling Mechanism window The following parameters can be configured: Parameter Description Unit Select the switch unit to configure. From Port / To Port Enter the port or port list you wish to configure.
Page 359: Wred Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide 1. Every QoS queue has a minimum and a maximum level for acceptance of packets. Once the maximum threshold has been reached for this queue, the Switch will begin discarding all ingress packets, this minimizing the allotted bandwidth for QoS.
Page 360: Wred Profile Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Weight (0-15) Specify the weight in the average queue size calculation. Profile Use the drop-down menu to select the profile to be used for WERD ports and queue.
Page 361: Pfc Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Packet Colour Select the packet color, Green, yellow or red, to be dropped. Min Threshold (0-100) Enter the minimum threshold value to start WRED dropping. Max Threshold (0-100) Enter the maximum threshold value over which WRED will drop all packets destined for this queue.
Page 362 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 7-12 PFC Port Settings window The fields that can be configured are described below: Parameter Description Unit Select the switch unit number, from the stack, that will be configured here. From Port ~ To Port Select the range of 10G ports that will be configured or cleared here.
Page 363 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Clear button to clear the PFC counters based on the information entered.
Page 364: Chapter 8 Acl
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Chapter 8 ACL Configuration Wizard Access Profile List CPU Access Profile List ACL Finder ACL Flow Meter Egress Access Profile List Egress ACL Flow Meter ACL Configuration Wizard The ACL Configuration Wizard will aid the user in the creation of access profiles and ACL Rules automatically by simply inputting the address or service type and the action needed.
Page 365: Access Profile List
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide switch to automatically assign an unused access ID to this rule. From / To This rule can be created to apply to four different categories: Any – Selecting this option will include any starting category to this rule. MAC Address –...
Page 366: Adding An Ethernet Acl Profile
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-2 Access Profile List window Click the Add ACL Profile button to add an entry to the Access Profile List. Click the Delete All button to remove all access profiles from this table. Click the Show Details button to display the information of the specific profile ID entry.
Page 367 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-3 Add ACL Profile window (Ethernet ACL) The fields that can be configured are described below: Parameter Description Profile ID (1-6) Enter a unique identifier number for this profile set. This value can be set from 1 to 6. Profile Name Enter a profile name for the profile created.
Page 368 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide After clicking the Show Details button, the following page will appear: Figure 8-4 Access Profile Detail Information window (Ethernet ACL) Click the Show All Profiles button to navigate back to the Access Profile List window. After clicking the Add/View Rules button, the following page will appear: Figure 8-5 Access Rule List window (Ethernet ACL) Click the <<Back button to return to the previous page.
Page 369 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-6 Add Access Rule window (Ethernet ACL) The fields that can be configured are described below: Parameter Description Access ID (1-256) Type in a unique identifier number for this access. This value can be set from 1 to 256.
Page 370: Adding An Ipv4 Acl Profile
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide meets the selected criteria) with the value entered in the adjacent field. When an ACL rule is added to change both the priority and DSCP of an IPv4 packet, only one of them can be modified due to a chip limitation.
Page 371 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-8 Add ACL Profile window (IPv4 ACL) The fields that can be configured are described below: Parameter Description Profile ID (1-6) Enter a unique identifier number for this profile set. This value can be set from 1 to Select ACL Type Select profile based on Ethernet (MAC Address), IPv4 address, IPv6 address, or packet content.
Page 372 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Select Type to further specify that the access profile will apply an ICMP type value, or specify Code to further specify that the access profile will apply an ICMP code value.
Page 373 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-10 Access Rule List window (IPv4 ACL) Click the <<Back button to return to the previous page. Click the Add Rule button to create a new ACL rule in this profile. Click the Show Details button to view more information about the specific rule created.
Page 374 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide by the Switch, according to any additional rule added (see below). Select Deny to specify that the packets that match the access profile are not forwarded by the Switch and will be filtered.
Page 375: Adding An Ipv6 Acl Profile
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-12 Access Rule Detail Information (IPv4 ACL) window Click the Show All Rules button to navigate back to the Access Rule List. Adding an IPv6 ACL Profile The window shown below is the Add ACL Profile window for IPv6.
Page 376 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Select ACL Type Select profile based on Ethernet (MAC Address), IPv4 address, IPv6 address, or packet content. This will change the window according to the requirements for the type of profile.
Page 377 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-15 Access Rule List window (IPv6 ACL) Click the <<Back button to return to the previous page. Click the Add Rule button to create a new ACL rule in this profile. Click the Show Details button to view more information about the specific rule created.
Page 378 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Action Select Permit to specify that the packets that match the access profile are forwarded by the Switch, according to any additional rule added (see below). Select Deny to specify that packets that match the access profile are not forwarded by the Switch and will be filtered.
Page 379: Adding A Packet Content Acl Profile
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-17 Access Rule Detail Information (IPv6 ACL) window Click the Show All Rules button to navigate back to the Access Rule List. Adding a Packet Content ACL Profile The window shown below is the Add ACL Profile window for Packet Content: To use specific filtering masks in this ACL profile, click the packet filtering mask field to highlight it red.
Page 380 Note: Only one packet_content_mask profile can be created. With this advanced unique Packet Content Mask (also known as Packet Content Access Control List - ® D-Link xStack switch family can effectively mitigate some network attacks like the ACL), the common ARP Spoofing attack that is wide spread today. This is why the Packet Content ACL is able to inspect any specified content of a packet in different protocol layers.
Page 381 However, ARP is vulnerable as it can be easily spoofed and utilized to attack a LAN (i.e. an ARP spoofing attack). For a more detailed explanation on how ARP protocol works and how to employ D-Link’s unique Packet Content ACL to prevent ARP spoofing attack, please see Appendix E at the end of this manual.
Page 382 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description Access ID (1-256) Type in a unique identifier number for this access. This value can be set from 1 to 256. Auto Assign – Tick the check box will instruct the Switch to automatically assign an Access ID for the rule being created.
Page 383: Cpu Access Profile List
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-22 Access Rule Detail Information (Packet Content ACL) window Click the Show All Rules button to navigate back to the Access Rule List. CPU Access Profile List Due to a chipset limitation and needed extra switch security, the Switch incorporates CPU Interface filtering.
Page 384: Adding A Cpu Ethernet Acl Profile
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-23 CPU Access Profile List window The fields that can be configured are described below: Parameter Description CPU Interface Filtering Here the user can enable or disable the CPU interface filtering state. State Click the Apply button to accept the changes made.
Page 385 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-24 Add CPU ACL Profile (Ethernet ACL) window The fields that can be configured are described below: Parameter Description Profile ID (1-5) Enter a unique identifier number for this profile set. This value can be set from 1 to 5. Select ACL Type Select profile based on Ethernet (MAC Address), IPv4 address, IPv6 address, or packet content mask.
Page 386 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-25 CPU Access Profile Detail Information (Ethernet ACL) window Click the Show All Profiles button to navigate back to the CPU ACL Profile List window. After clicking the Add/View Rules button, the following page will appear: Figure 8-26 CPU Access Rule List (Ethernet ACL) window Click the Add Rule button to create a new CPU ACL rule in this profile.
Page 387 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-27 Add CPU Access Rule (Ethernet ACL) window The fields that can be configured are described below: Parameter Description Access ID (1-100) Type in a unique identifier number for this access. This value can be set from 1 to 100.
Page 388: Adding A Cpu Ipv4 Acl Profile
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-28 CPU Access Rule Detail Information (Ethernet ACL) window Click the Show All Rules button to navigate back to the CPU Access Rule List. Adding a CPU IPv4 ACL Profile The window shown below is the Add CPU ACL Profile window for IP (IPv4).
Page 389 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Select IPv4 to instruct the Switch to examine the IP address in each frame's header. Select IPv6 to instruct the Switch to examine the IP address in each frame's header. Select Packet Content Mask to specify a mask to hide the content of the packet header.
Page 390 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide After clicking the Show Details button, the following page will appear: Figure 8-30 CPU Access Profile Detail Information (IPv4 ACL) window Click the Show All Profiles button to navigate back to the CPU ACL Profile List window. After clicking the Add/View Rules button, the following page will appear: Figure 8-31 CPU Access Rule List (IPv4 ACL) window Click the Add Rule button to create a new CPU ACL rule in this profile.
Page 391 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-32 Add CPU Access Rule (IPv4 ACL) window The fields that can be configured are described below: Parameter Description Access ID (1-100) Type in a unique identifier number for this access. This value can be set from 1 to 100.
Page 392: Adding A Cpu Ipv6 Acl Profile
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-33 CPU Access Rule Detail Information (IPv4 ACL) window Click the Show All Rules button to navigate back to the CPU Access Rule List. Adding a CPU IPv6 ACL Profile The window shown below is the Add CPU ACL Profile window for IPv6.
Page 393 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Select Ethernet to instruct the Switch to examine the layer 2 part of each packet header. Select IPv4 to instruct the Switch to examine the IP address in each frame's header.
Page 394 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-37 Add CPU Access Rule (IPv6 ACL) window The fields that can be configured are described below: Parameter Description Access ID (1-100) Enter a unique identifier number for this access. This value can be set from 1 to 100. Auto Assign –...
Page 395: Adding A Cpu Packet Content Acl Profile
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-38 CPU Access Rule Detail Information (IPv6 ACL) window Click the Show All Rules button to navigate back to the CPU Access Rule List. Adding a CPU Packet Content ACL Profile The window shown below is the Add CPU ACL Profile window for Packet Content.
Page 396 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Select IPv6 to instruct the Switch to examine the IP address in each frame's header. Select Packet Content Mask to specify a mask to hide the content of the packet header. Offset This field will instruct the Switch to mask the packet header beginning with the offset value specified:...
Page 397 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-42 Add CPU Access Rule (Packet Content ACL) window The fields that can be configured are described below: Parameter Description Access ID (1-100) Type in a unique identifier number for this access. This value can be set from 1 to 100. Auto Assign –...
Page 398: Acl Finder
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide After clicking the Show Details button in the CPU Access Rule List, the following page will appear: Figure 8-43 CPU Access Rule Detail Information (Packet Content ACL) window Click the Show All Rules button to navigate back to the CPU Access Rule List.
Page 399: Acl Flow Meter
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Delete button to remove the specific entry selected. Enter a page number and click the Go button to navigate to a specific page when multiple pages exist. ACL Flow Meter Before configuring the ACL Flow Meter, here is a list of acronyms and terms users will need to know.
Page 400 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-45 ACL Flow Meter window The fields that can be configured are described below: Parameter Description Profile ID Enter the Profile ID for the flow meter. Profile Name Enter the Profile Name for the flow meter.
Page 401 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-46 ACL Flow meter Configuration window The fields that can be configured are described below: Parameter Description Profile ID Here the user can enter the Profile ID for the flow meter. Profile Name Here the user can enter the Profile Name for the flow meter.
Page 402: Egress Access Profile List
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide EBS – Specify the Excess Burst Size. The unit is in kilobyte. Action Conform – This field denotes the green packet flow. Green packet flows may have their DSCP field rewritten to a value stated in this field.
Page 403: Adding An Ethernet Egress Acl Profile
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Adding an Ethernet Egress ACL Profile The window shown below is the Add Egress ACL Profile window for Ethernet. To use specific filtering masks in this egress ACL profile, click the packet filtering mask field to highlight it red.
Page 404 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Ethernet Type Selecting this option instructs the Switch to examine the Ethernet type value in each frame's header. Click the Select button to select an ACL type. Click the <<Back button to discard the changes made and return to the previous page.
Page 405 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-52 Add Egress Access Rule window (Ethernet ACL) The fields that can be configured are described below: Parameter Description Access ID (1-128) Type in a unique identifier number for this access. This value can be set from 1 to 128.
Page 406: Adding An Ipv4 Egress Acl Profile
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Replace DSCP (0-63) Select this option to instruct the Switch to replace the DSCP value (in a packet that meets the selected criteria) with the value entered in the adjacent field. When an ACL rule is added to change both the priority and DSCP of an IPv4 packet, only one of them can be modified due to a chip limitation.
Page 407 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-54 Add Egress ACL Profile window (IPv4 ACL) The fields that can be configured are described below: Parameter Description Profile ID (1-4) Enter a unique identifier number for this profile set. This value can be set from 1 to Profile Name Enter a profile name for the profile created.
Page 408 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide value. Select IGMP to instruct the Switch to examine the Internet Group Management Protocol (IGMP) field in each frame's header. Select Type to further specify that the access profile will apply an IGMP type value. Select TCP to use the TCP port number contained in an incoming packet as the forwarding criterion.
Page 409 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-56 Egress Access Rule List window (IPv4 ACL) Click the <<Back button to return to the previous page. Click the Add Rule button to create a new ACL rule in this profile. Click the Show Details button to view more information about the specific rule created.
Page 410 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide DSCP Specify the value of DSCP. The DSCP value ranges from 0 to 63. Mirror Tick this option to specify that packets matching the access rule are copied to the mirror port in the mirror group.
Page 411: Adding An Ipv6 Egress Acl Profile
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-58 Egress Access Rule Detail Information (IPv4 ACL) window Click the Show All Rules button to navigate back to the Access Rule List. Adding an IPv6 Egress ACL Profile The window shown below is the Add Egress ACL Profile window for IPv6.
Page 412 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Select ACL Type Select profile based on Ethernet (MAC Address), IPv4 address, or IPv6 address. This will change the window according to the requirements for the type of profile. Select Ethernet ACL to instruct the Switch to examine the layer 2 part of each packet header.
Page 413 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Add Rule button to create a new ACL rule in this profile. Click the Show Details button to view more information about the specific rule created. Click the Delete Rules button to remove the specific entry.
Page 414: Egress Acl Flow Meter
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide this command, before forwarding it on to the specified CoS queue. Otherwise, a packet will have its incoming 802.1p user priority re-written to its original value before being forwarded by the Switch.
Page 415 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide To view this window, click ACL > Egress ACL Flow Meter as shown below: Figure 8-64 Egress ACL Flow Meter window The fields that can be configured are described below: Parameter Description Profile ID...
Page 416 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 8-65 Egress ACL Flow Meter Configuration window The fields that can be configured are described below: Parameter Description Profile ID Enter the Profile ID for the flow meter. Profile Name Enter the Profile Name for the flow meter.
Page 417 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide EBS – Specify the Excess Burst Size. The unit is in kilobyte. Action Conform – This field denotes the green packet flow. Green packet flows may have their DSCP field rewritten to a value stated in this field.
Page 418: Chapter 9 Security
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Chapter 9 Security 802.1X RADIUS IP-MAC-Port Binding (IMPB) MAC-based Access Control (MAC) Web-based Access Control (WAC) Japanese Web-based Access Control (JWAC) Compound Authentication IGMP Access Control Settings Port Security ARP Spoofing Prevention Settings BPDU Attack Protection...
Page 419 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Authentication Server The Authentication Server is a remote device that is connected to the same network as the Client and Authenticator, must be running a RADIUS Server program and must be configured properly on the Authenticator (Switch).
Page 420 Figure 9-6 The 802.1X Authentication Process The D-Link implementation of 802.1X allows network administrators to choose between two types of Access Control used on the Switch, which are: 1. Port-Based Access Control – This method requires only one user to be authenticated per port by a remote RADIUS server to allow the remaining users on the same port access to the network.
Page 421: 802.1X Global Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Host-based Network Access Control In order to successfully make use of 802.1X in a shared media LAN segment, it would be necessary to create “logical” Ports, one for each attached device that required access to the LAN.
Page 422: 802.1X Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Trap State Select to enable or disable the 802.1X trap state here. Click the Apply button to accept the changes made. 802.1X Port Settings Users can configure the 802.1X authenticator port settings. To view this window, click Security >...
Page 423 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide ServerTimeout This value determines timeout conditions in the exchanges between the Authenticator and the authentication server. The default setting is 30 seconds. MaxReq The maximum number of times that the Switch will retransmit an EAP Request to the client before it times out of the authentication sessions.
Page 424: 802.1X User Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide 802.1X User Settings Users can set different 802.1X users in switch’s local database. To view this window, click Security > 802.1X > 802.1X User Settings as shown below: Figure 9-11 802.1X User Settings window The fields that can be configured are described below: Parameter...
Page 425: Guest Vlan Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Guest VLAN Settings On 802.1X security-enabled networks, there is a need for non- 802.1X supported devices to gain limited access to the network, due to lack of the proper 802.1X software or incompatible devices, such as computers running Windows 98 or older operating systems, or the need for guests to gain access to the network without...
Page 426: Authenticator State
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description VLAN Name Enter the pre-configured VLAN name to create as an 802.1X guest VLAN. Unit Select the switch unit to configure.
Page 427: Authenticator Session Statistics
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-15 Authenticator Statistics Window The fields that can be configured are described below: Parameter Description Unit Select a unit you want to display. Port Use the drop-down menu to select a port to display. Click the Apply button to accept the changes made.
Page 428: Authenticator Diagnostics
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-16 Authenticator Session Statistics Window The fields that can be configured are described below: Parameter Description Unit Select a unit you want to display. Port Use the drop-down menu to select a port to display.
Page 429: Initialize Port-Based Port(S)
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-17 Authenticator Diagnostics Window The fields that can be configured are described below: Parameter Description Unit Select a unit you want to display. Port Use the drop-down menu to select a port to display. Click the Apply button to accept the changes made.
Page 430: Initialize Host-Based Port(S)
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description Unit Select a unit you want to display. From Port / To Port Use the drop-down menus to select a range of ports to initialize. Click the Apply button to accept the changes made.
Page 431: Reauthenticate Host-Based Port(S)
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Reauthenticate Host-based Port(s) This window is used to re-authenticate the device connected with the host-based ports. This window appears when the Authentication State is enabled in 802.1X Global Settings window. To view this window, click Security >...
Page 432: Radius Authentication
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description Index Choose the desired RADIUS server to configure: 1, 2 or 3 and select the IPv4 Address.
Page 433 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-23 RAIUS Authentication window The user may also select the desired time interval to update the statistics, between 1s and 60s, where “s” stands for seconds. The default value is one second. The fields that can be configured are described below: Parameter Description...
Page 434: Radius Account Client
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide server. AccessRejects The number of RADIUS Access-Reject packets (valid or invalid) received from this server. AccessChallenges The number of RADIUS Access-Challenge packets (valid or invalid) received from this server.
Page 435 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-24 RADIUS Account Client window The user may also select the desired time interval to update the statistics, between 1s and 60s, where “s” stands for seconds.
Page 436: Ip-Mac-Port Binding (Impb)
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide MalformedResponses The number of malformed RADIUS Accounting-Response packets received from this server. Malformed packets include packets with an invalid length. Bad authenticators and unknown types are not included as malformed accounting responses. BadAuthenticators The number of RADIUS Accounting-Response packets, which contained invalid authenticators, received from this server.
Page 437 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-25 IMPB Global Settings window The fields that can be configured are described below: Parameter Description Roaming State Select to enable or disable the roaming state. When IMPB roaming is enabled, the dynamic authenticated MAC address which learned through DHCP/ND snooping on specific port can change to another port if it detects (1) a new DHCP process belong to same IP and MAC address or (2) a new DAD process belong to same IP and...
Page 438: Impb Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Address Binding DHCP This option is used to save the DHCPv4 snooping binding entries. Enter the Snooping Entry File filename here. Note: This feature is only supported on devices that support external memory (e.g.
Page 439: Impb Entry Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Enabled (Loose) - In this mode, all packets are forwarded by default until an illegal ARP packet is detected. The default value is Disabled. IP Inspection When both ARP and IP inspections are enabled, all IP packets are checked.
Page 440: Mac Block List
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide the Switch. Click the Apply button to accept the changes made. Click the Find button to locate a specific entry based on the information entered. Click the View All button to display all the existing entries. Click the Delete All button to remove all the entries listed.
Page 441 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-29 DHCP Snooping Max Entry Settings window The fields that can be configured are described below: Parameter Description Unit Select the switch unit to configure. From Port / To Port Use the drop-down menus to select a range of ports to use.
Page 442 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-30 DHCP Snooping Entry window The fields that can be configured are described below: Parameter Description Unit Select the unit you want to configure. Port Use the drop-down menu to select the desired port.
Page 443: Nd Snooping
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-31 DHCP Snooping Limit Rate Settings window The fields that can be configured are described below: Parameter Description Unit Select the unit you want to configure. From Port ~ To Port Select a range of ports to be configured.
Page 444 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-32 ND Snooping Maximum Entry Settings window The fields that can be configured are described below: Parameter Description Unit Select the switch unit to configure. From Port / To Port Use the drop-down menus to select a range of ports that require a restriction on the maximum number of entries that can be learned with ND snooping.
Page 445: Mac-Based Access Control (Mac)
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-33 ND Snooping Entry window The fields that can be configured are described below: Parameter Description Unit Select the switch unit to configure. Port Use the drop-down menu to select the desired port. Ports Specify the ports for ND snooping entries.
Page 446 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-34 MAC-based Access Control Settings window The fields that can be configured are described below: Parameter Description MAC-based Access Toggle to globally enable or disable the MAC-based access control function on the Control State Switch.
Page 447: Mac-Based Access Control Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Delete button to remove the entry based on the information entered. MAC-based Access Control Port Settings On this page, users can view and configure the MAC-based Access Control port settings on the Switch. To view this window, click Security >...
Page 448: Mac-Based Access Control Local Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide MAC-based Access Control Local Settings Users can set a list of MAC addresses, along with their corresponding target VLAN, which will be authenticated for the Switch. Once a queried MAC address is matched in this window, it will be placed in the VLAN associated with it here.
Page 449: Web-Based Access Control (Wac)
WAC by attempting to gain Web access. D-Link’s implementation of WAC uses a virtual IP that is exclusively used by the WAC function and is not known by any other modules of the Switch. In fact, to avoid affecting a Switch’s other features, WAC will only use a virtual IP address to communicate with hosts.
Page 450 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide HTTPs packets that will be trapped to the CPU for authentication processing, or to access the login page. If not specified, the default port number for HTTP is 80 and the default port number for HTTPS is 443. If no protocol is specified, the default protocol is HTTP.
Page 451: Wac Global Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide 1. If the client is utilizing DHCP to attain an IP address, the authentication VLAN must provide a DHCP server or a DHCP relay function so that client may obtain an IP address. 2.
Page 452: Wac User Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide RADIUS server must have already been pre-assigned by the administrator using the Authentication RADIUS Server Settings window. HTTP(S) Port (1-65535) Enter a HTTP port number. Port 80 is the default. HTTP –...
Page 453: Wac Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide administrators who have selected Local as their Web-based authenticator. Confirm Password Retype the password entered in the previous field. Click the Apply button to accept the changes made. Click the Delete All button to remove all the entries listed.
Page 454: Wac Authentication State
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide check box to indicate the authenticated host will never age out on the port. The default value is 1440 minutes (24 hours). State Use this drop-down menu to enable the configured ports as WAC ports. Idle Time (1-1440) If there is no traffic during the Idle Time parameter, the host will be moved back to the unauthenticated state.
Page 455 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide below: Figure 9-42 WAC Customize Page window Complete the WAC authentication information on this window to set the WAC page settings. Click the Apply button to implement the changes made. Click the Set to default button to go back to the default settings of all elements. Click the Edit button to re-configure the elements.
Page 456: Japanese Web-Based Access Control (Jwac)
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Japanese Web-based Access Control (JWAC) JWAC Global Settings This window is used to enable and configure Japanese Web-based Access Control on the Switch. JWAC and Web Authentication are mutually exclusive functions.
Page 457 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide authenticating process. Forcible Logout Use the drop-down menu to enable or disable JWAC Forcible Logout. When Forcible Logout is Enabled, a Ping packet from an authenticated host to the JWAC Switch with TTL=1 will be regarded as a logout request, and the host will move back to the unauthenticated state.
Page 458: Jwac Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide JWAC Port Settings This window is used to configure JWAC port settings for the Switch. To view this window, click Security > Japanese Web-based Access Control (JWAC) > JWAC Port Settings as shown below: Figure 9-44 JWAC Port Settings window The fields that can be configured are described below:...
Page 459: Jwac User Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide unauthenticated state. The default value is Infinite. To change this value, un-tick the Infinite check box and enter a value between 1 and 1440 minute(s). Tick the Infinite check box to indicate the Idle state of the authenticated host on the port will never be checked.
Page 460: Jwac Authentication State
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide JWAC Authentication State This window is used to display Japanese Web-based Access Control Host Table information. To view this window, click Security > Japanese Web-based Access Control (JWAC) > JWAC Authentication State as shown below: Figure 9-46 JWAC Authentication State window The fields that can be configured are described below:...
Page 461: Jwac Customize Page
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Customize Page Language Click the radio buttons to select English or Japanese. Click the Apply button to accept the changes made. JWAC Customize Page This window is used to configure JWAC page settings for the Switch. To view this window, click Security >...
Page 462: Compound Authentication
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-49 JWAC Login (Japanese) window Complete the JWAC authentication information on this window to set the JWAC page settings. Enter a name for the Authentication in the first field and then click the Apply button. Next, enter a User Name and a Password and then click the Enter button.
Page 463 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-50 Compound Authentication Settings window The fields that can be configured are described below: Parameter Description Authorization Attributes Click the radio buttons to enable of disable the Authorization Attributes State. State Authentication Server Click the radio buttons to configure the authentication server failover function.
Page 464: Compound Authentication Guest Vlan Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide 802.1X+IMPB - 802.1X will be verified first, and then IMPB will be verified. Both authentication methods need to be passed. IMPB+JWAC – JWAC will be verified first, and then IMPB will be verified. Both authentication methods need to be passed.
Page 465: Compound Authentication Mac Format Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Compound Authentication MAC Format Settings This window is used to set the MAC address format that will be used for authentication username via the RADIUS server. To view this window, click Security >...
Page 466 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide “authentication failed list.” In general case, when the multicast group/port is already learned by the switch, it won’t do the authentication again. It only processes the packet as standard. IGMP authentication processes IGMP leaves as follows: When the host sends leave message for the specific multicast group, the Switch follows the standard procedure for leaving a group and then sends an Accounting- Request to the accounting server for notification.
Page 467: Port Security
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide accounting message will be sent to the RADIUS. Click the Apply button to accept the changes made. Port Security Port Security Settings A given port’s (or a range of ports') dynamic MAC address learning can be locked such that the current source MAC addresses entered into the MAC address forwarding table cannot be changed once the port lock is enabled.
Page 468 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide System Maximum Enter the system maximum address. Address (1-3328) Unit Select the unit you want to configure. From Port / To Port Use the drop-down menus to select a range of ports to configure. Admin State Use the drop-down menu to enable or disable Port Security (locked MAC address table for the selected ports).
Page 469: Port Security Vlan Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide command will be rejected. Tick the No Limit check box to have unlimited number of port security entries that can be learned by a specific VLAN. The default value is No Limit.
Page 470: Arp Spoofing Prevention Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-57 Port Security Entries window The fields that can be configured or displayed are described below: Parameter Description VLAN Name The VLAN Name of the entry in the forwarding database table that has been permanently learned by the Switch.
Page 471: Bpdu Attack Protection
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description Gateway IP Address Enter the gateway IP address to help prevent ARP Spoofing. Gateway MAC Address Enter the gateway MAC address to help prevent ARP Spoofing. Ports Enter the port numbers that this feature applies to.
Page 472 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-59 BPDU Attack Protection window The fields that can be configured are described below: Parameter Description BPDU Attack Click the radio buttons to enable or disable the BPDU Attack Protection state. Protection State Trap State Specify when a trap will be sent.
Page 473: Loopback Detection Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Loopback Detection Settings The Loopback Detection (LBD) function is used to detect the loop created by a specific port. This feature is used to temporarily shut down a port on the Switch or block traffic through specific VLANs when a CTP (Configuration Testing Protocol) packet has been looped back to the Switch.
Page 474: Netbios Filtering Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide 1000000) detect Recover Time can be set at 0 seconds, or 60 to 1000000 seconds. Entering 0 will disable the Loop-detect Recover Time. The default is 60 seconds. Enabled VLANs This option is used to configure the loopback detection function for the VLANs on VLAN-based mode.
Page 475: Traffic Segmentation Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Extensive NetBIOS Select the appropriate port to include in the Extensive NetBIOS filtering Filtering Ports configuration. Extensive NetBIOS is NetBIOS over 802.3. The Switch will deny the NetBIOS over 802.3 frame on these enabled ports.
Page 476: Dhcp Server Screening
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Apply button to accept the changes made. DHCP Server Screening This function allows the user to not only to restrict all DHCP Server packets but also to receive any specified DHCP server packet by any specified DHCP client, it is useful when one or more DHCP servers are present on the network and both provide DHCP services to different distinct groups of clients.
Page 477: Dhcp Offer Permit Entry Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description DHCP Server Screening Click to enable or disable filtering DHCP server trap. Trap State DHCP Server Screening Click to enable or disable filtering DHCP server log.
Page 478: Filter Icmpv6
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide To view this window, click Security > DHCP Server Screening > Filter DHCPv6 Server as shown below: Figure 9-65 Filter DHCPv6 Server window The fields that can be configured are described below: Parameter Description Log State...
Page 479: Access Authentication Control
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-66 Filter ICMPv6 window The fields that can be configured are described below: Parameter Description Log State This option is used to enable or disable the filter ICMPv6 RA All-nodes log state. When the filter ICMPv6 RA all-nodes log state is enabled, the log of the “Detected untrusted ICMPv6 All-nodes RA”...
Page 480: Enable Admin
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide There are currently three versions of the TACACS security protocol, each a separate entity. The Switch's software supports the following versions of TACACS: • TACACS (Terminal Access Controller Access Control System) - Provides password checking and authentication, and notification of user actions for security purposes utilizing via one or more centralized TACACS servers, utilizing the UDP protocol for packet transmission.
Page 481: Authentication Policy Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide server groups, local enable (local account on the Switch), or no authentication (none). Because XTACACS and TACACS do not support the enable function, the user must create a special account on the server host, which has the username "enable", and a password configured by the administrator that will support the "enable"...
Page 482: Application Authentication Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Switch. Authentication Policy Use the drop-down menu to enable or disable authentication policy encryption. Encryption User Attempts (1-255) Enter the maximum number of times that the Switch will accept authentication attempts.
Page 483: Authentication Server Group Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide To view this window, click Security > Access Authentication Control > Accounting Settings as shown below: Figure 9-71 Accounting Settings window The fields that can be configured are described below: Parameter Description Network...
Page 484 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide method lists. The user may define the type of server group by protocol or by previously defined server group. The Switch has four built-in Authentication Server Groups that cannot be removed but can be modified. Up to eight authentication server hosts may be added to any particular group.
Page 485: Authentication Server Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-73 Authentication Server Group Settings – Edit Server Group window The fields that can be configured are described below: Parameter Description Group Name Enter a server group name. IP Address Enter the IP address of the server host.
Page 486: Login Method Lists Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide shown below: Figure 9-74 Authentication Server Settings window The fields that can be configured are described below: Parameter Description IP Address The IP address of the remote server host to add. Protocol The protocol used by the server host.
Page 487: Enable Method Lists Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Successful login using any of these techniques will give the user a "User" privilege only. If the user wishes to upgrade his or her status to the administrator level, the user must use the Enable Admin window, in which the user must enter a previously configured password, set by the administrator.
Page 488 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The sequence of methods implemented in this command will affect the authentication result. For example, if a user enters a sequence of methods like TACACS - XTACACS - Local Enable, the Switch will send an authentication request to the first TACACS host in the server group.
Page 489: Accounting Method Lists Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Apply button to accept the changes made. Click the Edit button to re-configure the specific entry. Click the Delete button to remove the specific entry. Accounting Method Lists Settings Here users can create and configure accounting method lists on the Switch.
Page 490: Authentication Source Ip Interface Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-78 Local Enable Password Settings window The fields that can be configured are described below: Parameter Description Encryption Specifies the encryption type to be used for the password. Plain Text - Specifies that the password entered should be in plain text form.
Page 491: Ssl Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description Interface Name Enter the interface name that will be used as the source interface for all outgoing RADIUS and TACACS packets.
Page 492 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide based management while utilizing the SSL function, the web browser must support SSL encryption and the header of the URL must begin with https://. (Ex. https://xx.xx.xx.xx) Any other method will result in an error and no access can be authorized for the web-based management.
Page 493: Ssl Certification Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide CBC SHA encryption and the SHA Hash Algorithm. Use the radio buttons to enable or disable this cipher suite. This field is Enabled by default. DHS DSS with 3DES This cipher suite combines the DSA Diffie Hellman key exchange, CBC Block EDE CBC SHA Cipher 3DES_EDE encryption and SHA Hash Algorithm.
Page 494: Ssh
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-81 SSL Certification Settings window The fields that can be configured are described below: Parameter Description SSL Certification File Use the drop-down menu to select the SSL Certification File Name. Name SSL CA Chain Enter the chain of certifications on the Switch.
Page 495: Ssh Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Public Key. Configure the encryption algorithm that SSH will use to encrypt and decrypt messages sent between the SSH client and the SSH server, using the SSH Authentication Method and Algorithm Settings window. Finally, enable SSH on the Switch using the SSH Configuration window.
Page 496: Ssh Authentication Method And Algorithm Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Rekey Timeout Use the drop-down menu to set the time period that the Switch will change the security shell encryptions by using the drop-down menu. The available options are Never, 10 min, 30 min, and 60 min.
Page 497 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured for SSH Authentication Mode are described below: Parameter Description Password This may be enabled or disabled to choose if the administrator wishes to use a locally configured password for authentication on the Switch.
Page 498: Ssh User Authentication List
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Authentication Code) mechanism utilizing the Secure Hash algorithm. The default is enabled. Click the Apply button to accept the changes made. The fields that can be configured for the Public Key Algorithm are described below: Parameter Description HMAC-RSA...
Page 499: Dos Attack Prevention Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide public key on a SSH server for authentication. Host Name Enter an alphanumeric string of no more than 32 characters to identify the remote SSH user. This parameter is only used in conjunction with the Host Based choice in the Auth.
Page 500: Trusted Host Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide prevent TCP Tiny Frag attacks. TCP Null Scan - Specifies that the DoS attack prevention type will be set to prevent TCP Null Scan attacks. TCP Xmascan - Specifies that the DoS attack prevention type will be set to prevent TCP Xmas Scan attacks.
Page 501: Safeguard Engine Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-88 Trusted Host window When the user clicks the Edit button, one will be able to edit the service allowed to the selected host. The fields that can be configured are described below: Parameter Description IPv4 Address...
Page 502 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide there are too many packets flooding the Switch. If the threshold has been crossed, the Switch will initially stop all ingress ARP and IP broadcast packets and packets from un-trusted IP addresses for five seconds. After another five-second checking interval arrives, the Switch will again check the ingress flow of packets.
Page 503: Sftp Server Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-90 Safeguard Engine Settings window The fields that can be configured are described below: Parameter Description Safeguard Engine Use the radio button to globally enable or disable Safeguard Engine settings for the State Switch.
Page 504 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 9-91 SFTP Server Settings window The fields that can be configured are described below: Parameter Description SFTP Server State Select to enable or disable the SFTP server state here. Session Idle Timeout Enter the SFTP server session idle timeout value used here.
Page 505: Chapter 10 Network Application
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Chapter 10 Network Application DHCP DNS Resolver RCP Server Settings SNTP Flash File System Settings DHCP DHCP Relay DHCP Relay Global Settings Users can enable and configure DHCP Relay Global Settings. The relay hops count limit allows the maximum number of hops (routers) that the DHCP messages can be relayed through to be set.
Page 506 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide DHCP Relay Time Allows an entry between 0 and 65535 seconds, and defines the maximum time limit Threshold (0-65535) for routing a DHCP packet. If a value of 0 is entered, the Switch will not process the value in the seconds’...
Page 507 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide DHCP Relay Option 61 Use the drop-down menu to enable or disable the use of the DHCP Relay Option State 61 State feature. Click the Apply button to accept the changes made for each individual section. NOTE: If the Switch receives a packet that contains the option 82 field from a DHCP client and the information-checking feature is enabled, the Switch drops the packet because it is invalid.
Page 508 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide • MAC address: The Switch’s system MAC address. Vendor6 for Option 82: • Circuit ID: Figure 10-4 Vendor6 for Option 82 (Frames 1 to 10) Figure 10-5 Vendor6 for Option 82 (Frames 11 to 20) Figure 10-6 Vendor6 for Option 82 (Frames 21 to 30) Figure 10-7 Vendor6 for Option 82 (Frame 31) •...
Page 509: Dhcp Relay Interface Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide • F15: Port number. The incoming port number of the DHCP client packet. An ASCII format string. • F16: Colon (:) • F17: cvlan is the client’s VLAN ID. The value ranges from 1 to 4094. An ASCII format string. •...
Page 510: Dhcp Relay Option 60 Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Settings as shown below: Figure 10-9 DHCP Relay Option 60 Server Settings window The fields that can be configured are described below: Parameter Description Server IP Address Enter the DHCP Relay Option 60 Server Relay IP Address.
Page 511: Dhcp Relay Option 61 Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide String Enter the DHCP Relay Option 60 String value. Different strings can be specified for the same relay server, and the same string can be specified with multiple relay servers. The system will relay the packet to all the matching servers.
Page 512 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Relay Rule Drop – Specify to drop the packet. Relay – Specify to relay the packet to an IP address. Client ID MAC Address – The client’s client-ID which is the hardware address of client. String –...
Page 513: Dhcp Server
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Apply button to accept the changes made. DHCP Server DHCP, or Dynamic Host Configuration Protocol, allows the switch to delegate IP addresses, subnet masks, default gateways and other IP parameters to devices that request this information.
Page 514: Dhcp Server Pool Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide command can be used multiple times in order to define multiple groups of excluded addresses. To view this window, click Network Application > DHCP > DHCP Server > DHCP Server Exclude Address Settings as shown below: Figure 10-14 DHCP Server Exclude Address Settings window The fields that can be configured are described below:...
Page 515 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 10-16 DHCP Server Pool Settings (Edit) window The fields that can be configured are described below: Parameter Description IP Address Enter the network address of the pool. Netmask Enter the Netmask for the network address.
Page 516 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Minutes – Minutes of lease Option 43 This option is used to add or delete DHCP Option 43. The DHCP server may contain this option in the DHCP reply according to Option 55 in the client’s request packet. Enter the DHCP Option 43 string used here.
Page 517: Dhcp Server Manual Binding
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 10-18 DHCP Server Option Profile Settings window (View Details) Click the Edit button to re-configure the specific entry. Click the Delete button to remove the specific entry. DHCP Server Manual Binding An address binding is a mapping between the IP address and MAC address of a client.
Page 518: Dhcpv6 Server
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 10-20 DHCP Server Dynamic Binding window The fields that can be configured are described below: Parameter Description Pool Name Enter the DHCP Server Pool name. Click the Clear button to clear all the information entered in the fields.
Page 519: Dhcpv6 Server Pool Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide State Click the Apply button to accept the changes made. DHCPv6 Server Pool Settings This window is used to create and configure a DHCPv6 pool. To view this window, click Network Application > DHCP > DHCPv6 Server > DHCPv6 Server Pool Settings as shown below: Figure 10-23 DHCPv6 Server Pool Settings window The fields that can be configured are described below:...
Page 520 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the <<Back button to return to the previous window. Click the Delete All button to remove all the entries listed. Click the Delete button to remove the specific entry. Click the Edit button under Manual Binding to see the following window.
Page 521: Dhcpv6 Server Interface Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Address End Network Enter the ending IPv6 network address of the DHCPv6 pool. Address Network Address Enter the IPv6 network address of the DHCPv6 pool. Assigned Len Enter the assigned length value here.
Page 522: Dhcpv6 Relay
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 10-28 DHCPv6 Server Interface Settings window The fields that can be configured are described below: Parameter Description Interface Name Enter the name of the IP interface. Click the Find button to locate a specific entry based on the information entered.
Page 523 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 10-30 DHCPv6 Relay Settings window The fields that can be configured are described below: Parameter Description Interface Name Enter the name of the IPv6 interface. Tick the All check box to select all IPv6 interfaces.
Page 524: Dhcp Local Relay Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide 37 field before being relayed to server. Disabled - When the state is disabled, the DHCP packet will be relayed directly to server without further checks and inserted with the Option 37. Check Select the check state.
Page 525: Dns
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Computer users usually prefer to use text names for computers for which they may want to open a connection. Computers themselves, require 32 bit IP addresses. Somewhere, a database of network devices’ text names and their corresponding IP addresses must be maintained.
Page 526: Dns Relay Static Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 10-33 DNS Relay Global Settings window The fields that can be configured are described below: Parameter Description DNS Relay State Use the drop-down menu to enable or disable the DNS relay state. Primary Name Server Enter the primary DNS server IP address.
Page 527: Dns Resolver
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide DNS Resolver DNS Resolver Global Settings This window is used to configure the DNS Resolver global state of the switch. To view this window, click Network Application > DNS Resolver > DNS Resolver Global Settings as shown below: Figure 10-35 DNS Resolver Global Settings window The fields that can be configured are described below:...
Page 528: Dns Resolver Dynamic Name Server Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Server IP Address Enter a DNS Resolver name server’s IPv4 address here. Tick the Primary check box to set the name server as a primary name server. Server IPv6 Address Enter a DNS Resolver name server’s IPv6 address here.
Page 529: Dns Resolver Dynamic Host Name Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide DNS Resolver Dynamic Host Name Table This window displays the current host name entries. To view this window, click Network Application > DNS Resolver > DNS Resolver Dynamic Host Name Table as shown below: Figure 10-39 DNS Resolver Dynamic Host Name Table window RCP Server Settings...
Page 530: Sntp Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide SNTP Settings Users can configure the time settings for the Switch. To view this window, click Network Application > SNTP > SNTP Settings as shown below: Figure 10-41 SNTP Settings window The fields that can be configured are described below: Parameter...
Page 531 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 10-42 Time Zone Settings window The fields that can be configured are described below: Parameter Description Daylight Saving Time Use this drop-down menu to enable or disable the DST Settings. State Daylight Saving Time Use this drop-down menu to specify the amount of time that will constitute your local...
Page 532: Udp
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide To: Which Week Of The Enter the week of the month the DST will end. Month To: Day Of Week Enter the day of the week that DST will end. To: Month Enter the month that DST will end.
Page 533 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide UDP Port This option is used to add a UDP port for the UDP Helper function on the Switch. Time - Specifies the Time service. The UDP port number is 37. TACACS - Specifies the Terminal Access Controller Access Control System service.
Page 534: Flash File System Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Delete button to remove the specific entry. Click the <<Back button to return to the previous page. Flash File System Settings Why use flash file system: In old switch system, the firmware, configuration and log information are saved in a flash with fixed addresses and size.
Page 535 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Create Directory to create a new directory within the file system of the switch. Click the Copy button to copy a specific file to the switch. Click the Move button to move a specific file within the switch.
Page 536: Chapter 11 Oam
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Chapter 11 CFM (EI Mode Only) Ethernet OAM DULD Settings Cable Diagnostics CFM (EI Mode Only) CFM Settings On this page the user can configure the CFM parameters. To view this window, click OAM >...
Page 537 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide must be auto in order for the MIPs to be created on this device. Explicit – MIPs can be created on any ports in this MD, only if the next existent lower level has an MEP configured on that port, and that port is not configured with an MEP of this MD.
Page 538 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide After clicking the Edit button, the following window appears: Figure 11-3 CFM MA Settings (Edit) window The fields that can be configured are described below: Parameter Description This is the control creation of MIPs.
Page 539 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide By default, there is no MEP ID in a newly created maintenance association. Click the Apply button to accept the changes made. After clicking the MIP Port Table button, the following page will appear: Figure 11-4 CFM MIP Port Table window Click the <<Back button to return to the previous page.
Page 540 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 11-6 CFM MEP Information window Click the Edit button to re-configure the specific entry. Click the <<Back button to discard the changes made and return to the previous page. After clicking the Edit button, the following page will appear: Figure 11-7 CFM MEP Information (Edit) window The fields that can be configured are described below:...
Page 541 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description MEP State This is the MEP administrative state. Enable - MEP is enabled. Disable - MEP is disabled. This is the default value. CCM State This is the CCM transmission state.
Page 542 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide AIS PDU. Level Tick the check box and use the drop-down menu to select the client level ID to which the MEP sends AIS PDU. The default client MD level is MD level at which the most immediate client layer MIPs and MEPs exist.
Page 543 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 11-10 CFM LM Settings window The fields that can be configured are described below: Parameter Description State Select to enable or disable the CFM LM setting. This specifies the administrative state of frame loss measurement function on the MEP.
Page 544 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide none of them is specified, both of them are cleared. Click the Apply button to accept the changes made for each individual section. Click the Clear button to clear the frame loss measurement information. Click the <<Back button to discard the changes made and return to the previous page.
Page 545: Cfm Port Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide 1sec:10sec - Specifies the transmission period of one second and the diagnostic interval is ten seconds. This is the default value. 10sec:1min - Specifies the transmission period of ten seconds and the diagnostic interval is one minute.
Page 546: Cfm Mipccm Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description Unit Select the switch unit to configure. From Port / To Port Use the drop-down menu to select a range of ports used for this configuration. State Use the drop-down menu to enable or disable the state of specific port regarding the CFM configuration.
Page 547: Cfm Linktrace Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide MD Name Select and enter the Maintenance Domain name used. MD Index Select and enter the Maintenance Domain index used. MA Name Select and enter the Maintenance Association name used. MA Index Select and enter the Maintenance Association index used.
Page 548: Cfm Packet Counter
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide MD Index Select and enter the Maintenance Domain index used. MA Name Select and enter the Maintenance Association name used. MA Index Select and enter the Maintenance Association index used. MAC Address Here the user can enter the destination MAC address.
Page 549: Cfm Fault Table
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Port List Enter a port or range of ports to display. Tick the All Ports check box to display all ports. Type Transmit – Selecting this option will display all the CFM packets transmitted. Receive –...
Page 550: Ethernet Oam
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The fields that can be configured are described below: Parameter Description Port Use the drop-down menu to select the unit and port number to view. Level Enter the level to view.
Page 551: Ethernet Oam Configuration Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description Unit Select the switch unit to configure. From Port / To Port Select a range of ports you wish to configure. Mode Use the drop-down menu to select to operate in either Active or Passive. The default mode is Active.
Page 552: Ethernet Oam Event Log
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 11-20 Ethernet OAM Configuration Settings window The fields that can be configured are described below: Parameter Description From Port / To Port Select a range of ports you wish to configure. Link Event Use the drop-down menu to select the link events, Link Monitor or Critical Link Event.
Page 553: Ethernet Oam Statistics
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Ethernet OAM Statistics The window is used to show ports Ethernet OAM statistics information. To view this window, click OAM > Ethernet OAM > Ethernet OAM Statistics, as shown below: Figure 11-22 Ethernet OAM Statistics window The fields that can be configured are described below: Parameter...
Page 554: Cable Diagnostics
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 11-23 DULD Settings window The fields that can be configured are described below: Parameter Description Unit Select the switch unit to configure. From Port / To Port Select a range of ports you wish to configure.
Page 555 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 11-24 Cable Diagnostics window To view the cable diagnostics for a particular port, use the drop-down menu to choose the Unit and Port number and click the Test button. The information will be displayed in this window. NOTE: Cable diagnostic function limitations.
Page 556: Chapter 12 Monitoring
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Chapter 12 Monitoring Utilization Statistics Mirror sFlow Ping Trace Route Peripheral Utilization CPU Utilization This window is used to display the percentage of the CPU being used, expressed as an integer percentage and calculated as a simple average by time interval.
Page 557: Dram & Flash Utilization
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide value is 200. Show/Hide Check whether or not to display Five Seconds, One Minute, and Five Minutes. Click the Apply button to accept the changes made. DRAM &...
Page 558: Statistics
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 12-3 Port Utilization window To view the port utilization by port, select the port by using the Port drop-down menu or use the real-time graphic of the Switch or switch stack at the top of the web page by simply clicking on a port.
Page 559 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide offered. Received (RX) To select a port to view these statistics for, select the port by using the Port drop-down menu. The user may also use the real-time graphic of the Switch or Switch stack at the top of the web page by simply clicking on a port. To view this window, click Monitoring >...
Page 560 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 12-5 RX Packets Analysis Table window The fields that can be configured are described below: Parameter Description Port Use the drop-down menu to choose the port that will display statistics. Time Interval Select the desired setting between 1s and 60s, where "s"...
Page 561 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 12-6 UMB_cast (RX) window (for Unicast, Multicast, and Broadcast Packets) Click the View Table link to display the information in a table rather than a line graph. Figure 12-7 RX Packets Analysis window (table for Unicast, Multicast, and Broadcast Packets) The fields that can be configured are described below:...
Page 562 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description Port Use the drop-down menu to choose the port that will display statistics. Time Interval Select the desired setting between 1s and 60s, where "s" stands for seconds. The default value is one second.
Page 563 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 12-9 TX Packets Analysis window (table for Bytes and Packets) The fields that can be configured are described below: Parameter Description Port Use the drop-down menu to choose the port that will display statistics. Time Interval Select the desired setting between 1s and 60s, where "s"...
Page 564 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide value will be modified to the value specified. To select a port to view these statistics for, select the port by using the Port drop-down menu. The user may also use the real-time graphic of the Switch or Switch stack at the top of the web page by simply clicking on a port.
Page 565 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 12-11 RX Error Analysis window (table) The fields that can be configured are described below: Parameter Description Unit Select the unit you wish to configure. Port Use the drop-down menu to choose the port that will display statistics.
Page 566 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide to 63 bytes in length and contains an invalid FCS or Alignment Errors. Includes integral and non-integral lengths. These are normally the result of collisions. Jabber Receive Jabber Frame Counter - Incremented for frames received, which exceeds cntMaxSize bytes (cntMaxSize + 4 if tagged VLAN) to MAXFRAME size and contains an invalid FCS or code error detected.
Page 567 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 12-12 Transmitted (TX) window (for errors) Click the View Table link to display the information in a table rather than a line graph.
Page 568 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 12-13 TX Error Analysis window (table) The fields that can be configured are described below: Parameter Description Unit Select the unit you wish to configure. Port Use the drop-down menu to choose the port that will display statistics.
Page 569: Packet Size
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide transmission is inhibited by more than one collision. Collision An estimate of the total number of collisions on this network segment. STPDrop STP Drop - Increment counter for packets dropped when the egress port is not in the forwarding state.
Page 570 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 12-15 RX Size Analysis window (table) The fields that can be configured are described below: Parameter Description Port Use the drop-down menu to choose the port that will display statistics. Time Interval Select the desired setting between 1s and 60s, where "s"...
Page 571: Cpu Port Statistics
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide including FCS octets). 1519-2047 The total number of packets (including bad packets) received and transmitted, that were between 1519 and 2047 octets in length inclusive (excluding framing bits but including FCS octets).
Page 572 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 12-17 CPU Port Statistics window (SI Mode Only) The fields that can be configured are described below: Parameter Description Select to display statistic counters of all Layer 2 control packets. Select to display statistic counters of Layer 3 control packets.
Page 573: Mirror
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide OSPFv3 - Select to display packet type OSPFv3. (EI Mode Only) RIP - Select to display packet type RIP. RIPng - Select to display packet type RIPng. (EI Mode Only) BGP - Select to display packet type BGP.
Page 574 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 12-18 Port Mirror Settings window The fields that can be configured are described below: Parameter Description Mirror Global State Click the radio buttons to enable or disable the Port Mirroring feature. Group ID (1-4) Enter a mirror group ID.
Page 575: Rspan Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Selecting this option specifies that the mirror source ports will be added. Delete Selecting this option specifies that the mirror source ports will be deleted. State Select to enable or disable the mirror group’s state.
Page 576: Sflow
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Click the Find button to locate a specific entry based on the information entered. Click the Modify button to re-configure the specific entry. Click the Delete button to remove the specific entry. After clicking the Modify button, the following page will appear: Figure 12-21 RSPAN Settings –...
Page 577: Sflow Analyzer Server Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 12-22 sFlow Global Settings window The fields that can be configured are described below: Parameter Description sFlow State Click the radio buttons to enable or disable the sFlow feature. Click the Apply button to accept the changes made.
Page 578: Sflow Flow Sampler Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Owner Name The entity making use of this sFlow analyzer server. When owner is set or modified, the timeout value will become 400 automatically. Timeout (1-2000000) The length of time before the server times out.
Page 579: Sflow Counter Poller Settings
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide the rate is not specified, its default value is 0. TX Rate The sampling rate for packets transmitted sampling. The configured rate value multiplied by 256 is the actual rate. For example, if the rate is 20, the actual rate 5120.
Page 580: Ping
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Ping Broadcast Ping Relay Settings This window is used to enable or disable broadcast ping reply state, device will reply broadcast ping request. To view this window, click Monitoring > Ping > Broadcast Ping Relay Settings as shown below: Figure 12-26 Broadcast Ping Relay Settings window The fields that can be configured are described below: Parameter...
Page 581: Trace Route
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide keep sending ICMP Echo packets to the specified IP address until the program is stopped. The user may opt to choose a specific number of times to ping the Target IP Address by clicking its radio button and entering a number between 1 and 255.
Page 582 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 12-29 Trace Route window The fields that can be configured are described below: Parameter Description IPv4 Address / IPv6 IP address of the destination station. Address Domain Name The domain name of the destination end station.
Page 583: Peripheral
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 12-30 Trace Route Result window Peripheral Device Environment The device environment feature displays the Switch internal temperature status. To view this window, click Monitoring > Peripheral > Device Environment as shown below: Figure 12-31 Device Environment window Click the Refresh button to refresh the display table so that new entries will appear.
Page 584 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 12-30 External Alarm Settings window Click the Refresh button to refresh the display table so that modifications will appear. Click the Edit button for Channel 1 or 2 to change the Alarm Message. Figure 12-31 External Alarm Settings - Edit window...
Page 585: Chapter 13 Save And Tools
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Chapter 13 Save and Tools Save Configuration / Log License Management Stacking Information Download Firmware Upload Firmware Download Configuration Upload Configuration Upload Log File Reset Reboot System Save Configuration / Log To view this window, click Save >...
Page 586: Stacking Information
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide To view this window, click Tools > License Management. Figure 13-4 License Management window The fields that can be configured are described below: Parameter Description Activation Code Enter the DLMS activation code.
Page 587: Download Firmware
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description Topology Show the current topology employed using this Switch. My Box ID Display the Box ID of the Switch currently in use. Master ID Display the Unit ID number of the Primary Master of the Switch stack.
Page 588: Download Firmware From Ftp
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 13-5 Download Firmware from TFTP window In the Download Firmware From TFTP section, the fields that can be configured are described below: Parameter Description Unit Select the switch unit that will be used for this configuration here.
Page 589: Download Firmware From Rcp
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 13-6 Download Firmware from FTP window The fields that can be configured are described below: Parameter Description Unit Select the switch unit that will be used for this configuration here. FTP Server IP Enter the FTP server’s IP address here.
Page 590: Download Firmware From Http
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description Unit Select the switch unit that will be used for this configuration here. RCP Server IP Enter the RCP server IP address used. Source File Enter the location and name of the Source File.
Page 591: Upload Firmware To Ftp
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 13-9 Upload Firmware to TFTP window The fields that can be configured are described below: Parameter Description Unit Select the switch unit that will be used for this configuration here. TFTP Server IP Enter the TFTP server IP address used.
Page 592: Upload Firmware To Rcp
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide enter the IPv4 address of the FTP server. Selecting the IPv6 option will require the user to enter the IPv6 address of the FTP server. TCP Port (1-65535) Enter the TCP port number used here.
Page 593: Download Configuration
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameter Description Unit Select the switch unit that will be used for this configuration here. Source File Enter the location and name of the Source File. Click the Upload button to initiate the upload.
Page 594: Download Configuration From Rcp
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide switch. Figure 13-14 Download Configuration from FTP window The fields that can be configured are described below: Parameter Description Unit Select the switch unit that will be used for this configuration here. FTP Server IP Enter the FTP server’s IP address here.
Page 595: Download Configuration From Http
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 13-15 Download Configuration from RCP window The fields that can be configured are described below: Parameter Description Unit Select the switch unit that will be used for this configuration here. RCP Server IP Enter the RCP Server IP Address used.
Page 596: Upload Configuration To Ftp
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 13-17 Upload Configuration File to TFTP window The fields that can be configured are described below: Parameter Description Unit Select the switch unit that will be used for this configuration here. TFTP Server IP Enter the TFTP server IP address used.
Page 597: Upload Configuration To Rcp
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 13-18 Upload Configuration to FTP window The fields that can be configured are described below: Parameter Description Unit Select the switch unit that will be used for this configuration here. FTP Server IP Enter the FTP server’s IP address here.
Page 598: Upload Configuration To Http
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 13-19 Upload Configuration to RCP window The fields that can be configured are described below: Parameter Description Unit Select the switch unit that will be used for this configuration here. RCP Server IP Enter the RCP Server IP Address used.
Page 599: Upload Log File
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Filter Use the drop-down menu to Include, Exclude or Begin a filter like SNMP, VLAN or STP. Select the appropriate Filter action and enter the service name in the space provided.
Page 600: Upload Log To Rcp
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Figure 13-22 Upload Log to FTP window The fields that can be configured are described below: Parameter Description FTP Server IP Enter the FTP server’s IP address here. Selecting the IPv4 option will require the user to enter the IPv4 address of the FTP server.
Page 601: Upload Log To Http
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Destination File Enter the location and name of the Destination File. Log Type Select the type of log to be transferred. Selecting the Common Log option here will upload the common log entries.
Page 602: Reboot System
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Reset Selecting this option will factory reset the Switch but not the IP Address, User Accounts and the Banner. Reset Config Selecting this option will factory reset the Switch but not perform a Reboot. Reset System Selecting this option will factory reset the Switch and perform a Reboot.
Page 603: Appendix A - Password Recovery Procedure
This chapter explains how the Password Recovery feature can help network administrators reach this goal. The following steps explain how to use the Password Recovery feature on D-Link devices to easily recover passwords.
Page 604: Appendix B - System Log Entries
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Appendix B – System Log Entries The following table lists all possible entries and their corresponding meanings that will appear in the System Log of this Switch. Category Log Description Severity...
Page 605 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide <ipif-name>: Name of the DHCPv6 client interface. Event description: DHCPv6 client obtains an ipv6 address from a DHCPv6 server. Informational Log Message: DHCPv6 client obtains an ipv6 address < ipv6address > on interface <ipif- name>.
Page 606 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameters description: ipv6address: IPv6 prefix obtained from a delegation router. intf-name: Name of the DHCPv6 client PD interface. DHCPv6 Relay Event description: DHCPv6 relay on a specify interface’s administrator state changed Informational Log Message: DHCPv6 relay on interface <ipif-name>...
Page 607 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide ipaddr: Represent client IP address. macaddr : Represent client MAC address. Event description: Configuration uploaded successfully. Informational Log Message: Configuration uploaded by <session> successfully. (Username: <username>, IP: <ipaddr>, MAC: <macaddr>) Parameters description: session: The user’s session.
Page 608 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide session: The user’s session. Username: Represent current login user. Ipaddr: Represent client IP address. macaddr : Represent client MAC address. Event description: Firmware upgrade was unsuccessful. Warning Log Message: [Unit <unitID>,] Firmware upgrade by <session>...
Page 609 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameters description: session: The user’s session. Username: Represent current login user. Ipaddr: Represent client IP address. macaddr : Represent client MAC address. Event description: Attack log message successfully uploaded. Informational Log Message: Attack log message successfully uploaded by <session>...
Page 610 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Port: <[unitID:]portNum>, MAC: <macaddr> ) Parameters description: reason: The reason for the failed authentication. username: The user that is being authenticated. unitID: The unit ID. portNum: The switch port number. macaddr: The MAC address of thr authenticated device.
Page 611 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameters description: portNum: The port number. chassisType: chassis ID subtype. Value list: 1. chassisComponent(1) 2. interfaceAlias(2) 3. portComponent(3) 4. macAddress(4) 5. networkAddress(5) 6. interfaceName(6) 7. local(7) chassisID: chassis ID.
Page 612 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide 6. agentCircuitId(6) 7. local(7) portID: port ID. deviceClass: LLDP-MED device type. Voice VLAN Event description: When a new voice device is detected in the port. Informational Log Message: New voice device detected (Port <portNum>, MAC <macaddr>) Parameters description: portNum : The port number.
Page 613 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide ipaddr >). Parameters description: num: The number of prefix received. limit: Max number of prefix allowed to receive. ipaddr: IP address of BGP peer. Event description: The total bgp prefix number received exceeds the limit. Information Log Message: [BGP(9):] The total number of prefix received reaches max prefix limit.
Page 614 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide SNMP Event Description: SNMP request received with invalid community string Informational Log Message: SNMP request received from <ipaddr> with invalid community string. Parameters Description: ipaddr: The IP address. OSPFv2 Event description: OSPF interface link state changed.
Page 615 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide intf-name: Interface name on which virtual router is based. Event description: Authentication checking fail of one received VRRP advertisement Warning message. Log Message: Authentication fail on VR <vr-id> at interface <intf-name>. Auth type <auth- type>...
Page 616 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide mac-port: port number of VRRP virtual MAC. Event description: Failed when adding a virtual MAC into switch L3 table. The interface where Error the MAC is learned from is invalid. Log Message: Failed to add virtual IP <vrrp-ip-addr>...
Page 617 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide ipaddr: The IP address of SSL client. Port Security Event description: Address full on a port Warning Log Message: Port security violation (MAC: < macaddr > on port:: < unitID: portNum >) Parameters description: macaddr: The violation MAC address.
Page 618 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameters description: ipaddr: IP address. ipv6address: IPv6 address. username: user name. Event description: Successful Enable Admin authenticated by AAA local or none or server. Informational Log Message: Successful Enable Admin through <Console | Telnet | Web(SSL)| SSH> from <ipaddr | ipv6address>...
Page 619 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Log Message: WAC authenticated user (Username: <string>, IP: <ipaddr | ipv6address>, MAC: <macaddr>, Port: <[unitID:] portNum>) Parameters description: string: User name ipaddr: IP address ipv6address: IPv6 address macaddr: MAC address unitID: The unit ID portNum : The port number...
Page 620 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide MAC: <macaddr>, Port <[unitID:]portNum>) Parameters description: ipaddr: IP address ipv6addr: IPv6 address macaddr: MAC address unitID: The unit ID portNum : The port number Event description: Dynamic IMPB entry conflicts with static IMPB. Warning Log Message: Dynamic IMPB entry conflicts with static IMPB(IP: [<ipaddr>...
Page 621 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide portNum: The port number. Event description: Port shut down due to a packet storm Warning Log Message: Port <portNum> is currently shut down due to a packet storm Parameters description: portNum: The port number.
Page 622 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide portNum>)] <old_role> -> <new_role> Parameters description: InstanceID: Instance ID. portNum:Port ID/ old_role: Old role new_status:New role Event description: Spannnig Tree instance created. Informational Log Message: Spanning Tree instance created. Instance:<InstanceID> Parameters description: InstanceID: Instance ID.
Page 623 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide mepdirection: Represents the MEP direction, which can be "inward" or "outward". mepid: Represents the MEPID of the MEP. macaddr: Represents the MAC address of the MEP. Event description: Remote MEP's MAC reports an error status Warning Log Message: CFM remote MAC error.
Page 624 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Event description: port linkdown Informational Log Message: Port <port> link down Parameters description: port: Represents the logical port number. Event description: DDM exceeded or recover from DDM alarm threshold Critical Log Message: DDM Port <[unitID:]portNum>...
Page 625 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Parameters description: Unit <id>: The unit ID. Fan <id>: The FAN ID. Event description: Right Side Fail. Critical Log Message: Unit <id>, Right Side Fan <id> failed. Parameters description: Unit <id>: The unit ID.
Page 626: Appendix C - Trap Entries
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Appendix C – Trap Entries This table lists the trap logs found on the Switch. Category Trap Name Description MAC Notification swL2macNotification This trap indicates the MAC addresses variation 1.3.6.1.4.1.171.11.118.X.2.
Page 627 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide incremented, subject to the rate limit specified by pimRPMappingChangeNotificationPeriod. Binding objects: (1) pimGroupMappingPimMode (2) pimGroupMappingPrecedence pimInterfaceElection A pimInterfaceElection notification signifies that 1.3.6.1.2.1.157.0.5 a new DR or DF has been elected on a network. This notification is generated whenever the counter pimInterfaceElectionWinCount is incremented, subject to the rate limit specified...
Page 628 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide (2) macaddr (3) portNumber (4) agentGratuitousARPInterfaceName bgpEstablishedNotification The BGP established event is generated when 1.3.6.1.2.1.15.0.1 the BGP FSM enters the ESTABLISHED state. Binding objects: (1) bgpPeerRemoteAddr (2) bgpPeerLastError (3) bgpPeerState bgpBackwardTransNotification...
Page 629 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide (1) swLoopDetectPortIndex The trap is sent when a port loop occurs under 1.3.6.1.4.1.171.12.41.10.0. swVlanLoopOccurred LBD VLAN-based mode. Binding objects: (1) swLoopDetectPortIndex (2) swVlanLoopDetectVID swVlanLoopRestart The trap is sent when a port loop restarts under 1.3.6.1.4.1.171.12.41.10.0.
Page 630 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide swERPSRPLOwnerConflictTrap RPL owner conflicted on the ring. 1.3.6.1.4.1.171.12.78.4.0.3 MSTP newRoot The newRoot trap indicates that the sending 1.3.6.1.2.1.17.0.1 agent has become the new root of the Spanning Tree;...
Page 631 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide External Alarm swExternalAlarm When external alarm Occurred. 1.3.6.1.4.1.171.12.11.2.2.5 .0.1 Binding objects: (1) swExternalAlarmChannel (2) swExternalAlarmMessage swExternalAlarmStacking When external alarm Occurred. 1.3.6.1.4.1.171.12.11.2.2.5 .0.2 Binding objects: (1) swExternalAlarmStackingUnit (2) swExternalAlarmStackingChannel (3) swExternalAlarmStackingMessage DOS Attack...
Page 632 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide swDlmsLicenseExpired The notification is sent when a license of non- 1.3.6.1.4.1.171.12.101.0.2 stackable device is expired. Binding objects: 1: swDlmsLicenseModelName 2: swDlmsLicenseAc swDlmsLicenseInstallationSuccess The notification is sent when a license of non- 1.3.6.1.4.1.171.12.101.0.3 stackable device was installed successfully.
Page 633: Appendix D - Radius Attributes Assignment
® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Appendix D – RADIUS Attributes Assignment The RADIUS Attributes Assignment on the Switch is used in the following modules: 802.1X (Port-based and Host- based), Japanese Web-based Access Control, Web-based Access Control, and MAC-based Access Control. The description that follows explains the following RADIUS Attributes Assignment types: Ingress/Egress Bandwidth 802.1p Default Priority...
Page 634 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide The table below shows the parameters for a VLAN: RADIUS Tunnel Attribute Description Value Usage Tunnel-Type This attribute indicates the 13 (VLAN) Required tunneling protocol(s) to be used (in the case of a tunnel initiator) or the tunneling protocol in use (in the case of a tunnel...
Page 635 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide Vendor-Type Defines the attribute. 12 (for ACL profile) Required 13 (for ACL rule) Attribute-Specific Field Used to assign the ACL profile or ACL Command Required rule. For example: ACL profile: create access_profile ethernet...
Page 636: Appendix E - Ietf Radius Attributes Support
RADIUS attributes are supported by the IETF standard and Vendor-Specific Attribute (VSA). VSA allows the vendor to create an additionally owned RADIUS attribute. For more information about D-Link VSA, refer to Appendix E RADIUS Attributes Assignment.
Page 637 ® xStack DGS-3620 Series Layer 3 Managed Stackable Gigabit Switch Web UI Reference Guide NAS-Port-ID NAS-IPv6-Address RADIUS Accounting Attributes Number IETF Attribute User-Name NAS-IP-Address NAS-Port Service-Type Framed-IP-Address Calling-Station-ID NAS-Identifier Acct-Status-Type Acct-Delay-Time Acct-Input-Octets Acct-Output-Octets Acct-Session-ID Acct-Authentic Acct-Session-Time Acct-Input-Packets Acct-Output-Packets Acct-Terminate-Cause Acct-Input-Gigawords Acct-Output-Gigawords NAS-Port-Type NAS-IPv6-Address...

D-Link xStack DGS-3620 Series Reference Manual

Chapter 2 Web-Based Switch Configuration

Chapter 3 System Configuration

Chapter 4 Management

Chapter 5 L2 Features

Chapter 6 L3 Features

Chapter 7 Qos

Chapter 8 ACL

Quick Links

Related Manuals for D-Link xStack DGS-3620 Series

Summary of Contents for D-Link xStack DGS-3620 Series
