- Page 1 VSS7915/00T & VS79155T Installation Instructions Instruções de Instalação Eazeo Outdoor Video Intercom Intercomunicador com Vídeo Exterior Eazeo Manual d’installation Installationsinstruktioner Boîtier intercom vidéo d’extérieur Eazeo Eazeo udendørs video intercom Installationshandbuch Installationsanvisningar Eazeo Außen-Video-Intercom-Box Eazeo Outdoor Video Intercom Manual de instalación Asennusohjeet Interfono Eazeo con vídeo para exteriores...
-
Page 2: Important Safeguards
VSS7915/00T & VS79155T | Installation Instructions EN | 1 IMPORTANT SAFEGUARDS 1. Read these instructions. Installation Instructions ENGLISH 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. -
Page 3: Fcc Information
VSS7915/00T & VS79155T | Installation Instructions EN | 2 FCC INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Standard Package Includes

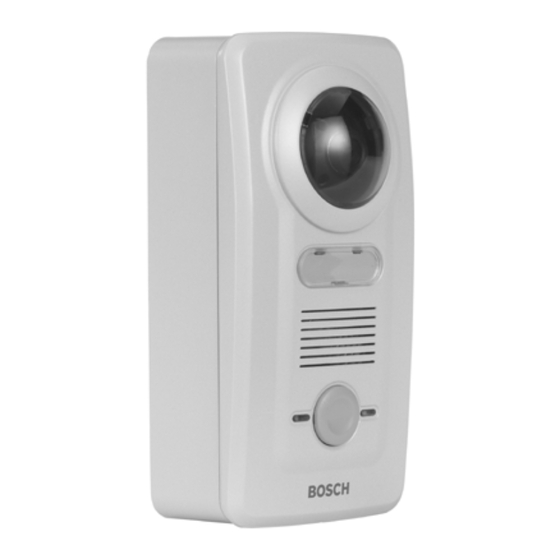

VSS7915/00T & VS79155T | Installation Instructions EN | 3 1. Introduction This Eazeo Outdoor Video Intercom is designed for use with Bosch Color Observation Systems only. This intercom incorporates a high quality color camera for visual identification of visitors, a tri-color status indicator and two-way voice communications. -
Page 5: Installation
VSS7915/00T & VS79155T | Installation Instructions EN | 4 3. Installation To obtain the best results from your new Eazeo Outdoor Video Intercom, read these instructions carefully before use. Retain the manual for future reference. This manual describes the installation of the Eazeo Outdoor Video Intercom. - Page 6 VSS7915/00T & VS79155T | Installation Instructions EN | 5 Sunken mount Four tamper-resistant screws 4 x 50mm with clips Four short screws Mounting box Frame plate Tamper-resistant screw 3 x 10mm • Using the inside of the frame plate as a template, mark the position of the hole required for the unit.
- Page 7 VSS7915/00T & VS79155T | Installation Instructions EN | 6 • Identify the top of the mounting box (the tamper-resistant screw thread is at the bottom). • Decide which rear entry hole (big or small) you will use for the cable and break out the corresponding tab in the mounting box.
- Page 8 VSS7915/00T & VS79155T | Installation Instructions EN | 7 • Identify the top of the mounting box and the top of the raised- mounting surround (the top cable entry hole is offset to the right). • Decide the entry point (top, bottom or rear) for the cable and break out the corresponding tabs in the mounting box and (if required) the raised-mounting surround.
-
Page 9: System Cable
VSS7915/00T & VS79155T | Installation Instructions EN | 8 System Cable For the interconnections between the system monitor and the Eazeo Outdoor Video Intercom, a 15m/45ft system cable is supplied. For optimum picture quality, always use a 4-wire dual twisted-pair cable when extending the connection. -
Page 10: Adjustments And Switches
VSS7915/00T & VS79155T | Installation Instructions EN | 9 Adjustments and switches The printed circuit board has an loudspeaker level potentiometer, two DIP switches and an anti-tamper alarm switch. Loudspeaker level adjustment DIP 2 Anti-tamper override switch DIP 1 (default Off) -
Page 11: Operation
VSS7915/00T & VS79155T | Installation Instructions EN | 10 Focus The built-in lens provides an optimal image sharpness for objects between 0.25m / 0.82ft and infinity (depth of field). The focus is preset. No further adjustment is required. Operation When the Eazeo Outdoor Video Intercom is connected to the Eazeo Observation System and the system is switched on, the intercom image appears on the monitor screen. -
Page 12: Tips For Maintenance
VSS7915/00T & VS79155T | Installation Instructions EN | 11 4. Tips for maintenance Cleaning You can clean the outside of the Outdoor Video Intercom unit with a moist fluff-free cloth or shammy leather cloth. When cleaning the camera lens a special cleaning cloth should be used. - Page 13 VSS7915/00T & VS79155T | Installation Instructions EN | 12 Environmental conditions Operating temperature -20ºC +50ºC (-4ºF +122ºF) Non operating temperature -25ºC +70ºC (-13ºF +158ºF) Relative humidity Non-condensing 0% to 95% RH Input Voltage, via tp-input: 24VDC Power consumption < 3.5W Weight 0.51 kg / 1.12 lbs...
