HP Mini 110 Maintenance And Service Manual

HP Mini 110 Maintenance And Service Manual

Hide thumbs Also See for Mini 110:
Table of Contents

Advertisement

Quick Links

Download this manual

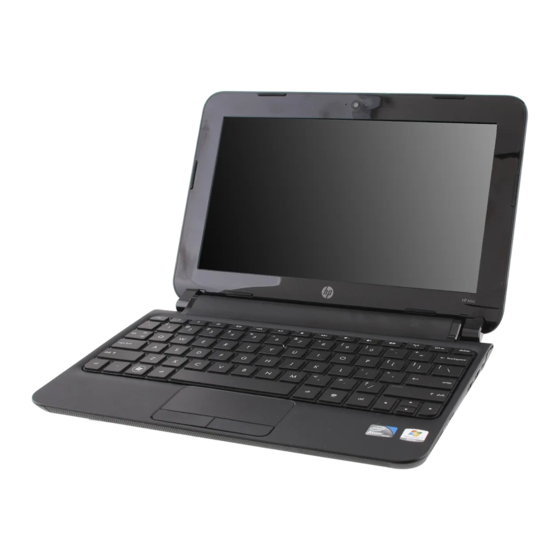

HP Mini 110
Compaq Mini CQ10
HP Mini 1103
Maintenance and Service Guide
Download from Www.Somanuals.com. All Manuals Search And Download.

Advertisement

Table of Contents
loading

Related Manuals for HP Mini 110

Summary of Contents for HP Mini 110

  • Page 1 HP Mini 110 Compaq Mini CQ10 HP Mini 1103 Maintenance and Service Guide Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 2 Corporation. SD Logo is a trademark of its proprietor. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
  • Page 3 Safety warning notice WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not place the device directly on your lap or obstruct the device air vents. Use the device only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow.
  • Page 4 Safety warning notice Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 5: Table Of Contents

    Table of contents 1 Product description ............................1 2 External component identification ........................ 6 Identifying the hardware ........................6 Top components ........................... 7 TouchPad ..........................7 Lights ........................... 8 Keys ............................. 9 Front components ..........................9 Right-side components ........................10 Left-side components .........................
  • Page 6 Packaging and transporting guidelines ..........32 Workstation guidelines ..............32 Equipment guidelines ............... 33 Component replacement procedures ....................34 Computer feet ........................34 Battery ..........................35 SIM ............................ 37 Service access cover ......................38 Hard drive .......................... 40 WWAN and GPS modules (select models only) ..............43 WLAN module ........................
  • Page 7 Recovering using the recovery discs ................. 81 Backing up your information ....................... 81 Using Windows Backup and Restore ................81 Using system restore points ....................82 When to create restore points ................82 Create a system restore point ................82 Restore to a previous date and time ..............
  • Page 8 viii Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 9: Product Description

    Product description Category Description HP Mini Compaq HP Mini Mini CQ10 1103 Product name HP Mini 110 Netbook PC √ Compaq Mini CQ10 Netbook PC √ HP Mini 1103 √ Processor Intel® Atom™ N455 single-core, 1.66-GHz processor, 512-KB √ √...
  • Page 10 Category Description HP Mini Compaq HP Mini Mini CQ10 1103 Memory One customer-accessible/upgradable memory module slot √ √ √ PC3-1333, 667-MHz, DDR3 NOTE: Memory always runs at 667 MHz because of chipset limitations. Supports the following configurations: ● 1-GB total system memory NOTE: Supported on all operating systems.
  • Page 11 ● HP lc 2000 Mobile Broadband Module √ √ √ ● HP lc 2010 Mobile Broadband Module (select models only) √ √ ● HP hs2320 HSPA Mobile Broadband Module (HP Mini √ 1103 models only) 2 WWAN antennas built into display assembly (select models √...
  • Page 12 √ √ √ Operating Windows 7 Starter √ √ system Windows 7 Professional (select countries) Support for HP QuickWeb USB Key Recovery support (for Service, refurbish centers, and repair centers) Linux √ FreeDOS √ √ √ Chapter 1 Product description...
  • Page 13 Category Description HP Mini Compaq HP Mini Mini CQ10 1103 Serviceability End-user replaceable parts: √ √ √ AC adapter Battery (system) Hard drive Memory module WLAN module or WLAN+Bluetooth module WWAN module (select models only) GPS module (select models only) Keyboard √...

  • Page 14: External Component Identification

    External component identification Identifying the hardware Components included with the computer may vary by country or region and by model. The illustrations in this chapter identify the standard features on most computer models. To see a list of hardware installed in the computer, follow these steps: Select Start >...

  • Page 15: Top Components

    Top components TouchPad Component Description TouchPad zone Moves the pointer and selects or activates items on the screen. Left TouchPad button* Functions like the left button on an external mouse. Right TouchPad button* Functions like the right button on an external mouse. *This table describes factory settings.

  • Page 16: Lights

    Lights Component Description Caps lock light ● White: Caps lock is on. ● Off: Caps lock is off. ● Mute light Amber: Computer sound is off. ● Off: Computer sound is on. ● Wireless light White: An integrated wireless device, such as a wireless local area network (WLAN) device and/or a Bluetooth®...

  • Page 17: Keys

    Keys Component Description Displays system information when pressed in combination with the key. Displays information about system hardware components and the system BIOS version number when pressed in combination with the key. Windows® logo key Displays the Windows Start menu. Windows applications key Displays a shortcut menu for items beneath the pointer.

  • Page 18: Right-Side Components

    Right-side components Component Description Digital Media Slot Supports the following optional digital card formats: ● Memory Stick ● Memory Stick Pro ● MultiMediaCard ● Secure Digital (SD) Card ● Secure Digital High Capacity (SDHC) Memory Card ● Secure Digital Extended Capacity (SDxC) Memory Card Power light ●...

  • Page 19: Left-Side Components

    Component Description Security cable slot Attaches an optional security cable to the computer. NOTE: The security cable is designed to act as a deterrent, but it may not prevent the computer from being mishandled or stolen. RJ-45 (network) jack and cover Connects a network cable.
  • Page 20 Component Description USB port Connects an optional USB device. Audio-out (headphone) jack/Audio-in (microphone) Produces sound when connected to optional jack powered stereo speakers, headphones, earbuds, a headset, or television audio. Also connects an optional headset microphone. WARNING! To reduce the risk of personal injury, adjust the volume before putting on headphones, earbuds, or a headset.

  • Page 21: Display Components

    Display components Component Description Internal display switch Initiates Sleep if the display is closed while the power is on. NOTE: The display switch is not visible from the outside of the computer. Internal microphone Records sound. Webcam Records video and captures still photographs. NOTE: To record videos, you need to install additional webcam software.

  • Page 22: Bottom Components

    Bottom components Component Description Battery locking latch Locks the battery into the battery bay. Battery bay Holds the battery. NOTE: The SIM slot is located under the battery. Battery release latch Releases the battery from the battery bay. Chapter 2 External component identification Download from Www.Somanuals.com.

  • Page 23: Wireless Antennas

    Wireless antennas Component Description WLAN antennas (2) (select models only)* Send and receive wireless signals to communicate with wireless local-area networks (WLANs). WWAN antennas (2) (select models only)* Send and receive wireless signals to communicate with wireless wide-area networks (WWANs). *The antennas are not visible from the outside of the computer.

  • Page 24: Additional Hardware Components

    Additional hardware components Component Description Power cord* Connects an AC adapter to an AC outlet. AC adapter Converts AC power to DC power. Battery* Powers the computer when the computer is not plugged into external power. *Batteries and power cords vary in appearance by region and country. Chapter 2 External component identification Download from Www.Somanuals.com.

  • Page 25: Illustrated Parts Catalog

    Illustrated parts catalog Service tag When ordering parts or requesting information, provide the computer serial number and model description provided on the service tag. Component Product name Serial number (s/n) Part number/Product number (p/n) Warranty period Model description Service tag Download from Www.Somanuals.com.

  • Page 26: Computer Major Components

    Computer major components Chapter 3 Illustrated parts catalog Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 27 Item Description Spare part number Display assembly, 25.7-cm (10.1-in) (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only), and webcam/microphone module and cable): WSVGA, anti-glare, LED display assembly in black for use only on Compaq models 634493-001 WSVGA, anti-glare, LED display assembly in black 633496-001...
  • Page 28 Item Description Spare part number For use in Turkey 633476-141 For use in the United Kingdom and Singapore 622343-031 Top cover assembly, includes: 633488-001 (3a) Top cover (including TouchPad) (3b) Speakers (include cable) Hard Drive Hardware Kit includes: 633491-001 (4a) Hard drive bracket (4b) Hard drive screws...
  • Page 29 Power connector cable 622329-001 (11) WWAN module (select models only) HP lc 2010 Mobile Broadband Module (HP Mini 110/Compaq Mini CQ10 models only) 612600-001 HP lc 2000 Mobile Broadband Module (HP Mini 110/Compaq Mini CQ10 models only) 612599-001 Qualcomm Gobi 2000 3G module...

  • Page 30: Display Components

    Left and right hinge cap wall Display Hinge Kit (includes right and left hinges) 633482-001 Display bezel For use on Compaq-branded models 633489-001 For use on HP-branded models 633493-001 Chapter 3 Illustrated parts catalog Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 31: Mass Storage Device

    Item Description Spare part number Webcam module 631703-001 Display panel (for use in HP Mini 110/Compaq Mini CQ10 models) 624218-001 Display/webcam cable 633490-001 Antenna Kit (includes WLAN and WWAN antennas) 631698-001 Display enclosure For use in black Compaq models 633492-001...

  • Page 32: Miscellaneous Parts

    490371-111 For use in Taiwan 490371-AB1 For use in Thailand 490371-201 Screw Kit 633500-001 AC adapter (40-W , non-smart RC/V 2W) 624502-001 HP wireless optical mouse 597588-001 Chapter 3 Illustrated parts catalog Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 33: Sequential Part Number Listing

    3.0+high-speed ready) 605560-005 Atheros AR9285G 802.11b/g/n 1x1 WiFi Adapter 612599-001 HP lc 2000 Mobile Broadband Module (HP Mini 110/Compaq Mini CQ10 models only) 612600-001 HP lc 2010 Mobile Broadband Module (HP Mini 110/Compaq Mini CQ10 models only) 621563-001 1-GB memory module (667-MHz, DDR3):...
  • Page 34 622330-001 Fan/heat sink assembly (includes replacement thermal material) 622351-001 RTC battery 624218-001 Display panel for use in HP Mini 110/Compaq Mini CQ10 models 624502-001 40-W AC adapter, non-Smart RC/V 2W 627731-001 320-GB, 7200-rpm hard drive (includes bracket and screws) 628532-001...
  • Page 35 Keyboard for use in Denmark, Finland, and Norway (includes cable) 633476-DJ1 Keyboard for use in Greece (includes cable) 633477-001 Display enclosure for use in black HP-branded models 633478-001 Display enclosure for use in white HP-branded models 633479-001 Display enclosure for use in red HP-branded models...
  • Page 36 Spare part number Description 633499-001 25.7-cm (10.1-in) WSVGA, anti-glare, LED display assembly in blue (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only), and webcam/microphone module and cable) 633500-001 Screw Kit 634493-001 25.7-cm (10.1-in) WSVGA, anti-glare, LED display assembly in black for use only on Compaq models (includes display panel cable, 2 WLAN transceivers and cables, 2 WWAN transceivers and cables (select models only), and webcam/microphone module and cable)

  • Page 37: Removal And Replacement Procedures

    Removal and replacement procedures Preliminary replacement requirements Tools required You will need the following tools to complete the removal and replacement procedures: ● Flat-bladed screwdriver ● Magnetic screwdriver ● Phillips P0 and P1 screwdrivers Service considerations The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

  • Page 38: Cables And Connectors

    Cables and connectors CAUTION: When servicing the device, be sure that cables are placed in their proper locations during the reassembly process. Improper cable placement can damage the device. Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion.

  • Page 39: Grounding Guidelines

    Grounding guidelines Electrostatic discharge damage Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.

  • Page 40: Packaging And Transporting Guidelines

    Packaging and transporting guidelines Follow these grounding guidelines when packaging and transporting equipment: ● To avoid hand contact, transport products in static-safe tubes, bags, or boxes. ● Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging. ● Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

  • Page 41: Equipment Guidelines

    Equipment guidelines Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation. ● When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times.

  • Page 42: Component Replacement Procedures

    Component replacement procedures This chapter provides removal and replacement procedures. There are as many as 33 screws, in 5 different sizes, that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw size and location during removal and replacement.

  • Page 43: Battery

    Battery Description Spare part number 6-cell Li-ion high-capacity (55-WH 2.55-Ahr) 630193-001 3-cell Li-ion (28-WH 2.55-Ahr) 630191-001 Remove the battery: CAUTION: Removing a battery that is the sole power source for the computer can cause loss of information. To prevent loss of information, save your work and initiate Hibernation or shut down the computer through Windows before removing the battery.
  • Page 44 Slide the battery locking latch (3) to the right to lock the battery into the battery bay. Chapter 4 Removal and replacement procedures Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 45: Sim

    NOTE: This section applies only to models with WWAN capability. NOTE: If there is a SIM inserted in the SIM slot, it must be removed before disassembling the computer. Be sure that the SIM is reinserted in the SIM slot after reassembling the computer. Before removing the SIM, follow these steps: Shut down the computer.

  • Page 46: Service Access Cover

    Service access cover Description Spare part number Service access cover, black (for use in all countries and regions except Brazil) 633484-001 Service access cover, black (for use only in Brazil) 633485-001 Before removing the service access cover, follow these steps: Shut down the computer.
  • Page 47 Insert the tabs into the slots (2), and swing the cover (3) down. Press down firmly on the cover until it clicks into place. Component replacement procedures Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 48: Hard Drive

    Hard drive Description Spare part number Hard drive: 320-GB, 7200-rpm 627731-001 250-GB, 7200-rpm 635225-001 160-GB, 7200-rpm 635760-001 Hard Drive Hardware Kit (includes hard drive bracket, screws, and Mylar cover) 633491-001 Hard Drive Cable Kit 628532-001 Before removing the hard drive, follow these steps: Shut down the computer.
  • Page 49 Use the Mylar tab (5) to remove the hard drive from the computer. If it is necessary to replace the hard drive bracket, follow these steps: Disconnect the cable adapter from the hard drive. Remove the 4 Phillips 3.0×3.0 screws (1) that secure the hard drive bracket to the drive. Component replacement procedures Download from Www.Somanuals.com.
  • Page 50 Remove the hard drive bracket (2). Remove the Mylar from the drive (3). Reverse this procedure to reassemble and install the hard drive. Chapter 4 Removal and replacement procedures Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 51: Wwan And Gps Modules (Select Models Only)

    The WWAN module and the GPS module are very similar. Either can populate the WWAN slot. Description Spare part number HP lc 2010 Mobile Broadband Module (HP Mini 110/Compaq Mini CQ10 models only) 612600-001 HP lc 2000 Mobile Broadband Module (HP Mini 110/Compaq Mini CQ10 models only) 612599-001...
  • Page 52 Remove the WWAN or GPS module (3) by pulling the module away from the slot at an angle. NOTE: WWAN and GPS modules are designed with a notch (4) to prevent incorrect insertion of the module into the slot. Reverse this procedure to install the WWAN or GPS module. Chapter 4 Removal and replacement procedures Download from Www.Somanuals.com.

  • Page 53: Wlan Module

    WLAN module Description Spare part number Atheros AR9285G 802.11b/g/n 1x1 WiFi Adapter 605560-005 Broadcom 4313/2070 802.11b/g/n (1x1) and Bluetooth high-speed Half Mini Card 600370-001 Broadcom 4313/2070 802.11b/g/n (1x1) WiFi Mini Card 593836-001 Ralink RT3090BC4 802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo Adapter (Bluetooth 602992-001 3.0+high-speed ready) CAUTION:...
  • Page 54 Remove the WLAN module (3) by pulling the module away from the slot at an angle. NOTE: WLAN modules are designed with a notch (4) to prevent incorrect insertion of the WLAN module into the WLAN module slot. Reverse this procedure to install the WLAN module. Chapter 4 Removal and replacement procedures Download from Www.Somanuals.com.

  • Page 55: Memory Module

    Memory module Description Spare part number 1-GB memory module (667-MHz, DDR3) 621563-001 2-GB memory module (667-MHz, DDR3) 621567-001 Before removing the memory module, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

  • Page 56: Rtc Battery

    Grasp the edge of the memory module (2), and then pull it out of the memory module slot. NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the memory module slot. Reverse this procedure to install the memory module. RTC battery Description Spare part number...
  • Page 57 Remove the RTC battery (2) from the computer. NOTE: The RTC battery is attached with double-sided tape. Reverse this procedure to install the RTC battery. When installing the RTC battery, be sure the plus sign (+) faces up. Component replacement procedures Download from Www.Somanuals.com.

  • Page 58: Keyboard

    Keyboard NOTE: The keyboard spare part kit includes a keyboard cable. For use in: Spare part number For use in: Spare part number Asia/Pacific region, Australia, the 633476-001 Japan 633476-291 People's Republic of China, Hong Kong, India, Indonesia, Singapore, and the United States Belgium 633476-A41 Latin America and Chile...
  • Page 59 Remove the keyboard: Remove the 3 Phillips 2.0×5.0 screws that secure the keyboard to the computer. Turn the computer right-side up, with the front toward you. Open the computer as far as possible. Lift the rear edge of the keyboard until it rests at an angle. Component replacement procedures Download from Www.Somanuals.com.
  • Page 60 Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and then disconnect the keyboard cable (2) Remove the keyboard. Reverse this procedure to install the keyboard. Chapter 4 Removal and replacement procedures Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 61: Top Cover

    Top cover NOTE: The top cover includes the speakers, TouchPad and TouchPad cable. Description Spare part number Top cover (includes TouchPad, TouchPad cable, and speaker) 633488-001 Before removing the top cover, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
  • Page 62 Remove the interior hinge covers (2). Turn the computer upside down, with the front toward you. Remove the rear rubber feet, and then remove the 2 Phillips 2.5×5.0 screws (1) under the feet. Remove the 4 Phillips 2.0×5.0 screws (2) that secure the top cover to the base enclosure. Turn the computer right-side up, with the front toward you.
  • Page 63 Release the ZIF connector (4) to which the TouchPad button cable is connected, and then disconnect the TouchPad button cable (5) from the system board. Remove the 8 Phillips 2.0×4.0 screws that secure the top cover to the base enclosure. Component replacement procedures Download from Www.Somanuals.com.

  • Page 64: Display Assembly

    (select models only), and webcam/microphone module and cable): ● WSVGA, anti-glare, LED display assembly in black for use only on Compaq-branded models 634493-001 ● WSVGA, anti-glare, LED display assembly in black for use only on HP-branded models 633496-001 ● WSVGA, anti-glare, LED display assembly in red 633498-001 ●...
  • Page 65 Remove the display assembly: Close the computer. Turn the computer upside down, with the front toward you. Release the WLAN antenna cables (1) from the clips (2) built into the base enclosure. Turn the computer right-side up, with the front toward you. Open the computer as far as possible.
  • Page 66 Release the wireless antenna cables (2) from the clip built into the base enclosure. CAUTION: Support the display assembly when removing the following screws. Failure to support the display assembly can result in damage to the display assembly and other device components.
  • Page 67 Remove the display assembly (2). Remove the display assembly hinges: Remove the hinge covers from the hinges. The display hinge covers are available using spare part number 633483-001. Remove the 2 Phillips 2.0×5.0 screws (1) that secure the black plastic covers to the display assembly, and then lift the covers from the display (2).
  • Page 68 (2), loosen the bottom of the bezel (3), and then lift the bezel from the display (4). The display bezel is available using spare part number 633489-001 for Compaq-branded models and 633493-001 for HP-branded models. Chapter 4 Removal and replacement procedures...
  • Page 69 If you need to remove the webcam module, unplug the cable from the webcam module (1), remove the silver Phillips 2.0x3.0 screw (2), and then lift the module from the display (3). The webcam module is available using spare part number 631703-001. If you need to remove the display panel from the display enclosure, remove the 4 Phillips 2.0×4.0 screws (1) that secure the panel to the enclosure, lift the top of the display panel (2), and then rotate it up and out of the display enclosure.
  • Page 70 If you need to remove the display/webcam cable assembly, disconnect the display cable (1) from the connector (2) on the back of the display panel. The display/webcam cable is available using spare part number 633490-001. Lift the display/webcam cable (1) from its routing path (2) in the display enclosure. Chapter 4 Removal and replacement procedures Download from Www.Somanuals.com.
  • Page 71 The antenna cables are available using spare part number 631698-001. If you need to replace the display enclosure, use the following spare part numbers: ● 633492-001 for black Compaq-branded models ● 633477-001 for black HP-branded models ● 633478-001 for white HP-branded models ● 633479-001 for red HP-branded models ●...

  • Page 72: Fan/Heat Sink Assembly

    Fan/heat sink assembly Description Spare part number Fan/heat sink assembly (includes replacement thermal material) 622330-001 NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-in) clearance on the left side of the computer. The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist.
  • Page 73 Remove the fan/heat sink assembly (4). NOTE: Due to the adhesive quality of the thermal material located between the fan/heat sink assembly and system board components, it may be necessary to move the fan/heat sink assembly from side to side to detach it from the system board. NOTE: The thermal material must be thoroughly cleaned from the surfaces of the fan/heat sink assembly and the system board each time the fan/heat sink assembly is removed: Thermal...

  • Page 74: System Board

    System board NOTE: The system board spare part kit includes replacement thermal material. Description Spare part number System boards for use in models without high-definition video: Intel Atom N455 1.66-GHz processor for use in models without WWAN 633486-001 Intel Atom N455 1.66-GHz processor for use in models with WWAN 633494-001 Intel Atom N475 1.83-GHz processor for use in models without WWAN 633487-001...
  • Page 75 When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board: ● SIM (see SIM on page ● WWAN module (see WWAN and GPS modules (select models only) on page ●...
  • Page 76 Remove the system board (3) by sliding it up and away from the base enclosure. Reverse the procedure to install the system board. Chapter 4 Removal and replacement procedures Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 77: Power Connector Cable

    Power connector cable Description Spare part number Power connector cable 622329-001 Power connector bracket 634873-001 Before removing the power connector cable, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
  • Page 78 Remove the power connector cable by grasping the connector and removing it from the base enclosure. Reverse this procedure to install the power connector cable. Chapter 4 Removal and replacement procedures Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 79: Setup Utility

    Setup Utility Starting Setup Utility Setup Utility is a ROM-based information and customization utility that can be used even when your Windows operating system is not working. The utility reports information about the computer and provides settings for startup, security, and other preferences.

  • Page 80: Navigating And Selecting In Setup Utility

    Navigating and selecting in Setup Utility Because Setup Utility is not Windows based, it does not support the TouchPad. Navigation and selection are by keystroke. ● To choose a menu or a menu item, use the arrow keys. ● To choose an item in a list or to toggle a field, for example an Enable/Disable field, use either the arrow keys or or f6.

  • Page 81: Exiting Setup Utility

    Exiting Setup Utility You can exit Setup Utility with or without saving changes. ● To exit Setup Utility and save your changes from the current session: If the Setup Utility menus are not visible, press to return to the menu display. Then use the arrow keys to select Exit >...

  • Page 82: Diagnostics Menu

    Delay (sec.)―Set the delay for the functions of Setup Utility in intervals of 5 seconds each (0, 5, 10, 15, 20). ● HP QuickWeb―Enable/disable the HP QuickWeb menu in Setup Utility. ● Internal Network Adapter boot―Enable/disable boot from Internal Network Adapter.

  • Page 83: Specifications

    Specifications Device specifications Metric U.S. Dimensions Depth 19 cm 7.5 in Width 27 cm 11 in Height 2.3-3.2 cm 0.91-0.93 in Weight 25.7-cm (10.1-in) LCD, equipped with a 3-cell battery, hard 1.14 kg 2.52 lb drive, 1-GB memory, WLAN module, and 2 wireless antennas 25.7-cm (10.1-in).

  • Page 84: Cm (10.1-In) Wsvga Antiglare Display Specifications

    25.7-cm (10.1-in) WSVGA AntiGlare display specifications Metric U.S. Dimensions Height 23.5 cm 9.3 in Width 14.3 cm 5.6 in Diagonal 25.7 cm 10.1 in Number of colors 262,144 Contrast ratio 500:1 (typical) Brightness 200 nits (typical) Pixel resolution Pitch 0.2175 × 0.2088 mm Format 1024 ×...

  • Page 85: Hard Drive Specifications

    Hard drive specifications 320-GB* 250-GB* 160-GB* Dimensions Height 9.5 mm 9.5 mm 9.5 mm Length 100.2 mm 100.2 mm 100.2 mm Width 70 mm 70 mm 70 mm Weight 105-115 g 105-115 g 105-115 g Interface type SATA SATA SATA I/O data transfer rate (maximum) 100 Gbits/sec 100 Gbits/sec...

  • Page 86: Backup And Recovery

    Management. If the partition is present, an HP Recovery drive is listed in the window. Recovery discs HP recommends that you create recovery discs to be sure that you can restore your computer to its original factory state if the hard drive fails, or if for any reason you cannot recover using the recovery partition tools.

  • Page 87: Performing A System Recovery

    (purchased separately) to create recovery discs, or you can purchase recovery discs for your computer from the HP Web site. If you use an external optical drive, it must be connected directly to a USB port on the computer, not to a USB port on an external device, such as a USB hub.

  • Page 88: Recovering Using The Dedicated Recovery Partition (Select Models Only)

    “Press the ESC key for Startup Menu” message is displayed at the bottom of the screen. Then, press while the “F11 (HP Recovery)” message is displayed on the screen. Click System Recovery in the Recovery Manager window. Follow the on-screen instructions.

  • Page 89: Recovering Using The Recovery Discs

    Recovering using the recovery discs If possible, back up all personal files. Insert the first recovery disc into the optical drive on your computer or an optional external optical drive, and then restart the computer. Follow the on-screen instructions. Backing up your information You should back up your computer files on a regular schedule to maintain a current backup.

  • Page 90: Using System Restore Points

    Using system restore points A system restore point allows you to save and name a snapshot of your hard drive at a specific point in time. You can then recover back to that point if you want to reverse subsequent changes. NOTE: Recovering to an earlier restore point does not affect data files saved or e-mails created since the last restore point.

  • Page 91: Power Cord Set Requirements

    Power cord set requirements The wide-range input feature of the computer permits it to operate from any line voltage from 100 to 120 volts AC, or from 220 to 240 volts AC The 3-conductor power cord set included with the computer meets the requirements for use in the country or region where the equipment is purchased.

  • Page 92: Requirements For Specific Countries And Regions

    Requirements for specific countries and regions Country/region Accredited agency Applicable note number Australia EANSW Austria Belgium CEBC Canada Denmark DEMKO Finland FIMKO France Germany Italy Japan METI The Netherlands KEMA Norway NEMKO The People's Republic of China South Korea Sweden SEMKO Switzlerland Taiwan...

  • Page 93: Recycling

    When you remove these components, handle them carefully. NOTE: Materials Disposal. This HP product contains mercury in the backlight in the display assembly that might require special handling at end-of-life. Disposal of mercury may be regulated because of environmental considerations. For disposal or recycling information, contact your local authorities, or see the Electronic Industries Alliance (EIA) Web site at http://www.eiai.org.
  • Page 94 Perform the following steps: Remove all screw covers (1) and screws (2) that secure the display bezel to the display assembly. Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of the display bezel until the bezel disengages from the display assembly.
  • Page 95 Disconnect all display panel cables (1) from the display inverter and remove the inverter 2. Remove all screws (1) that secure the display panel assembly to the display enclosure. Remove the display panel assembly (2) from the display enclosure. Turn the display panel assembly upside down. Remove all screws that secure the display panel frame to the display panel.
  • Page 96 Remove the display panel frame (2) from the display panel. Remove the screws (1) that secure the backlight cover to the display panel. Lift the top edge of the backlight cover (2) and swing it outward. Remove the backlight cover. Turn the display panel right-side up.
  • Page 97 Remove the backlight frame from the display panel. WARNING! The backlight contains mercury. Exercise caution when removing and handling the backlight to avoid damaging this component and causing exposure to the mercury. Remove the backlight from the backlight frame. Disconnect the display cable (1) from the LCD panel. Remove the screws (2) that secure the LCD panel to the display rear panel.
  • Page 98 Release the tape (4) that secures the LCD panel to the display rear panel. Remove the LCD panel. Recycle the LCD panel and backlight. Chapter 9 Recycling Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 99: Index

    Index changing Setup Utility display EMI shield, spare part AC adapter language 71 number 23, 28 identifying 16 chipset, product description 1 display enclosure spare part number 24, 26 components removing 63 action keys 9 additional hardware 16 spare part numbers 23, 27, 63 administrator password 73 bottom 14 display hinge covers...
  • Page 100 fn key 9 removal 50 pointing device, product full system recovery 78 spare part description 4 numbers 19, 26, 27, 50 ports keys product description 4 GPS module action 9 USB 10, 12 removal 43 esc 9 power connector bracket, spare spare part number 21 fn 9 part number 21, 28, 69...
  • Page 101 static-shielding materials 33 recovering a program or driver 78 supported discs 79 recovering from the dedicated system board recovery partition 80 removal 66 recovering from the recovery spare part numbers 20, 28, 66 discs 81 System Configuration menu 73 recovery discs 78 system failure or instability 78 Recovery Manager 78, 79 system information 73...
