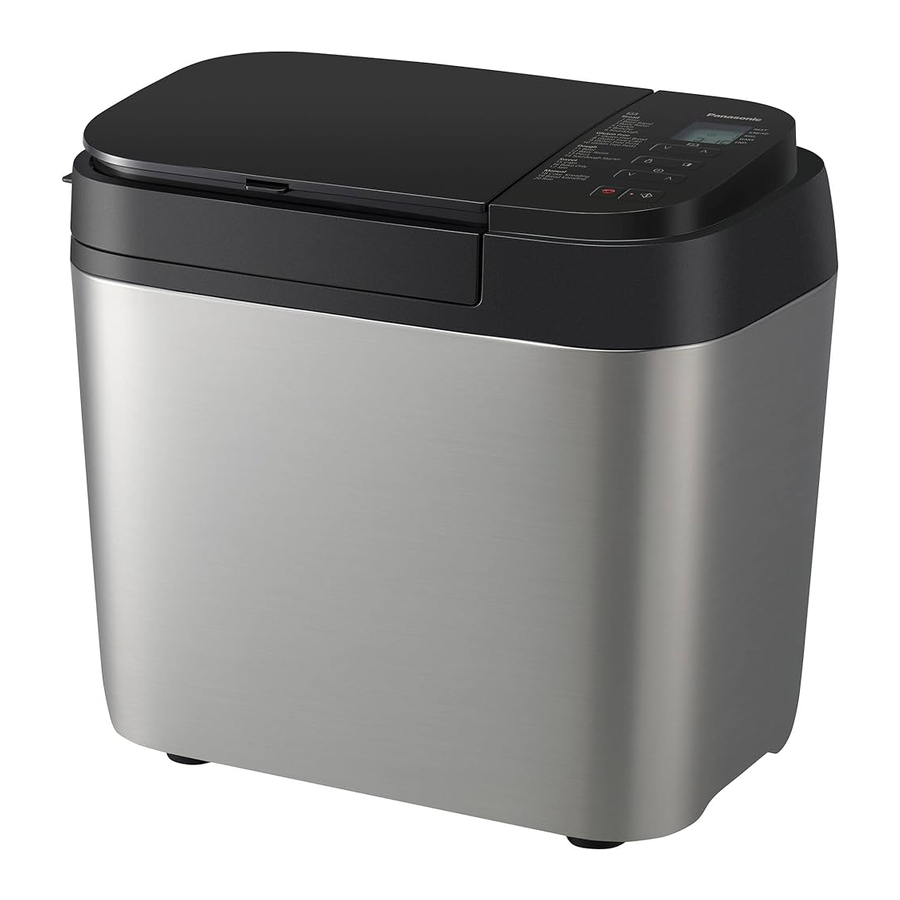

Panasonic SD-R2550 - Bread Maker Manual

Parts Names and Instructions

Main Unit

Accessories

Bread pan and kneading blade are coated with a non-stick finish to avoid stains and to make it easier when removing bread.

To avoid damaging it, please follow the instructions below.

• Do not use hard utensils such as a knife or a fork when removing the bread from the bread pan. If the bread cannot be easily removed from the bread pan, leave the bread pan for 5 – 10 minutes to cool, making sure that it is not left unattended where somebody or something may get burnt. After that, shake the bread pan several times using oven mitts. (Hold the handle down so that it does not get in the way of bread.)

• Ensure that the kneading blade is not embedded in the bread loaf before slicing it. If it is embedded, wait for the loaf to cool and remove it. (Do not use hard or sharp utensils such as a knife or a fork.) Be careful not to get burn as the kneading blade may still be hot.

• Use the soft sponge when cleaning the bread pan and the kneading blade. Do not use anything abrasive such as cleansers or scouring pads.
• Hard, coarse or large ingredients such as flours with whole or ground grains, sugar, or the addition of nuts and seeds may damage non-stick finish coating. If using large chunks of ingredient, break or cut into small pieces. Please follow the information of Additional Ingredients and the recipe quantities stated.

• Use only supplied kneading blade for this appliance. The bread pan, kneading blade and bread may be very hot after baking. Always handle with care.

Control Panel and Display

Picture shows all words and symbols, but only those relevant will be displayed during operation.

• Operation status
  Displayed for the current stage of the program except .
  : Provide an indication of doing manual operation.
• Time showing
  • Time remaining until ready.
  • Menu required some manual steps, display will show the remaining time until starting its process after press button.
• Menu
  • Press or once to be a setting mode.
  • Press or again to change Menu number.
    (To advance more quickly, hold the button.)
• Size
  Press this button to choose size.

• Crust
  Press this button to choose crust shape.

• Timer
  • Set delay timer (time until bread is ready).
    For available menu, it can be set up to 13 hours (except menu sourdough only set up to 9 hours).
    e.g.: It is 9:00 PM now, and you want the bread to be ready at 6:30 the next morning.
    • Set the timer to 9:30 (9 hours and 30 minutes from now).

  • Setting time for Sweet Menus:
    " " press this button to increase the time.
    " " press this button to decrease the time.
    (To advance more quickly, press this button once then hold it.)
    • Menu "Cake" Pressing the button once will advance the additional baking time by 1 minute.
    • Menu "Bake Only" Pressing the button once will advance the baking time including additional baking time by 1 minute.
    • Menu "Jam" Pressing the button once will advance the cooking time by 10 minutes but additional cooking time will be by 1 minute.

• Stop
  To cancel the setting / stop the program. (Hold for approximately 1 second.)
• Start
  Press this button to start the program.
• Status indicator
  • Flash indicates that the machine is in set state or manual operation is required.
    button can be pressed.
  • Always light indicates that the machine is in program execution state.
    button cannot be pressed.
    It will not turn on even plugged in.

Bread-making Ingredients

It is extremely important to use the correct measure of ingredients for best results.

Liquid ingredients

Use the measuring cup or measuring spoon provided. If the recipes indicate a mixture (the liquid plus egg), should be weighted on scales. Using digital scale is recommended.

Dry ingredients

Should be weighed on scales or measured with measuring spoon provided for the small amounts. Using digital scale is recommended.

Flour

Main ingredient of bread. The protein in flour forms gluten during kneading. Gluten provides structure and texture and helps the bread to rise.
Use strong flour. Strong flour is milled from the wheat and has a high content of protein which is necessary for the development of gluten. Carbon dioxide produced during fermentation is trapped within the elastic network of gluten, thus making the dough rise.

White flour

Made by grinding wheat kernel, excluding bran and germ. The best kind of flour for baking bread is a flour marked "for bread baking". Do not use plain or self - raising flour as a substitute for bread flour.

Whole wheat flour

Made by grinding entire wheat kernel, including bran and germ. Makes very health-giving bread. This bread is lower in height and heavier than bread baked with white flour.

Rye flour

Made by grinding rye kernel. Contains more iron, magnesium and potassium, which contribute to good health.
Due to the low gluten content, it makes a dense, heavier bread. Do not use more than stated quantity (could overload motor).

Dry yeast

Enables the bread to rise.
Be sure to use dry yeast that does not require pre - fermentation. Do not use yeast that requires preliminary fermentation. Yeast which has 'instant yeast' or 'rapid rise yeast' written on the packet is recommended. When using dry yeast from sachets, seal the sachet again immediately after use. To store, follow the Manufacturer's instructions and discard after 48 hours of opening. It is recommended on most yeast packets to keep in a cool dry place.

Dairy products

Add flavor and nutritional value.

• If you use milk instead of water, the nutritional value of the bread will be higher, but do not use in timer setting as it may not keep fresh overnight.
  • Reduce the amount of water proportionally to the amount of milk.

Sugar

(granulated sugar, brown sugar, honey, treacle, etc.) Food for the dry yeast, sweetens and adds flavor to the bread, changes the colour of the crust.

• Use less sugar if using raisins or other fruits, which contain fructose.

Water

Use normal tap water.
When room temperature is low, use tepid water for menu 2, 7 or 10.
When room temperature is high, use chilled water for menu 4 or 5.
Always measure out liquids using the measuring cup provided.

Salt

Improves the flavor and strengthens gluten to help the bread rise.
The bread may lose size / flavor if measuring is inaccurate.

Fat

Adds flavour and softness to the bread. Use butter (unsalted), margarine or oil.

You can make your bread taste better by adding other ingredients.

• Eggs
  Improve the nutritional value and colouring of the bread. (Water amount must be reduced proportionally.) Beat eggs when adding eggs. Do not use the timer for the recipe with egg. (Eggs go rotten quickly if your room temperature is high.)
• Bran
  Increases the bread's fibre content.
  • Use max. 50 g (5 tbsp).
• Wheat germ
  Gives the bread a nuttier flavour.
  • Use max. 50 g (4 tbsp).
• Spices, herbs
  Enhance the flavour of the bread.
  • Only use a small amount (max. 1 tbsp).

If using a bread mix...

• Bread mixes including dry yeast
  1. Place the mix in the bread pan, then add water.
     (Follow instructions on the packet for the quantity of water)
  2. Select menu, choose a size according to the volume of the mix, and start the baking.
     • 600 g – XL
     • 400 g – M
• With some mixes, it is not clear how much yeast is included, so some trial and error may be required to obtain optimum results.
• Bread mix with separate yeast sachet
  1. First place the dry yeast in the bread pan, then the bread mix, then the water.
  2. Set the machine on menu 1 and start the baking.
• Baking brioche with brioche mix
  Select the menu 5 or 2- "Medium" size - "Light" crust shape.

Tips: The outcome differs depending on the type of mixed flour.

Menu Charts and Baking Options

Function Availability and Time Required

• The machine stops or moves during process based on the operating program.
• Time required for each process will differ according to room temperature.

*1 Only "Light" or "Medium" are available.
*2 Only "Medium" or "Dark" are available.
*3 Can be set up to 9 hours.
*4 There is a period of rise during the knead period.
*5 There is a period of rest during the knead period.
*6 There is a period of scraping or molding during the knead period.
*7 There is a period of scrape off the flour.

• Abbreviations used in this instructions, a full name written as follows: min = minute (s); h = hour (s); approx. = approximately.
• Remark ( ): The menu is available to do manual operation such as adding extra ingredients and scraping the flour from sidewall of bread pan, when the beep sounds.

Handling Instructions

Before Use

• For the first time use, remove packing material and clean the machine.
• Clean the machine when you have not used for a long time.

Preparations

Step 1: Open the lid, remove the bread pan (1)

and set the kneading blade into the kneading mounting shaft. (2)

• Check around the shaft and inside the kneading blade and ensure that they are clean.

Step 2: Prepare the ingredients with exact measurement according to the recipe.

Step 3:

1. Place the measured ingredients into the bread pan in the order listed in the recipes.
   • For bread and dough menus, dry yeast should be placed first.
     1. Place dry yeast away from the kneading blade and kneading mounting shaft. If some of the dry yeast get into it, bread may not rise well.
     2. Place dry ingredients over the dry yeast.
        It must be kept separate from any liquid until mixing commences.
   • Pour liquid in the edge of bread pan's sidewall to avoid splashing. (3)

2. Wipe off any moisture and flour around the bread pan, and return it into the main unit. (4)

   Close the lid.
   • Add additional ingredients into the raisin nut dispenser for available menus.
   • For optimum results, do not open the lid unless the menu requires, as it affects bread quality.

Step 4: Plug the machine into 120 V outlet.

Make sure to complete the preparation steps before setting menu.

Baking Bread

Step 5: Press or button in the Menu () bar to select a bread menu.

• Choose the options for selected menu.
  Loaf size
  Crust shape
  Delay timer

Step 6: Press Start () button to start the machine.
(The display shows when menu "1" is selected.)

• Display shows the remaining time until the selected program is complete.
  * The remaining time is changed depending on the room temperature.

• Do manual operation when the beep sounds if you select the certain menus.
  (See menus with icon. )
  After that, then press button again.
  * Complete the works while is flashing on the display.
  When stop flashing, display shows the remaining time.
  * Do not add ingredients after display shows remaining time.
  * Kneading will continue after a certain time without press button.

Step 7: When bread is ready (machine beeps 8 times and the cube ( ) near END flashes), press Stop button and unplug.

Step 8: Remove the bread immediately by using dry oven mitts and place it on a wire rack. (5)

• Hold the handle with oven mitts and shake the bread out.

• Moving the outside base shaft may damage the bread shape. (6)

• Always remove the kneading blade before slicing bread. (7)


Making Dough

Step 5: Press or button in the Menu () bar to select a bread menu.

Step 6: Press button to start.

• Display shows the remaining time until the program is complete.

Step 7: When dough is ready (machine beeps 8 times and the cube ( ) near END flashes), press button and unplug.

Tips: Timer is not available on doughs menus except Pizza

Bread Dough

Step 8: Shape the finished dough to your favourite shape and allow it to rise until double size, then bake in the oven.

Pizza Dough

Step 8: Divide the dough with scraper and shape them into balls.

Step 9: Cover them with damp kitchen towel and leave it for 10 minutes.

Step 10: Shape into a flat round and make holes with a fork.

Step 11: Spread your favourite sauce and desired topping then bake it in the oven.

Handling Instructions

Additional Ingredients

(Dried fruits, nuts, bacon, cheese etc.)

Available Menu

Bread	Dough
Basic Raisin	Basic Raisin
Menu 3	Menu 12

To make your flavoured bread, simply place additional ingredients in the raisin nut dispenser or bread pan.

Attention of ingredients

Follow the recipe / menu instructions for the quantities of each ingredients.

Otherwise,

• The ingredients may scatter from bread pan to cause unpleasant smells and smoke.
• The bread may not rise well.

Dry / insoluble ingredients (Using raisin nut dispenser - add automatically)

• Place the extra ingredients in the raisin nut dispenser and set the machine.
• Do not overfill the raisin nut dispenser.


• Dried fruits
  • Cut up roughly into approximate 5 mm cubes.
  • Sugar-coated ingredients may stick to the raisin nut dispenser and not fall into the bread pan.
• Nuts, seeds
  • Chop finely.
  • Nuts impair the effect of gluten, so avoid using too much.
  • Using large, hard seeds may scratch the coating of the dispenser and bread pan.
• Herbs
  • Use up to 1 – 2 tbsp of dried herbs. For fresh herbs, follow the instructions in the recipe.
• Bacon, salami, olives, dry tomato
  • Sometimes oily ingredients may stick to the raisin nut dispenser and not fall into the bread pan.
  • Cut the bacon and the salami into 1 cm cubes.
  • Cut the olives into quarters.

Moist / viscous / soluble ingredients* (Adding into the bread pan by hands - cannot be placed in the raisin nut dispenser)

• Place these ingredients together with the others into the bread pan.

• Fresh fruits, fruits pickled in alcohol, vegetables
  • Only use quantities as in the recipe, as the water content in the ingredients will affect bread.
• Cheese, chocolate
  • Cut the cheese into 1 cm cubes.
  • Chop chocolate finely.
    * These ingredients cannot be placed in the raisin nut dispenser as they would stick to it and not fall into the bread pan.

Baking Brioche

Steps 1-4: See "Preparations"

Step 5: Select menu 5, choose crust shape.

Step 6: Press button to start.

• Display shows the remaining time until the beep sounds.

Step 7: After about 55 minutes - 1 hour 5 minutes. Open the lid when you hear the beep sound. Add the additional butter while " " is flashing. Close the lid and restart.

• Kneading will continue after 5 minutes without press button.

Step 8: Press button and remove bread when machine beeps 8 times and the cube ( ) near END flashes.

Tips:

• Timer is not available on this menu.
• Do not add butter or extra ingredients after display shows remaining time.
• When adding extra ingredients such as raisins, add them with the butter in step 7. (Use max. 150 g for ingredients)

To bake brioche in simple way.

• Cut butter into 1 - 2 cm cubes and keep them in refrigerator.
• Place butter with other ingredients in the beginning and follow step 5.
• Skip step 7 process in this way. This Brioche is a little different from the others.

Sourdough

STAGE 1 Making Sourdough Starter

Preparations

1. Mix all the ingredients well in the sourdough cup. (Remove the kneading blade)
2. Put the lid on the sourdough cup.
3. Place the sourdough cup in the bread pan.
4. Set the bread pan into the main unit, and plug the machine into the socket.


Step 1: Select menu 14

Step 2: Press button to start.

• Display shows the remaining time until the program is complete.


Step 3: Press button and remove the sourdough cup immediately when machine beeps 8 times and the cube ( ) near END flashes.

• When you do not use it immediately, store it in the refrigerator, but use up within 1 week.

STAGE 2 Baking Sourdough

Preparations

1. Set the kneading blade into the bread pan.
2. Pour a cup of sourdough starter into the bread pan.
3. Place the ingredients in the bread pan in the following order: strong white bread flour → salt → dry yeast (keep away from the salt) → water (keep away from the dry yeast, pour water around the strong white bread flour).
4. Set the bread pan into the main unit, and plug the machine into the socket.

Step 1: Select menu 6

Step 2: Press button to start.

• Display shows the remaining time until the program is complete.

Step 3: Press button and remove bread, when machine beeps 8 times and the cube ( ) near END flashes.

Tips: Timer is available for baking sourdough bread (up to 9 hours).

To make or storage sourdough starter without failure.

• Do not select a wrong menu.
• Do not take out the sourdough cup until the program is complete.
• Do not mix the new sourdough starter with old one.
• If the sourdough starter is made well, it smells sour and like alcohol.
• When the room temperature is over 30°C, the sourdough starter goes bad, and the bread does not turn out well.

Gluten Free Information

Making gluten free bread is very different from the normal way of producing bread.
It is very important if you are making gluten free bread for health reasons that you have consulted your doctor and follow the guidelines below.

• This program has been developed especially for certain gluten free ingredients, therefore using your own mix may not produce such good results.
• Gluten-free bread cannot rise as much as a traditional bread. It will be of a denser consistency and lighter colour than normal bread.
• When "gluten free" is selected, the details for each recipe must be followed carefully. (Otherwise, the bread may not turn out well.) There are two types of gluten - free baking mixtures; mixtures with low content of gluten and mixtures which do not consist of wheat and contain no gluten. If you have to pick one out using this baking program, please consult your doctor beforehand.
• The baking results and bread's appearance may differ according to the type of mix. Occasionally a bread may have some flour remaining on the side. The wheat free mixes can produce more variable results.
• Wait for the bread to cool before slicing it for the better performance.
• The bread should be stored in a cool dry place and used within 2 days. If you will not be able to use up all the bread within that time it can be put into freezer bags, in convenient sized portions, and frozen.

Warning for the users who use this program for health reasons:
When using the gluten free program, make sure to consult your doctor or the Coeliac Association and only use the ingredients which are suitable for your health conditions.
Panasonic will not be responsible for any consequences resulting from ingredients that have been used without professional consultation.

It is very important to avoid cross contamination with flours that contain gluten if bread is being made for dietary reasons. Particular attention must be paid to the cleaning of the bread pan and kneading blade as well as any utensils that are used. You must also ensure that the yeast used contains no gluten.

Baking Gluten Free Bread

Steps 1-4: See "Preparations"

Step 5: Select menu 7

Step 6: Press button to start.

• Display shows the remaining time until the beep sounds.

Step 7: After about 6 minutes, open the lid when you hear the beep sound. Scrape off the flour within 3 minutes while is flashing. Close the lid and restart.

• Kneading will continue after 3 minutes without press button.

Step 8: Press button and remove bread when machine beeps 8 times and the cube ( ) near End flashes.

Tips: Use a rubber spatula to avoid damaging the bread pan. Do not use the metal spatula.

Baking Gluten Free Cake

Steps 1-4: See "Preparations"

Step 5: Select menu 8

Step 6: Press button to start.

• Display shows the remaining time until the beep sounds.

Step 7: After about 2 minutes, open the lid when you hear the beep sound. Scrape off the flour within 3 minutes while is flashing. Close the lid and restart.

• Kneading will continue after 3 minutes without press button.

Step 8: After about 12 minutes, open the lid when you hear the beep sound. Scrape off the dough on the sidewall of bread pan while is flashing. Close the lid and restart.

• Baking will start after 3 minutes without press button.

Step 9: Press button and remove cake when machine beeps 8 times and the cube ( ) near End flashes.

Tips

• Use a rubber spatula to avoid damaging the bread pan. Do not use metal spatula.
• If you shake hard to remove cake from the bread pan, it will lose shape.

Making Gluten Free Pizza / Gluten Free Pasta

Steps 1-4: See "Preparations"

Step 5: Select the menu

Step 6: Press button to start.

• Display shows the remaining time until the beep sounds.

Step 7: After about 5 minutes for gluten free pizza, 2 minutes for gluten free pasta, open the lid when you hear the beep sound. Scrape off the flour within 3 minutes while is flashing. Close the lid and restart.

• Kneading will continue after 3 minutes without press button.

Step 8: Press button and remove dough when machine beeps 8 times and the cube ( ) near End flashes.

Gluten Free Pizza

Step 9: Divide the dough into 2 parts with scraper, and roll them into a circle of about 20 cm diameter.

Step 10: Spread your favourite sauce and desired topping then bake it in the oven.

Gluten Free Pasta

Step 9: Wrap the dough in a cling film and rest for 1 hour in the refrigerator.

Step 10: Lightly flour the dough surface, and shape it to your desired shapes.

Step 11: Boil them and enjoy it with your favourite sauce.

Tips: Use the rubber spatula to avoid damaging the bread pan.
Do not use the metal spatula.

Baking Cake

Steps 1-4: See "Preparations"

Step 5: Select menu 15

Step 6: Press button to start.

• Display shows the remaining time until the beep sounds.

Step 7: After about 12 minutes, open the lid when you hear the beep sound. Scrape off the flour within 5 minutes while is flashing. Close the lid and restart.

• Kneading will continue after 5 minutes without pressing button.

Step 8: Press button and remove cake when machine beeps 8 times and the cube ( ) near End flashes.

Additional Baking

• If baking is not complete, follow the following method. (Additional baking time can be made up to twice within 20 minutes while the machine is still hot. The timer will start again from 1 minute by pressing the button as required.)
  1. Select the menu (Skip it if you have not pressed button in step 8)
  2. Set the baking time
     • It can be set to 1 - 20 minutes.
  3. Press button to start.
     • To discontinue baking, hold button.

Tips

• Timer is not available on this menu. It only sets the duration of the baking time.
• Use a rubber spatula to avoid damaging the bread pan. Do not use metal spatula.
• If you shake hard to remove cake from the bread pan, it will lose shape.

Bake Only

Preparations

1. Prepare the mixed ingredients in the bowl according to the recipe.
2. Remove the kneading blade and line the grease-proof paper around the bread pan, then pour in the mixed ingredients.
3. Set the bread pan into the main unit, and plug the machine into the socket.

Step 1: Select menu 16

Step 2: Set the baking time

Step 3: Press button to start.

• Display shows the remaining time until the program is complete.

Step 4: Press button and remove cake when machine beeps 8 times and the cube ( ) near End flashes.

Additional Baking

• If baking is not complete, repeat step 1 – 4. (Additional baking time can be made up to twice within 50 minutes while the machine is still hot. The timer will start again from 1 minute by pressing the button as required.)

Tips: Timer is not available on this menu. It only sets the duration of the baking time.

Making Jam

Preparations

1. Prepare the ingredients according to the recipe.
2. Put the kneading blade into the bread pan.
3. Place the ingredients into the pan in following order.
   half of fruits → half of sugar → remainder of fruits → remainder of sugar.
4. Set the bread pan into the main unit, and plug the machine into the socket.

Step 1: Select menu 17

Step 2: Set the cooking time, then start the machine.

Step 3: Press button and remove Jam when machine beeps 8 times and the cube ( ) near End flashes.

Additional Cooking

• If the cooking is not complete → repeat step 1 - 3.

(Additional cooking time can be made up to twice within 10 - 40 minutes while the machine is still hot. The timer will start again from 1 minute by pressing button as required.)

Tips

• Timer is not available on these menus. It only sets the duration of the cooking time.
• Strictly follow the recipe for the amount of each ingredients. Otherwise, the jam does not set firm, to be boiled over or scorched.
• It's necessary to have an adequate amount of sugar, acid and pectin to make firm set jam.
• Fruits with a high level of pectin set easily. Fruits with less pectin do not set well.
• U se freshly ripened fruits. Over or under ripe fruits do not set firmly.
• The recipes in this instructions make soft set jams due to using less sugar.
• When cooking time is short, fruit bits can remain partially and the jam may become watery.
• Jam will continue to set as it cools. Be careful not to over cook.
• P ut the finished jam into the container as soon as possible. Take care not to burn when you take out jam.
• Jam can be burned if it is left in the bread pan.
• Store the jam in a cool, dark place. Due to the lower levels of sugar the shelf life is not as long as shop bought varieties. Once open, refrigerate and consume shortly after opening.

Cake Kneading

Preparations

1. Remove the bread pan and set the kneading blade.
2. Place the measured ingredients in the bread pan.
3. Return the bread pan to the main unit. Close the lid and plug in.

Step 1: Select menu 18

Step 2: Set the kneading time (setting range: 1 - 20 minutes)

Step 3: Press button to start.

• Display shows the remaining time until the program is complete.

Step 4: Press button and remove the dough when machine beeps 8 times and the cube ( ) near End flashes.

Step 5: Put it into cake mold, then bake in a preheated oven.

Tips: Use a rubber spatula to avoid damaging the bread pan. Do not use metal spatula.

Bread Kneading

Preparations

1. Remove the bread pan and set the kneading blade.
2. Place the measured ingredients in the bread pan.
3. Return the bread pan to the main unit. Close the lid and plug in.

Step 1: Select menu 19

Step 2: Set the kneading time (setting range: 1 - 20 minutes)

• Please set the time according to the bread dough which is used for primary fermentation.

Step 3: Press button to start.

• Display shows the remaining time until the program is complete.

Step 4: Press button and remove the dough when machine beeps 8 times and the cube ( ) near End flashes.

Tips

• Rest for over 20 minutes before the next kneading starts.
• For the case of hard dough or much amount of dough, "U50" may appear on the display. Leave a little time to restart the next kneading.
  The amount of flour that can be used is up to 400 - 600 g.

Rise

Preparations

1. Remove the kneading blade and place the dough into the bread pan.
2. Return the bread pan to the main unit. Close the lid and plug in.

Step 1: Select menu 20

Step 2: Set the time (setting range: 10 - 120 minutes)
(Use the primary fermentation of kneaded dough. Set the time according to the bread dough.)

Step 3: Press button to start.

• Display shows the remaining time until the program is complete.

Step 4: Press button and remove the dough when machine beeps 8 times and the cube ( ) near END flashes.

Step 5: Shape the finished dough the oven, then bake.

Recipes

Measure the ingredients accurately.
Accurate measurement is essential in achieving good baking results. Weighing the ingredients would be more accurate than measuring them in cups. This is why in this book's recipes, many ingredients are given in weight as well as in cup/spoon measurements.

The only ingredients that may be appropriate in measuring by volume, that is, by cups and spoons, are liquids and very small quantities of dry ingredients, such as the yeast and spices. These are difficult to weigh by a kitchen scale. Even in such instances, measure the amount accurately by scooping the ingredients in the measuring cup or the spoon of the desired size until the measure is more than full.

Level the top with the straight edge of a metal spatula to remove the excess. Do not tap the bottom of the cup or spoon on the table to hold another scoop.

Correct way to use a measuring cup.
(Use store-bought measuring cup for flour.)

1. Scoop the ingredient until the cup is more than full.

2. Level the top with the straight edge of a metal spatula to remove the excess.


Example

Recipe Name
Menu No.+Total process time + Option icon

Abbreviation:

C = cup(s), tsp = teaspoon(s), tbsp = tablespoon(s) Egg
(L) = Egg in large size; Egg (M) = Egg in medium size.

<Note for measuring flour>
The amount of shown in () are not as precise as weight measurements. For better results, please use weight measurements.

The options of each recipe and necessary operation are indicated as the following icons.

Option icon

Light crust
Medium crust
Dark crust
Delay timer

Necessary operation icon

Place the measured ingredients into bread pan in the order listed in the recipe.

Add additional ingredients into raisin nut dispenser.

Do manual operation (such as adding extra ingredients, scraping the flour from sidewall of bread pan) when the beep sounds.

Bread Recipes

Basic

Basic White Bread

Sandwich Bread

Basic Rapid

Basic White Rapid Bread

30% Whole Wheat Rapid Bread

Basic Raisin

Basic Raisin Bread

30% Whole Wheat Honey Walnut Bread

French

French

Pain de Campagne

Brioche

Basic Brioche

Panettone

Sourdough

Sourdough

*1 Cut into 5 mm cubes.
*2 Cut into 2 - 3 cm cubes and keep in refrigerator.
*3 Cut into 1 - 2 cm cubes and keep in refrigerator.

Gluten Free Recipes

• The outcome differs depending on the recipes or using type of mix.

Gluten Free Bread

Bob's Red Mill Gluten Free Homemade Wonderful Bread Mix

Gluten and Wheat Free Bread

Flavoured Gluten Free Bread

Use one quantity of chosen mix and add the following ingredients to your bread pan to produce the bread of your choice.

Spicy Fruit Bread

Date & Raisin Bread

* made up to the quantity of water required, placed in the bread pan before gluten free mix.

Maple & Pecan Bread

Five Seeds Bread

• Follow the recipes on the package of your gluten free mix.

Sundried Tomato & Parmesan Bread

Gluten Free Cake

Gluten Free Chocolate Cake
Menu 8 (1 h 50 min)

Gluten Free Tea Cake
Menu 8 (1 h 50 min)

Gluten Free Banana Cake
Menu 8 (1 h 50 min)

Gluten Free Pizza

Gluten Free Pizza
Menu 9 (30 min)

Gluten Free Pasta

Gluten Free Pasta
Menu 10 (15 min)

• Be sure to whisk eggs and water together until very smooth.
• Place flour, starch and gum into another bowl and mix well.

Dough Recipes

Basic

Basic Dough
Menu 11 (2 h 20 min)

Dinner Roll
Menu 11 (2 h 20 min)

1. Make the dough according to instructions
2. Divide the dough into 18 equal portions. Roll each portion into a ball. Cover with a plastic wrap and rest for 20 minutes.
3. Roll one end of the ball on a lightly floured surface to make a cone.
4. Roll each cone into a wedge shape, approximately 6 mm (¹⁄4 inch) thick, using a rolling pin.
5. Starting with the wider end, roll up the wedge loosely towards the narrower end.
6. Place seam side down on a greased baking pan.
7. Spray water on top. Proof at 32°C / 90°F for 30 – 50 minutes or until nearly doubled.
8. Brush rolls with beaten egg, sprinkle with poppy seeds or sesame seeds if desired.
9. Bake in a 175°C / 350°F oven for 10 – 15 minutes or until golden brown.

Basic Raisin

Basic Raisin Dough
Menu 12 (2 h 20 min)

Hot Cross Buns
Menu 12 (2 h 20 min)

1. Divide mixture into 8 balls. Place on a lightly greased baking tray and allow to prove at 40 ˚C until doubled in size (approx. 20 minutes). Make a paste with approx. 2 tbsp flour mixed with 2 tbsp water and pipe a cross over the buns, or top with thin slices of short crust pastry.
2. Bake in a preheated oven at 220 ˚C for 15 – 20 minutes or until golden brown.
3. While still HOT, brush with a sugar glaze-40 g sugar in 4 tbsp water, boiled until a syrup is reached-(approx. 5 minutes).

Pizza

Pizza Dough

Doughnut
(using failed unfermented bread dough)

1. Divide the dough into small pieces that are 35 g each and shape them into balls.
   Cover them with a small towel and place them still for 10 - 20 minutes.
2. Roll them into thin round shape and press the dough with the doughnut mold.
3. Allow the dough to ferment for 20 - 30 minutes (till it rises to double its original size) at a temperature of 30 - 35 ˚C.
4. Deep-fry them at an oil temperature of 170 ˚C and sprinkle them with cinnamon and refined white sugar.

Focaccia

1. Roll and pat the dough into a 30 cm x 25 cm rectangle on a greased baking tray.
2. Make indentations over the whole dough using your fingertips.
3. Add your favourite toppings such as olives and tomatoes.
4. Allow to prove at 40 ˚C until doubled in size (approx. 30 minutes).
5. Drizzle with olive oil and bake in a preheated oven at 190 ˚C for 20 – 30 minutes or until golden at the edges and cooked well in the center.
   • Serve warm with pasta dishes.

Sourdough Starter

Sourdough Starter
Menu 14 (24 h)
The amount for a sourdough cup

* Use the sourdough starter spoon provided.

Sweet Recipes

Cake

Butter Cake
Menu 15 (1 h 55 min)

Tea Cake
Menu 15 (1 h 55 min)

* Add it when scraping off the flour in step 7.

Bake Only

Fruit Cake
Menu 16
Timer: 1 h 20 min

1. In a large bowl, cream butter and sugar until light and fluffy. Add eggs, one at a time, beating well.
2. Add milk, sifted A and mix dried fruits, beating well after addition.
3. Remove the kneading blade and line the grease-proof paper around the bread pan, then pour in the mixed ingredients.
4. Set the bread pan into the main unit, and plug the machine into the socket.
5. Select the menu and set the baking time: 1 hour and 20 minutes.
6. Press button to start.
7. Press button and remove cake when machine beeps 8 times and the cube () near END flashes.

Banana Cake
Menu 16
Timer: 1 h

1. Sieve flour, salt, bicarbonate of soda together into a bowl.
2. Rub the butter into the flour until it resembles fine bread crumbs.
3. Stir in the sugar, bananas and the beaten egg, mix well.
4. Remove the kneading blade and line the grease-proof paper around the bread pan, then pour in the mixed ingredients.
5. Set the bread pan into the main unit, and plug the machine into the socket.
6. Select the menu and enter 45 minutes on the timer.
7. After baking test with a skewer to see if the cake is cooked. If the cake does require extra time, select the menu again and enter a further 3 – 5 minutes on the timer. If it is still just slightly sticky, this will cook through during the stand period.
8. Take the bread pan out of the machine using oven mitts. Leave to stand for 5 – 10 minutes before removing from the bread pan and allowing to cool.
9. Glaze if desired. Soften the jam, spread over the top of the warm tea bread, and sprinkle with walnut or banana chips.

Jam

Strawberry Jam
Menu 17
Timer: 1 h 40 min

Apricot Jam
Menu 17
Timer: 1 h 30 min

* Sprinkle the pectin on the ingredients in the bread pan before setting the bread pan into the main unit.

Manual Recipes

Cake Kneading

Cake Dough
Menu 18
Timer: 20 min

Poppy Seed Gluten Free Cake
Menu 18
Timer: 10 min

• Icing as you like. Mix 15 g of lemon juice with 75 g of icing sugar and sprinkle on the baked gluten-free cake.

Bread Kneading & Rise

Bread Dough
Stage 1 Bread Kneading: Menu 19
Stage 2 Rise: Menu 20
(Kneading temperature condition: 28 ℃)

Stage 1

1. See step 1 - 4 of Bread Kneading. (Kneading time setting: 20 minutes)
2. After kneading is complete, put the butter into the bread pan and close the lid.
3. Rest for 5 minutes.
4. Repeat the step 1 - 4 of Bread Kneading. (Kneading time setting: 12 minutes)

Stage 2

Option 1:

1. Shape the finish dough to your favourite shape and allow it to rise in the oven.

Option 2:

1. See step 1 - 5 of Rise.

French dough
Stage 1 Bread Kneading: Menu 19
Stage 2 Rise: Menu 20
(Kneading temperature condition: 28 ℃)

Stage 1

1. See step 1 - 4 of Bread Kneading. (Kneading time setting: 5 minutes)
2. Rest for 15 minutes.
3. Repeat the step 1 - 4 of Bread Kneading. (Kneading time setting: 15 minutes)

Stage 2

1. See step 1 - 5 of Rise. (Rise time setting: 60 minutes)

Cleaning & Care

Before cleaning, unplug the machine and allow it to cool down.

• To avoid damaging the machine.
  • Do not use anything abrasive. (cleansers, scouring pads etc)
  • Do not wash any part of the machine in the dishwasher.
  • Do not use benzine, thinners, alcohol, or bleach.
  • After rinsing the washable parts, wipe with cloth. Always keep all parts clean and dry.

Bread pan & Kneading blade

Remove any leftover dough. Wash with a soft sponge and dry it thoroughly.

• Do not submerge the bread pan in water.
• If difficult to remove the kneading blade, pour warm water into the bread pan and wait 5 - 10 minutes. (Do not leave it for too long time.)
  Do not put warm water with soap in the bread pan.

Raisin nut dispenser

Remove and wash with water.

• Wash after each use to remove any residue.

Exterior & Steam vent

• Wipe with a damp cloth.

Dispenser lid

Remove and wash with water. Dry it completely.

• Raise the dispenser lid to an angle of approximately 75 degrees.
  Align the connections and pull it in an upward direction to remove or push carefully back at the same angle to attach. Wait until the machine has cooled down first, because it will be very hot immediately after use.
• Take care not to damage or pull the seal. (Damage could lead to leakage of steam, condensation or deformation.)

Interior

Remove the food residues.
Use a damp cloth to wipe inside of machine except heating element and temperature sensor area.

• The colour of the interior may change with use.


Measuring spoon & Sourdough starter spoon

Wash with water.

Sourdough cup & Measuring cup

Wash with warm soapy water and dry well.

• Not dishwasher safe

Troubleshooting

Before calling for service, please check through this section.

Problem	Cause and Action
During or after cooking
My bread does not rise well. The top of my bread is uneven.	[All bread] Your flour gluten quality is poor, or you have not used strong flour. (Gluten quality can vary depending on temperature, humidity, how the flour is stored, and the season of harvest). Try another type, brand or another batch of flour. The dough becomes too firm as you haven't used enough liquid. Stronger flour with higher protein content absorbs more water than others, try adding an extra 10 - 20 mL. You are not using the right type of dry yeast. Use a dry yeast from a sachet, which has "instant yeast" or "rapid rise yeast" written on it. This type does not require pre-fermentation. You are not using enough dry yeast, or your dry yeast is old. Use the measuring spoon provided. Check the yeast's expiry date. (Keep dry yeast in refrigerator) The dry yeast has touched liquid before kneading. Check that you have put the ingredients in the correct order according to the instructions. You have used too much salt, or not enough sugar. Check the recipe and measure out the correct amounts using the measuring spoon provided. Check that salt and sugar are not included in other ingredients.
Can failed dough be used again? E.g: The dough hasn't been baked...etc.	It can be used to make doughnut, pizza and others. Please confirm at which status baking stopped and resumed the subsequent operations. When dry yeast had been mixed with other ingredients. Take out the dough and make doughnut or pizza. When the bread dough is halfway fermented or baked. Take out the dough and start baking for 40 minutes at 170°C in the oven. While observing the situation while baking.
My bread has not risen at all. My bread is pale and sticky.	You did not use dry yeast. Place the correct amount of dry yeast. You are not using enough dry yeast, or your dry yeast is old. Use the measuring spoon provided. Check the yeast's expiry date. (Keep yeast in refrigerator.) There has been a power failure, or the machine has been stopped during bread making. You will need to remove the bread from the bread pan and start again with new ingredients.
My bread is sticky and slices unevenly.	It was too hot when you sliced it. Allow your bread to cool on rack before slicing to release the steam.
My bread has risen too much.	You have used too much dry yeast / water. Check the recipe and measure out the correct amount using the measuring spoon (dry yeast) / measuring cup (water) provided. Check that excess water amount is not included in other ingredients. You have used too much flour. Carefully weigh the flour using scales.
My bread is full of air holes.	You have used too much dry yeast. Check the recipe and measure out the correct amount using the measuring spoon provided. You have used too much liquid. Some types of flour absorb more water than others, so try using 10 – 20 mL less water.
My bread seems to have collapsed after rising.	The quality of your flour isn't very good. Try using a different brand of flour. You have used too much liquid. Try using 10 - 20 mL less water.
The crust creases and goes soft on cooling.	The steam remaining in the bread after baking can pass into the crust and soften it slightly. To reduce the amount of steam, try using 10 - 20 mL less water.
The sides of my bread have collapsed and the bottom is damp.	You have left the bread in the bread pan for too long after baking. Remove the bread promptly after baking. There has been a power failure, or the machine has been stopped during bread making. The machine switches off if it is stopped for more than 10 minutes.
How can I keep my crust crispy?	To make your bread more crispy, you could use the 'Dark' crust shape option, or even bake it in the oven at 200°C for an extra 5 - 10 minutes.
There is excess oil on the bottom of brioche. The crust is oily. My bread has big holes.	Did you add butter within 5 minutes of the beep? Do not put butter when display show remaining time until ready. Butter flavour might be weak, but it can bake.
My brioche did not turn out well when using bread mix.	Try following things. It might be baked better if dry yeast is decreased a little when using menu 5. (If adding dry yeast separately). Follow the recipe on the bread mix, but the bread mix should be between 350 - 500 g. Place the ingredients in the order described in the recipe. When adding the extra ingredients, add them later. The completion is different according to recipe on the bread mix.
Why has my bread not mixed properly?	You haven't put the kneading blade in the bread pan. Make sure the kneading blade is in the bread pan before you put in the ingredients.
Extra ingredients are not mixed properly.	Did you add extra ingredients to the raisin nut dispenser before the beep or add it into the bread pan while " " is flashing? → Extra ingredients must be added to the raisin nut dispenser before the beep or put it into the bread pan during " " is flashing on the display.
Extra ingredients are not mixed properly in Brioche.	Did you add additional ingredients within 5 minutes of the beep? Extra ingredients must be added while " is flashing in the display. Some of the bread mix dough is harder to mixed extra ingredients in or to flick out some of them. Decrease the extra ingredients into half.
Extra ingredients do not fall into the bread pan from the raisin nut dispenser.	Is the surface of the extra ingredients higher than the edge of the raisin nut dispenser? Put the extra ingredients so that its surface is lower than the edge of the raisin nut dispenser. The capacity of the raisin nut dispenser is 150 g, however depending on the state and the type of ingredients, they may overflow.
There is excess flour around the bottom and sides of my bread.	You have used too much flour, or you are not using enough liquid. Check the recipe and measure out the correct amount using scales for the flour or the measuring cup provided for liquids.
My bread has not been baked.	The dough menu was selected. The dough menu does not include a baking process. There has been a power failure, or the machine has been stopped during bread making. You can try baking the dough in your oven if it has risen and proved. There is not enough water and the motor protection device has been activated. This only happens when the machine is overloaded and excessive force is applied to the motor. Visit place of purchase for a service consultation. Next time, check the recipe and measure out the correct amount using the measuring cup provided. You have forgotten to attach the kneading blade. Make sure you attach the kneading blade first. The kneading mounting shaft in the bread pan is stiff and does not rotate. If the kneading mounting shaft does not rotate when the kneading blade is attached, you will need to replace the kneading mounting shaft unit. (Consult the place of purchase or a Panasonic service center.)
The bread does not come out.	If the bread cannot be easily removed from the bread pan, leave the bread pan for 5 – 10 minutes to cool, making sure that it is not left unattended where somebody or something may get burnt. After that, shake the bread pan several times using oven mitts. (Hold the handle down so that it does not get in the way of bread.)
The kneading blade stays in the bread when I remove it from the bread pan.	The dough is a little stiff. Allow the bread to cool completely before removing the kneading blade carefully. Some types of flour absorb more water than others, so try adding an extra 10 – 20 mL of water next time. Crust has built up underneath the kneading blade. Wash the kneading blade and its spindle after each use.
My gluten free pasta did not turn well.	Your dough was too soft. Decrease the water volume or increase the amount of xanthan gum. Your dough was too hard. Decrease the amount of xanthan gum or increase the water volume.
When cooking jam, it has scorched or the kneading blade fixes and it doesn't come off.	The amount of the fruit is too little, or the amount of sugar is too much. Place the bread pan in the sink and half fill the bread pan with warm water. Leave the bread pan to soak until the cooked on mixture or kneading blade loosens. After scorching is relieved, wash it with a soft sponge etc.
The jam has boiled over.	Too much fruit or sugar has been used. Only use the amounts of fruit and sugar specified in the recipes.
Jam is too runny and not firmly set.	The fruit was under or over ripe. Sugar was decreased too much. Cooking time was insufficient. Fruit with a low pectin content was used. Leave the jam to cool completely. The jam will continue to set as it cools. Use the runny jam as a sauce for desserts.
What kinds of sugar can we use on jam?	White caster and granulated can be used. Do not use brown sugar, diet sugar, and low calorie sugar or artificial sweetener.
Can frozen fruits be used?	It can be used for only jam.
When making jam, can we use fruits are pickled in alcohol?	Do not use them. The quality is not satisfactory.
Puzzle
The kneading blade rattles.	This is because the kneading blade fits loosely on the kneading mounting shaft. (This is not a fault.)
I can smell burning while the bread is baking. Smoke is coming out of the steam vent.	Ingredients may have been spilt on the heating element. Sometimes a little flour, raisins or other ingredients may be flicked out of the bread pan during mixing. Simply wipe the heating element gently after baking once the machine has cooled down. Remove the bread pan from the main unit to place ingredients.
Dough leaks out from bottom of the bread pan.	A small amount of dough will escape through the ventilation holes (so that it does not stop the rotating parts from rotating). This is not a fault, but check occasionally that the kneading mounting shaft rotate properly. If the kneading mounting shaft does not rotate when the kneading blade is attached, you will need to replace the kneading mounting shaft unit. (Consult the place of purchase or Panasonic service center.) (Bottom of bread pan)
Display exception
"1" appears on the display and operation has been stopped.	When the power supply to machine is interrupted for a certain time, the display shows "1" after recovered. (It is standby mode and machine could not continue the program.) Remove the bread, dough or ingredients and start again using new ingredients.
"H01", "H02" appears on the display.	The display indicates a problem with the machine. Consult the place of purchase or a Panasonic service center.
"U50" appears on the display.	The machine is hot (above 40°C). This may occur with repeated use. Allow the machine to cool down to below 40°C before using it again (U50 will disappear).

Contact Information

For product information and operation assistance:

In USA contact:
Directly Online: shop.panasonic.com/support

In CANADA contact:
Directly Online: www.panasonic.ca

Additional bread pans and kneading blades can be bought via the following:

In USA contact:
Directly Online: shop.panasonic.com/support

In CANADA contact:
Directly Online: www.panasonic.ca

For defective product exchange within the warranty period, please contact the original dealer or our Customer Care Center.

Specifications

Power supply	120 V ~ 60 Hz
Power consumption	550 W
Capacity	(Strong flour for a loaf)	max. 610 g	min. 400 g
	(Strong flour for a dough)	max. 500 g	min. 250 g
	(Dry yeast)	max. 7 g	min. 1.4 g
	(Baking powder)	max. 13 g	min. 6 g
Capacity of raisin nut dispenser	Max. 150 g dried fruits / nuts
Timer	Digital timer (up to 13 hours)
Dimensions (W × H × D)	Approx. 40.8 × 36.2 × 25.2 cm
Weight	Approx. 7.5 kg
Accessories	1 sourdough cup, 1 measuring cup, 1 measuring spoon, 1 sourdough starter spoon

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. READ ALL INSTRUCTIONS BEFORE USE.
2. Follow all warnings and instructions marked on the product.
3. Do not touch hot surfaces. Use oven mitts when handling hot materials, and allow metal parts to cool before cleaning or taking off parts.
4. To protect against electrical shock do not immerse unit, cord or plug in water or other liquid. Use a soft sponge and mild detergent when cleaning the inside of the bread pan or kneading blade. The cabinet may be cleaned with a cloth, dampened with a mild soap and water solution.
5. Close supervision is necessary when any appliance is used by or near children.
6. Unplug this product from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or has been damaged in any manner. Return appliance to an authorized Panasonic service center for examination, repair, or electrical or mechanical adjustment.
8. The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, damage or injuries.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter, or touch hot surfaces.
11. Do not place on or near a hot gas or electric burner, or in a heated oven.
12. Extreme caution must be used when moving an appliance containing hot contents or liquids.
13. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
14. Do not touch moving parts.
15. Do not use appliance for other than intended use.
16. The unit may vibrate or move during the kneading process. Do NOT place the unit near the edge of a countertop. Place the unit on a flat, stable surface where movement of the unit will not cause it to fall off the countertop.
17. Do not allow anything to rest on power cord. Do not plug in cord where persons may walk on or trip over it.
18. This appliance is not intended for commercial use. It is for household use only.

SAVE THESE INSTRUCTIONS

1. A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
2. Do not use a longer detachable power supply cord or extension cord.
3. This appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

Safety Precautions

Please make sure to follow these instructions.

To reduce the risk of personal injury, electric shock or fire, please observe the following:

• The following signals indicate the degree of harm and damage when the appliance is misused.

Indicates potential hazard that could result in serious injury or death.

Indicates potential hazard that could result in minor injury or property damage

• The symbols are classified and explained as follows.

This symbol indicates prohibition.

This symbol indicates requirement that must be followed.

To avoid risk of electric shock, fire due to short circuit, smoke, burn or injury.

• Do not allow infants and children to play with packaging material.
  (It may cause suffocation.)
• Do not disassemble, repair or modify this appliance.
  • Consult the place of purchase or Panasonic service center.
• Do not damage the power cord or power plug.
  Following actions are strictly prohibited: Modifying, touching on or placing near heating element or hot surfaces, bending, twisting, pulling, hanged / pulled over sharp edges, putting heavy objects on top, bundling the power cord or carrying the appliance by the power cord.
• Do not use the appliance if the power cord or power plug is damaged or the power plug is loosely connected to the household mains socket.
  If the power cord is damaged, it must be replaced by the manufacturer, its service center or similarly qualified person in order to avoid a hazard.
• Do not plug or unplug the power plug with wet hands.
• Do not immerse the appliance in water, or splash it with water and / or any liquid.
• Do not touch, block or cover the steam vent during use.
  • Especially pay attention to children.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Keep the appliance and its power cord out of reach of children.
• This product is intended for use only on a 120 V, 60 Hz supply.
• Make sure the voltage indicated on the label of the appliance corresponds to your local supply.
  Also avoid plugging other devices into the same household mains socket to prevent electrical overheating. However, if you are connecting a number of power plugs, make sure the total wattage does not exceed the rated wattage of the household mains socket.
• Insert the power plug firmly.
• Dust off the power plug regularly.
  • Unplug the power plug, and wipe with a dry cloth.

To avoid risk of electric shock, fire due to short circuit, smoke, burn or injury.

• Discontinue using the appliance immediately and unplug in the unlikely event that this appliance stops working properly. Example for abnormal occurrences or breaking down:
  • The power plug and the power cord become abnormally hot.
  • The power cord is damaged or the appliance power fails.
  • The main body is deformed, has visible damage or is abnormally hot.
  • There is abnormal turning noise while in use.
  • There is unpleasant smell.
  • There is another abnormality or failure.
    • Consult the place of purchase or Panasonic service center for inspection or repair.
• Do not use the appliance if the parts of the appliance is deformed or damaged such as having visible cracks or chips.
  • Consult the place of purchase or Panasonic service center for inspection or repair.

To avoid risk of electric shock, fire, burn, injury or property damage.

• Do not use the appliance on following places.
  • On uneven surfaces, on electrical appliances such as a refrigerator, on materials such as tablecloths or on carpets, etc.
  • Places where it may be splashed with water or near a heat source.
    • Position the appliance on a firm, dry, clean, flat heatproof worktop at least 10 cm from edge of worktop and at least 5 cm from adjacent walls and other objects.

• Do not remove the bread pan or unplug the appliance during use.
• Do not touch hot area such as bread pan, inside of unit, heating element or inside of the lid while the appliance is in use or immediately after use.
  The accessible surfaces may become hot during use. Be careful with the residual heat source especially after use.
  • To avoid burn, always use oven mitts to remove the bread pan or the finished bread. (Do not use wet oven mitts.)
• Do not use an external timer etc.
  • This appliance is not intended to be operated by means of an external timer or separate remote - control system.
• Do not insert any object in the gaps.
• Do not exceed the maximum quantities of flour (610 g) and raising ingredients such as dry yeast (7 g) or baking powder (13 g).

• Unplug the power plug when the appliance is not in use.
• Make sure to hold the power plug when unplugging it. Never pull on the power cord.
• Before handling, moving or cleaning, unplug the appliance and allow it to cool down.
• This appliance is intended for household use only.
• Ensure to clean the appliance especially surfaces in contact with food after use.

• Do not use the appliance outdoors, in rooms of high humidity, or use excessive force on the parts as is illustrated on the right to avoid malfunction or deformation.
• Do not use a knife or any other sharp tool to remove residues.
• Do not drop the appliance to avoid damaging it.
• Do not store any ingredients or bread in the bread pan.

This symbol on the appliance indicates "Hot surface and should not be touched without caution".

Documents / Resources

References

• Panasonic Canada

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Panasonic SD-R2550 - Bread Maker Manual
