BELT/CHAIN DRIVE
GARAGE DOOR OPENER MODELS

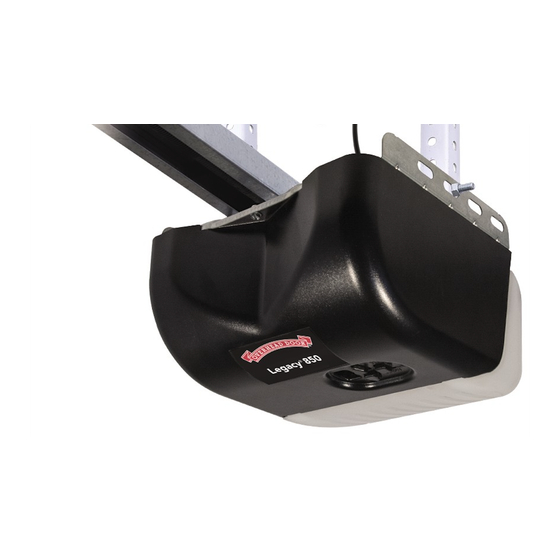

Legacy® 1029
Legacy® 650, Model 1029
Legacy® 850, Model 2029
Legacy® 2029
OPERATION &
MAINTENANCE
MANUAL
Includes CodeDodger® Remote Control. Safe-T-Beam® System must be installed to close the door. For use only with
residential sectional overhead garage doors. Homelink® and Car2U® compatible.
STOP
INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER
HOMEOWNER: SAVE THIS MANUAL FOR FUTURE REFERENCE
To reduce the risk of injury to persons or damage to property, use this opener only with a sectional residential door.
Por réduire le risque de blessures ou de dommages materials, utilisez cet ouvre-porte uniquement pour une porte à section ré sidentielle.
©2015 Overhead Door Corporation, the Ribbon Logo, CodeDodger, Legacy and Safe-T-Beam®, are trademarks of Overhead Door Corporation.
All other trademarks are property of their rightful owners. Consistent with our policy of continuing product improvements, we reserve the right to change product specifications without
prior notice or obligations. HomeLink is a registered trademark of Gentex Corporation. Car2U is a registered trademark of Lear Corporation.
Need help or have questions?
For answers and assistance,
visit www.OverheadDoor.com
or call Customer Service at: 1-800-929-3667
WARNING
AVERTISSEMENT
PRE-PROGRAMMED
REMOTE
INCLUDED
FOR QUICK
& EASY
INSTALL
38485502553
