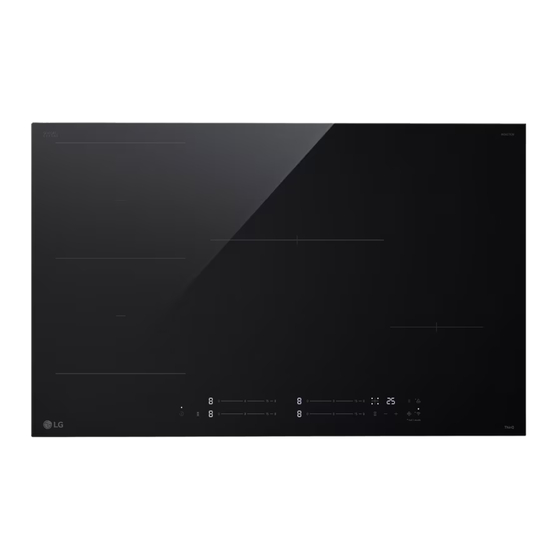

LG CBIZ3035B Owner's Manual
  1. Manuals
  2. Brands
  3. LG Manuals
  4. Hob
  5. CBIZ3035B
  6. Owner's manual
LG CBIZ3035B Owner's Manual

LG CBIZ3035B Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
INDUCTION HOB
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
ENGLISH
CBIZ3035B
MFL71949902
Rev.00_080823
Copyright © 2023 LG Electronics Inc. All Rights Reserved.
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG CBIZ3035B

Summary of Contents for LG CBIZ3035B

  • Page 1 This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. ENGLISH CBIZ3035B www.lg.com MFL71949902 Rev.00_080823 Copyright © 2023 LG Electronics Inc. All Rights Reserved.

  • Page 2: Table Of Contents

    CARING FOR THE ENVIRONMENT ..............8 INSTALLATION Product Overview....................9 Installation ......................10 OPERATION Introduction to Induction Cooking ..............14 Cookware ......................14 Using the Hob Elements..................16 SMART FUNCTIONS LG ThinQ Application ..................23 MAINTENANCE Care and Cleaning....................26 TROUBLESHOOTING Before Calling for Service................28 APPENDIX Product Fiche....................32...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. Safety Messages This symbol is displayed to indicate matters and operations that can cause risk.
  • Page 4 SAFETY INSTRUCTIONS • Alterations to the domestic wiring system must only be made by a qualified electrician. • In order to avoid a hazard, this appliance must be installed according to these instructions for installation. • This appliance is to be properly installed and earthed only by a suitably qualified person.
  • Page 5 SAFETY INSTRUCTIONS • Do not let your body, clothing or any item other than suitable cookware contact the glass until the surface is cool. • Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot. •...
  • Page 6 SAFETY INSTRUCTIONS • Children less than 8 years of age shall be kept away unless continuously supervised. • Keep the appliance and its cord out of reach of children less than 8 years. • Keep pets away from the product to avoid risk of fire or burns. Do not allow pets to climb on the product even when it is not in operation.

  • Page 7: Caution

    SAFETY INSTRUCTIONS CAUTION CAUTION • To reduce the risk of injury to persons, malfunction, or damage to the product or property when using the appliance, follow basic safety precautions, including the following: Installation • Take care - panel edges are sharp. •...

  • Page 8: Caring For The Environment

    • You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www.lg.com/global/recycling.

  • Page 9: Installation Product Overview

    Max. 2600/3700 W Zone Max. 1400/2400 W Zone Max. 3300/3700 W Zone Glass Plate Control Panel Accessories Specifications Model CBIZ3035B Cooking Zones 4 zones Supply Voltage 220-240 V~ 50/60 Hz 380-415 V 3N~ 50/60 Retainer Brackets (8 ea) Maximum Connected...

  • Page 10: Installation

    INSTALLATION Model CBIZ3035B NOTE Appliance Dimensions 800 X 520 X 48 • The safety distance between the sides of the hob Width X Depth X and the inner surfaces of the worktop should Height (mm) be at least 3 mm.
  • Page 11 INSTALLATION the bottom of the hob. Follow the requirements NOTE below. • The safety distance between the hob and the cupboard above the hob should be at least 500 mm. Min. 15 mm Max. 5 mm Max. 5 mm • There are ventilation holes around outside of the hob.
  • Page 12 INSTALLATION from the holder), earth leakage trips and WARNING contactors. • The isolating switch must be easily accessible to • Under any circumstances, make sure that the the customer with the hob installed. brackets cannot come into contact with the inner surfaces of the worktop after installation.
  • Page 13 Blue Brown Black • If the power cord is damaged or needs to be replaced, contact an LG Electronics Customer Information Centre. • The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.

  • Page 14: Operation

    OPERATION OPERATION Introduction to Induction Cookware Cooking Choosing the Right Cookware CAUTION NOTE • People with a heart pace maker should consult • When purchasing cookware for use on the with their doctor before using this unit. induction hob, look for cookware identified by the manufacturer as "induction ready"...
  • Page 15 OPERATION undetected by the hob. Always centre your cookware on the cooking zone. Cookware placement in flexible zones • Always lift cookware directly off the Induction hob. Detection of Small Articles When an unsuitable size or non-magnetic cookware (e.g. aluminium), or some other small item (e.g.

  • Page 16: Using The Hob Elements

    OPERATION Using the Hob Elements Using the Control Panel Control Panel ON/OFF Button Flexible Zone Button Power Control Timer Button Pause Button Keylock Button Hood Connection Button Wi-Fi Connection Button Power Setting Display +/- Buttons Timer Indicator Timer display • To operate the buttons, press the desired button show “0”...
  • Page 17 OPERATION Press and slide the power control, the power Power Suitability setting display corresponding to the button setting will flash. 1 - 2 • Delicate warming for small amounts of food • Melting chocolate, butter, and foods that burn quickly •...
  • Page 18 OPERATION Press the power control. CAUTION • Beware of hot surfaces “H” and “h” will show which cooking zone is too hot to touch in 2 steps. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further cookware, use the Press or slide the "B"...
  • Page 19 OPERATION - Anywhere with bigger cookware indicator will start flashing and "00" will show in the timer display. Single big zone To activate the flexible zone as a single big zone, simply press the Flexible Zone button. Set the time by pressing the +/- buttons. •...
  • Page 20 OPERATION To see the remaining time To unlock the buttons Press the Timer button repeatedly until the Press the Keylock button for 3 seconds. indicator of the necessary cooking zone comes Modifying the Timer NOTE Press the Timer button repeatedly until the indicator of the necessary cooking zone comes •...
  • Page 21 Hood connection • This product features a Wi-Fi device that you can use to connect the hob to LG hoods. Through the Wi-Fi connection, you can use the hood connection on the LG ThinQ application. Activate Wi-Fi connection. Press the hood Press the keylock button repeatedly to select connection button, the hood LED is ON.
  • Page 22 OPERATION Display Maximum power 2500 W 3500 W 4500 W 6000 W 7400 W Press the ON/OFF button to confirm the current power of the hob and exit the power limit mode.

  • Page 23: Smart Functions

    • If you change your wireless router, Internet service provider, or password, delete the Run the LG ThinQ application and sign in with registered appliance from the LG ThinQ application and register it again. your existing account or create an LG account to sign in.
  • Page 24 SMART FUNCTIONS Radio Equipment Specifications NOTE • LG ThinQ is not responsible for any network Module Name LCWB-001 connection problems or any faults, malfunctions, or errors caused by network Wireless LAN 2412 MHz - 2472 MHz connection. Frequency Range • The surrounding wireless environment can Wireless LAN Output 18.14 dBm...
  • Page 25 SMART FUNCTIONS media, shipping, and handling) upon email request to opensource@lge.com. This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product.

  • Page 26: Maintenance

    MAINTENANCE MAINTENANCE Care and Cleaning Hold the blade or utensil at a 30° angle and scrape the soiling or spill to a cool area of the Cleaning the Appliance hob. CAUTION Clean the soiling or spill up with a dish cloth or •...
  • Page 27 MAINTENANCE control panel area dry before turning the hob back on.

  • Page 28: Troubleshooting

    Repairs should be performed by a licensed technician only. Improper repair may result in considerable danger to you and others. However, some minor problems can be resolved as in the table below: If a problem is not solved, please contact an LG Electronics Customer Information Centre. Parts and Features Symptoms Possible Cause &...
  • Page 29 TROUBLESHOOTING Symptoms Possible Cause & Solution Cookware do not The induction hob cannot detect the cookware because it is too small for become hot and "u" the cooking zone or not properly centred on it. appears in the display. • Centre the cookware and make sure that its base matches the size of the cooking zone.
  • Page 30 TROUBLESHOOTING Symptoms Possible Cause & Solution High temperature of IGBT. (1#) • This is normal. Problems can be resolved as follows. • Wait for the temperature of the IGBT return to normal. Press the ON/OFF button to restart unit. Check whether the fan runs smoothly; if not, call for service.
  • Page 31 • Find the Wi-Fi network connected to your smartphone and remove it, then not connected to the register your appliance on LG ThinQ. Wi-Fi network. Mobile data for your smartphone is turned on. • Turn off the Mobile data of your smartphone and register the appliance using the Wi-Fi network.

  • Page 32: Appendix Product Fiche

    APPENDIX Product Fiche Product Fiche Product Fiche_COMMISSION DELEGATED REGULATION (EU) No 66/2014, Applicable Standard EN 60350-2:2016 Trademark Model identifier CBIZ3035B Type of hob Built-in hob Heating technology induction cooking zones Number of cooking zones and/ or areas For circular cooking zones or Front Left 21.0 x 18.5 cm...
  • Page 33 Memo...
  • Page 34 Memo...
  • Page 35 Memo...
