Page 1 READ THIS MANUAL CAREFULLY! It contains important safety information. OWNER’S MANUAL YX10ERPAR/YX10ERPLR YX10ERPSR D26-F8199-70...
Page 2 EBU33110 Read this manual carefully before operating this vehicle. This manual should stay with this ve- hicle if it is sold.
Page 3 Congratulations on your purchase of the Yamaha YX10ERPAR / YX10ERPLR / YX10ERPSR. It represents the result of many years of Yamaha experience in the production of fine sporting, touring, and pace-setting racing vehicles. With the purchase of this Yamaha, you can now ap- preciate the high degree of craftsmanship and reliability that have made Yamaha a leader in these fields.
Page 4 EBU31080 IMPORTANT MANUAL INFORMATION EBU31070 FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERI- OUS INJURY OR DEATH. Particularly important information is distinguished in this manual by the following notations: This is the safety alert symbol. It is used to alert you to poten- tial personal injury hazards.
Page 5  This vehicle complies with all provinces off-highway noise level and spark arrester laws and regulations. EBU33130 YX10ERPAR / YX10ERPLR / YX10ERPSR OWNER’S MANUAL ©2024 by Yamaha Motor Co., Ltd. 1st edition, April 2023 All rights reserved. Any reprinting or unauthorized use without the written permission of Yamaha Motor Co., Ltd.
Page 6: Table Of Contents
On–Command drive knob EBU31120 CONTENTS “2WD/4WD/DIFF. LOCK” ....5-15 D-mode knob VEHICLE IDENTIFICATION ..... 1-1 “SPORT/TRAIL/CRAWL” Identification numbers......1-1 (if equipped)........5-16 Suspension mode switch LOCATION OF THE WARNING AND (if equipped)........5-17 SPECIFICATION LABELS ....... 2-1 Accelerator pedal ....... 5-18 Brake pedal ........
Page 7 Cup holders........5-26 Instruments, lights and switches ..6-7 Cargo bed .......... 5-27 Control cables ........6-7 Front and rear shock absorber Tires ............6-7 assemblies........5-29 OPERATION ..........7-1 Winch (if equipped)......5-36 Engine break-in........7-1 Trailer hitch bracket and receiver..5-37 Starting the engine .......7-2 Auxiliary DC jack ........
Page 8 Hood........... 9-10 Checking the accelerator pedal..9-43 Engine oil and oil filter ......9-11 Parking brake lever free play Why Yamalube ........9-20 adjustment ........9-44 Transmission oil ......... 9-21 Brake light switch adjustment ....9-44 Continuously Variable Transmission Cable inspection and lubrication ..9-45 (CVT) ..........
Page 9 Storage ..........10-2 SPECIFICATIONS ......... 11-1 CONSUMER INFORMATION ....12-1 Vehicle Emission Control Information label ..........12-1 Use of your vehicle data..... 12-2 Reporting safety defects (for CANADA)........12-6 YAMAHA SIDE BY SIDE OFF-ROAD VEHICLE WARRANTY POLICY (for CANADA) .......... 12-7 INDEX............ 13-1...
Page 10: Vehicle Identification
EBU38890 VEHICLE IDENTIFICATION EBU32781 EBU32800 Vehicle identification number Identification numbers The vehicle identification number is stamped Record the vehicle identification number, into the frame. model label information and key identification number in the spaces provided below. VEHICLE IDENTIFICATION NUMBER: MODEL LABEL INFORMATION: 1.
Page 11 * * * * - * * * 1 1 1 1. Model type code 2. Production code 1. Model label 3. Color code Your specific model can be identified by EBU32790 Key identification number checking the model type code found on the The key identification number is stamped on model label.
Page 12 1. Key identification number...
Page 13: Location Of The Warning And Specification Labels
EBU31130 LOCATION OF THE WARNING AND SPECIFICATION LABELS...
Page 14 26 27 31 30...
Page 15 Read and understand all of the labels on your vehicle. They contain important information for safe and proper operation of your vehicle. Never remove any labels from your vehicle. If a label becomes difficult to read or comes off, a replacement label is available from your Yamaha dealer.
Page 16 WARNING AVERTISSEMENT Do not rest hands or arms on door or shoulder bolster. Ne pas appuyer les mains ni les bras sur la portiè re ou sur le coussin de l’épaule. Aﬁn de prévenir les To avoid Injury, keep hands and arms completely blessures, garder mains et bras dans l’habitacle et Inside the vehicle by holding the steering wheel or handhold.
Page 17 WARNING AVERTISSEMENT Improper use of cargo bed or cage/frame can result Aucun passager in severe injury or Never carry dans la caisse de death from loss of passengers chargement control, overturn or in cargo bed. other accidents. Le mauvais usage de la caisse de chargement ou de l’arceau de Maximum Load in Cargo Bed: 600 lbs (272 kg) protection peut provoquer de graves blessures ou la mort par suite Maximum Vehicle Load: 1256 lbs (570 kg)
Page 18 (ROPS). m=900Kg for ISO3471 m=900 kg pour ISO 3471 YAMAHA MOTOR CANADA LTD. YAMAHA MOTEUR DU CANADA LTÉE. 480 Gordon Baker Road, Toronto, 480 Gordon Baker Road, Toronto (Ontario) M2H 3B4, Ontario M2H 3B4, Canada...
Page 19 YAMAHA certiﬁes this ROV complies with the American National Standard for Recreational Off-Highway Vehicles, ANSI/ROHVA-1-2016 Standard. B4J-F4161-01 YAMAHA certiﬁe que ce véhicule hors route est conforme à la norme ANSI/ROHVA-1-2016 de l’ANSI, intitulée American National Standard for Recreational Off-Highway Vehicles. B4J-F4161-11...
Page 20 WARNING AVERTISSEMENT • Improper tire pressure or overloading this vehicle may • Une pression de gonﬂage incorrecte des pneus ou la surcharge du véhicule risquent de provoquer une perte cause severe injury or death from loss of control or de contrôle ou un capotage, entraînant des rollover.
Page 21 WARNING Improperly loading a trailer or pulling an object can affect handling, stability, and risk of overturn or other MAX 7.3 INCH accidents. • Secure load to prevent it (185MM) from shifting. B4J-F151J-00 • Never load more than 620 N (63 kgf)/141 lbf tongue weight on towing bracket.
Page 22 PREMIUM UNLEADED GASOLINE ONLY AVERTISSEMENT 91 Min. Pump Octane (R+M) / 2 Le chargement ou le tirage 1TD-F415E-00 incorrects d’une remorque ou d’un objet peut modiﬁer la maniabilité et l’équilibre, et risque de provoquer un capotage ou autre accident. ESSENCE SUPER SANS PLOMB EXCLUSIVEMENT •...
Page 23 2-11...
Page 24 2-12...
Page 25 WARNING WARNING Improper Use of Off-Highway Improper Use of Off-Highway Vehicle Can Cause Severe Injury Vehicle Can Cause Severe Injury or Death Be Prepared or Death • Fasten seat belts. Be Prepared • Wear an approved • Fasten seat belts. helmet, eye protection Wear an approved •...
Page 26 2-14...
Page 27 Keep hands, body, and other people away from pinch points when lowering bed. Do not hold the cage/frame while closing bed. BHF-K7764-10 BHF-K7764-00 AVERTISSEMENT WARNING Les vapeurs d’essence peuvent provoquer un icendie Fuel vapors can be a ﬁre or explosion hazard. ou une explosion.
Page 28: Safety Information
Wolverine RMAX2. While understanding all parts of this manual are important for vehicle owner- ship, be sure to read this chapter and the instructions in Chapter 8 before operating your Yamaha Wolverine RMAX2. Also use these two chapters and the labels on the vehicle to instruct new op- erators and passengers.
Page 29 Before you operate your Yamaha Wolverine RMAX2  Prepare yourself and your passenger: • This vehicle is intended for use only by an operator 16 or older with a valid motor vehicle li- cense. Check local laws for minimum age requirements.
Page 30  Secure cargo so that it will not shift – a loose load could change handling unexpectedly or be thrown forward and strike occupants. While using your Yamaha Wolverine RMAX2  Keep your body completely inside the vehicle at all times. Keep both hands on the steering wheel.
Page 31  Abrupt maneuvers or aggressive driving, even on flat, open areas, can cause loss of control, including rollovers. The Wolverine RMAX2 has higher ground clearance and other features to handle rugged terrain, and, as a result, can overturn in situations where some other vehicles may not.
Page 32 • Avoid paved surfaces. Turn gradually and go slowly if you must drive on pavement. This vehicle is designed for off-road use only.  If you think or feel that the vehicle may tip or roll, keep your body completely inside the protec- tive structure of the vehicle: •...
Page 33 Genuine Yamaha Accessories Choosing accessories for your Wolverine RMAX2 is an important decision. Genuine Yamaha Ac- cessories, which are available only from a Yamaha dealer, have been designed, tested, and ap- proved by Yamaha for use on your Wolverine RMAX2.
Page 34 Many companies with no connection to Yamaha manufacture parts and accessories or offer oth- er modifications for Yamaha vehicles. Yamaha is not in a position to test the products that these aftermarket companies produce. Therefore, Yamaha can neither endorse nor recommend the use of accessories not sold by Yamaha or modifications not specifically recommended by Yamaha, even if sold and installed by a Yamaha dealer.
Page 35  Should you need to be towed or winched out, keep the speed under 16 km/h (10 mph) and keep the distance as short as possible.
Page 36: Description
EBU31170 DESCRIPTION EBU31180 Left view 2,3 4 1. Winch (if equipped) 7. Door 2. Fuses 8. Engine oil tank 3. Battery 9. Coolant reservoir 4. Air filters 10.Brake fluid reservoir 5. Seat belt 11.Front shock absorber assembly 6. Shoulder bolster...
Page 37: Right View
EBU31190 Right view 6 6 6 1. Brake/tail light 2. Cargo bed 3. Seat belt 4. Fuel tank cap 5. Transmission oil dipstick 6. Oil filter cartridge 7. Rear shock absorber assembly 8. Spark arrester...
Page 38: Controls And Instruments
EBU31200 Controls and instruments 6 7 8 1. Steering wheel 9. Passenger handhold 2. Multi-function meter unit 10.Glove compartment 3. Main switch 11.Drive select lever 4. D-mode knob (if equipped) 12.Parking brake lever 5. Suspension mode switch (if equipped) 13.Accelerator pedal 6.
Page 39: Instrument And Control Functions
EBU3121D INSTRUMENT AND CONTROL The operation of the indicator and warning FUNCTIONS lights, and the multi-function meter can be EBU31221 confirmed at this time. Main switch EBU31241 Off position “ ” All electrical circuits are switched off. The key can be removed. EBU31251 Start position “...
Page 40: Indicator Lights And Warning Lights
EBU31269 EBU39290 Low-range indicator light “ ” Indicator lights and warning lights This indicator light comes on when the drive select lever is in the “L” position. EBU39300 High-range indicator light “ ” This indicator light comes on when the drive select lever is in the “H”...
Page 41 EBU39340 High beam indicator light “ ”  See pages 5-15 and 7-6 for more informa- This indicator light comes on when the high tion on selecting the drive mode. beam of the headlight is switched on.  Due to the synchronizing mechanism in the EBU39351 differential gear case, the drivetrain icon Differential gear lock indicator light “...
Page 42 If the warning light does not go off, light remains on, have a Yamaha dealer stop the engine and allow it to cool. (See page check the vehicle.
Page 43 Yamaha dealer check the EPS system. display will indicate an error code (see page The electrical circuit of the warning light can 5-13). Have a Yamaha dealer check the self- be checked by turning the key to “ ” (on). If diagnosis system.
Page 44 (see page turned to “ ” (on) to remind the occupants 5-13). Have a Yamaha dealer check the sus- to fasten their seat belt. The reminder light pension system. stays on until the driver seat belt is properly The electrical circuit of the warning light can latched.
Page 45: Multi-Function Meter Unit
 odometer EBU40562 Multi-function meter unit  tripmeters  clock  hour meter  voltage display  coolant temperature display  fuel gauge  D-mode indicator (if equipped)  suspension mode indicator (if equipped)  brightness control mode  error code display 1.
Page 46 Odometer and tripmeters Push the “SELECT” button to switch between the odometer “ODO”, the tripmeters “TRIP A” and “TRIP B”, and the service tripmeter “ ” in the following order: ODO → TRIP A → TRIP B → → ODO To reset a tripmeter, set the display to the tripmeter you want to reset, then push the “RESET”...
Page 47 Clock, hour meter, voltage display and Push the “MODE” button to switch between coolant temperature display the clock “CLOCK”, the hour meter “HOUR”, the voltage display “VOLT”, and the coolant temperature display “ ” in the following or- der: CLOCK → HOUR → VOLT → →...
Page 48 If the voltage display indicates “Lo” or tinues to rise, the message “Hi” will flash. “Hi”, there may be trouble with the battery charging circuit or the battery may be faulty. If this occurs, have a Yamaha dealer check or repair the vehicle. 5-10...
Page 49  The radiator fan turns on and off automati- cally according to the coolant temperature. If the electrical circuit for the fuel gauge is not working correctly, all display segments will Fuel gauge flash repeatedly. Have a Yamaha dealer check the vehicle. 1. Fuel gauge 5-11...
Page 50 D-mode indicator (if equipped) Suspension mode indicator (if equipped) 1. D-mode indicator (if equipped) 1. Suspension mode indicator (if equipped) The D-mode indicator shows which mode is The suspension mode indicator shows which currently selected: “S” (SPORT), “T” (TRAIL) mode is currently selected: “F” (FIRM), “M” or “C”...
Page 51 1. Push the “SELECT” button until the If the display indicates an error code, note the brightness level is displayed. code number and have a Yamaha dealer 2. Use the “RESET” button to set the bright- check the vehicle. ness level.
Page 52: Light Switch
ECB00812 Set the switch to “ ” to turn off the head- NOTICE lights and taillights. If the multi-function display indicates an ECB02061 NOTICE error code, the vehicle should be checked as soon as possible in order to avoid en- Do not use the headlights with the engine gine damage.
Page 53: Winch Switch (If Equipped)
EBU39431 EBU39121 Winch switch “ ” (if equipped) On–Command drive knob “2WD/4WD/DIFF. LOCK” 1. Winch switch (if equipped) 1. On-Command drive knob “2WD/4WD/DIFF. LOCK” This switch is used when operating the winch (page 5-36). Read this manual and the Winch Stop the vehicle and move the On–Command Owner’s Manual completely before operating drive knob to change the drive mode to two–...
Page 54: D-Mode Knob "Sport/Trail/Crawl" (If Equipped)
 “DIFF. LOCK” (four–wheel drive with the EBU39740 D-mode knob differential gear locked): Power is supplied “SPORT/TRAIL/CRAWL” (if equipped) to the front and rear wheels with the differ- ential gear locked. Unlike standard four– wheel drive, all wheels turn at the same speed regardless of traction.
Page 55: Suspension Mode Switch (If Equipped)
 Before changing the D-mode, be sure to EBU39892 Suspension mode switch (if equipped) stop the vehicle and take your foot off the accelerator pedal. 1 1 1 Mode “TRAIL” Mode “TRAIL” offers smooth acceleration, linear engine response and strong engine braking.
Page 56: Accelerator Pedal
EBU31413 EBU37650 Accelerator pedal Brake pedal 1. Accelerator pedal 1. Brake pedal Press the accelerator pedal to increase en- Press the brake pedal to slow and stop the gine speed and thus vehicle speed. Release vehicle. the accelator pedal and spring tension will re- This model is equipped with a brake override turn the pedal to idle position.
Page 57: Parking Brake Lever
To release the parking brake, pull slightly on the lever, press the release button, and then When the brake pedal is pressed and then the push the lever to its original position. accelerator pedal is pressed, the brake over- ride system will not engage. ...
Page 58: Continuously Variable Transmission (Cvt)
The drive select lever is used to shift the transmission into the low, high, neutral, and When driving under heat-stress conditions, it reverse positions. (See page 7-3.) is recommended to reduce throttle at regular intervals to allow the V-belt to cool. EBU39450 Continuously Variable Transmission ECB03900...
Page 59: Doors
Remove the fuel tank cap when refueling. To open, turn counterclockwise. When finished refueling, install the fuel tank cap by screwing it down clockwise. EBU37390 Doors The door handle is located on the inside of each door. To open a door, pull the handle. To close a door, push or pull the door inward until it is 1.
Page 60: Adjusting The Driver Seat Position
1 1 1 1. Passenger seat cushion EBU34993 To install the seat cushion, insert the projec- Adjusting the driver seat position tions on the rear of the seat cushion under the The driver seat position can be adjusted to seat frame, and then insert the projection on suit the driver’s preference.
Page 61: Adjusting The Steering Wheel Position
while operating the vehicle, otherwise the steering wheel may suddenly change posi- tion, which may lead to an accident. [EWB04000] To adjust the steering wheel position, pull the steering wheel position adjusting lever and 2 2 2 move the steering wheel to the desired posi- tion.
Page 62: Rearview Mirror
EBU36953 EBU36184 Rearview mirror Seat belts 1. Rearview mirror Always wear the seat belts properly while rid- ing in the vehicle. (See page 8-5.) Adjust the rearview mirror before starting off.  If the vehicle is driven without the driver seat belt fastened, a buzzer will sound.
Page 63: Glove Compartment
EBU31503 ECB02071 NOTICE Glove compartment To protect from damage, do not put metal items, like tools, or sharply edged items di- rectly in the glove compartment. If they 1 1 1 must be stored, wrap them in appropriate cushioning material. EBU37401 Storage compartments The storage compartments are located as...
Page 64: Cup Holders
ECB02241 NOTICE To protect from damage, do not put metal items, like tools, or sharply edged items di- rectly in the storage compartment. If these items must be stored, wrap them in appro- 1 1 1 priate cushioning material. 1. Storage compartment (center console) Maximum load limit: Center console storage compartment: 3.5 kg (7.7 lb)
Page 65: Cargo Bed
EWB03240 WARNING 1 1 1  Never ride with any open or glass con- tainers in the cup holders; otherwise, the contents may spill and the glass contain- ers may be thrown about and break, and possibly injure people in the vehicle dur- ing sudden braking or an accident.
Page 66 For additional loading information, see page 7-8. Opening and closing the tailgate 2 2 2 1. Cargo hook 1. Tailgate 2. Latch ECB02100 NOTICE The tailgate is not designed to hold heavy loads when open. The tailgate could col- lapse if you put heavy cargo or sit on it. 1.
Page 67: Front And Rear Shock Absorber Assemblies
To close To lower Lift the tailgate to the original position, and With hands and fingers clear of pinch points, then push the tailgate to securely lock it in lower the cargo bed slowly to its original po- place. sition and be sure it is locked into place. WARNING! Keep hands, body, and other Lifting and lowering the cargo bed people away from pinch points when low-...
Page 68  Slow compression damping force adjusting  Always adjust the shock absorber as- screw semblies on the left and right side to the same setting. Uneven adjustment can D266: cause poor handling and loss of stability,  Spring preload adjusting nut which could lead to an accident.
Page 69 Distance A = 511.3 mm (20.13 in)  A special wrench can be obtained at a Maximum (hard): Distance A = 496.3 mm (19.54 in) Yamaha dealer to make this adjust- ment.  The spring preload setting is deter- mined by measuring distance A, shown in the illustration.
Page 70 Compression damping force (D262 / D264) To increase the compression damping force and thereby harden the compression damp- ing, turn the compression damping force ad- juster in direction (a). To decrease the compression damping force and thereby soften the compression damping, turn the adjuster in direction (b).
Page 71 Compression damping force settings: Minimum (soft): Standard: Maximum (hard): Compression damping force (D268) Fast compression damping force 1. Fast compression damping force adjusting bolt To increase the fast compression damping Front fast compression damping force set- force and thereby harden the compression tings: damping, turn the fast compression damping Minimum (soft):...
Page 72 Rear fast compression damping force set- tings: Minimum (soft): 26 click(s) in direction (b) Standard: 12 click(s) in direction (b) Maximum (hard): 1 click(s) in direction (b) When adjusting the damping force settings, 1. Slow compression damping force adjusting screw turn the adjuster in direction (a) until it stops, Front slow compression damping force set- and then count the clicks in direction (b).
Page 73 Take the shock absorber assembly to a When adjusting the damping force settings, Yamaha dealer for any service. turn the adjuster in direction (a) until it stops, and then count the clicks in direction (b).
Page 74: Winch (If Equipped)
away. Use hook strap to keep hands away EBU38930 Winch (if equipped) from fairlead when winding the winch rope. ECBM0051 NOTICE Prolonged winching can overheat the 1 1 1 winch motor and can drain the vehicle’s battery, even when the engine is idling. Al- low the winch motor to cool and the bat- tery to recharge between uses.
Page 75: Trailer Hitch Bracket And Receiver
Accessories with the proper plug, such as a dard trailer hitch. Trailer towing equipment radio or smartphone charger can be used. can be obtained at a Yamaha dealer. See page 7-8 for loading information. DC jack maximum capacity: 10.0 A (120 W) To use an auxiliary DC jack 1.
Page 76: Auxiliary Dc Connectors
 Turn off the accessory before plugging in- This vehicle is equipped with auxiliary DC to/unplugging from the jack. connectors. Consult your Yamaha dealer be-  When the auxiliary DC jack is not being fore installing any accessories. used, cover it with the cap.
Page 77: For Your Safety - Pre-Operation Checks
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage. Do not operate the vehicle if you find any problem. If a problem can- not be corrected by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer. Pre-operation checklist ITEM...
Page 78 ITEM ROUTINE PAGE 6-6, 6-6, 6-6, 9-21, • Check front differential, transmission case, and rear final Drivetrain gear for leakage. 9-25, 9-27 • Check coolant level in reservoir. Coolant 6-6, 9-29 • Fill with coolant if necessary. Accelerator pedal • Check free play and for proper operation. Seat belts •...
Page 79: Front And Rear Brakes
Apply the brakes firmly for one minute. If there  Check that there is no free play in the brake is any leakage, have the vehicle inspected by pedal. If there is free play, have a Yamaha a Yamaha dealer. dealer check the brake system. (See page 9-43.)
Page 80 EWB02522 EWB02532 WARNING WARNING Gasoline and gasoline vapors are ex- Gasoline is poisonous and can cause inju- tremely flammable. To avoid fires and ex- ry or death. Handle gasoline with care. plosions and to reduce the risk of injury Never siphon gasoline by mouth. If you when refueling, follow these instructions.
Page 81: Engine Oil
If you carry a portable fuel container in the  Do not use oils with a diesel specifica- bed of your Yamaha Wolverine RMAX2, be tion of “CD” or oils of a higher quality sure to secure it with the cap tightened before than specified.
Page 82: Transmission
Wash off any dirt or mud that EBU36030 Differential gear could affect operation. Have a Yamaha dealer Make sure there is no oil leaking from the dif- repair as necessary for proper operation. ferential gear case.
Page 83: Passenger Handhold
Take the vehicle to a Yamaha dealer or re- To help make sure your restraint systems are fer to the Service Manual for correct tighten- working properly after a crash, have them in- ing torque.
Page 84 Tire pressure improper tire pressure may cause severe injury or death from loss of control or roll- over. Tire pressure below the minimum specified could also cause the tire to dis- lodge from the rim under severe driving conditions. [EWB04120] 1.
Page 85 Tire inspection OPERATING TIRE PRESSURE (cold): VEHICLE LOAD of 0.0–200.0 kg (0–441 lb) FRONT: (Recommended) 100.0 kPa (1.000 kgf/cm², 14.0 psi) REAR: (Recommended) 100.0 kPa (1.000 kgf/cm², 14.0 psi) Front: (Minimum) 90.0 kPa (0.900 kgf/cm², 13.0 psi) Rear: (Minimum) 90.0 kPa (0.900 kgf/cm², 13.0 psi) VEHICLE LOAD of 200.0–570.0 kg (441–...
Page 86: Operation
If any abnormality is noticed EBU31891 during this period, consult a Yamaha dealer. Engine break-in There is never a more important period in the 0–8 hours:...
Page 87: Starting The Engine
If a warning or indicator light does not Do not turn the key to the “ ” (start) position work as described above, have a Yamaha with the engine running; otherwise, damage dealer check the vehicle. to the electric starter may result.
Page 88: Drive Select Lever Operation And Reverse Driving
Such usage may result in damage to the drivetrain.  Engine power is restricted when the engine  Improper gear selection may shorten the is too cold. (See page 5-4.) life of V-belt.  For maximum engine life, never accelerate hard when the engine is cold! Shifting: neutral to high and high to low 1.
Page 89 If the lights do not come on, ask Use “L” (low-range) when traveling at slow a Yamaha dealer to inspect the electri- speed. This includes when crossing difficult cal circuits. terrain such as rocky surfaces, deep mud,...
Page 90  Due to the synchronizing mechanism in 6. Press the accelerator pedal gradually and the engine, the reverse indicator light continue to watch to the rear while back- and the reverse light portions of the tail- ing. lights may not come on until the vehicle starts moving.
Page 91: On-Command Drive Knob
EBU39151 On-Command drive knob The vehicle handles differently in each of the drive modes (“2WD”, “4WD” and “DIFF. LOCK”). For example, the vehicle requires more effort to turn in “DIFF. LOCK” than in “2WD”. Always stop the vehicle before changing the position of the On-Command drive knob. The meter display changes according to the selected drive mode.
Page 92  When using the differential gear lock (“DIFF. LOCK”), the differential gear lock indicator light and the drive train icon will flash until the differential gear lock properly engages/disengages.  When the differential gear lock indicator light and the drive train icon are flashing, turning the steering wheel back and forth will help the differential gear lock to engage or disengage.
Page 93: Parking
EBU31930 EWB04260 Parking WARNING When parking, stop the engine and shift the Improper loading or towing can increase drive select lever into the neutral position. Ap- the risk of loss of control, an overturn, or ply the parking brake to help prevent the ve- other accident: hicle from rolling.
Page 94 Operating when loaded with cargo or tow- MAXIMUM LOAD LIMITS ing a trailer Cargo bed: Drive more slowly than you would without a 272.0 kg (600 lb) Pulling load (gross trailer weight): load. The more weight you carry, the slower 8888 N (907 kgf, 2000 lbf) you should go.
Page 95: Towing The Vehicle
Pulling something other than a trailer EBU40423 Towing the vehicle Yamaha recommends that loads be trans- ECB04011 ported in the bed or in a trailer. If you need to NOTICE move an object a short distance use a winch  Do not tow this vehicle for extended dis- and follow the winch manufacturer’s instruc-...
Page 96: Basic Guide For Safe Use
EBU31950 EBU39762 KNOW YOUR VEHICLE BASIC GUIDE FOR SAFE USE This off-road vehicle will handle and maneu- ver differently from cars, ATVs, go-carts, EBU31962 golf-cars and grounds-keeping vehicles. The As a Wolverine RMAX2 owner you are re- Wolverine RMAX2 has higher ground clear- sponsible for the safe and proper operation of ance and other features to handle rugged this vehicle.
Page 97 As the owner/operator, it is your responsibility to protect yourself and your passenger from accidents, including rollovers. The Wolverine DRIVER RMAX2 has many features, including a pro- tective structure and seat belts, to help pro- UNDER tect occupants, but the best way to avoid injuries is to avoid accidents.
Page 98  Do not allow children who need child safety tomobiles, to promote safe driving behaviors, you should supervise younger drivers and seats or booster seats in the Wolverine consider setting rules and putting limits on RMAX2. The seat belt is not designed to re- how, when, and where the Wolverine RMAX2 strain automotive child safety seats.
Page 99 1. Seat belt 1. Seat belt 2. Shoulder bolster 2. Shoulder bolster 3. Door 3. Door 4. Passenger handhold The Wolverine RMAX2 comes with a variety of features to help reduce the risk of driver and passenger injury. These features work to- gether, and when properly used, these fea- tures will help protect the occupants in the event of an accident.
Page 100 Protective structure Seat belts The vehicle cage/frame provides a protective Seat belts should be worn by the driver and structure that helps limit intrusions by branch- passenger. The driver must be sure that the es or other objects and may reduce your risk passenger is belted before driving.
Page 101 A crash can damage the restraint systems in 1. Hold the latch plate as you pull the belt your vehicle. A damaged restraint system across your lap and chest. Make sure the may not properly protect the person using it, belt is not twisted and is not caught on resulting in serious injury or death in a crash.
Page 102 6. Check if the seat belt shoulder position suits the size of the driver and passenger. To adjust the seat belt shoulder position, move the seat belt height adjuster left and right while pulling it toward the front of the vehicle, and slide it up and down. 1.
Page 103 reason in a rollover. The doors may also re- helps to reduce the likelihood that the pas- duce intrusion of objects into the occupant senger puts a hand outside the vehicle if the area. Make sure the door is securely latched vehicle begins to tip.
Page 104 1. Lever Floorboard 2. Passenger handhold The floorboard allows you to brace your feet, Seat and shoulder bolsters which helps you keep your body in the vehicle The seats and shoulder bolsters are designed in the event of an accident or rollover. Keep to help keep you in the vehicle.
Page 105 could briefly jerk in one direction or back and CORRECT GRIP EXAMPLE forth as the tires and vehicle respond to the obstacle. This quick motion could injure your thumbs or wrist if your thumbs or hand(s) are inside the steering wheel. Grip the steering wheel so that your thumbs will not be hit by the spokes.
Page 106: Learning To Operate Your Vehicle
 Eye protection (goggles, helmet face shield, EBU33544 LEARNING TO OPERATE YOUR VEHI- or protective eyewear)  Over-the-ankle boots, gloves, long-sleeved shirt or jacket, and long pants Personal protective equipment An approved helmet and other personal pro- tective equipment can help in a variety of ways, including: ...
Page 107 Practice for new Yamaha Wolverine RMAX2 users You should become familiar with the perfor- mance characteristics of the vehicle in a large, flat area that is free of obstacles and other vehicles. Practice controlling the accel- erator pedal, brakes, steering, and drive se- lect lever.
Page 108 Getting ready to ride For example, if you feel the back of the vehi- Perform the Pre-Operation Checks on page cle start to slide to your right, steer to the 6-1. Follow the instructions starting on page right. 7-2 to start the engine. If you think or feel that the vehicle may tip or roll, keep your body completely inside the Turning...
Page 109 accelerator pedal slowly and smoothly. The Engine braking centrifugal clutch will engage and the vehicle Engine compression braking is designed to will begin to accelerate. assist you when operating your Wolverine Avoid higher speeds and sudden or hard ac- RMAX2 off-road. With this feature, the engine celeration until you are thoroughly familiar helps slow the vehicle down after you take with the operation of your vehicle.
Page 110 Parking on a flat area 5. Block the front and rear wheels with When parking on a flat area, stop the engine rocks or other objects. and shift the drive select lever into the neutral Loading position. Apply the parking brake to help pre- The total weight of operator, passenger, ac- vent the vehicle from rolling.
Page 111 Your Yamaha Wolverine RMAX2 has higher to see far enough ahead of you. Use common ground clearance and other features to han- sense and remember that some hills are too dle rugged terrain, and as a result, can over- steep for you to climb or descend. Use proper...
Page 112 side of a hill, which increases your risk of roll- slow your descent. Release the brake and be- over. Practice first on gentle slopes before at- gin to coast down the hill. Use engine braking tempting steeper hills. Always check the as much as possible, gently applying the terrain carefully before attempting any hill.
Page 113 If you are sliding or skidding, try to steer in the Pavement direction the vehicle is sliding, to regain con- This vehicle is designed for off-road use only. trol. For example, if you feel the back of the Avoid paved surfaces. Turn gradually and go vehicle start to slide to your right, steer to the slowly if you must drive on pavement.
Page 114 Wet brakes may have reduced effectiveness. drive before driving on a slippery surface and After leaving the water, test the brakes. If nec- plan your path to avoid making abrupt ma- essary, apply the brakes several times to let neuvers. friction dry them out.
Page 115 the risk of fire during operation or after leaving If there is any question about your ability to the vehicle, do not let brush, grass and other maneuver safely over the obstacle, you materials collect under the vehicle, near the should turn around if the ground is flat and muffler or exhaust pipe, or next to other hot you have the room or back up until you find a...
Page 116: Periodic Maintenance And Adjustment
To avoid death during service or while using the ve- possible burns, let brake components cool hicle. If you are not familiar with vehicle before touching them. service, have a Yamaha dealer perform the service.
Page 117: Owner's Manuals And Tool Kit
EBU39710 Owner’s Manuals and Tool kit Store this manual and the Winch Owner’s Manual (if equipped) in a vinyl bag and always carry them in the glove compartment as shown. Put the tool kit and tire pressure gauge in the storage compartment. (See page 5-25.) 1.
Page 118 Yamaha dealer to check the torque settings and adjust them as necessary.
Page 119: Maintenance Charts
Even if the vehicle isn’t driven for the stated mileage or engine hours, the month maintenance intervals should still be followed. Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical skills. EBU35773...
Page 120 INITIAL EVERY month Whichev- ITEM ROUTINE er comes 1300 2500 2500 5000 first (mi) (150) (800) (1600) (1600) (3200) hours • Check for leakage. • Check for looseness and tighten all screw √ √ √ Exhaust system clamps and joints if necessary. •...
Page 121 EBU35804 General maintenance and lubrication chart INITIAL EVERY month Whichev- ITEM ROUTINE er comes 1300 2500 2500 5000 first (mi) (150) (800) (1600) (1600) (3200) hours • Check coolant leakage. √ √ √ √ √ • Repair if necessary. Cooling system •...
Page 122 INITIAL EVERY month Whichev- ITEM ROUTINE er comes 1300 2500 2500 5000 first (mi) (150) (800) (1600) (1600) (3200) hours √ √ √ √ √ • Check oil level. Differential gear √ √ • Change. • Check operation/brake pad wear/fluid leak- age.
Page 123 INITIAL EVERY month Whichev- ITEM ROUTINE er comes 1300 2500 2500 5000 first (mi) (150) (800) (1600) (1600) (3200) hours • Check balance, runout, and for damage. • Replace if necessary. √ √ √ √ • Replace wheel if damaged or if runout is 15 * Wheels over specified limits.
Page 124 INITIAL EVERY month Whichev- ITEM ROUTINE er comes 1300 2500 2500 5000 first (mi) (150) (800) (1600) (1600) (3200) hours Front and rear • Check for cracks or other damage, and re- √ √ 22 * place if necessary. axle boots Fittings and fas- •...
Page 125: Hood
EBU32340 Hood To remove 1. Pull the tab on each hood lock up, and then turn the hood locks 1/4 turn clock- wise. 1. Tab 1 1 1 2. Hood lock 2. Remove the hood. 1. Tab 1. Hood 9-10...
Page 126: Engine Oil And Oil Filter
To install EBU39771 Engine oil and oil filter 1. Insert the projections on the hood into the Check the engine oil level regularly. In addi- slots in the front grill, and then place the tion, the oil must be changed and the filter re- hood in the original position.
Page 127 To check the engine oil level 1. Park the vehicle on a level surface. 2. Start the engine and warm it up to a nor- mal operating temperature (the engine oil temperature should reach 60 °C [140 °F]), then let the engine idle for a minimum of 10 seconds before turning the engine off.
Page 128 To change the engine oil 6. Remove the engine oil tank drain bolt and 1. Park the vehicle on a level surface. its gasket to drain the engine oil from the 2. Start the engine, warm it up for several oil tank.
Page 129 1. Trough 1. Engine oil drain bolt 2. Gasket 7. Place an oil pan under the engine to col- 9. Place an oil pan under the oil cooler drain lect the used engine oil. to collect the used engine oil. 8.
Page 130 12. Add 1.50 L (1.59 US qt, 1.32 Imp.qt) of the recommended engine oil to the en- gine oil filler hole on the cylinder head. 13. Add 2.05 L (2.17 US qt, 1.8 Imp.qt) of the recommended engine oil to the oil tank. 14.
Page 131 17. Turn the engine off and wait for 10 min- 2. Lift the cargo bed up. utes. 3. Remove the right rear panel by removing 18. Remove the engine oil tank filler cap, and the bolts and quick fastener screws as then add sufficient oil of the recommend- shown.
Page 132 If the O-ring remains attached to 1. Bolt A the crankcase, oil leakage may occur. 2. Bolt C An oil filter wrench is available from a Yamaha dealer. 1 1 1 1. Bolt A 9-17...
Page 133 1. Oil filter wrench 1. O-ring 2. Oil filter cartridge 7. Install the new oil filter cartridge with an 6. Apply a light coat of clean engine oil to oil filter wrench, and then tighten it to the the O-ring of the new oil filter cartridge. specified torque with a torque wrench.
Page 134 1. Torque wrench 1. Right rear panel 2. Bolt A 8. Install the drain bolts, and then add the 3. Bolt B specified amount of the recommended 4. Quick fastener screw engine oil. Check the engine oil level and the vehicle for oil leakage. Refer to steps 11–21 of the “To change the engine oil”...
Page 135: Why Yamalube
EBU38630 1. Bolt A Why Yamalube 2. Bolt C YAMALUBE oil is a Genuine YAMAHA Part born of the engineers’ passion and belief that engine oil is an important liquid engine com- ponent. We form teams of specialists in the...
Page 136: Transmission Oil
ECB02910 NOTICE and value. Yamaha’s experience gained over When checking or changing the transmis- many years of research and development into sion oil, make sure that no foreign material oil since the 1960’s helps make Yamalube the enters the transmission.
Page 137 1 1 1 1. Rubber cover 1. Transmission oil dipstick 2. Maximum level mark 4. Remove the transmission oil dipstick and 3. Minimum level mark wipe it clean. 5. With the arrow mark pointing outward, fully insert the dipstick into the oil filler hole and then remove it again.
Page 138 9. Install the passenger seat cushion. To change the transmission oil 1. Place an oil pan under the transmission case to collect the used oil. 2. Remove the transmission oil dipstick. 3. Remove the transmission oil drain bolt and gasket. 1.
Page 139: Continuously Variable Transmission (Cvt)
Oil will flow out immediately when the drain bolt is loosened. Take care not to lose the bolt. 4. After draining the oil, install the transmis- sion oil drain bolt with a new gasket. 5. Tighten the drain bolt to the specified torque.
Page 140: Final Gear Oil
Yamaha dealer perform this main- ECB03590 NOTICE tenance. More frequent inspections are rec- When checking or changing the final gear ommended if you often drive hard or operate oil, make sure that no foreign material en- in severe conditions.
Page 141 Tightening torque: Final gear oil filler bolt: 23 N·m (2.3 kgf·m, 17 lb·ft) Changing the final gear oil 1. Park the vehicle on a level surface. 2. Place an oil pan under the final gear case to collect the used oil. 3.
Page 142: Differential Gear Oil
4. Install the drain bolt and its new gasket, EBU36065 Differential gear oil and then tighten the bolt to the specified Check the oil level and change the differential torque. gear oil at the intervals specified in the period- ic maintenance chart. Tightening torque: ECB03600 Final gear oil drain bolt:...
Page 143 2. Remove the differential gear oil filler bolt 5. Install the differential gear oil filler bolt and its gasket, and then check the oil lev- and its gasket, and then tighten the bolt el. It should be up to the brim of the filler to the specified torque.
Page 144: Coolant
7. Install the differential gear oil filler bolt and its gasket, and then tighten the bolt to the specified torque. Tightening torque: Differential gear oil filler bolt: 23 N·m (2.3 kgf·m, 17 lb·ft) 8. Check for oil leakage. If oil leakage is found, check for the cause.
Page 145 If genuine Yamaha coolant is not available, use an ethylene glycol antifreeze containing corrosion inhibitors for aluminum engines and mix with distilled water at a 1:1 ratio. ECB02190 NOTICE Mix antifreeze with distilled water only. However, if distilled water is not available, 1.
Page 146: Axle Boots
7. Install the hood. To change the coolant The coolant must be changed at the intervals specified in the periodic maintenance chart. Have a Yamaha dealer change the coolant. WARNING! Never attempt to remove the radiator cap when the engine is hot. [EWB04250]...
Page 147: Checking The Spark Plugs
If any spark plug shows a dis- tinctly different color, the engine could be op- erating improperly. Do not attempt to diagnose such problems yourself. Instead, 1. Spark plug gap have a Yamaha dealer check the vehicle. 9-32...
Page 148: Air Filter Maintenance
cause the rubber seal on the end of the cap Spark plug gap: fits tightly. To remove the spark plug cap, 0.7–0.8 mm (0.028–0.031 in) simply twist it back and forth while pulling Clean the surface of the spark plug gasket it out;...
Page 149 The primary air filter should be cleaned and gine wear and possible engine damage. oiled every 300–600 km (200–400 mi). Additionally, the fuel injection system The secondary air filter should be replaced would be affected, resulting in poor engine every 2000–5000 km (1200–3000 mi). performance and possible overheating.
Page 150 1 1 1 1. Foam air filter 1. Air filter element lock plate 2. Foam air filter element 4. Pull off the air filter element lock plate, 3. Air filter frame and then remove the foam air filter ele- 5. Wash the foam material gently but thor- ment from the air filter frame.
Page 151 11. Pull the foam air filter element over its frame, and then install the lock plate. 12. Insert the primary air filter into the air filter case, and then install the air filter case cover by hooking the holders onto the air filter case.
Page 152: Air Filter Check Hoses
the air filter elements may be soiled. Clean the check hose and air filter case and check the 1 1 1 air filter elements. 1. Secondary air filter 1 1 1 2. Screw 4. Insert a new air filter element and tighten the screws.
Page 153: V-Belt Case Drain Plug
Do If water drains from the V-belt case after re- not start the engine while cleaning the ex- moving the drain plug, have a Yamaha dealer haust system. inspect the vehicle, as the water may affect other engine parts.
Page 154 1. Tailpipe bolt 1. Tailpipe 2. Spark arrester 2. Remove the tailpipe by pulling it out of 3. Gasket the muffler, and then remove the gasket. 4. Install the gasket, and then insert the tail- 3. Tap the tailpipe lightly, and then use a pipe into the muffler and align the bolt wire brush to remove any carbon depos- holes.
Page 155: Valve Clearance
Valve clearance damaged or if the lining thickness is less than The correct valve clearance changes with 1.0 mm (0.04 in), have a Yamaha dealer re- use, resulting in improper fuel/air supply or place the brake pads as a set.
Page 156: Checking The Parking Brake Pads
1. Lining thickness EBU37500 Checking the parking brake pads 1. Minimum level mark Have a Yamaha dealer check the brake pads for wear and damage, and if necessary, re- Specified brake fluid: DOT 4 place them as a set. EWB02721...
Page 157: Brake Fluid Replacement
Adding a brake fluid other than DOT 4 the brake system for leakage. If the brake fluid may result in a harmful chemical reac- level goes down suddenly, have a Yamaha tion. dealer check and repair the vehicle before  Be careful that water does not enter the any further operation.
Page 158: Checking The Brake Pedal
 Replace the brake hoses every four years. EBU32531 Checking the brake pedal Have a Yamaha dealer check the brakes at the intervals specified in the periodic mainte- nance chart. There should be no free play in the brake pedal. The brakes should operate 1 1 1 smoothly and there should be no brake drag.
Page 159: Parking Brake Lever Free Play Adjustment
Yamaha dealer ad- just it. 1 1 1 1 1 1 1. Accelerator pedal 2. Accelerator pedal free play EBU39540 Parking brake lever free play adjust- 1. Parking brake lever free play...
Page 160: Cable Inspection And Lubrication
Cables can also become frayed or kinked. Lubricate the cable ends. If the cables do not operate smoothly, ask a Yamaha dealer to re- place them. 1. Brake light switch 2. Adjusting nut Recommended lubricant: If necessary, adjust the brake light switch.
Page 161: Pedal Lubrication
Have a Yamaha dealer replace the stabilizer bushes if necessary. Recommended lubricant: Lithium-soap-based grease EBU32590...
Page 162: Steering Shaft Lubrication
EBU32610 Recommended lubricant: Wheel removal Lithium-soap-based grease 1. Loosen the wheel nuts. 2. Elevate the vehicle and place a suitable EBU32600 Steering shaft lubrication stand under the frame. Lubricate the pivot points. 3. Remove the nuts from the wheel. 4. Remove the wheel. Recommended lubricant: Lithium-soap-based grease 9-47...
Page 163: Checking And Tightening The Bead Lock (If Equipped)
Bead lock bolts: ever the tires have been replaced. 25 N·m (2.5 kgf·m, 18 lb·ft) EBU32620 Tire replacement Always use the same size and type of tires recommended in this owner’s manual. The tires that came with your Yamaha 9-48...
Page 164: Wheel Installation
Never replace just one tire. Size: EWB03390 30x10.00R14 NHS WARNING Manufacturer/model: Installing improper tires on your Yamaha GBC/DIRT COMMANDER 2.0 (D264) GBC/TERRA MASTER SQ (D268) Wolverine RMAX2 can affect handling and MAXXIS/ML1/CARNIVORE (D262,D266) stability. This can cause a loss of control.
Page 165: Battery
EWB03400 EWB03410 WARNING WARNING Do not reverse the rims on your Yamaha Avoid battery contact with skin, eyes, or Wolverine RMAX2 to widen the track clothing. Shield eyes when working near width. Installing wheels improperly in- batteries. Keep out of reach of children.
Page 166 EWB03420 WARNING Batteries may produce explosive gases. Ventilate when charging or using in a closed space. Keep batteries away from sparks, flames, cigarettes, or other sourc- es of ignition. To remove the battery 1. Turn the key to “ ” (off). 1.
Page 167  Always keep the battery charged. Stor- manufacturer’s instructions, or have a ing the battery in a discharged state for Yamaha dealer charge it for you. an extended period of time will cause  Keep in mind that the battery tends to dis- permanent battery damage.
Page 168: Jump-Starting
the battery, the main switch must be EBU32651 Jump-starting off, and the positive lead must be con- Jump-starting the vehicle should be avoided. nected before the negative lead. [ECB01111] The battery should be removed and charged instead. However, if the vehicle must be jump-started, proceed as follows.
Page 169 vehicle and the other end of the positive lead to the positive terminal of the charged battery. 1 1 1 1 1 1 1. Jumper cable negative lead 5. Start the engine. (See page 7-2.) 6. After the engine starts, disconnect the 1.
Page 170: Fuse Replacement
EBU32665 Fuse replacement The fuses are located under the hood. If an electrical problem is suspected, check the fuses and replace if necessary. 2 3 4 3 3 3 5 6 7 8 9 10 1. Spare fuse 2. Accessory fuse “ACC” 3.
Page 171 1. Turn off all electrical systems. (See page Specified fuses: 5-1.) Main fuse: 2. Remove the hood. (See page 9-10.) 50.0 A Fuel injection system fuse: 3. Remove the blown fuse, and then install a 10.0 A new fuse of the specified amperage. Headlight fuse: WARNING! Always use a fuse of the 7.5 A...
Page 172: Headlights
There are no user replaceable bulbs. If one or more headlights do not come on, check for a loose connection, check the headlight fuse, and then have a Yamaha dealer check the ve- 1 1 1 hicle.  When the headlights are set to low beam, the outer two headlights come on.
Page 173: Auxiliary Lights
Auxiliary lights This model is equipped with LED auxiliary lights, there are no replaceable bulbs. If an auxiliary light does not come on, check for a loose connection, check the fuses, and then have a Yamaha dealer check the vehicle. 9-58...
Page 174: Brake/Tail Light
If your vehicle When the transmission is shifted into reverse, requires any repair, take it to a Yamaha deal- a white reverse light should come on. The skilled technicians at a Yamaha dealer-...
Page 175 EWB03450 WARNING When checking the fuel system, do not smoke and make sure there are no open flames or sparks in the area, including pilot lights from water heaters or furnaces. Gasoline or gasoline vapors can ignite or explode, causing severe injury or property damage.
Page 176: Troubleshooting Charts
Remove the spark plugs and check the electrodes. The engine does not start. Have a Yamaha dealer check the vehicle. Check the compression. 4. Compression The engine does not start. There is compression.
Page 177 Restart the engine. If the engine overheats again, ask a Level is OK. Yamaha dealer to inspect and/or repair the cooling system.  Tap water can be used in an emergency. Change to the recommended coolant as soon as possible.
Page 178: Cleaning And Storage
may have reduced stopping ability, in- EBU32720 CLEANING AND STORAGE creasing the chance of an accident. NOTICE: Excessive water pres- EBU35922 [EWB03471] Cleaning sure may cause water seepage and Frequent, thorough cleaning of your vehicle deterioration wheel bearings, will not only enhance its appearance but will brakes, transmission seals and electri- improve its general performance and extend cal devices.
Page 179: Storage
Do not apply oil to for storage as follows: any rubber parts or the seat covers. 1. Fill the fuel tank with fresh fuel and add the specified amount of Fuel Med Rx, available from your Yamaha dealer, or 10-2...
Page 180 30 °C [90 °F] or less than 0 °C [32 °F]). Use of Fuel Med Rx or another high-quality fuel stabilizer eliminates the need to drain the fuel system. Consult a Yamaha dealer if the fuel system needs to be drained. 10-3...
Page 181: Specifications
EBU32751 SPECIFICATIONS Engine: EBU38811 Combustion cycle: 4-stroke Cooling system: The 4-digit model type code can be con- Liquid cooled Valve train: firmed by checking the model label. (See DOHC page 1-1.) Cylinder arrangement: Inline Number of cylinders: Dimensions: 2-cylinder Overall length: Displacement: 3030 mm (119.3 in) 999 cm³...
Page 182 Recommended engine oil grade: Differential gear oil: API service SG type or higher, JASO standard MA Type: SAE 80W-90 API GL-5 Hypoid gear oil 130 °F Quantity: 0.31 L (0.33 US qt, 0.27 Imp.qt) Coolant quantity: SAE 0W-30 Coolant reservoir (up to the maximum level mark): 0.45 L (0.48 US qt, 0.40 Imp.qt) Radiator (including all routes): SAE 10W-30...
Page 183 Rear tire: Voltage, capacity: 12 V, 28.0 Ah Size: Lights: 30x10.00R14 NHS Manufacturer/model: Headlight: GBC/DIRT COMMANDER 2.0 (D264) GBC/TERRA MASTER SQ (D268) Brake/tail light: MAXXIS/ML1/CARNIVORE (D262,D266) Loading: Auxiliary light: Maximum load: 570.0 kg (1256 lb) (Total weight of all occupants, cargo, accessories, and tongue) Front brake: Type:...
Page 184: Consumer Information
EBU32775 CONSUMER INFORMATION EBU32820 Vehicle Emission Control Information label The Vehicle Emission Control Information la- bel is affixed at the location in the illustration. This label shows specifications related to ex- haust emissions as required by federal law, state law and Environment Canada. 1.
Page 185: Use Of Your Vehicle Data
(DTC). The collected data will be uploaded to server at Yamaha Motor Co., Ltd. by attaching a special Yamaha diagnostic tool to the vehicle, only when maintenance checks or service procedures are performed.
Page 186 How to contact us? Any questions or complaints regarding the processing of your vehicle data can be submitted in writing to: Yamaha Motor Canada Ltd. Attn: Privacy Officer 480 Gordon Baker Road, Toronto, Ontario, M2H 3B4 The SOLE PURPOSE of above provided contact information is TO RESPOND DATA PRO- CESSING INQUIRY AND OTHER KINDS OF INQUIRIES WILL NOT BE RESPONDED.
Page 187 (3) other data showing the status of the vehicle such as diagnostic trouble code(s) (DTC). This is done by attaching a special Yamaha diagnostic tool to the vehicle, in circumstances where maintenance checks or service procedures are performed.
Page 188 (above). CONTACT US AND OPTING OUT If you would like more information about Yamaha’s approach to privacy, contact 1300 593 600 (AUS) or 0800 926 242 (NZ), email corporate.services@yamaha-motor.com.au or review the ap- plicable Privacy Policy located at the following Yamaha websites: Australia: https://www.yamaha-motor.com.au/privacy/policies/yamaha-motor-australia-privacy-policy...
Page 189: Reporting Safety Defects (For Canada)
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform Transport Canada in addition to notifying Yamaha Motor Canada Ltd, Canada. If Transport Canada receives similar complaints, it may open an investiga- tion, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and rem- edy campaign.
Page 190: Yamaha Side By Side Off-Road Vehicle Warranty Policy (For Canada)
The subsequent owner has the responsibility for ensuring CUSTOMER provide record MOTOR COMPANY, LTD. (‘MANUFACTURER’) under the that a change of registration is sent to YAMAHA at the maintenance having been performed trade name of Yamaha, distributed by YAMAHA MOTOR time of such transfer of ownership.
Page 191 Brakes warranty of performance, merchantability or fitness for a inspections; • Clutch particular purpose on the part of YAMAHA, and any other pre-delivery inspection and assembly; • Fluid Levels obligation or liability on behalf of YAMAHA, and the above SSV’s...
Page 192: Index
INDEX Coolant, Periodic maintenance ........9-29 Coolant, Pre-operation check ........6-6 Coolant temperature warning light ........ 5-4 Cup holders ..............5-26 Accelerator pedal ............5-18 Accelerator pedal, checking ........9-43 Differential gear lock indicator light ....... 5-3 Accelerator pedal, Pre-operation check ......6-6 Differential gear oil, Periodic maintenance ....
Page 193 Glove compartment ............. 5-25 Neutral indicator light ............ 5-2 Headlight beam, adjusting ........... 9-57 On-Command drive knob, operation ......7-6 Headlights ..............9-57 Owner’s Manuals and Tool kit ........9-2 Helmet reminder light ............ 5-6 High beam indicator light ..........5-3 Parking ................
Page 194 Steering wheel position ..........5-23 Storage .................10-2 Storage compartments ..........5-25 Suspension mode switch (if equipped) ......5-17 Suspension system warning light” (if equipped) ....5-6 Tire, replacing ..............9-48 Tires, Pre-operation check ..........6-7 Towing the vehicle ............7-10 Trailer hitch bracket and receiver .........5-37 Transmission oil ............9-21 Transmission, Pre-operation check .......6-6 Troubleshooting ............9-59 Troubleshooting charts ..........9-61...
Page 195 EBU32880 For your best ownership experience, think Genuine Yamaha! Genuine Yamaha Parts – Genuine Yamaha replacement parts are the exact same parts as the ones originally equipped on your vehicle, providing you with the performance and durability you have come to expect.
Page 196 PRINTED IN USA 2023.05-0.5×1 CR (E)

This manual is also suitable for:

Yx10erpar 2024 Yx10erplr 2024 Yx10erpsr 2024

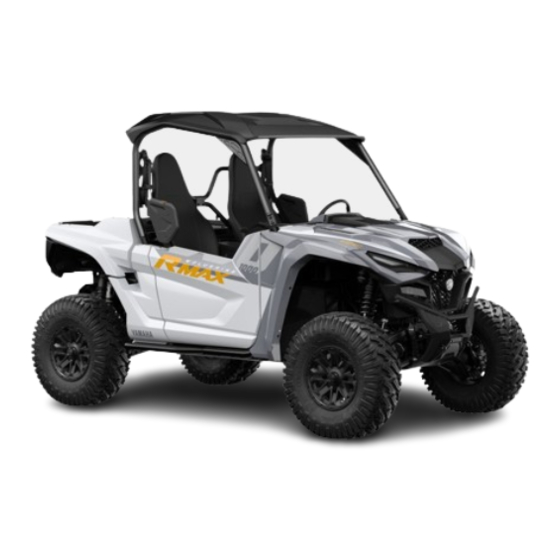

Yamaha WOLVERINE RMAX2 2024 Owner's Manual

Quick Links

Troubleshooting

Related Manuals for Yamaha WOLVERINE RMAX2 2024

Summary of Contents for Yamaha WOLVERINE RMAX2 2024

This manual is also suitable for:

Table of Contents
