Set Up a New Wireless Network
More: To add additional powerline adapters and powerline Wi-Fi extenders with the default settings, simply plug them into the wall sockets on the same electrical circuit.
Use the default wireless network name (SSID) and password on the provided Wi-Fi Info Card to access the Internet.
Clone Your Router's Wi-Fi Settings to the Extender (Recommended)
If your router supports WPS, you can continue with the steps below to clone its current Wi-Fi settings to the extender.
Tips: We recommend that you plug in the extender near your router for Wi-Fi cloning.

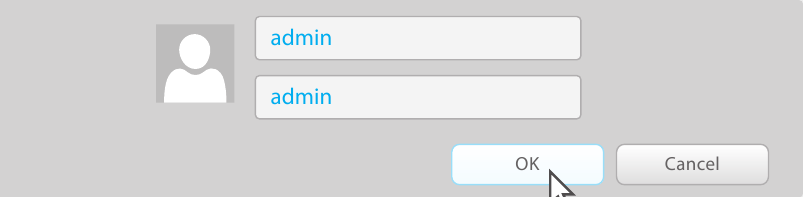

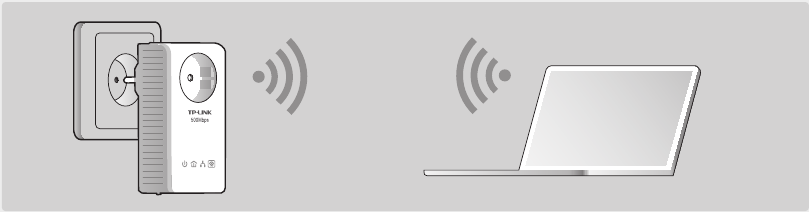

Note: If the Wi-Fi LED still blinks slowly for longer than 30 seconds, unplug the extender and plug it back in, then try again. Or use "Customize the Extender's Wi-Fi Settings" on the back instead.

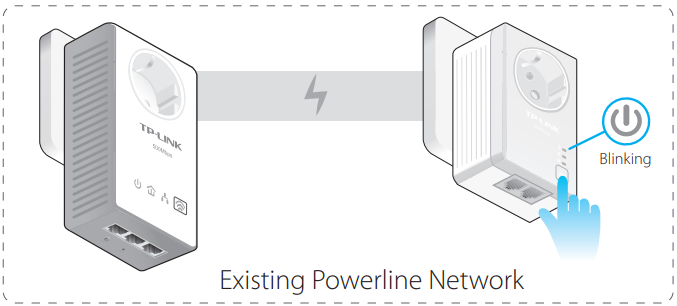

You can create or join a secure powerline network using the Pair button on two devices at a time. The powerline network can support up to 16 powerline devices.
Tips: We recommend that you plug in the powerline devices near each other when pairing.

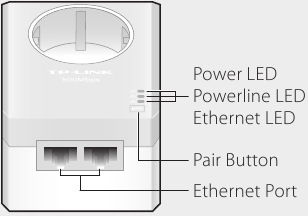

Adapter

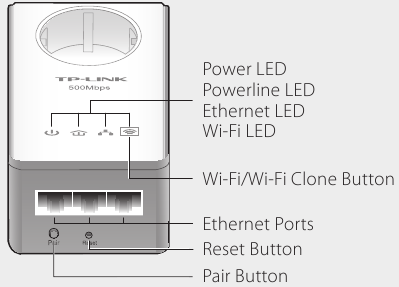

Extender
LED | STATUS | DESCRIPTION |
Power | On/Off | The device is on or o. |
Blinking | Once every second: Pairing is in process. | |
Once every 15 seconds: Power-Saving Mode is on. (Powerline adapter only) | ||
Powerline | On | The device is connected to the powerline network. |
Off | The device is not connected to the powerline network or is in Power-Saving Mode. | |
Blinking | The device is transferring data. | |
Ethernet | On/O | The Ethernet port is connected or not connected. |
Blinking | The Ethernet port is transferring data. (Powerline adapter only) | |
Wi-Fi | Blinking | Rapidly: The Wi-Fi is working properly. |
Once every second: Wi-Fi cloning is in process. | ||
Off | The Wi-Fi is disabled. |
⠀
ITEM | DESCRIPTION |
Wi-Fi Wi-Fi Clone | Press and hold for 1 second to start Wi-Fi cloning. |
Press and hold for 5 seconds to turn the Wi-Fi on or o. | |
Pair | Press and hold for 1 second to start the pairing process. |
Press and hold for 10 seconds to leave the powerline network. | |
Reset | Press and hold for 10 seconds to restore the extender's settings to factory defaults. |

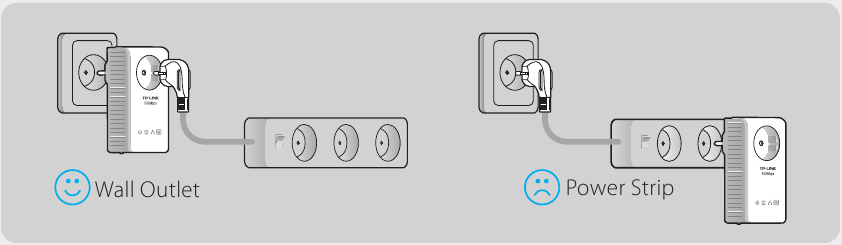

Integrated Electrical Socket | Used as a pass-through AC outlet to power other devices. It also reduces some electrical noise that may interfere with powerline performance. |
How to troubleshoot if there is no Internet connection in my powerline network?
What can I do if a successfully-paired extender does not reconnect after it has been moved to a new location?
