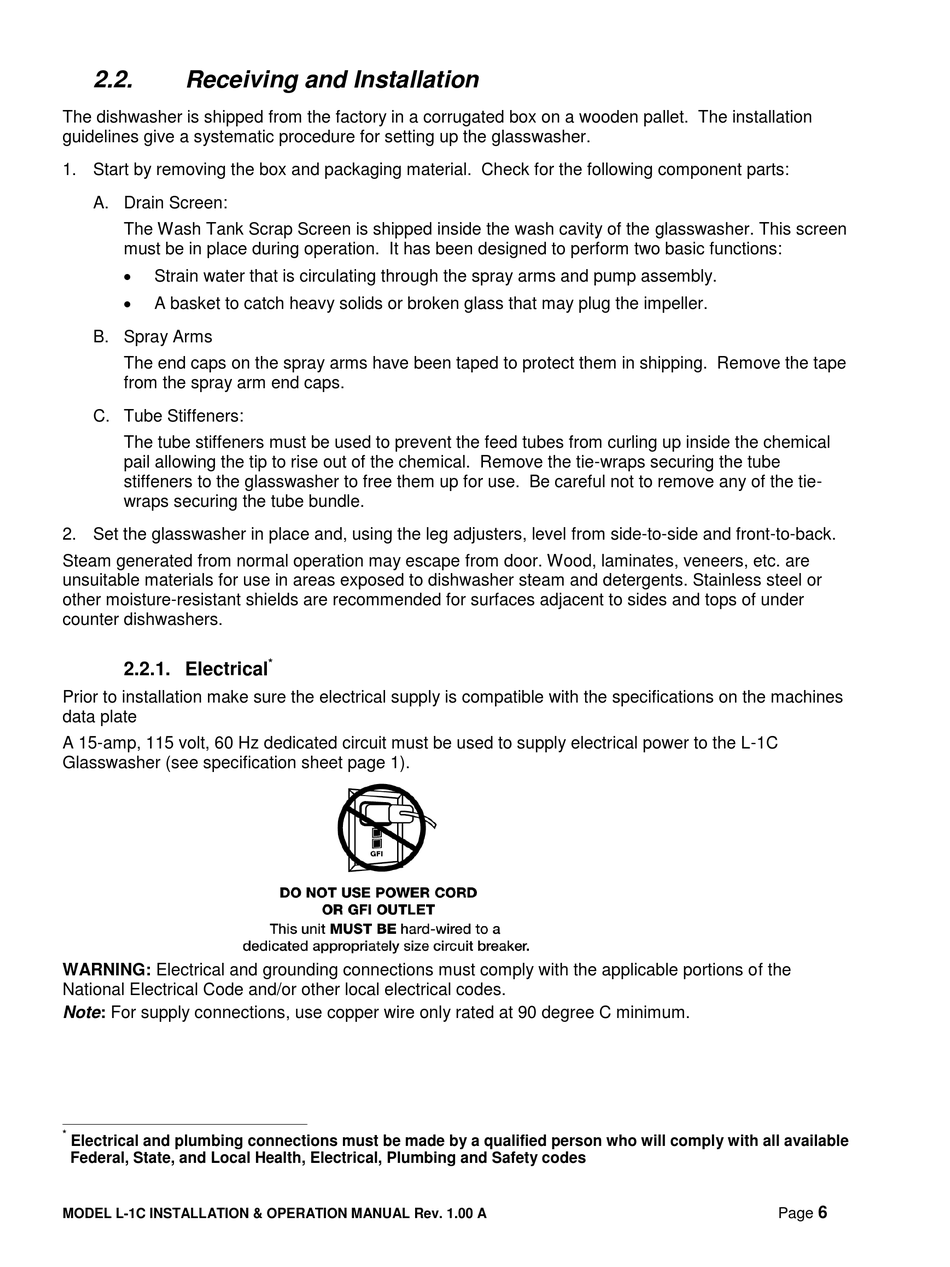

2.2.

Receiving and Installation

The dishwasher is shipped from the factory in a corrugated box on a wooden pallet. The installation
guidelines give a systematic procedure for setting up the glasswasher.
1. Start by removing the box and packaging material. Check for the following component parts:
A. Drain Screen:
The Wash Tank Scrap Screen is shipped inside the wash cavity of the glasswasher. This screen
must be in place during operation. It has been designed to perform two basic functions:

Strain water that is circulating through the spray arms and pump assembly.

A basket to catch heavy solids or broken glass that may plug the impeller.
B. Spray Arms
The end caps on the spray arms have been taped to protect them in shipping. Remove the tape
from the spray arm end caps.
C. Tube Stiffeners:
The tube stiffeners must be used to prevent the feed tubes from curling up inside the chemical
pail allowing the tip to rise out of the chemical. Remove the tie-wraps securing the tube
stiffeners to the glasswasher to free them up for use. Be careful not to remove any of the tie-
wraps securing the tube bundle.
2. Set the glasswasher in place and, using the leg adjusters, level from side-to-side and front-to-back.
Steam generated from normal operation may escape from door. Wood, laminates, veneers, etc. are
unsuitable materials for use in areas exposed to dishwasher steam and detergents. Stainless steel or
other moisture-resistant shields are recommended for surfaces adjacent to sides and tops of under
counter dishwashers.

2.2.1. Electrical

Prior to installation make sure the electrical supply is compatible with the specifications on the machines
data plate
A 15-amp, 115 volt, 60 Hz dedicated circuit must be used to supply electrical power to the L-1C
Glasswasher (see specification sheet page 1).
WARNING: Electrical and grounding connections must comply with the applicable portions of the
National Electrical Code and/or other local electrical codes.
Note: For supply connections, use copper wire only rated at 90 degree C minimum.
*
Electrical and plumbing connections must be made by a qualified person who will comply with all available
Federal, State, and Local Health, Electrical, Plumbing and Safety codes
MODEL L-1C INSTALLATION & OPERATION MANUAL Rev. 1.00 A
*
