Wiring Diagram - Panasonic CW-C180EF-W Service Manual

CW-C180EF-W / CW-C240EF / CW-C180EF-M / CW-SC180EF

3 Wiring Diagram

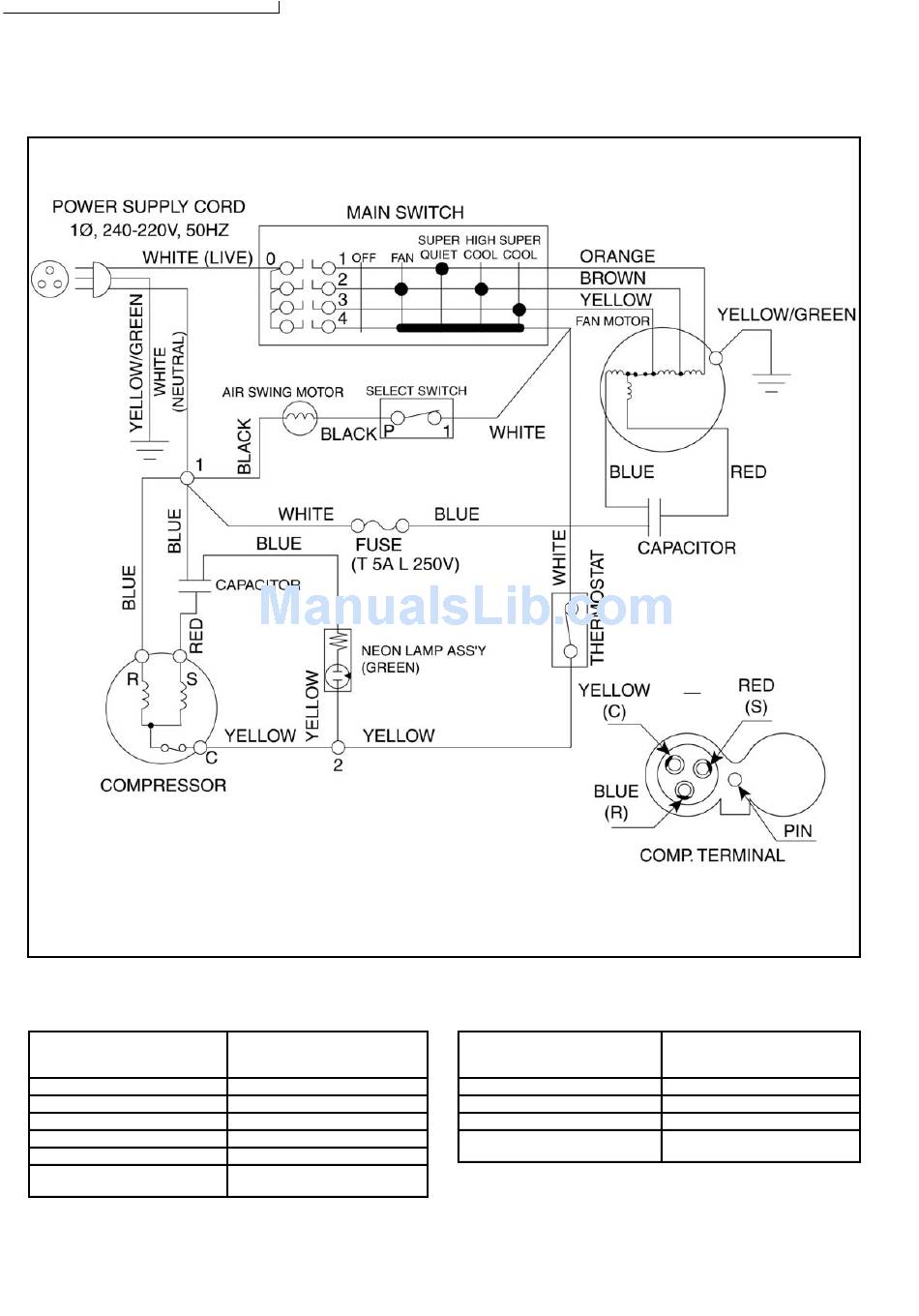

3.1. CW-C180EF-W, CW-C180EF-M & CW-SC180EF.
3.1.1. Resistance of Fan Motor windings
and the rated Capacitor.
Connection
Blue - Yellow
Yellow - Brown
Brown - Orange
Red - Yellow
Capacitor
CW-C180EF-W
CW-C180EF-M
CW-SC180EF
CWA951057
60.7 Ω
9.0 Ω
7.3 Ω
62.3 Ω
CWA312048
(5µF, 440VAC)
4
3.1.2. Resistance of Compressor
windings and the rated Capacitor.
Connection
C-R
C-S
Capacitor
Note: Resistance at 20°C of Ambient Temperature.
CW-C180EF-W
CW-C180EF-M
CW-SC180EF
2JS330D4AA02
0.981 Ω
2.845 Ω
CWA31506
(45µF, 370VAC)
