10 Service Information

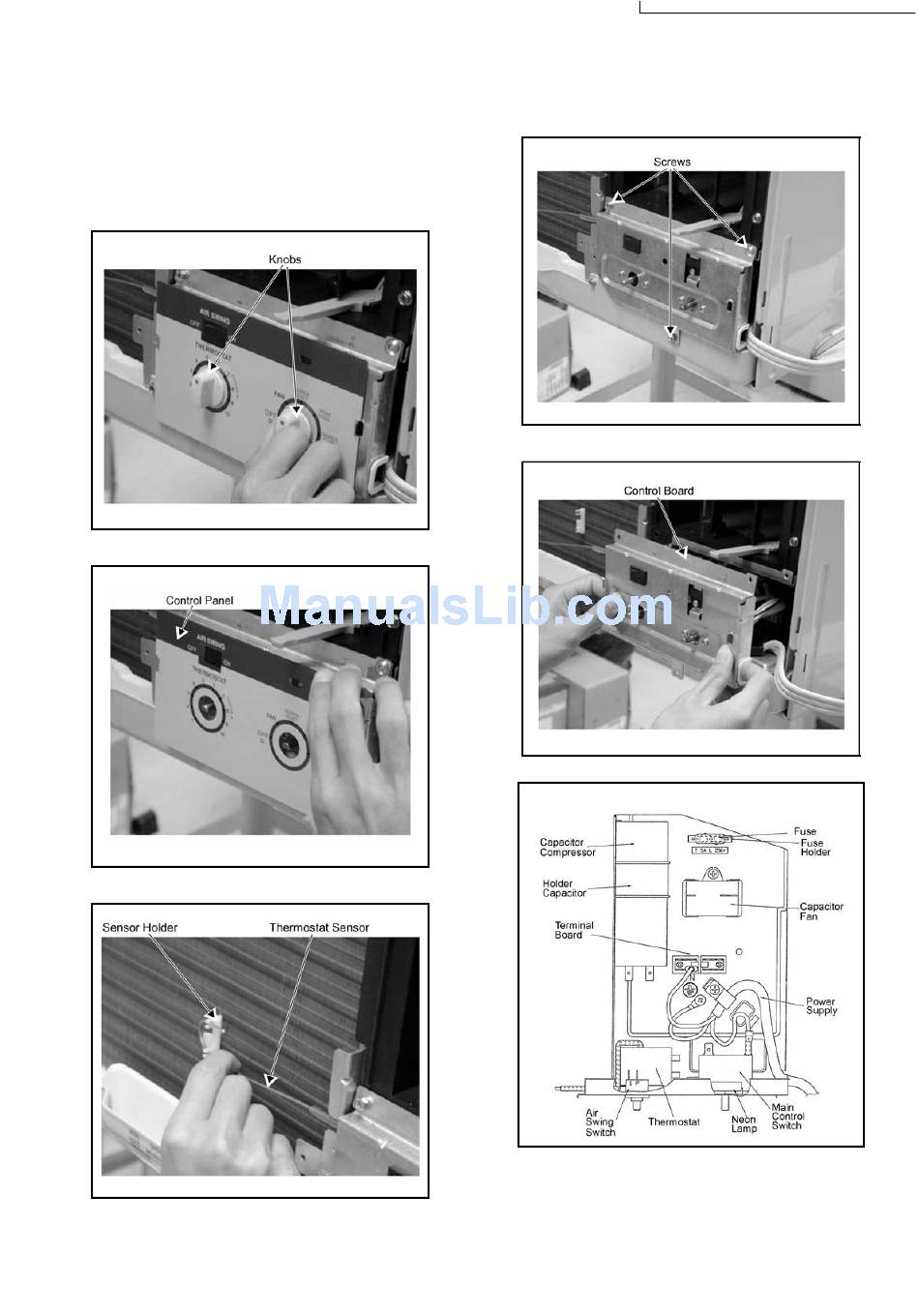

10.1. Removal of the Control Board
1. Remove the Front Intake Grille (refer to page 12).
2. Remove the Air Filter (refer to page 12).
3. Remove the Front Grille (refer to page 12).
4. Remove the 2 knobs.
5. Take off the Control Panel.
6. Release the thermostat sensor from the sensor holder.
7. Loosen the 3 screws of the Control Board.
8. Slide the Control Board out from the chassis.
Control Board Part Location
15
CW-C180EF-W / CW-C240EF / CW-C180EF-M / CW-SC180EF
