Abstract Data ADE-32 User Manual

Octocontroller, control, modulation, triggering and pattern module with 12 output types individually assignable to 8 simultaneous outputs.
Hide thumbs Also See for ADE-32:

Advertisement

Quick Links

Download this manual See also: User Manual
ADE-32 OCTOCONTROLLER
Control, Modulation, Triggering and Pattern module with
12 Output Types individually assignable to 8 simultaneous Outputs.
USER GUIDE
© 2015 Abstract Data Ltd.
http://www.abstractdata.biz
info@abstractdata.biz
Version 1.0 August 2015

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADE-32 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Abstract Data ADE-32

Summary of Contents for Abstract Data ADE-32

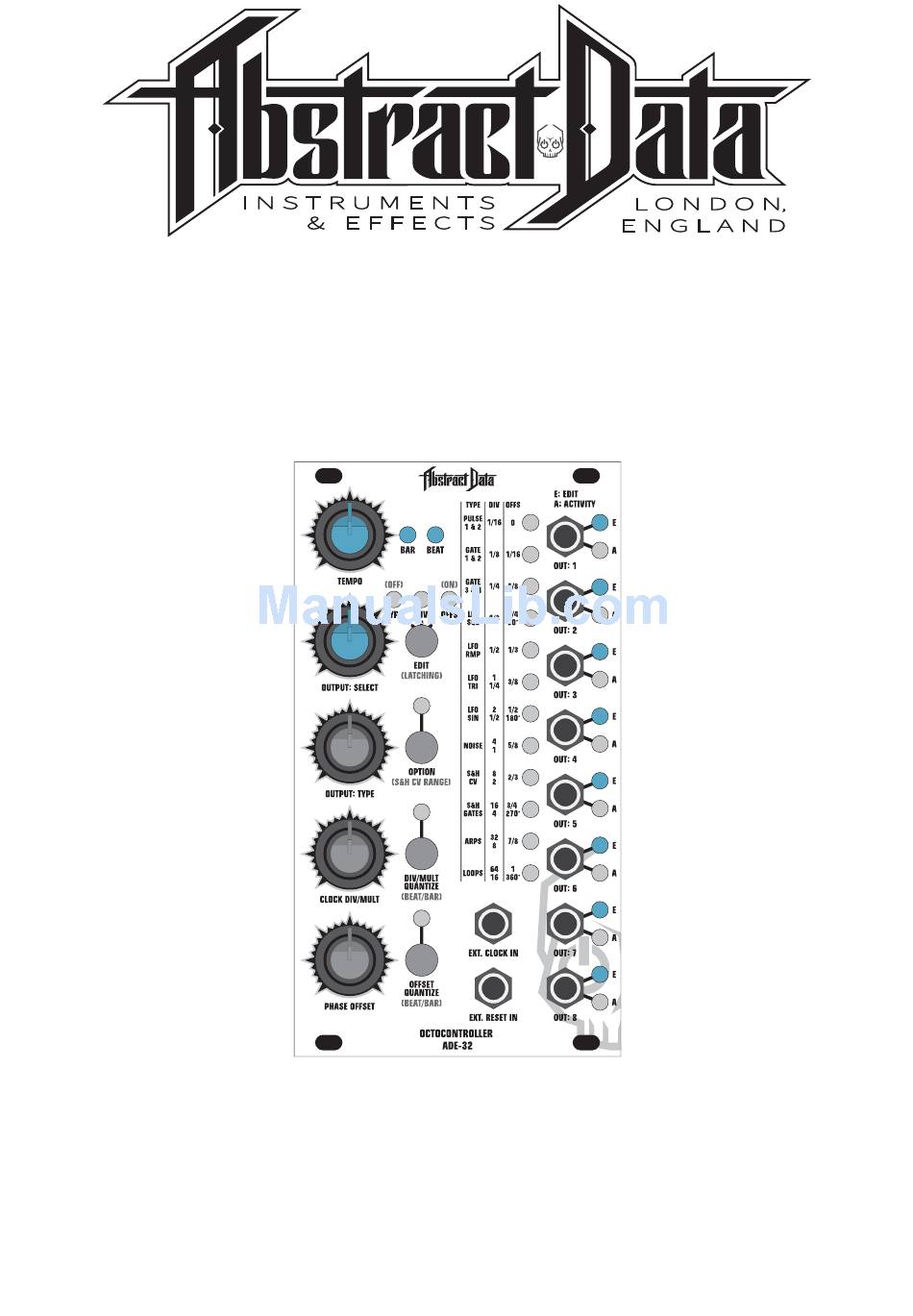

  • Page 1 ADE-32 OCTOCONTROLLER Control, Modulation, Triggering and Pattern module with 12 Output Types individually assignable to 8 simultaneous Outputs. USER GUIDE © 2015 Abstract Data Ltd. http://www.abstractdata.biz info@abstractdata.biz Version 1.0 August 2015...
  • Page 2 Operation: Outputs & Inputs Detailed explanation of all sockets Operation: Global Settings Setting global parameters and user options Specs Hardware and spec overview Appendix: Output Types & Options An overview of the output types © 2015 Abstract Data Ltd. http://www.abstractdata.biz info@abstractdata.biz Version 1.0 August 2015...
  • Page 3 Your very own supply of Unicorns and Double Rainbows EXT. CLOCK INPUT: Syncs/Slaves the module to an External Clock EXT. RESET INPUT: Resets the module to the start of the global 16 bar loop © 2015 Abstract Data Ltd. http://www.abstractdata.biz info@abstractdata.biz Version 1.0 August 2015...
  • Page 4 • The ADE-32 has built-in non-volatile memory and will retain all settings for all outputs on power down. • The front panel is laid out in a simple 3-part grid that allows easy access to all the relevant performance information for all outputs –...

  • Page 5: Quick Start

    3 parameters for the selected output. 7) ASSIGN THE NEXT OUTPUT Return to step 2 to select a new output to edit and then repeat steps 3-6 for each output. © 2015 Abstract Data Ltd. http://www.abstractdata.biz info@abstractdata.biz...
  • Page 6 The 12 offset options are listed on the front panel in the right-hand vertical column titled OFFS. The vertical row of 12 white LEDs to the right of that column will update and illuminate to indicate the phase offset that has been selected. © 2015 Abstract Data Ltd. http://www.abstractdata.biz info@abstractdata.biz...

  • Page 7: Operation Buttons

    5: Operation: Buttons Page 5 of 9 • All buttons on the ADE-32 have 2 behaviours. The ‘local’ behavior, indicated by the black writing immediately below each button, is accessed by a ‘single click’ and is unique to the settings for each output.
  • Page 8 LED marked ‘A’ (Activity) to show what is happening at that output. 2) EXT. CLOCK IN The ADE-32 can be operated using its on-board clock or can be synced/slaved to an external clock. The ADE-32 will sync to the rising edge of an incoming signal between 20 and 270 BPM.
  • Page 9 7: Operation: Global Settings Page 7 of 9 • All buttons on the ADE-32 have 2 behaviours. The ‘local’ behavior, indicated by the black writing immediately below each button, is accessed by a ‘single click’ and is unique to the settings for each output.
  • Page 10 The rear panel of the ADE-32 has exposed parts and connections. Please ensure when handling the ADE-32 that the unit is held by the sides of the front panel or the sides of the PCB.
  • Page 11 64 Beats | 16 Bars Arps 10 Arpeggio types Scroll: Arps 1-10 1/16 Beat 16 Beats | 4 Bars Loops 10 Rhythmic Gates Scroll: Loops 1-10 1/16 Beat 16 Beats | 4 Bars © 2015 Abstract Data Ltd. http://www.abstractdata.biz info@abstractdata.biz Version 1.0 August 2015...
