3. Operation panel

1
26
A
31
F
36
K

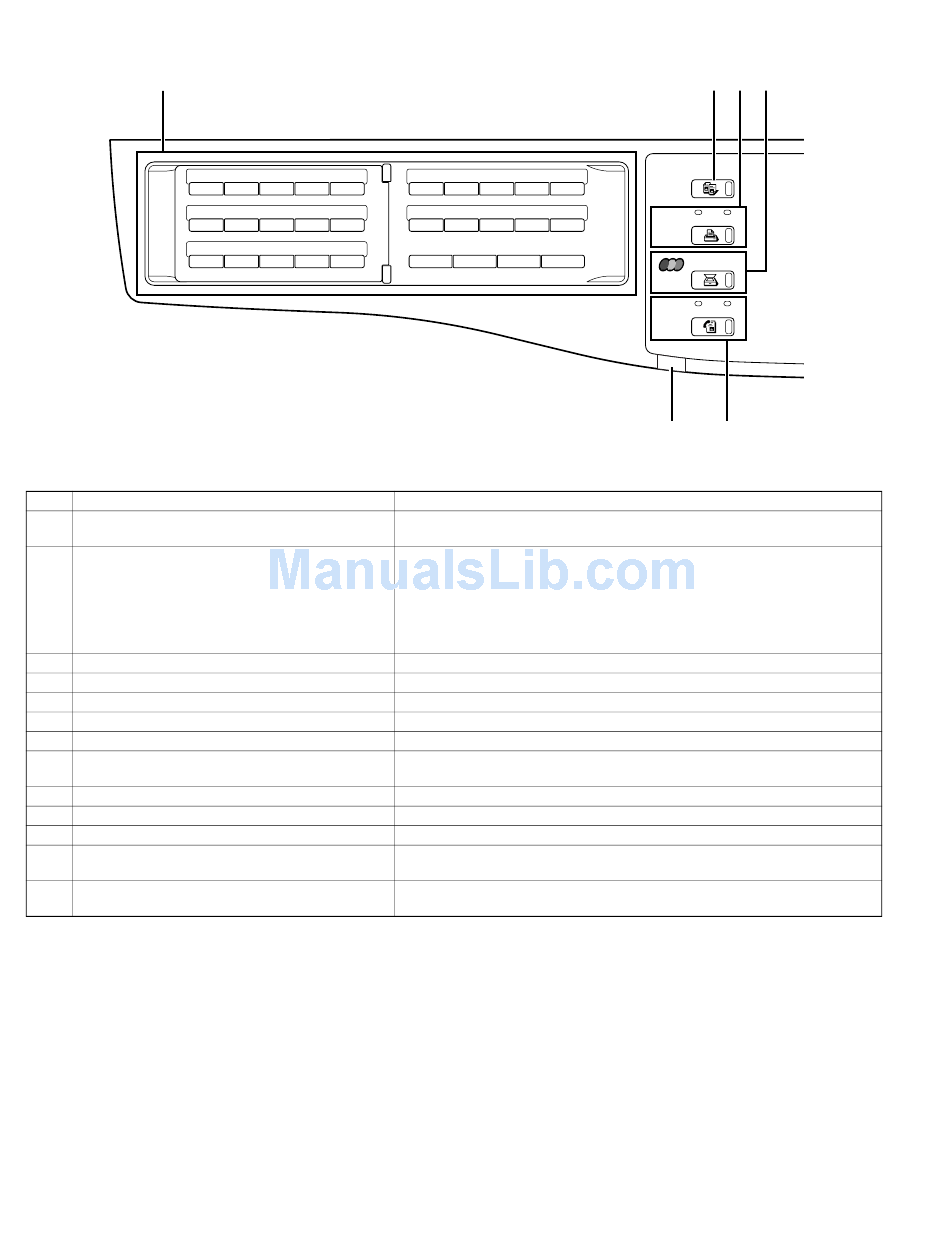

1 Keys for fax function (when the fax option is installed)
2 [COPY] key/indicator
3 [PRINT] key/indicator
4 [SCAN] key/indicator
5 Display
6 [BACK] key
7 [FAX STATUS] key
8 [OK] key
9 Copy number display
10 Numeric keys
11 [INTERRUPT] key/INTERRUPT indicator
12 [C] key
13 Information lamp
(when the fax option is installed)
14 [FAX] key/indicator (when the fax option is installed)
LINE indicator, DATA indicator
27 28 29 30
B C D E
32 33 34 35
G H I J
37 38 39 40
L M N O
These are used in fax mode.
Press to select copy mode. If pressed when "Ready to copy." appears or during
warm-up, the total number of sheets used appears while the key is pressed.
Press to select print mode.
• ONLINE indicator
• DATA indicator
Press to select scan mode.
Shows various messages. For more information see page 5-5.
Press to return the display to the previous screen.
This key is used in fax mode.
Press to enter the selected setting.
The selected number of copies appears. During copying, this shows the remaining
number of copies.
Use to select the number of copies.
Interrupts a copy run to allow an interrupt copy job to be performed.
Press to clear the set number of copies or stop a copy run.
Information lamp blinks, when facsimile is received, or when the paper remains in
the tray.
This key is used in fax mode.
AR-M207 M165 M162 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4-3
41 42 43 44 45
P Q R S T
46 47 48 49 50
U V W XYZ SP
SPEAKER REDIAL/PAUSE SPEED COMM. SETTING
SHIFT SYMBOL SPACE/
Print jobs can be received when this indicator is lit.
This lights steadily when there is a print job in memory that has not been printed,
and blinks during printing.
2 3 4
COPY
ON LINE DATA
PRINT
SCAN
LINE DATA
FAX
13 14
