Drilling Operation - Makita 6271D Instruction Manual

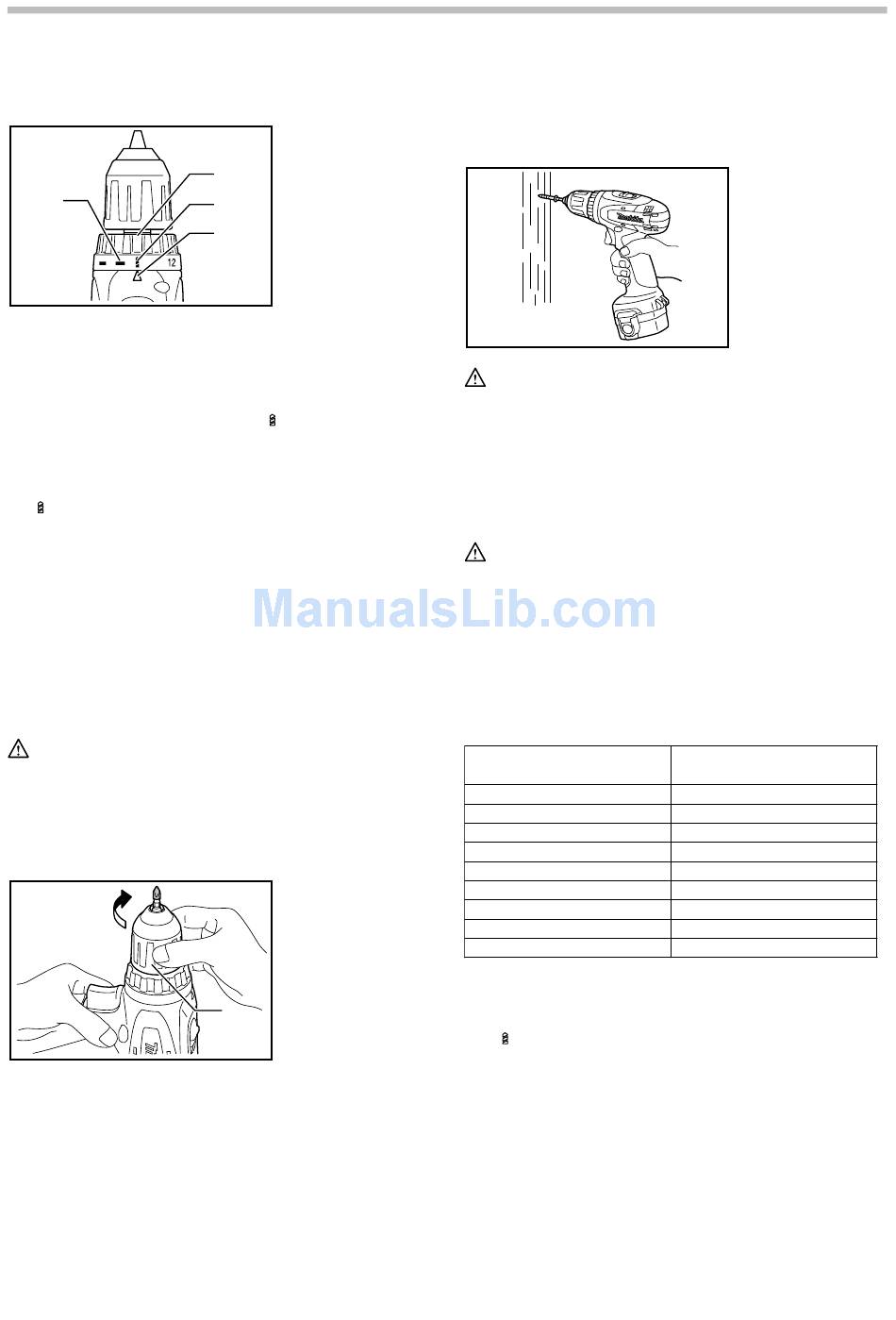

Adjusting the fastening torque
1
008690
The fastening torque can be adjusted in 17 steps by
turning the adjusting ring so that its graduations are
aligned with the pointer on the tool body. The fastening
torque is minimum when the number 1 is aligned with the
pointer, and maximum when the
with the pointer.
The clutch will slip at various torque levels when set at
the number 1 to 16. The clutch is designed not to slip at
the marking.
Before actual operation, drive a trial screw into your
material or a piece of duplicate material to determine
which torque level is required for a particular application.
NOTE:
The adjusting ring does not lock when the pointer is
•
positioned only halfway between the graduations.
ASSEMBLY
CAUTION:
Always be sure that the tool is switched off and the
•
battery cartridge is removed before carrying out
any work on the tool.
Installing or removing driver bit or drill bit
008691
Turn the sleeve counterclockwise to open the chuck jaws.
Place the bit in the chuck as far as it will go. Turn the
sleeve clockwise to tighten the chuck.
To remove the bit, turn the sleeve counterclockwise.
1. Graduations
2. Adjusting ring
2
3. Drill marking
4. Pointer
3
4
marking is aligned
1. Sleeve
1
OPERATION
Screwdriving operation
008692
CAUTION:
Adjust the adjusting ring to the proper torque level
•
for your work.
Place the point of the driver bit in the screw head and
apply pressure to the tool. Start the tool slowly and then
increase the speed gradually. Release the switch trigger
as soon as the clutch cuts in.
CAUTION:
Make sure that the driver bit is inserted straight in
•
the screw head, or the screw and/or bit may be
damaged.
NOTE:
When driving wood screws, predrill pilot holes to
•
make driving easier and to prevent splitting of the
workpiece. See the chart.
Nominal diameter of wood screw
(mm)
3.1 (1/8")
3.5 (9/64")
3.8 (5/32")
4.5 (11/64")
4.8 (3/16")
5.1 (13/64")
5.5 (7/32")
5.8 (7/32")
6.1 (15/64")
006575

Drilling operation

First, turn the adjusting ring so that the pointer points to
the marking. Then proceed as follows.
Drilling in wood
When drilling in wood, the best results are obtained with
wood drills equipped with a guide screw. The guide screw
makes drilling easier by pulling the bit into the workpiece.
Drilling in metal
To prevent the bit from slipping when starting a hole,
make an indentation with a center-punch and hammer at
the point to be drilled. Place the point of the bit in the
indentation and start drilling.
6
Recommended size of pilot hole
(mm)
2.0 - 2.2 (5/64" - 3/32")
2.2 - 2.5 (3/32" - 3/32")
2.5 - 2.8 (3/32" - 7/64")
2.9 - 3.2 (7/64" - 1/8")
3.1 - 3.4 (1/8" - 9/64")
3.3 - 3.6 (1/8" - 9/64")
3.7 - 3.9 (9/64" - 5/32")
4.0 - 4.2 (5/32" - 11/64")
4.2 - 4.4 (11/64" - 11/64")
