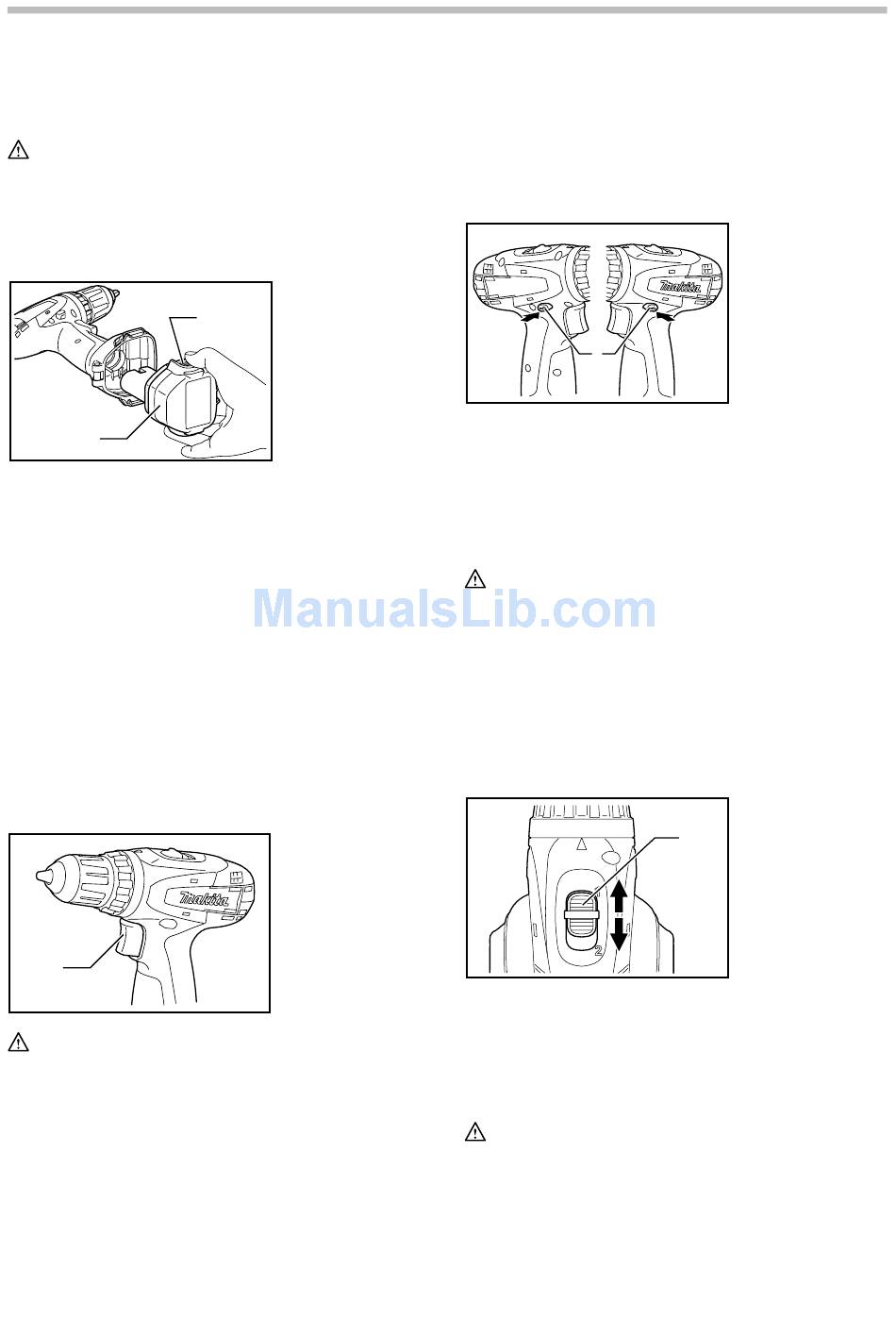

FUNCTIONAL DESCRIPTION

CAUTION:
Always be sure that the tool is switched off and the
•
battery cartridge is removed before adjusting or
checking function on the tool.
Installing or removing battery cartridge
2
008686
Always switch off the tool before insertion or
•
removal of the battery cartridge.
To remove the battery cartridge, withdraw it from
•
the tool while pressing the buttons on both sides of
the cartridge.
To insert the battery cartridge, align the tongue on
•
the battery cartridge with the groove in the housing
and slip it into place. Always insert it all the way
until it locks in place with a little click. If not, it may
accidentally fall out of the tool, causing injury to you
or someone around you.
Do not use force when inserting the battery
•
cartridge. If the cartridge does not slide in easily, it
is not being inserted correctly.
Switch action
1
008687
CAUTION:
Before inserting the battery cartridge into the tool,
•
always check to see that the switch trigger actuates
properly and returns to the "OFF" position when
released.
To start the tool, simply pull the switch trigger. Tool speed
is increased by increasing pressure on the switch trigger.
Release the switch trigger to stop.
1. Button
2. Battery cartridge
1
1. Switch trigger
Electric brake
This tool is equipped with an electric brake. If the tool
consistently fails to quickly stop after switch trigger
release, have tool serviced at a Makita service center.
Reversing switch action
A
1
008688
This tool has a reversing switch to change the direction of
rotation. Depress the reversing switch lever from the A
side for clockwise rotation or from the B side for
counterclockwise rotation.
When the reversing switch lever is in the neutral position,
the switch trigger cannot be pulled.
CAUTION:
Always check the direction of rotation before
•
operation.
Use the reversing switch only after the tool comes
•
to a complete stop. Changing the direction of
rotation before the tool stops may damage the tool.
When not operating the tool, always set the
•
reversing switch lever to the neutral position.

Speed change

008689
To change the speed, first switch off the tool and then
slide the speed change lever to the "2" side for high
speed or "1" side for low speed. Be sure that the speed
change lever is set to the correct position before
operation. Use the right speed for your job.
CAUTION:
Always set the speed change lever fully to the
•
correct position. If you operate the tool with the
speed change lever positioned halfway between
the "1" side and "2" side, the tool may be damaged.
Do not use the speed change lever while the tool is
•
running. The tool may be damaged.
5
1. Reversing
switch lever
B
1. Low speed
2. High speed
3
3. Speed change
lever
1
2
