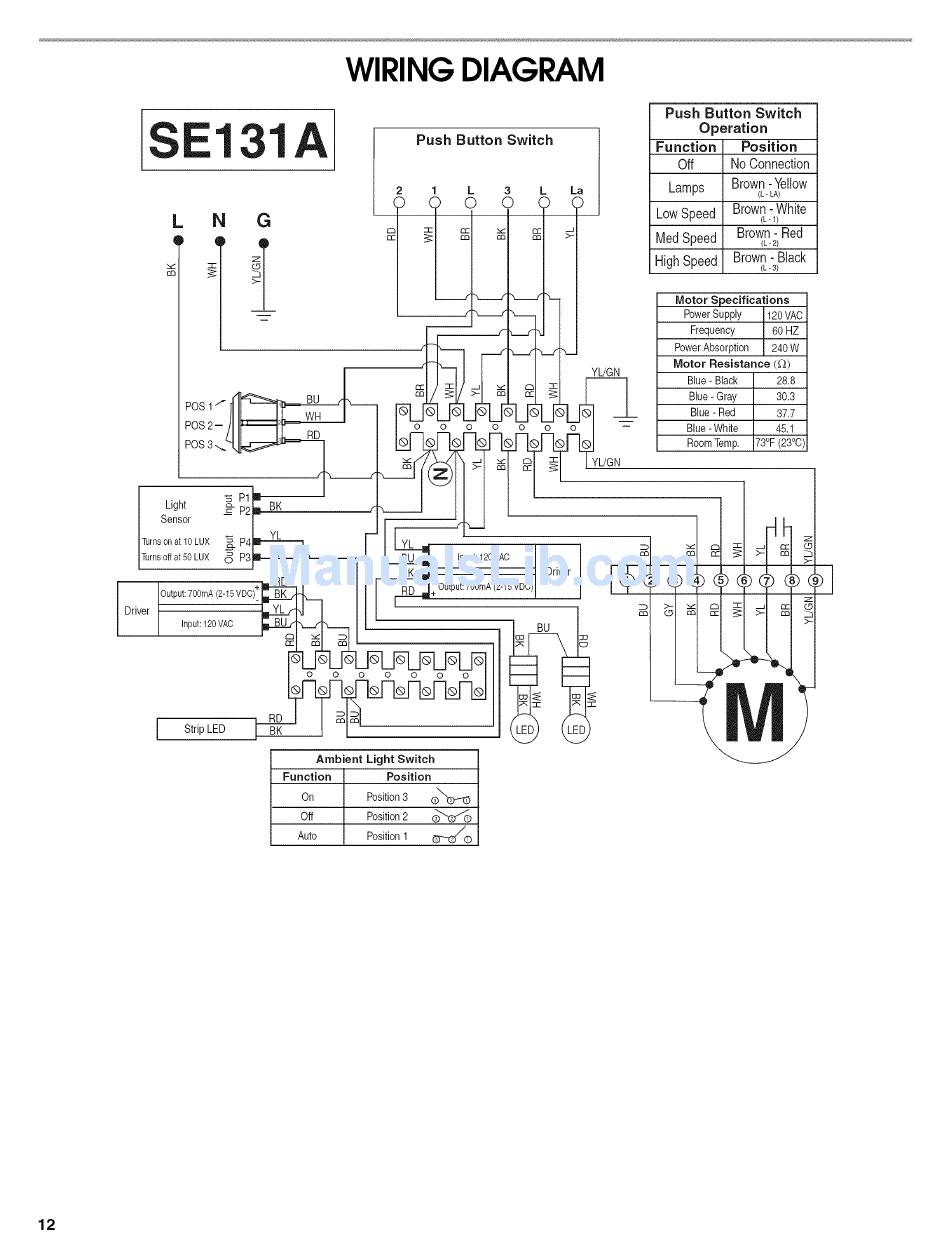

WIRING DIAGRAM
iiii
I StripLED_ i I _
Push Button Switch
Operation
Function Position
Off NoConnection
Lamps Brown-Yellow
(L- LA)
LowSpeed Brown- White
(L-l)
Ned Speed Brown. - /Red
HighSpeed Brown.3/Black
Motor Specifications
Power Supply 120 VAC
Frequency 80 HZ
Power Absorption 240 W
Motor Resistance d_)
Blue- Black 28.8
Blue- Gray 30.3
Blue - Red 37.7
Blue- White 45.1
Room Temp. 73°F(23°C)
Ambient Light Switch
Function Position
On Position 3 ®'N-G_ _
Off Position 2
Auto Position 1 _-d/©
12
