Insignia NS-BBTCD01 Quick Setup Manual

NS-BBTCD01_14-0923_QSG_V4_EN.ai 1 8/11/2014 11:09:35 AM NS-BBTCD01_14-0923_QSG_V4_EN.ai 1 8/11/2014 11:09:35 AM
Congratulations on your purchase of a high-quality Insignia product.

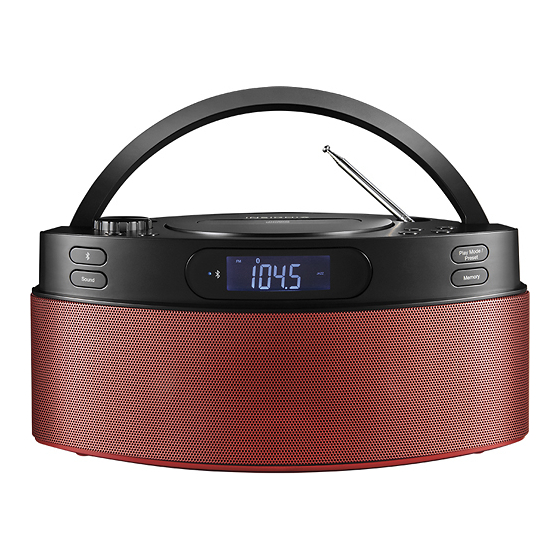

Your Insignia NS-BBTCD01 CD Boombox represents the state of the
art in boombox and Bluetooth design and is designed for reliable and
trouble-free performance.
PACKAGE CONTENTS
• CD Boombox with Bluetooth • AC power adapter
• Quick Setup Guide • User Guide
Top View / Controls
CD compartment door
Handle
Headphone jack
Volume +/– knob
Power button
Bluetooth (pair) button
Sound button
Source button
Bluetooth LED
Display
LCD screen
Audio source
Repeat 1
Current function
display
V4
FINAL
FOR PRINT
Back view
Battery compartment
FM antenna
Stop button
Play / Pause button
TUN + / Skip forward button
TUN – / Skip backward button
Play mode/Preset button
Memory button
OPEN CD door
Speaker grill
Repeat all Battery level
Random play
Stereo
Sound mode
Before using your new product, please read these instructions to prevent any damage.
Quick Setup Guide I
CD Boombox with Bluetooth
INSTALLING THE BATTERIES
1 Turn your boombox over so the bottom is facing
up, then press down on the OPEN ▼and slide
the battery compartment cover off the battery
compartment.
2 Insert six type C batteries (not included) into the
battery compartment. Make sure that the + and –
D D C C I I N N 9 9 V V A A U U X X I I N N symbols on the batteries align with the + and –
U U S S B B
symbols inside the battery compartment.
3 Insert the tabs on the battery compartment cover
into the slots on the battery compartment, then
AUX IN jack
slide the cover into place. Set your boombox
USB jack
upright.
DC In jack
OPEN
CONNECTING THE AC ADAPTER
1 Plug the small connector on the power adapter
into the DC IN jack on the back of your boombox.
2 Plug the other connector on the power adapter
into a power outlet.
NS-BBTCD01
2
1
DC IN 9V DC IN 9V
USB USB AUX IN AUX IN
