Summary of Contents for Chauvet abyss usb
- Page 1 User Manual...
-
Page 2: Table Of Contents
IRC-6 Operation............................ 13 Master/Slave Mode (wired) ......................14 Master/Slave Mode (D-Fi USB) ....................14 5. Maintenance .........................15 Product Maintenance ........................15 6. Technical Specifications ....................16 Returns ..........................17 Contact Us .........................18 Page 2 of 18 Abyss USB User Manual Rev. 1... -
Page 3: Before You Begin
Useful information. Disclaimer Chauvet believes that the information contained in this manual is accurate in all respects. However, Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss, damage or disruption caused by any errors or omissions in this document, whether such errors or omissions result from negligence, accident or any other cause. -

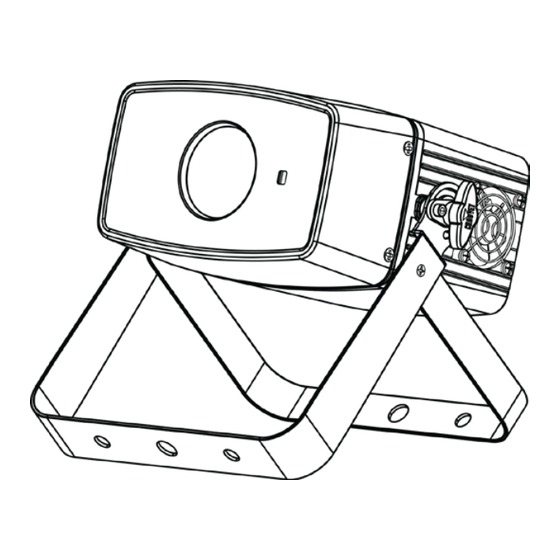

Page 4: Product At A Glance
Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document. Page 4 of 18 Abyss USB User Manual Rev. 1... -
Page 5: Introduction
In/Out Power Out Safety Loop Lens IR Sensor WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product. Abyss USB User Manual Rev. 1 Page 5 of 18... -
Page 6: Product Dimensions
Product Dimensions 9.7 in 246 mm 7.7 in 195 mm 9 in 228 mm Page 6 of 18 Abyss USB User Manual Rev. 1... -
Page 7: Setup
Product Additional Products You can power link up to 14 Abyss USB products on 120 VAC or up to 27 Abyss USB products on 230 VAC. The power linking diagram corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local Chauvet distributor as power linking connectors and requirements may differ in your country or region. -
Page 8: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Abyss USB may be mounted in any position; however, make sure adequate ventilation is provided around the product. · Rigging Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 9: Operation
Left Wave Effect Rotation (slow to fast) Wave W--L L 0–L100 W--r r 0–r100 Right Wave Effect Rotation (slow to fast) U 0–U255 Dimmer IR function on or off Displays the product’s current temperature teMP Abyss USB User Manual Rev. 1 Page 9 of 18... -
Page 10: Dmx Linking
Address The Abyss USB uses 3 DMX channels in a 3-CH DMX mode, which defines the highest configurable address to 510. If you are not familiar with the DMX protocol, download the DMX Primer from www.chauvetlighting.com. -
Page 11: D-Fi Usb Connectivity
The Abyss USB is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB D-Fi USB from CHAUVET DJ. Simply set the product's DMX Personality and DMX Connectivity Address, set the DIP switch D-Fi receiving/transmitting channel, then plug it into the D-Fi USB port. -
Page 12: Configuration (Standalone)
For C L or C r, use <UP> and <DOWN> to increase or decrease the rotation speed. Press <ENTER>. To set the rotation direction and speed of the wave effect wheel on the Abyss USB, do the Wave Effect following: Wheel Press <MENU>... -
Page 13: Irc-6 Infrared Remote Control
The Abyss USB is compatible with the IRC-6 infrared remote control from Chauvet. To IRC-6 Infrared activate IR mode, follow the instructions below: Remote Press <MENU> repeatedly until SET shows on the display. Control Press <ENTER> to accept. Press <UP> or <DOWN> to select On or OFF. -
Page 14: Master/Slave Mode (Wired)
Do not connect more than 31 slaves to the master. Master/Slave The D-Fi USB allows a single Abyss USB product (the master) to control the actions of one or more Abyss USB products (the slaves) without the need of a DMX controller or DMX Mode cables. -
Page 15: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Abyss USB User Manual Rev. 1 Page 15 of 18... -
Page 16: Technical Specifications
715 lux Maximum External Temp. Cooling System Thermal 104 °F (40 °C) Fan-assisted Convection I/O Connectors Channel Range 3-pin XLR Ordering Product Name Item Code UPC Number Abyss USB 03051059 781462214074 Page 16 of 18 Abyss USB User Manual Rev. 1... -
Page 17: Returns
If you are located in Mexico, contact Chauvet Mexico. · If you are located in Benelux, contact Chauvet Europe BVBA. · If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetlighting.com for distributors outside the U.S., UK, Ireland, Mexico, or Benelux. -
Page 18: Contact Us
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. Page 18 of 18 Abyss USB User Manual Rev. 1...
