Toa PE-304BU Instruction Manual

PENDANT SPEAKERS

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or cautions
regarding safety.
• After reading, keep this manual handy for future reference.
WARNING
• Install the unit only in a location that can structurally support the weight of the unit and the mounting bracket.
Doing otherwise may result in the unit falling down and causing personal injury and/or property damage.
• Never use other methods than specified to mount the bracket.
Extreme force is applied to the unit and the unit could fall off, possibly resulting in personal injuries.
• Attach the safety wire to the unit. If not attached, the unit could fall off, resulting in personal injury.
CAUTION
• To avoid electric shocks, be sure to switch off the amplifier's power when connecting speakers.
• Do not operate the unit for an extended period of time with the sound distorting. This is an indication of a malfunction, which in
turn can cause heat to generate and result in a fire.
• Do not hang down from the unit as this may cause it to fall down or drop, resulting in personal injury and/or property damage.
• Avoid touching the unit's sharp metal edge, and the cut ends of the hanging and safety wires to prevent injury.
• Firmly hold the speaker body when using the release key.
Failure to do so may cause the speaker to fall, resulting in possibly personal injury.

2. GENERAL DESCRIPTION

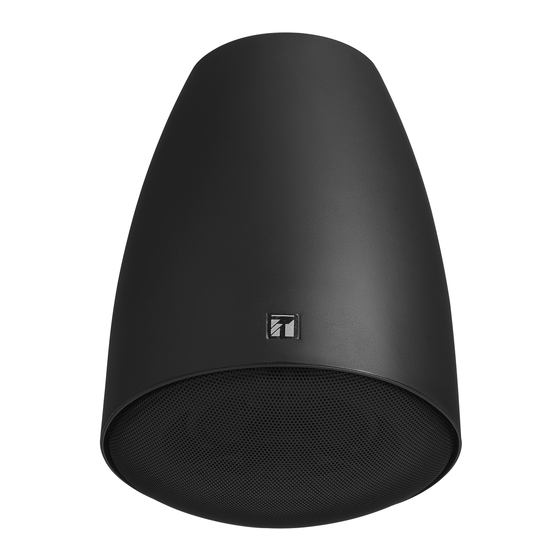

The PE-304BU, PE-304WU, PE-604BU, and PE-604WU are pendant speakers designed for the installations suspended from a ceiling.
A directly-attached 5 m (16.4 ft) hanging wire allows the speaker to be suspended from high ceilings.
These speakers can be driven on both high-impedance (100 V, 70 V and 25 V) and low-impedance (8
(impedance) can be easily changed at the rear side of the speaker.
These speakers are certified to UL 1480 UUMW and ULC-S541 standards. Using the supplied
speaker mounting height adjustment.
is a registered trademark of Gripple Limited, England.
®
Indicates a potentially hazardous situation which, if mishandled, could result in
death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could result in
moderate or minor personal injury, and/or property damage.
INSTRUCTIONS MANUAL
PE-304BU, PE-304WU
PE-604BU, PE-604WU
Ω
) lines. The input power
hangers will facilitate the
®
