CONNECTION/INSTALLATION CONNECTION/INSTALLATION
Connection

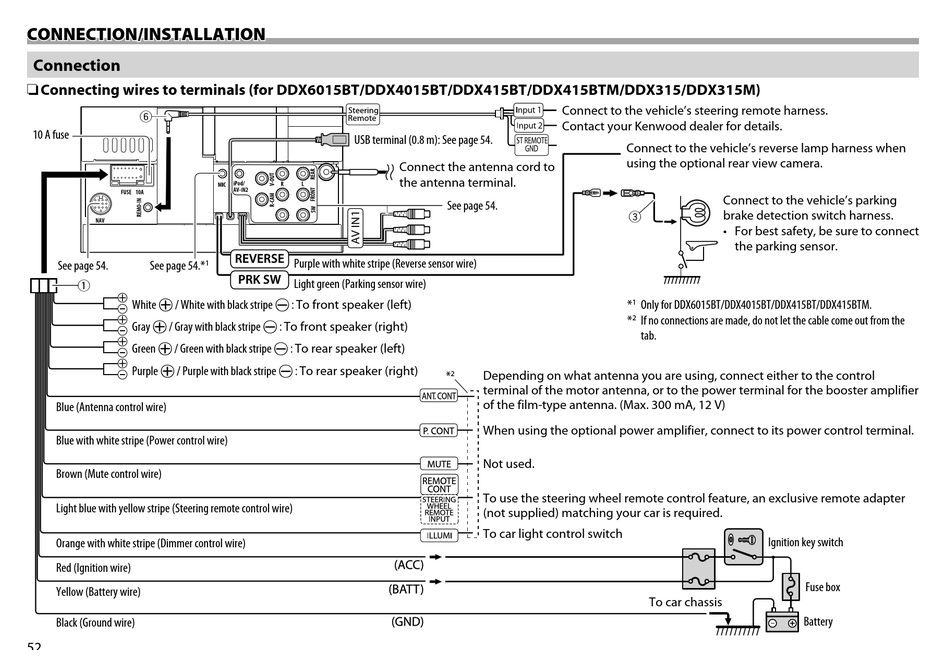

Connecting wires to terminals (for DDX6015BT/DDX4015BT/DDX415BT/DDX415BTM/DDX315/DDX315M)
6
10 A fuse
See page 54. See page 54.*
1
White ª / White with black stripe · : To front speaker (left)
Gray ª / Gray with black stripe · : To front speaker (right)
Green ª / Green with black stripe · : To rear speaker (left)
Purple ª / Purple with black stripe · : To rear speaker (right)
Blue (Antenna control wire)
Blue with white stripe (Power control wire)
Brown (Mute control wire)
Light blue with yellow stripe (Steering remote control wire)
Orange with white stripe (Dimmer control wire)
Red (Ignition wire)
Yellow (Battery wire)
Black (Ground wire)
52
USB terminal (0.8 m): See page 54.
Purple with white stripe (Reverse sensor wire)
1
Light green (Parking sensor wire)
Connect to the vehicle's steering remote harness.
Contact your Kenwood dealer for details.
Connect the antenna cord to
the antenna terminal.
See page 54.
Depending on what antenna you are using, connect either to the control
*
2
terminal of the motor antenna, or to the power terminal for the booster amplifier
of the film-type antenna. (Max. 300 mA, 12 V)
When using the optional power amplifier, connect to its power control terminal.
Not used.
To use the steering wheel remote control feature, an exclusive remote adapter
(not supplied) matching your car is required.
To car light control switch
Connect to the vehicle's reverse lamp harness when
using the optional rear view camera.
Connect to the vehicle's parking
brake detection switch harness.
3
• For best safety, be sure to connect
the parking sensor.
*
1 Only for DDX6015BT/DDX4015BT/DDX415BT/DDX415BTM.
* If no connections are made, do not let the cable come out from the
2
tab.
Ignition key switch
To car chassis
Battery
Fuse box
