COMPACT REFRIGERATOR / FREEZER
S19L
Model
Instruction Manual
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES
AND OPERATING INSTRUCTIONS.
Felix Storch, Inc.
Summit Appliance Division
770 Garrison Avenue
Bronx, New York, 10474
www.summitappliance.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S19L and is the answer not in the manual?

Questions and answers

Related Manuals for Summit S19L

Summary of Contents for Summit S19L

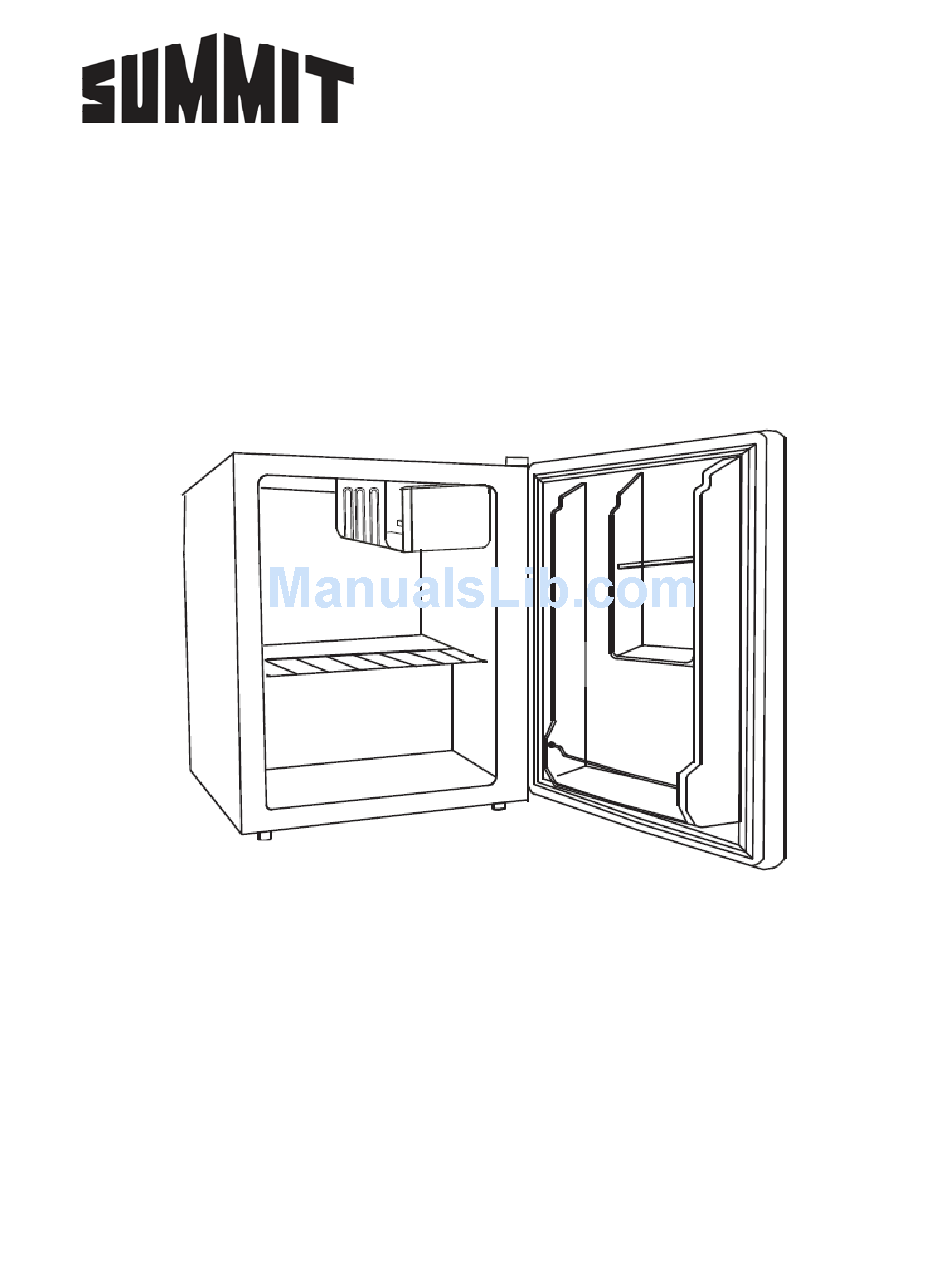

  • Page 1 COMPACT REFRIGERATOR / FREEZER S19L Model Instruction Manual BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Felix Storch, Inc. Summit Appliance Division 770 Garrison Avenue Bronx, New York, 10474 www.summitappliance.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important Safeguards ................2 - 3 In Case of Problems ..................4 Location of Parts ...................5 Installation Instructions ................. 6 - 8 Clearances for Ventilation ..............6 Electrical Connection ................6 Protection from Moisture and Heat ............6 Stability ....................6 Dangerous Substances ................7 Moving the Refrigerator ................7 Changing the Reversible Door ............

  • Page 3: Important Safeguards

    IMPORTANT SAFEGUARDS Before the refrigerator is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the refrigerator, follow basic precautions, including the following: ...
  • Page 4 FOLLOW WARNING CALL-OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL.  This unit is not designed to operate in enclosed spaces. When placing your unit, make sure you allow at least 4” of clearance on all sides.  Use two or more people to move and install the refrigerator. Failure to do so can result in back or other injury.

  • Page 5: In Case Of Problems

    Save time and money. Before you call for service, check the Troubleshooting Guide on page 10. It lists causes of minor operating problems that you may be able to correct yourself. If you still need service, call the Summit Customer Help number at 1-718-893-3900...

  • Page 6: Location Of Parts

    LOCATION OF PARTS 1. Cabinet 2. Evaporator 3. Thermostat Knob (at the rear) 4. Shelf 5. Hinge Cover 6. Door 7. Gasket 8. Adjustable Foot 9. Chiller Compartment 10. 2-Liter Bottle Storage...

  • Page 7: Installation Instructions

    INSTALLATION INSTRUCTIONS Clearances for Ventilation It is necessary to have good ventilation around the refrigerator for heat dissipation, high efficiency of refrigeration and low power consumption. For this purpose, it is necessary to leave enough clear space around the refrigerator. ...

  • Page 8: Dangerous Substances

    Dangerous Substances Do not place the refrigerator near any volatile or combustible substances such as gasoline, alcohol, lacquer, etc. These materials must not be stored in the refrigerator either. Moving the Refrigerator The refrigerator must not be laid horizontal or placed upside-down. In fact, it should never be tilted more that 45 degrees from the vertical.

  • Page 9: Operating Your Refrigerator

    7. Before putting the lower hinge (2) into position, remove the bolt-pin (9) and reverse the direction of the lower hinge. Then install the lower hinge onto the left side of the lower frame with two screws (8). 8. Insert the bolt-pin (9) into the lower hinge (2). 9.

  • Page 10: Defrosting

    Defrosting The surface of the evaporator ices up when the refrigerator is in normal use. When the frost/ice layer reaches a thickness of 1/4", the refrigerator must be defrosted and cleaned. Otherwise, lower efficiency and high energy consumption will result. 1.

  • Page 11: Troubleshooting

    TROUBLESHOOTING You can easily solve many common problems with your refrigerator, saving you the cost of a possible service call. Try the suggestions below to see if you can correct the problem before calling the service provider. Troubleshooting Guide Refrigerator is not working Check if there is a power failure.

  • Page 12: Limited Warranty

    LIMITED WARRANTY ONE YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must be provided by a designated service company.
