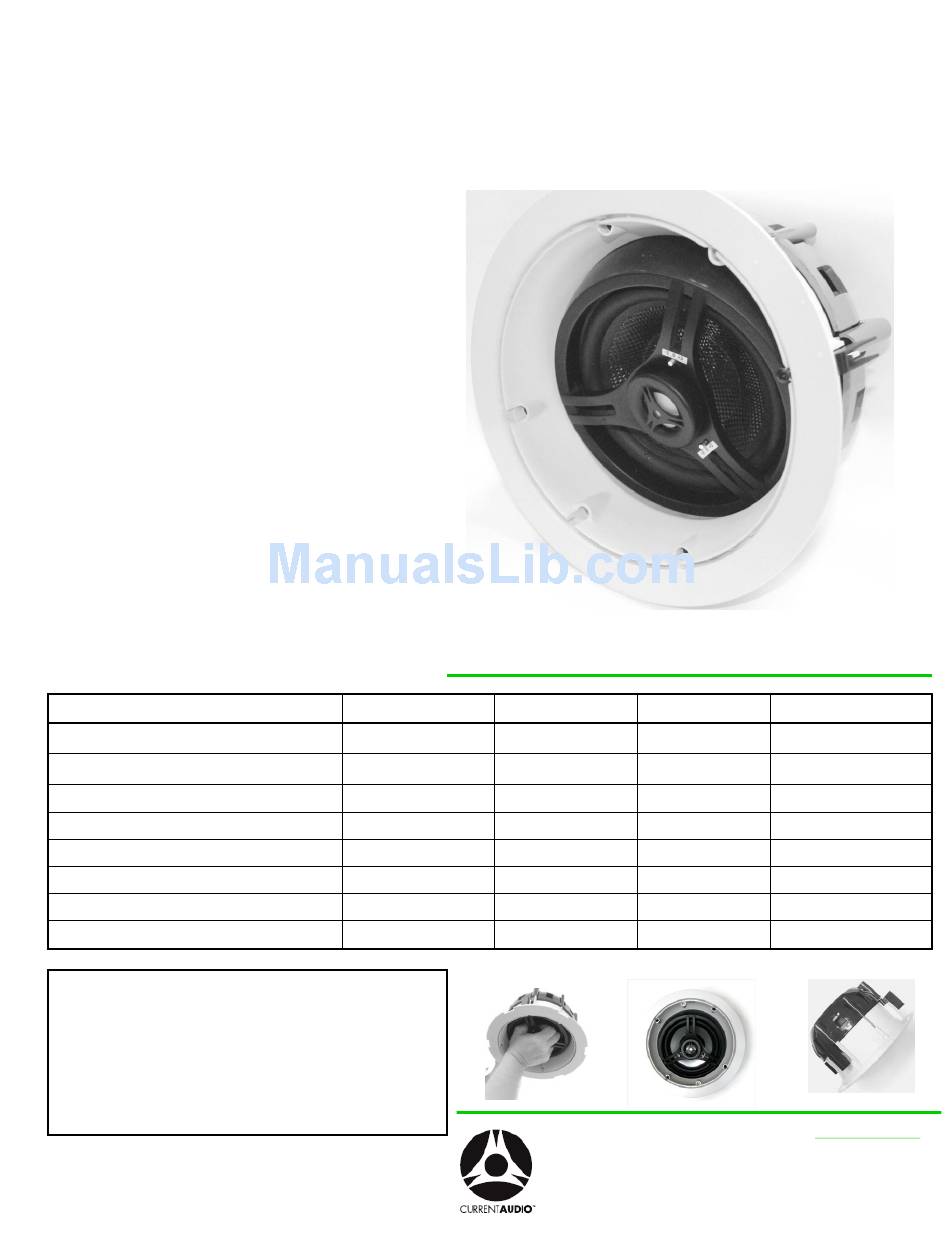

Current Audio FIT801 User's Installation Manual

FIT 65 and 80 Series
Focused Image Technology, In-Ceiling,
Coaxial, Infinite Baffle Loudspeaker
The easy to install FIT series are full-range ceiling
loudspeakers incorporating new technology woofers with butyl
rubber surrounds and high grade pivoting Ferrofluid cooled
diffraction-less tweeters. It features the revolutionary Focused
Image Technology . This feature gives the user the unique
Patented Three Dimensional Positioning (3DP) of the woofer.
The 3DP concept allows the user to separately adjust the
angle, tilt and rotation of the woofer so you can direct the
sound where you want it not just where you installed it.
The Positive Positioning Lock (PPL) device prevents baffle
movement and speaker vibrations. Two screws on either side
of the woofer pull the back plane tight and lock the position in
place.
The speaker grille color is white, and is a close match to
Frazee White Shadow 181. It can be painted to match any
décor. The speaker enclosure is a durable UV-resistant
material that allows for both indoor and outdoor installations.
The perforated powder-coated aluminum alloy grill is long-
lasting, corrosion resistant and rust-free.
Some models have three positioning equalization switches to
fine tune the Bass and Treble to match the acoustics of various
room surfaces and volumes.
Four built-in expanding transverse dog leg clamps permit
installation with or without pre-wire construction brackets in
drywall or material with thickness of 7/32" to 1 3/16".
Electrical connection, up to 12 gauge wire, is made by two gold
plated constant tension spring-loaded terminals.
SPECIFICATIONS for 65 Series
Driver
Tweeter, 1", Diffraction-less, Dome
Frequency Response
Power handling
SPL @ 1 Watt/1 meter
Impedance 8 ohm Nominal
Diameter x Depth 9 7/8"(25.1cm)x 5 5/8"(14.3cm)
Retro-fit Cutout Diameter 8 3/8" (21.4cm)
Part Number 92063 FIT650; 92011 FIT651;
92010 FIT652; 92009 FIT654
92005 FIT801; 92004 FIT802;
92003 FIT804
Manual URL www.currentaudio.com
Accessories NC6CB or NC8CB New Construction Bracket
Volume Control ZLoc25R, ZLoc50R,ZLoc75S
Specifications subject to change without notice.
User's Installation Guide
FIT650
Injection Molder Carbon
MetaPlex Composite
Aluminum Ferrofluid
Silk Ferrofluid Cooled
42Hz-20kHz
5-100 Watts
90db
Fixed Crossovers 3 Position Crossovers
FIT651 FIT652
Aluminum
Fiber
Aluminum Ferrofluid
Cooled Cooled
40Hz-20kHz 38Hz-20kHz
5-125 Watts 5-125 Watts
90db 91db
3 Position Crossovers
1830 John Towers Avenue El Cajon, CA 92020 Sales 866-927-7181
FIT654
Woven Carbon Fiber
Ceramic Coated Aluminum
Ferrofluid Cooled
35Hz-21kHz
5-150 Watts
91.5db
3 Position Crossovers
www.currentaudio.com
©2009 Current Audio LLC
RPA 01/10
FIT Series RPA 0110
