Summary of Contents for Dirt Devil DDH01-E01
-

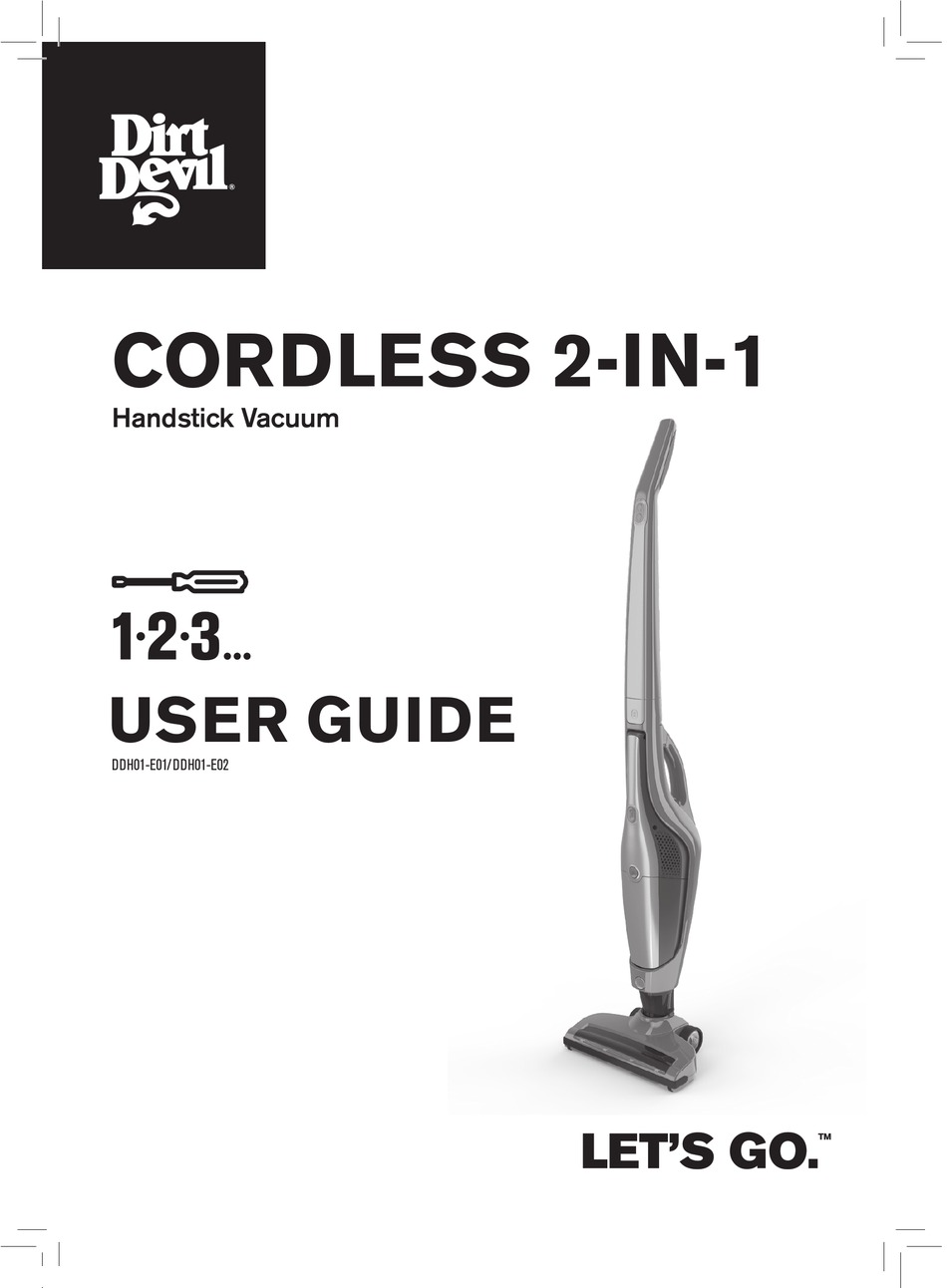

Page 1: User Guide
Cordless 2-in-1 Handstick Vacuum User GUide DDH01-E01/DDH01-E02... -
Page 2: Basic Safety Precautions
WarninG BASIC SAFETY PRECAUTIONS • This vacuum cleaner is intended years and above and persons for household use only and NOT with reduced physical, sensory for commercial or industrial use. or mental capabilities or lack of experience and knowledge if •... - Page 3 WarninG DON'TS CONTINUED • Don’t use the vacuum cleaner • Don’t vacuum up hot coals, with incorrect voltage as this cigarette butts, matches or may result in damage or injury smoking hot burning items or to the user. The correct voltage use in an area where there may is listed on the ratings label.
- Page 4 Maintaining your carpets and hard floors will ensure they keep their appearance for Calls are charged at the UK local rate. longer and Dirt Devil will help you take Please make a note of the serial number good care of them.
- Page 5 TABlE OF CONTENTS Let's talk safety Getting to know your machine Getting started Using your machine Taking care of your machine Let’s talk technical Accessories Troubleshooting Guarantee Notes...
- Page 6 on/off switch suction control button Machine charging port 2-in-1 tool holder Handheld release button Handheld on/off button dirt container release button Floorhead release button Charging point Floorhead...
- Page 7 Run time - 15mins Charge time - 10hours Weight - 2.7kg Dust bin capacity - 0.5l Part number - 6-1-136559-00 2-in-1 tool Product 2 - DDH01-E01 Battery voltage - 18v Run time - 17mins Charge time - 10hours 2-in-1 tool Weight - 2.7kg connector Dust bin capacity - 0.5l...
- Page 8 CaUTion Please read 'Lets talk safety' at the beginning before use. ASSEMbLING YOUR 2-IN-1 vACUUM CLEANER 3. Insert screw into back of 1. Line up floorhead 2. Line up handle with the handle and tighten main body and lower with main body, push with a cross head firmly into place.
- Page 9 OPERATING AS AN UPRIGHT vACUUM CLEANER NOTE: Do not use brushbar on hard floors as it may cause damage. 1. Unplug the charger 2. Place foot on the from the mains and floorhead and pull the remove the vacuum handle backwards to from the docking recline the machine.
- Page 10 CaUTion Always take extra care when cleaning stairs. Always switch the handheld off before connecting or disconnection the accessories and before returning the handheld to the main body. OPERATING AS A HANdHELd vACUUM CLEANER 1. Press the handheld 2. To operate press the release button.
-
Page 11: Emptying The Dirt Container
CaUTion Always switch off the vacuum cleaner before carrying out any maintenance or troubleshooting. EMPTYING THE dIRT CONTAINER 1. Press the handheld 2. Press the dirt container release button. Lift to release button to remove the handheld remove the dirt from the main body. -
Page 12: Cleaning The Filter
CLEANING THE FILTER 1. Press the handheld 2. Press the dirt container 3. Squeeze tabs to remove release button. Lift to release button to filter and frame. remove the handheld remove the dirt from the main body. container. 4. Tap the filter over a bin 5. - Page 13 CaUTion Always switch off the vacuum cleaner before carrying out any maintenance or troubleshooting. Do not use your vacuum cleaner without the filters in place. CaUTion For best performance terminals in vacuum, on handheld and on docking station must be free from dust and dirt.
-
Page 14: Clearing Blockages
CLEARING bLOCKAGES 1. Press the handheld 2. Press the floorhead 3. Remove any blockage release button. Lift to release button and from the main body. remove the handheld pull floorhead to from the main body. remove. CLEARING bLOCKAGES FOR THE bRUSHbAR If the brushbar has been obstructed, the Motor Protection Sensor may have been activated. - Page 15 CHANGING THE bRUSHbAR 1. Turn the lock release to 2. Remove brushbar 3. Loop the belt over the unlock the floorhead lifting side of brushbar. Replace the cover. Lift and remove brushbar not brushbar by fitting the floorhead cover. connected to belt. belt side first.
- Page 16 dON'T FORGET YOUR ACCESSORIES! Order at: www.dirtdevil.co.uk Pre-motor filter (Type 132) 1-1-135931-00 2-in-1 tool (Type 3) 1-1-135932-00 A replacement 2-in-1 tool for your 2-in-1 Cordless vacuum.
- Page 17 PRObLEM POSSIbLE SOLUTION Why does my vacuum • Check the machine is fully charged. Go to ‘Using your machine’. cleaner have no • Check the charger is plugged into the mains and correctly connected power? to the docking station. Go to ‘Getting started’. •...
-
Page 18: Limited Guarantee
LIMITEd GUARANTEE It’s quick and easy to register for your free 1 year guarantee online at www.dirtdevil.co.uk. Or call our Customer Service department at 0330 026 2626 Monday-Friday 8:30am to 6:00pm. Please retain your original receipt for proof of purchase. Please make a note of the serial number and model number of the product before calling. - Page 19 7 19...
- Page 20 Call our Customer Service department at 0330 026 2626 Monday-Friday 9:00am to 5:00pm. www.dirtdevil.co.uk Vax Limited, trading as Dirt Devil. 2 Colmore Square, 38 Colmore Circus, Queensway, Birmingham, B4 6BN. EEC Statement of Compliance: Manufacturer/EEC importer: Dirt Devil Limited, hereby on our own responsibility, declare that the DDH01 (E01/E02) series is manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage Directive. EMC: 2004/108/EC Electromagnetic Compatibility Directive Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
