About your enclosure

Front-panel features and indicators

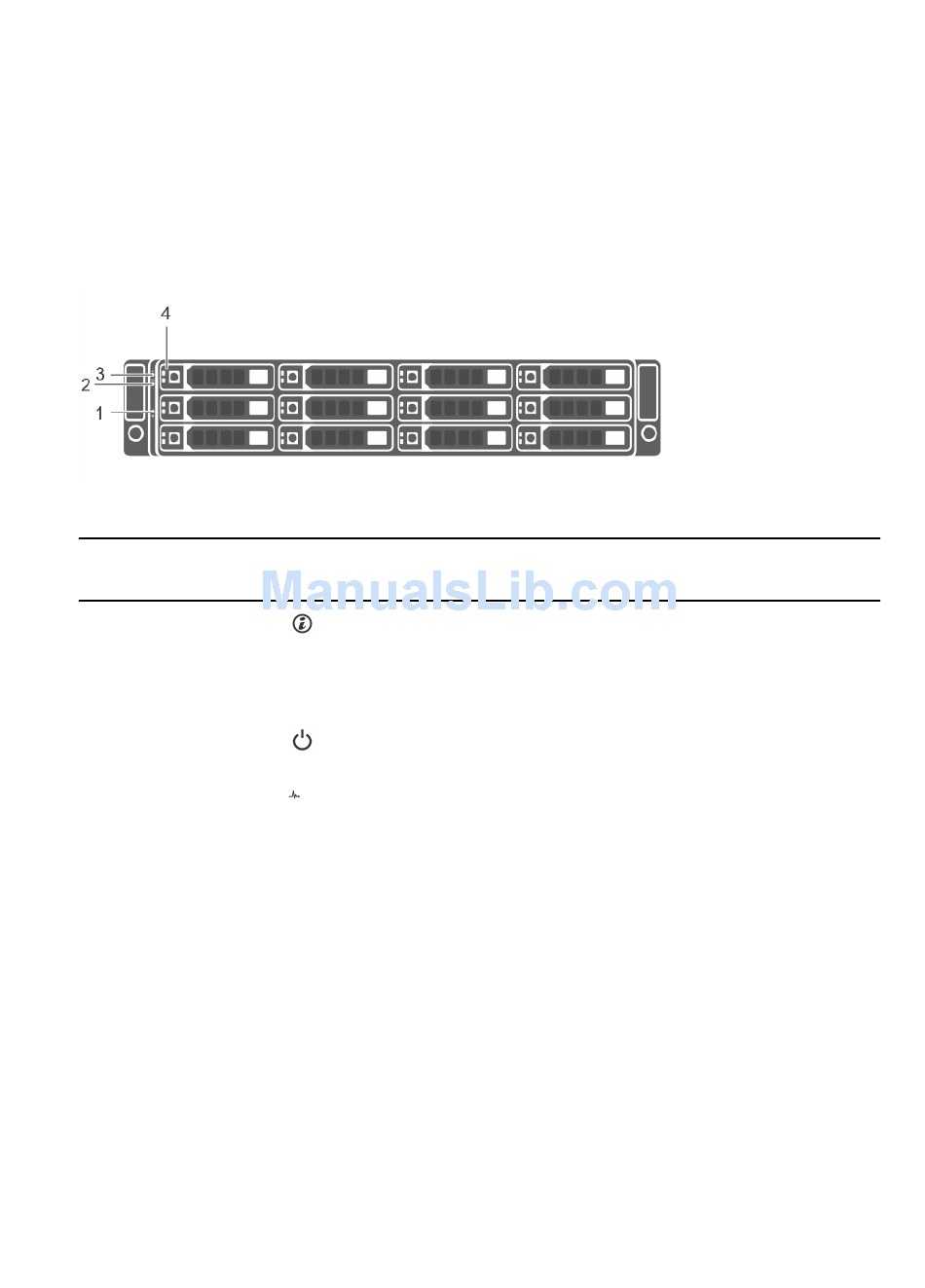

Figure 1. Front-panel features and indicators
Item Indicator,
Button, or
Connector
1 System
identification
button
2 Power LED
3 Enclosure status
LED
4 Hard disk drives
Icon Description
The system identification button on the front control panel can
be used to locate a particular enclosure within a rack. When
the button is pressed, the system status indicators on the
control panel and the EMM blink blue until the button is
pressed again.
The power LED lights when at least one power supply unit is
supplying power to the enclosure.
The enclosure status LED glows when the enclosure power is
on.
Glows solid blue during normal operation.
Blinks blue when a host server is identifying the enclosure or
when the system identification button is pressed.
Blinks amber or remains solid amber for a few seconds and
then turns off when the EMMs are starting or resetting.
Blinks amber for an extended time when the enclosure is in a
warning state.
Remains solid amber when the enclosure is in the fault state.
Up to 12 3.5-inch SAS hot-swappable hard disk drives.
