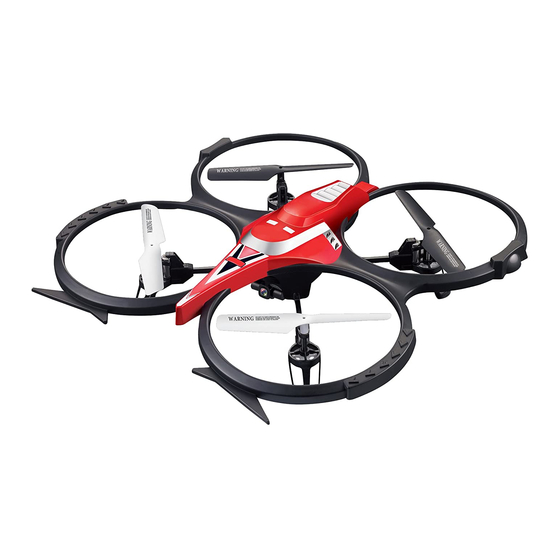

Summary of Contents for AWW quadrone XLC

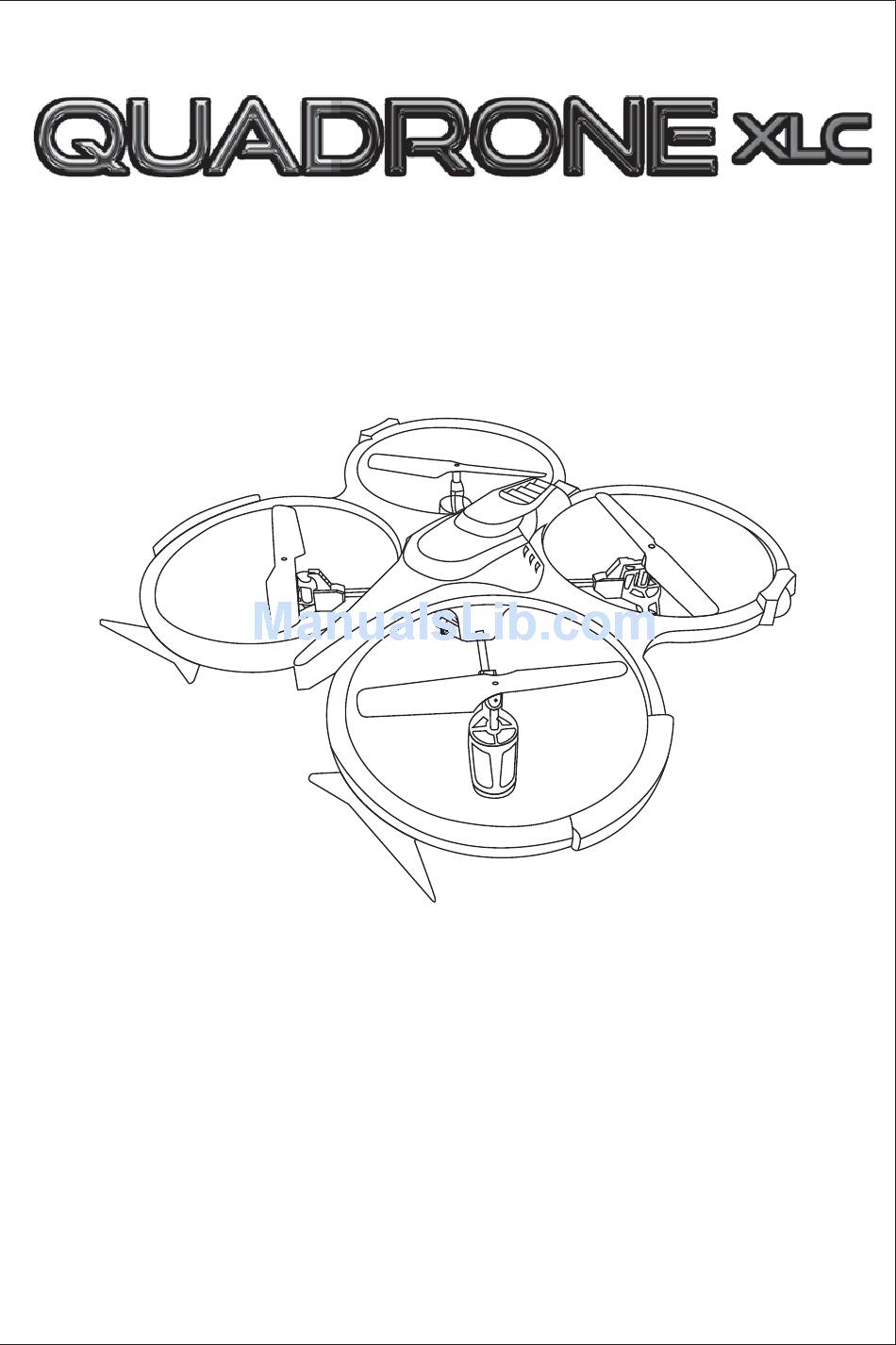

- Page 1 Instructional Manual...
- Page 2 1. Parts Parts 1. The vice-blade steering engine can be divided into levels of 25%, 50%, 75%, and 100% rudder power. The user can select any one of these levels according to their ying experience. The default rudder power is 25% when the power is turned on. The remote control has two types, one with an LED screen and one without.
-
Page 3: Inserting Batteries
2. Inserting Batteries Open the battery cover on the back of the remote controller. Insert four AA alkaline batteries in accordance with the instructions on the battery box. (Battery should be purchased separately. Old and new batteries should not be mixed.) 3. - Page 4 4. Basic Flying and Fine Tuning When the left operating lever is pushed up and pulled down, the quadcopter will ascend and descend. When the left operating lever is pushed left or right, the quadcopter will turn left or right. When the right operating lever is pushed up or down, the quadcopter will go forward or backward.
-
Page 5: Indoor And Outdoor Mode
5. Indoor and Outdoor Mode Considering di erent places and spaces of operation, this quadcopter is designed with two kinds of protection covers which, along with the speed adjustments, will help make the quadcopter y perfectly in both indoor and outdoor conditions. 1. -
Page 6: Controls View
Power Button Left Side Flying Button Right Side Flying Button Left Operating Lever (Accelerator, Side Flying) Right Operating Lever (Forward/Backward, Turning) Take Photo Forward Roll Over Light Control Button Right Side Roll Over Take Photo Rudder Volume Backward Roll Over Fine Tuning Left Side Roll Over 7. -
Page 7: Troubleshooting
8. Troubleshooting Problem Reason Solution 1. Frequency modulation between the 1. Refer to Prepare for Take O and The indication light of the quadcopter quadcopter and remote control is not remodulate the frequency. is ashing and the quadcopter does operating correctly. 2. - Page 8 Unauthorized reproduction or distribution of this package, design or any portion of it will be prosecuted to the maximum extent possible under law. AWW INDUSTRIES™ is an innovative company of DGL Group, Ltd. Other trademarks and trade names are those of their respective owners.
