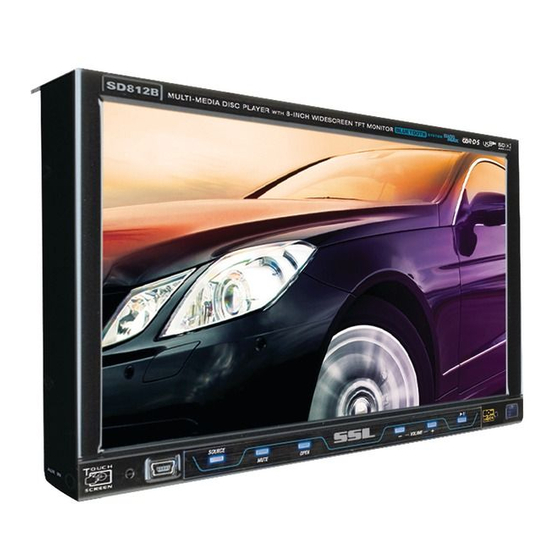

INSTRUCTIONS INSTRUCTIONS 23.SPECIFICATIONS: WELCOME Thank you for enjoying our series of digital car A/V product. To properly use this product, please go through this instruction manual for installation Power supply DC 12V and operation, put it in a safe place for future use! Power range 10.8-16.0V DC Max operate current...
INSTRUCTIONS INSTRUCTIONS 3.NOTE 22.WIRING DIAGRAM ● This unit can play the following disc This player is equipped with ISO standard connector, please follow below instruction: Red - ACC ON (+12V) Grey/Grey black - Right front speaker (+/-) ● ● White/White black - Left front speaker (+-) ●...
INSTRUCTIONS INSTRUCTIONS 21.TROUBLE SHOOTING 4.FEATURES DVD PLAYER PROBLEM CAUSE SOLUTION 1. MPEG-4 Decoder Technology Check whether power fuse 2. Compatible with MP4 (AVI/5.X), DVD (DVD-R/DVD-RW), VCD, Change fuse same as the old one blew or not SVCD, CD-RW, WMA, MP3, JPG Can not power on Some factor cause MPU wrong Press RESET button on the panel by pen...
INSTRUCTIONS INSTRUCTIONS OTHER PLAY MODE 5.BASIC OPERATION 1. SOURCE ON/OFF AUX IN: Press SRC button on panel or SOURCE button on remote control quickly to power on. Press SRC button on panel or SOURCE button on remote control longer to power off. AUX IN OPERATION 2.
INSTRUCTIONS INSTRUCTIONS BASIC FUNCTION 1. SOURCE Button Press this button to power on. Press it shortly to switch audio source mode. At AUX IN mode, press it longer to power off. 2. MUTE / TFT on/off Button Press this button to shut off the sound output, re-press this button can resume the sound output, long press this button can turn off the TFT LCD display.
Page 9
INSTRUCTIONS INSTRUCTIONS BASE 13. Disc Slot...
INSTRUCTIONS INSTRUCTIONS 7.MAIN MENU TOUCH OPERATION (PIC 1) 10. CD Program Play In CD mode, you can set the sequence of playing by the program function, the operation is as follows: When CD is playing, press ST/PROG button, then the display shows: OSD SET PROG USB/SD...
INSTRUCTIONS INSTRUCTIONS 17.CD BASIC OPERATION (Look at Picture #4) 8.OSD SETUP (PIC 2) Slide in CD/MP3 disc, unit will play it automatically. If disc is in slot, press DVD touch Minute button on main menu can to play. Hour 1. Repeat Play In CD/MP3 mode, press AMS/RPT button on remote control, to startup following, repeat CD disc: Single song repeat→...
INSTRUCTIONS INSTRUCTIONS 9.ADJUST MODE (PIC 3) 14. PBC (MENU) Play In VCD mode, press this button then play the PBC and display will show whole menu in disc, work with number button to choose song. When you are playing either song Sharp: press button to adjust of the PBC, and you want to stop to select another song, press the button to turn off.
INSTRUCTIONS INSTRUCTIONS 8. OSD 10.REMOTE CONTROL FUNCTION In playing mode, short press OSD on remote control to show all information of present disc. 4. SOURCE Button Press this button to choose audio sources. 9. Number Buttons In VCD mode, press 0-9 number button to input song. For example, you want to choose 5.
Page 14
INSTRUCTIONS INSTRUCTIONS 15. 0 - 10 + Button 24. ANGLE Button 16.VCD BASIC OPERATION (Look at picture #4) Press this button to choose desired song, In DVD mode, press this button to change section, preset stations. play angle. Slide in the VCD disc, it will play it automatically. If the disc is in slot, press DVD touch button on main menu can to play.
INSTRUCTIONS INSTRUCTIONS DIGITAL SETUP 11.TOUCHSCREEN DISPLAY FOR DISC PLAYBACK (PIC4) 1. Press button 2. Press button, then to enter. DIGITAL SETUP DIGITAL SETUP OP MODE OP MODE LINE OUT RF REMOD DYNAMIC RANGE DYNAMIC RANGE DUAL MONO DUAL MONO EXIT SETUP EXIT SETUP Touch this area to enter &...
INSTRUCTIONS INSTRUCTIONS 12.DVD MODE (PIC 5) VIDEO SETUP VIDEO SETUP AUDIO SETTING ON TOUCH SCREEN BRIGHTNESS BRIGHTNESS CONTRAST CONTRAST SATURATION SATURATION SHARPNESS SHARPNESS EXIT SETUP EXIT SETUP VIDEO SETUP VIDEO SETUP BRIGHTNESS BRIGHTNESS CONTRAST CONTRAST SATURATION SATURATION SHARPNESS SHARPNESS EXIT SETUP EXIT SETUP EQ mode: Touch the button Audio selection:...
Page 17
INSTRUCTIONS INSTRUCTIONS VIDEO SETUP VIDEO SETTING ON TOUCH SCREEN 1. Press button 2. Press button, then to enter. VIDEO SETUP VIDEO SETUP You can choose: Brightness, Contrast, Color, Hue, adjust the image effect according to BRIGHTNESS BRIGHTNESS your sight. The blue bar will show your level. CONTRAST CONTRAST SATURATION...
INSTRUCTIONS INSTRUCTIONS 13.RDS USER OPERATION (PIC 6) LANGUAGE SETUP LANGUAGE SETUP ENGLISH OSD LANGUAGE OSD LANGUAGE GERMAN AUDIO LANG AUDIO LANG SPANISH Short press on this button to SUBTITLE LANG SUBTITLE LANG FRENCH decrease radio frequency; Press PTY, when PTY is on, it means there MENU LANG MENU LANG PORTUGUESE...
Page 19
INSTRUCTIONS INSTRUCTIONS LANGUAGE SETUP 1. EON (RDS Mark) 1. Press button 2. Press button, then to enter. Indicate main unit is on auto tracking RDS mode. 2. AF (RDS Auto Tracking Mark) LANGUAGE SETUP LANGUAGE SETUP Indicate radio is auto tracking RDS channel. OSD LANGUAGE OSD LANGUAGE ENGLISH...
INSTRUCTIONS INSTRUCTIONS 14.RADIO OPERATION (Please look at picture #6) SYSTEM SETUP SYSTEM SETUP 1. Band Selection TV SYSTEM TV SYSTEM 1. KID SAFE 2. G TV TYPE TV TYPE In radio mode, press BAND button, BAND/P/N button on remote control, or touch position 3.
INSTRUCTIONS INSTRUCTIONS SYSTEM SETUP 15.DVD BASIC OPERATION (Please link with touch operation at pic 4) 1. Press button 2. Press button, then to enter. Slide in DVD disc, unit will play it automatically. If disc is in slot, press DVD touch button on main menu to play disc.
Page 22
INSTRUCTIONS INSTRUCTIONS 8. OSD 14. MENU Select In playing mode, short press OSD on remote control to show all information of present In playing mode, press PBC button on remote control to back to the menu, display will disc. show chapter and section in disc. Work with button on remote control or touch button on display to choose your desired song.
