Sony XM-2002GTW Service Manual page 21

Ref. No. Part No. Description
< THERMISTOR >
TH801 1-801-597-11 THERMISTOR
TH803 1-801-597-11 THERMISTOR
TH808 1-801-597-11 THERMISTOR
*************************************************************
LED ILLUM BOARD
****************
< DIODE >
D852 6-501-444-01 LED SELU2610C-STP6 (ILLUMINATION)
D853 6-501-444-01 LED SELU2610C-STP6 (ILLUMINATION)
< RESISTOR >
R853 1-249-417-11 CARBON
*************************************************************
LED PROT BOARD
***************
< DIODE >
D850 6-501-444-01 LED SELU2610C-STP6 (ILLUMINATION)
D851 6-501-444-01 LED SELU2610C-STP6 (ILLUMINATION)
D854 8-719-045-55 LED SEC1201C (PROTECTOR)
< RESISTOR >
R851 1-249-417-11 CARBON
R857 1-249-419-11 CARBON
*************************************************************
ACCESSORIES
************
2-319-873-11 MANUAL, INSTRUCTION (ENGLISH,SPANISH)
*************************************************************

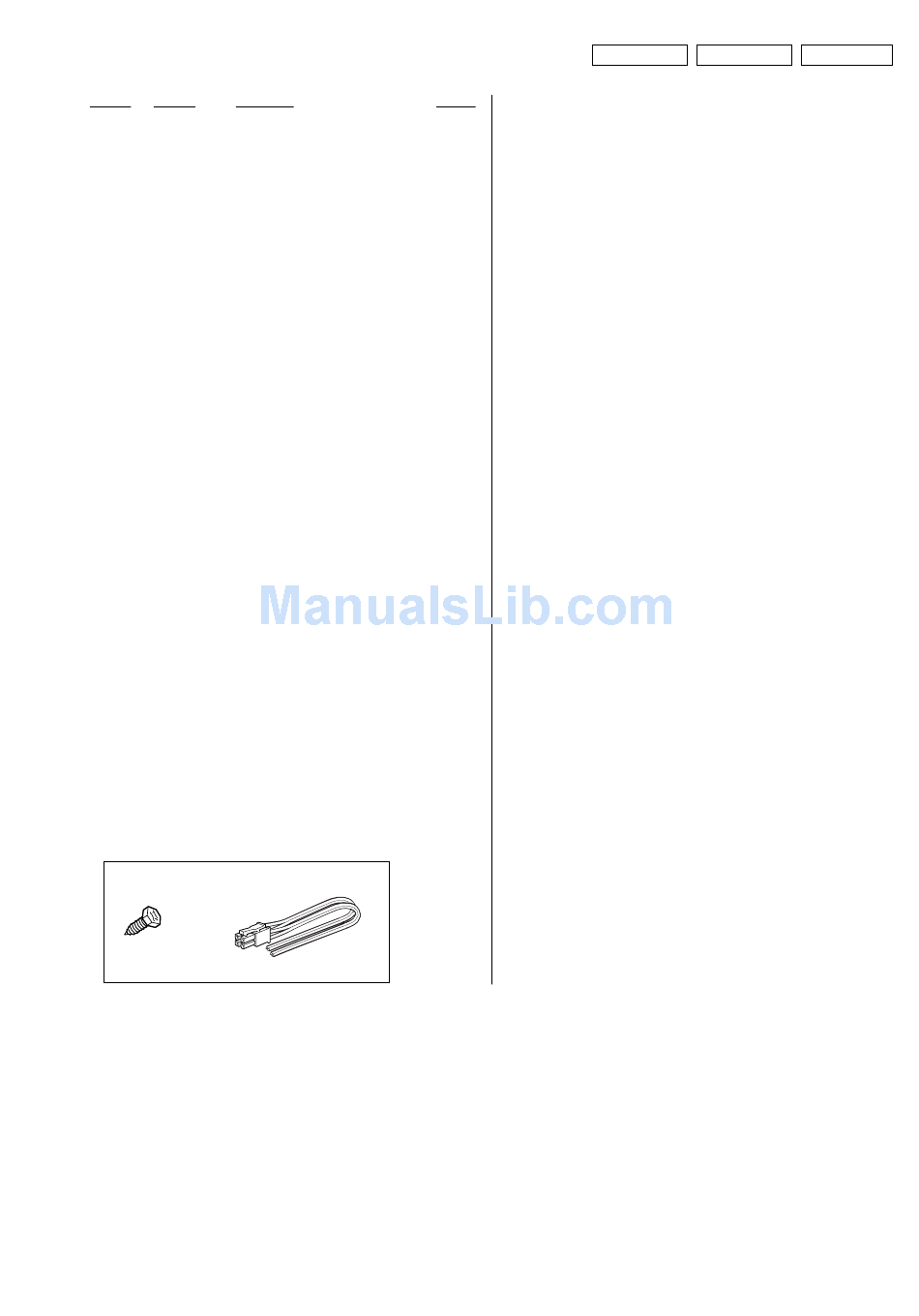

PARTS FOR INSTALLATION AND CONNECTIONS
***************************************
101 X-2108-372-1 SUB SCREW ASSY (MOUNTING SCREW)
102 1-690-779-31 CORD (WITH CONNECTOR) (0.2m)
101 102
φ 5 × 15
(× 4)
Remark
1K 5% 1/4W
1K 5% 1/4W
1.5K 5% 1/4W
0.2 m
XM-2002GTW
AMPLIFIER LED ILLUM LED PROT
21
