3-2.

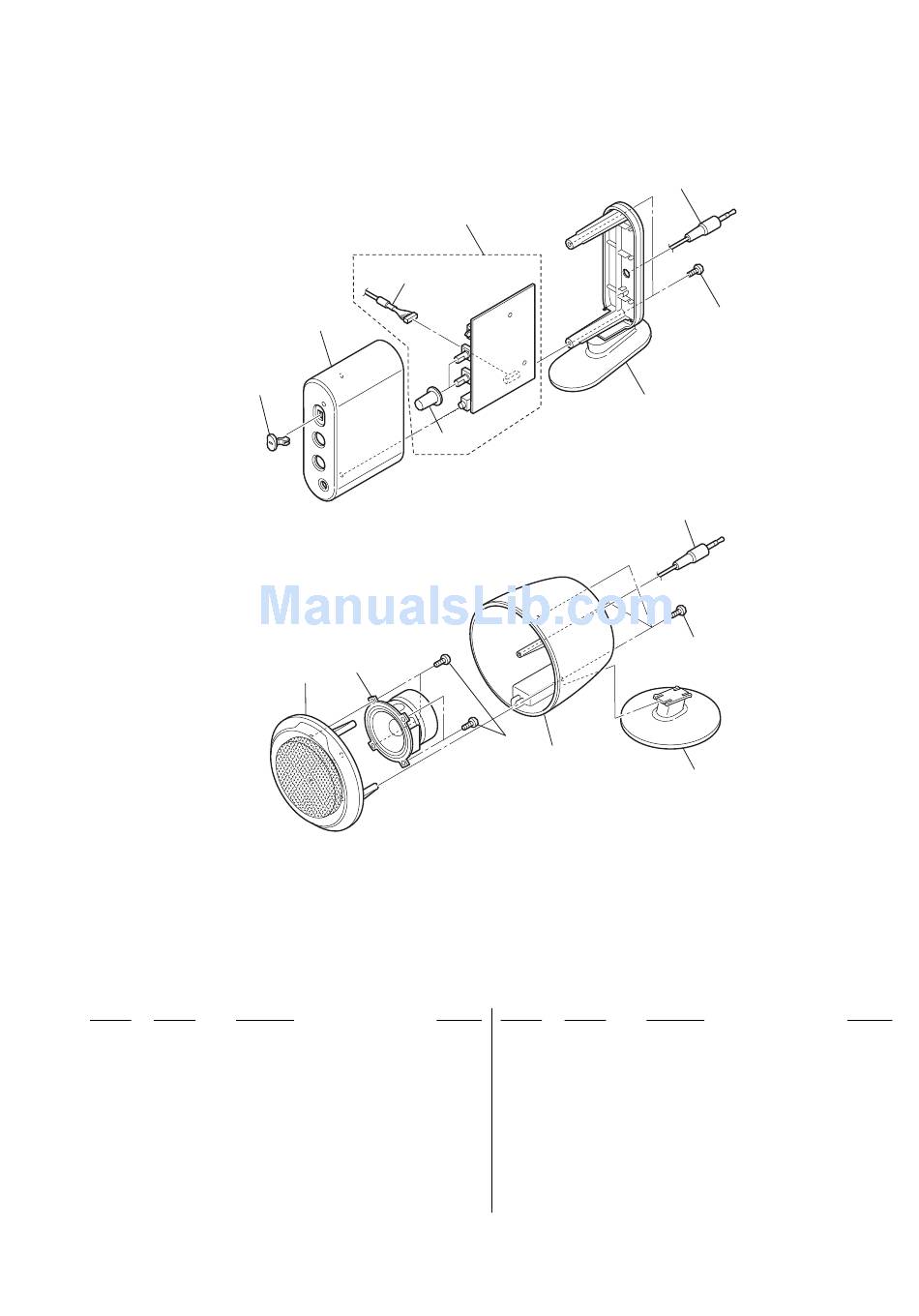

CONTROL BOX, SATELLITE SPEAKER SECTION

51
Ref. No. Part No. Description
51 2-345-704-01 KNOB, POWER
52 2-345-702-01 CABINET (C), FRONT
53 1-830-411-11 CABLE 6P
54 2-345-705-01 KNOB, VOLUME
55 A-1103-095-A CONTROL BOARD, COMPLETE
56 2-345-703-01 CABINET (C), REAR
57 3-252-829-01 SCREW (B3), (+) BV TAPPING
58 1-830-409-11 CABLE, STEREO
59 X-2055-167-1 CABINET (S) FRONT SUB ASSY (BLACK)
55
53
52
54
60
59
Remarks
(US, CND, C&SA, SP, KR)
58
56
64
57
61
Ref. No. Part No. Description
59 X-2055-350-1 CABINET (S) FRONT SUB ASSY (SILVER) (US)
60 1-826-096-11 SPEAKER UNIT (57mm)
61 2-345-693-01 CABINET (S), REAR (BLACK)
61 2-345-693-11 CABINET (S), REAR (SILVER) (US)
62 2-345-695-01 STAND
63 3-253-143-01 SCREW (B2.6), (+) P TAPPING
64 1-830-408-11 CABLE, MONO
SRS-D211
Ver. 1.1
57
63
62
Remarks
(US, CND, C&SA, SP, KR)
9
