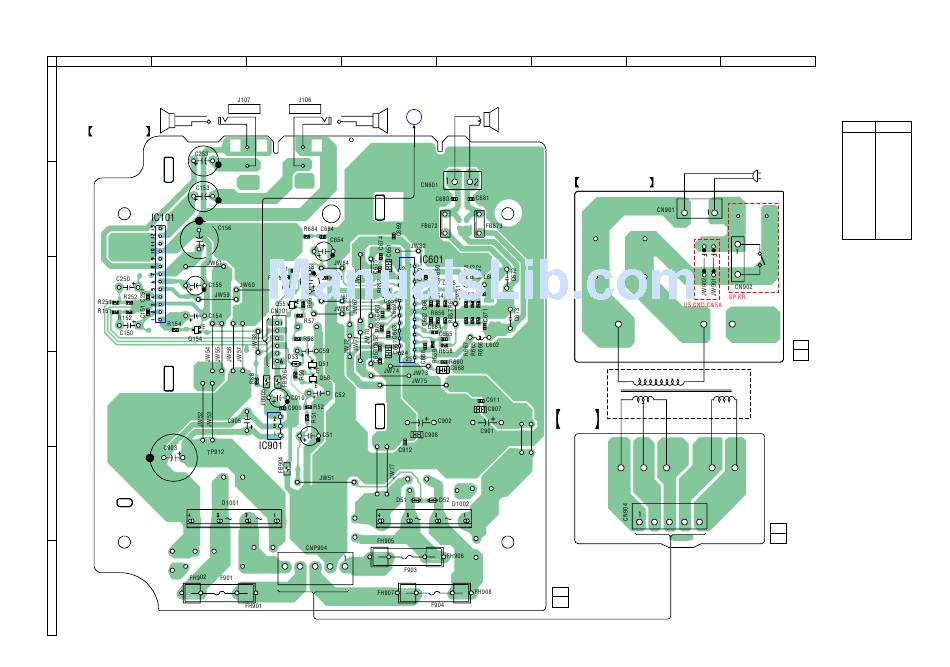

2-2. PRINTED WIRING BOARD – AMP SECTION –
1
SATELLITE
SPEAKER
(R-CH)
A
AMP BOARD
B
C
D
E
F
SRS-D211
2 3
SATELLITE
SPEAKER
(L-CH)
FRONT R FRONT L
– +
4 5
CONTROL
BOARD
(Page 7)
SPEAKER
A
(SUB WOOFER)
TRANS B
BOARD
– +
11
(11)
1-865-413-
5 5
6 7
TRANS A BOARD
S901
(POWER)
1-865-415-
1-865-416-
SRS-D211
Ver. 1.1
8
• Semiconductor
Location
Ref. No. Location
D51 E-4
D52 E-4
D53 D-3
D1001 E-2
D1002 E-4
AC IN
IC101 B-2
IC601 C-4
IC901 D-3
Q51 D-3
Q55 C-3
Q56 D-3
Q154 C-2
11
(11)
T901
POWER
TRANSFORMER
11
(11)
